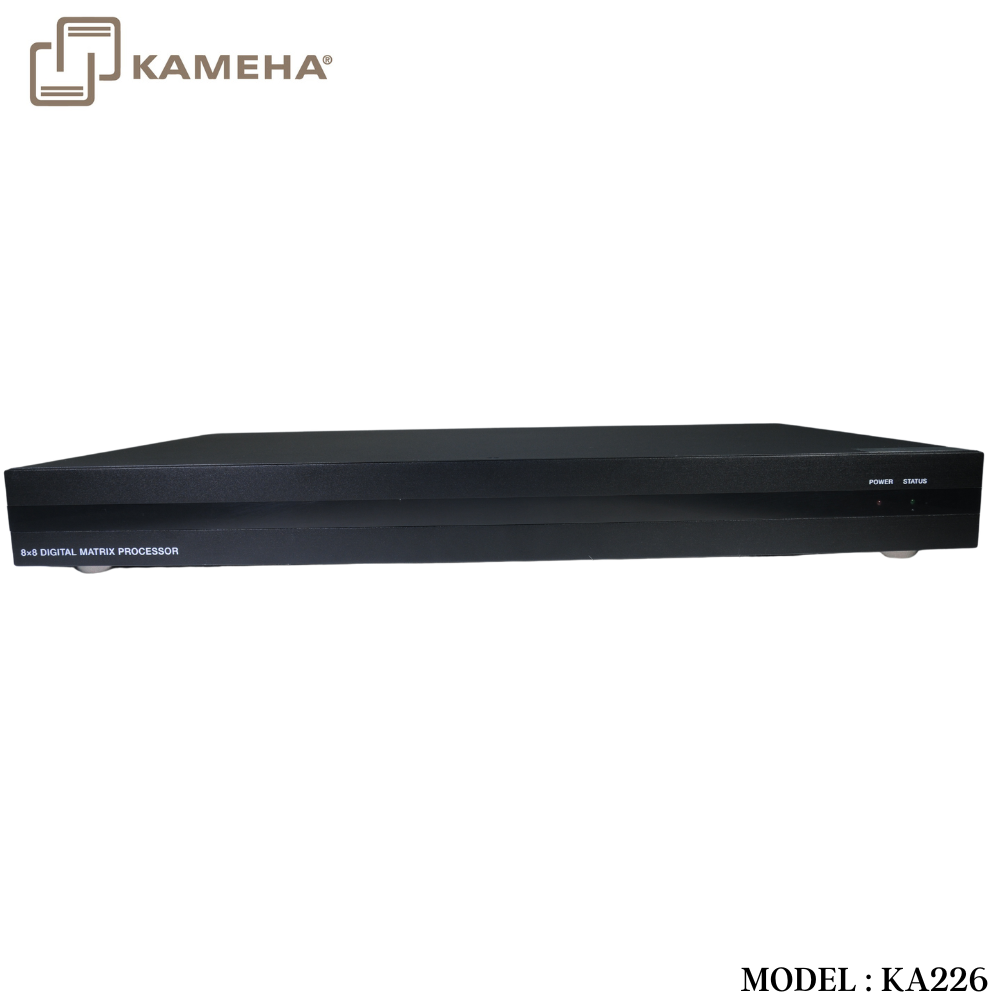

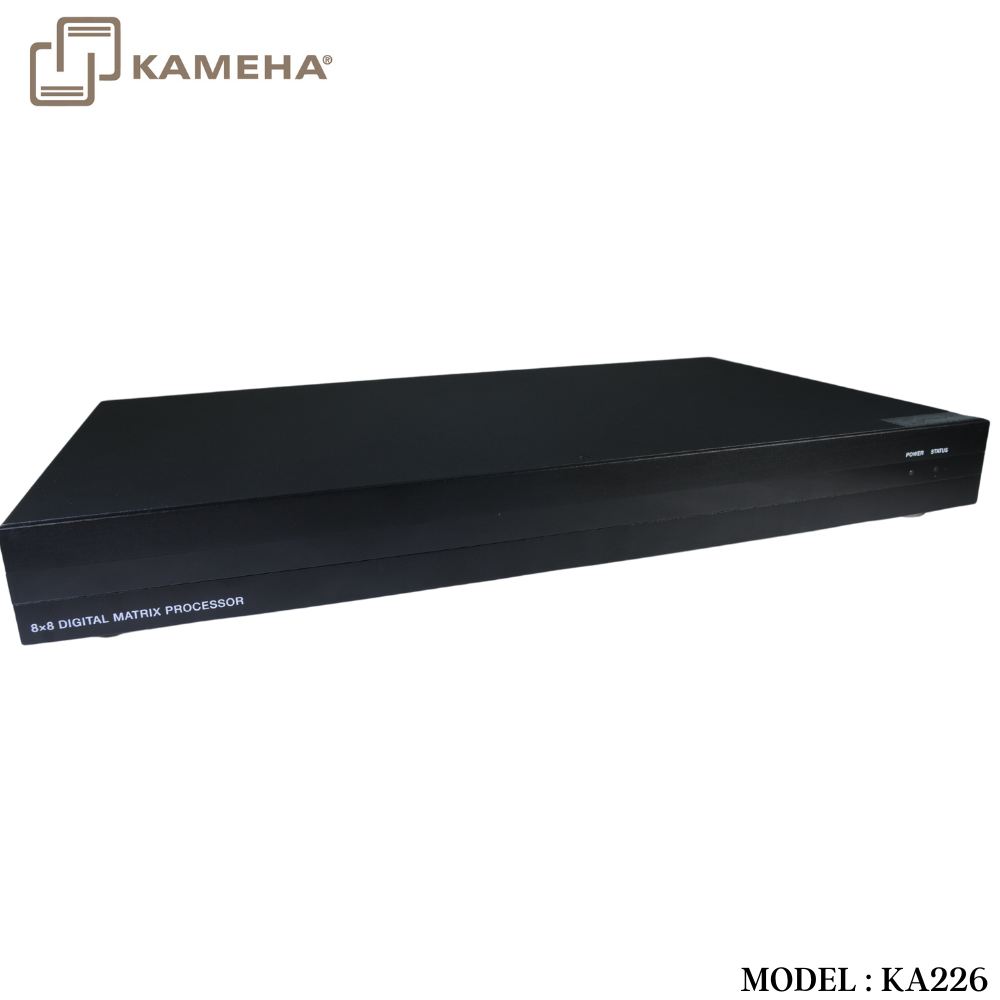

KA226 8X8 DIGITAL AUDIO PROCESSOR – 1U CHASIS

8X8 DIGITAL AUDIO PROCESSOR – 1U CHASIS

Introduction

This digital audio processor is typically used for video conference, distant learning, and
telemedicine. It features 8-ch MIC/linear inputs, and 8-ch linear outputs. The product can
process audio signals with algorithms, such as, full-band Adaptive Echo Cancellation (AEC),
Adaptive Noise Suppression (ANS), Automatic Gain Control (AGC), and Auto Mixer, to output
a clear, clean and resonant sound with high Signal-to-Noise ratio. Concise but intelligent, the
processor is designed to be applied in scenarios without additional software assistance for
debugging. It is ready to use after installation, perfect for project implementation and testing.
The product can be applied in a diverse range of installations and applications across
industries, such as, smart system integration in small-medium sized conference room,
instruction recording and distance teaching in education, court trial recording and virtual
court trial in judiciary, surgery recording and video consultation in healthcare service, and
command center establishment in governmental projects.

Features

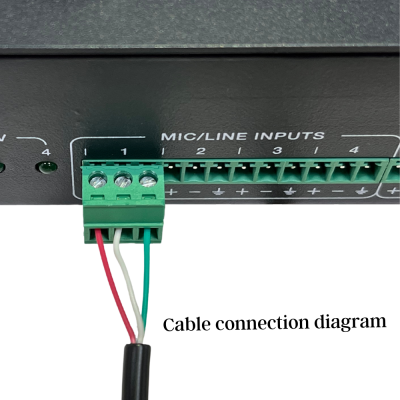

• Provide 8-ch balanced MIC/linear inputs and 8-ch balanced linear outputs
• Support adaptive feedback suppression function
• Support the full-band adaptive acoustic echo cancellation technology
• Dynamic adaptive noise reduction technology is provided to reduce noise with signal level
  up to 18dB
• Auto Mixer function is provided to set the order of priority when multiple microphones are input
  at one time
• Inclusive of Digital signal processing modules such as Expander, Equalizer, Compressor,
  Auto Gain Control, Limiter, High Pass Filter, Low Pass Filter and Delay
• Capable to switch matrix routings
• Support volume control, meter, scene control, etc.
• 48V phantom power supply for 8-ch MIC inputs
• 48KHz sampling rate, 24-bit for A/D or D/A conversion

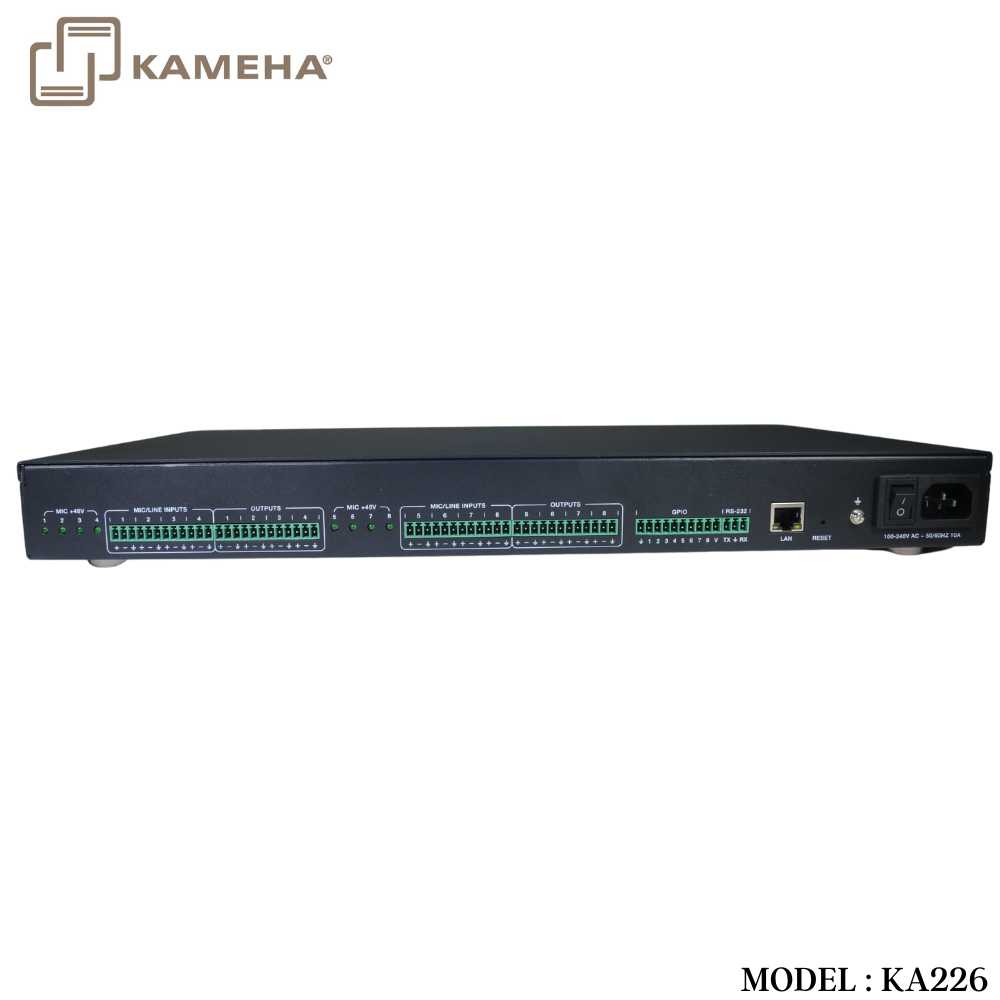

• Support 8-ch programmable GPIO function
• Compatible to run on Win 7 and Win 10, with standard RJ45 interface control
• Support RS-232 serial commands control

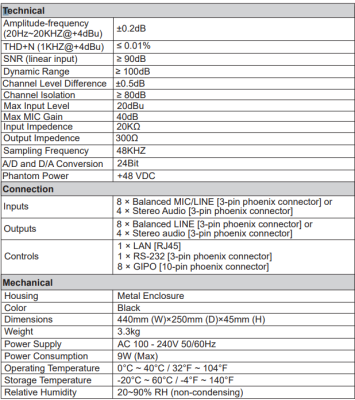

Specification
