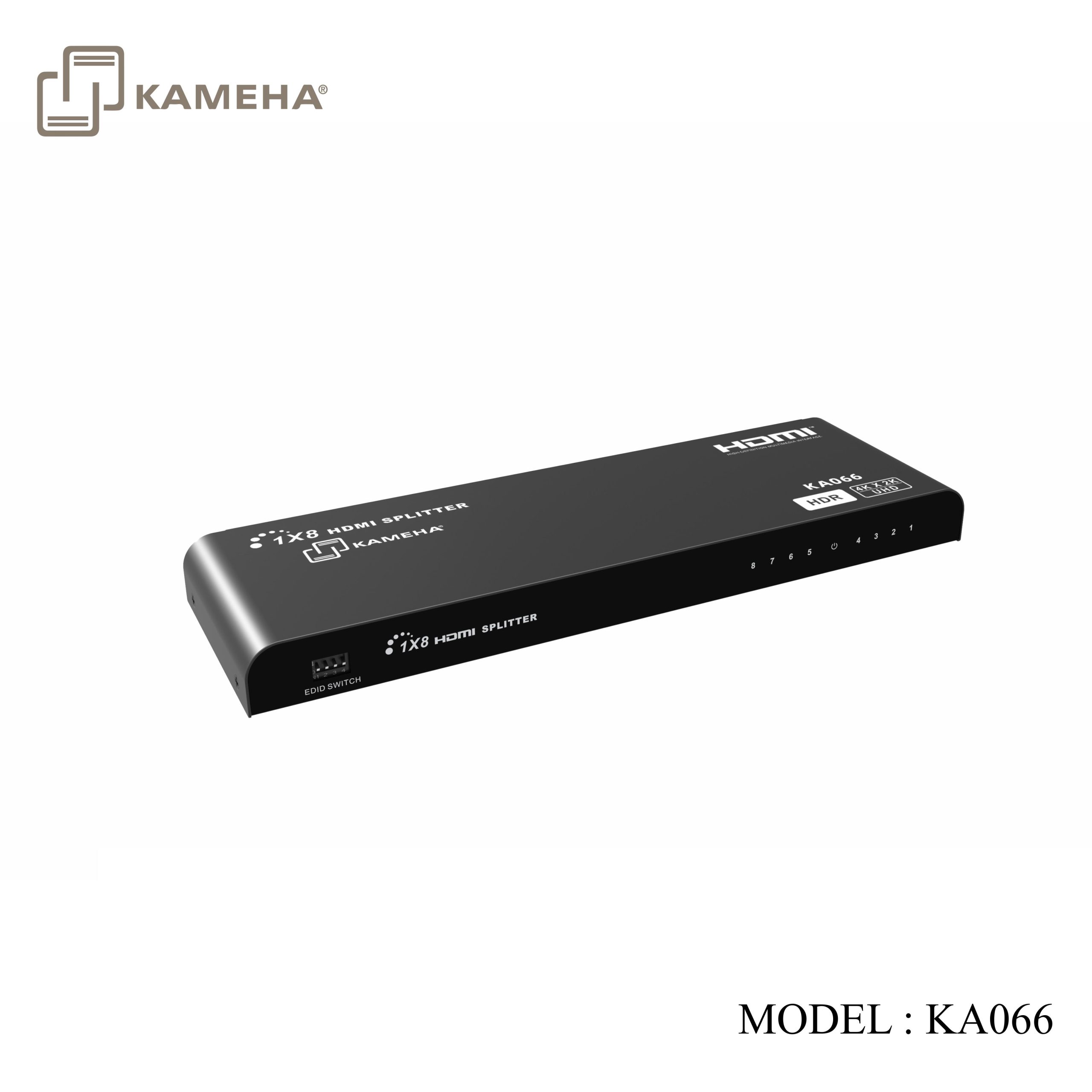

KA066 8 PORT HDMI SPLITTER V2.0 – KAMEHA

Introduction

1×8 HDMI splitter distributes 1 HDMI source to 8 HDMI displays simultaneously. Apply for STB, DVD, Media Player, Laptop, D-VHS and other HD-Player devices. It’s compatible with HDMI 3D and 4Kx2K.



• Model KA066 can only cascade max up to 2 units (2 layers) only

Feature：

1. Distribute 1 HDMI source to 8 HDMI displays
2. Support ultra HD resolution 4K×2K@60Hz
3. Support HDMI 3D
4. Support YUV 4:4:4
5. Support HDR
6. HDMI 2.0 and HDCP2.2 compliant
7. Low power consumption
8. Support configures the video resolution automatically according to the capabilities of each
   connected monitor, allows simultaneous mixed 4K and 1080p display outputs
9. Plug and play



Specification

Items	Specifications
Input ports	1 x HDMI
Output ports	8 x HDMI
Power indicator led	1 xLED
Signal indicator led	8 xLED
HDMI Version	Compatible with   HDMI1.4,HDMI2.0
HDCP Version	Compatible with HDCP1.4,HDCP2.2
HDMI Resolution	480i/480p/576i/576p/720p/1080i/1080p/ 4K×2K@24/25/30/60Hz
Frequency Range	25MHz~600MHz
Video form	Support 3D video and 4K×2K@30/60Hz ultra HD video
Input and output TMDS signal	0.7~1.5Vp-p(TMDS)
Input and output DDC signal	5Vp-p(TTL)
Audio	Support standard audio and DSD（Direct Stream Digital）and HD(HBR) audio
HDR	Support
EDID management	Support smart EDID management, available to display different resolution monitors at the same time
Working temperature	0℃～60℃
Power supply	12V/1A
Power consumption	<8W
Dimension	262mm(L)x81.6mm(W)x23.5mm(H)
Weight	453g
Color	Black

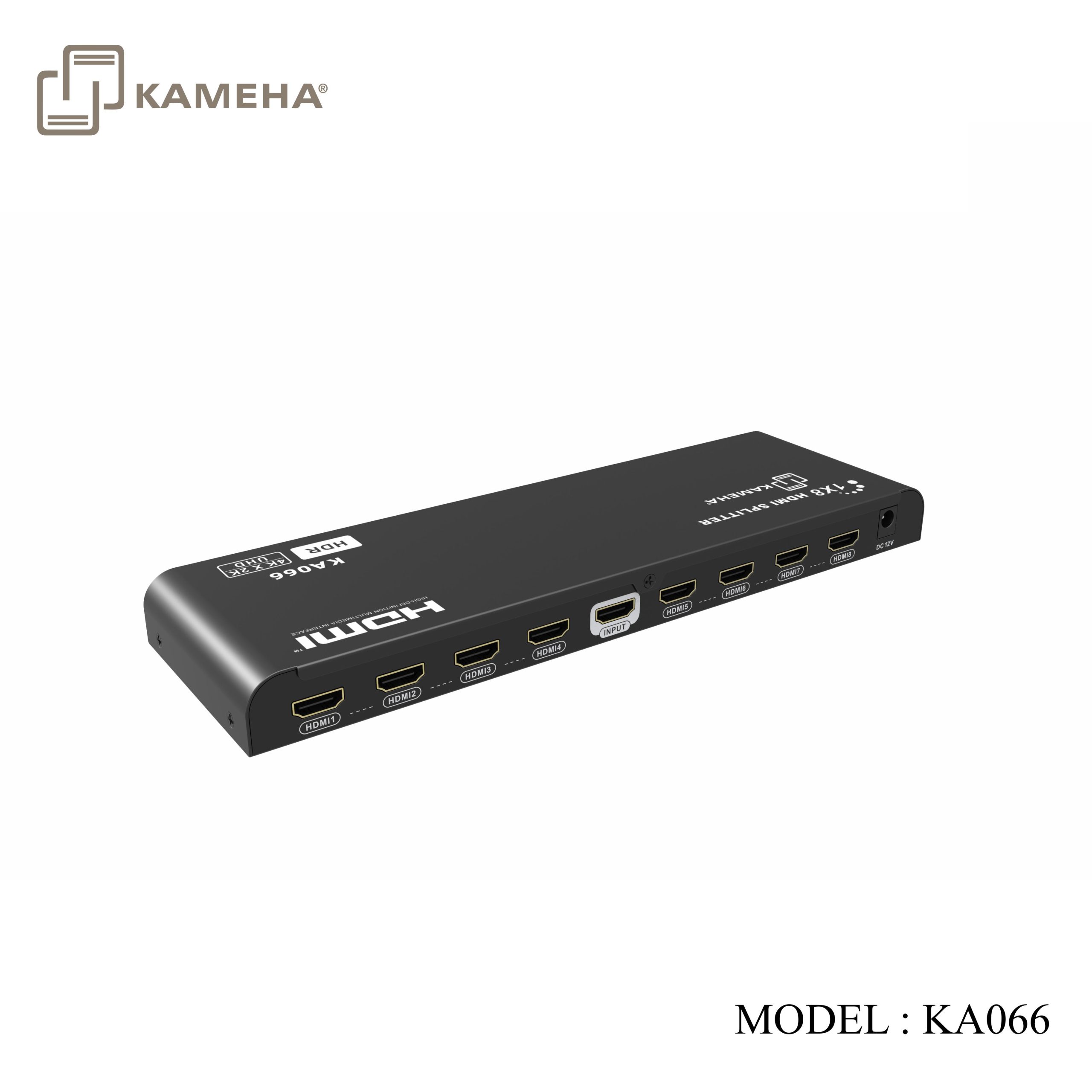

Panel Description















Click here for product PDF file
Click here for product manual

Weight	0.90 kg
Dimensions	37.00 × 16.00 × 9.00 cm
Warranty	1 Year Warranty
What's in the box	1* HDMI Splitter 1* DC 12V/2A Power Adapter (3 months warranty) 1* User Manual
