Description

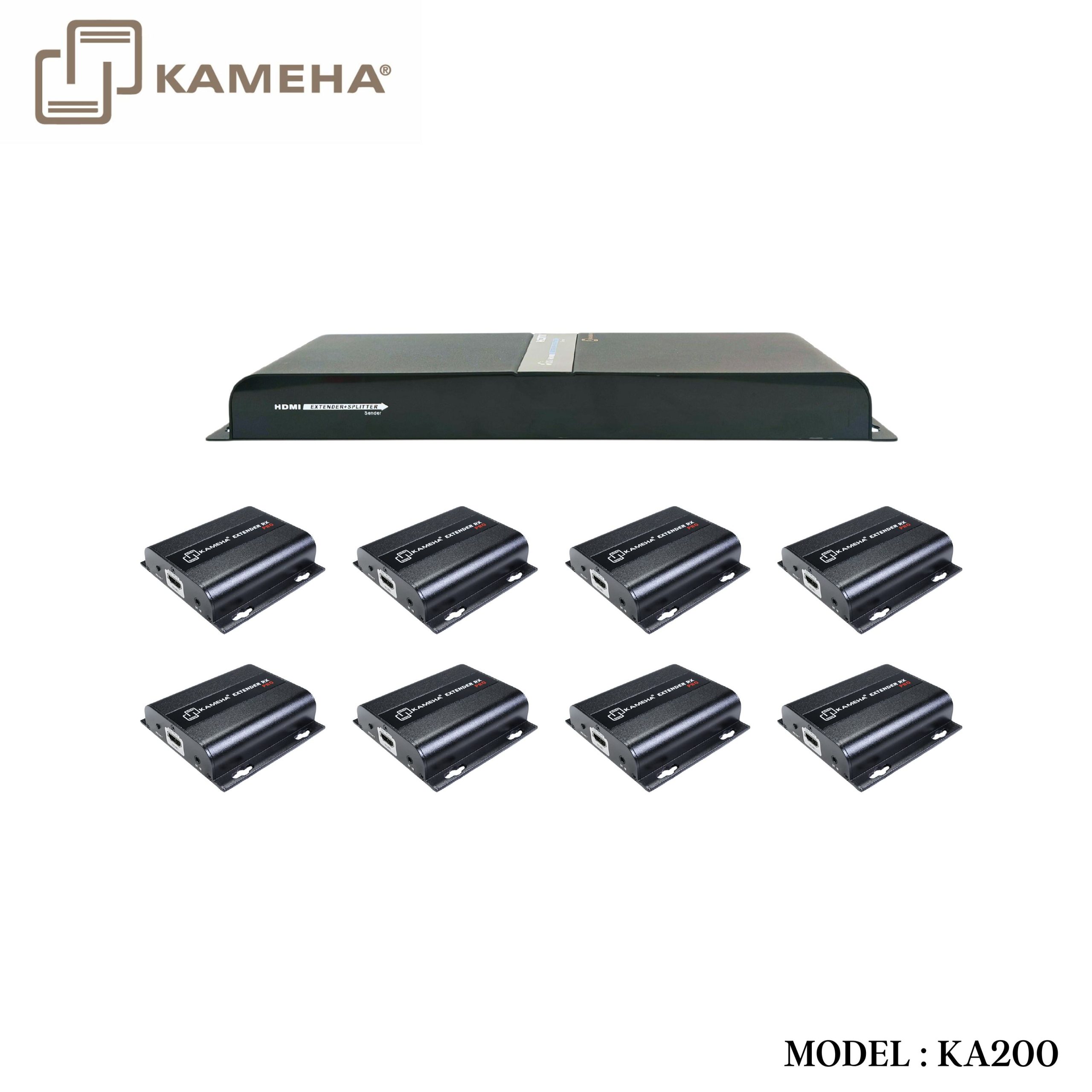

PRICE INCLUDED 8 RECEIVER

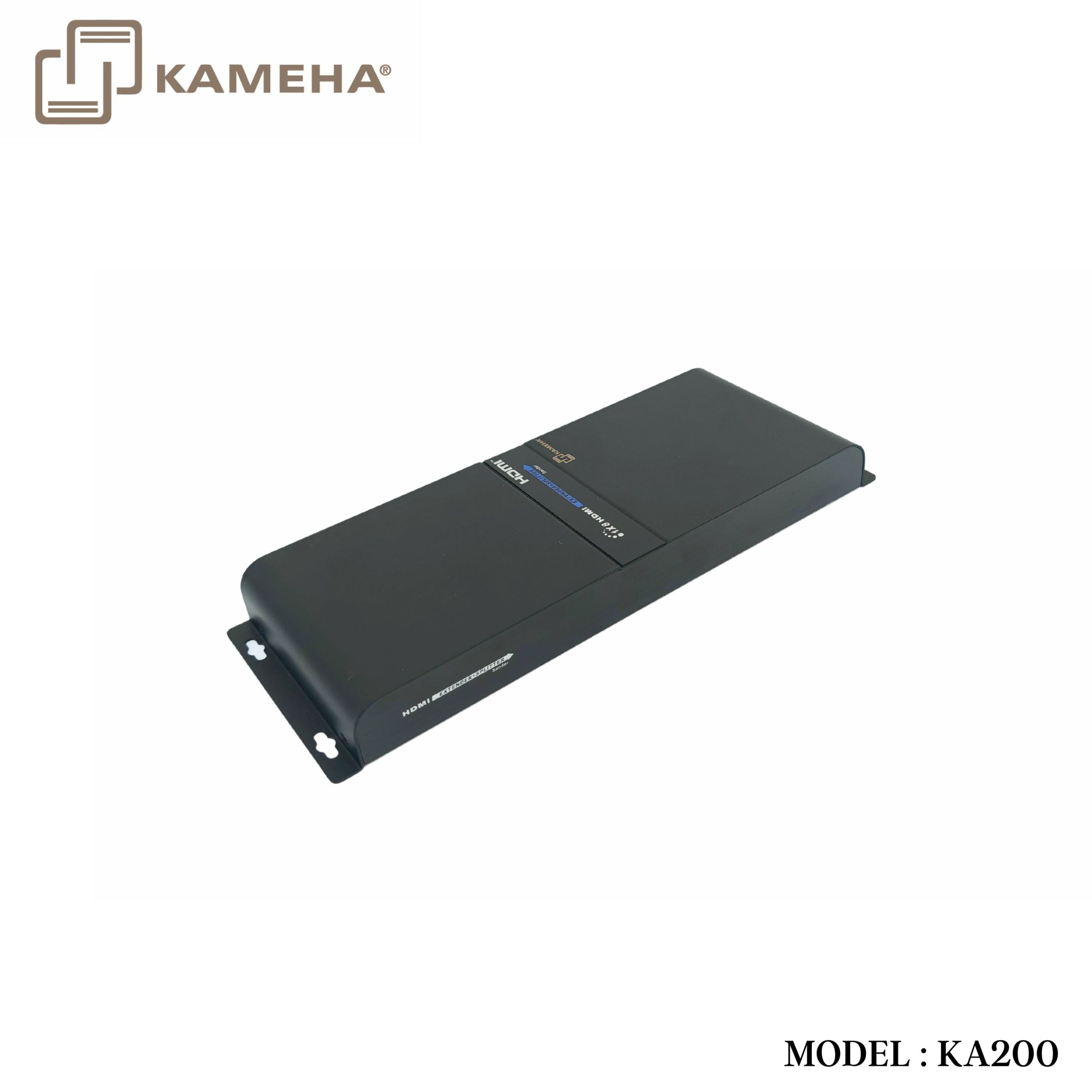

This product combines the extender and splitter function to split 1 HDMI signal to 8 identical HDMI signals via network cable and it is used as a sender to work with 8 receivers to transmit these 8 HDMI signals up to 100 meters. With the IR signal transmission to control the source device operation in long distance, it I widely applied in HD audio visual display room, HDTV, Set top box, DVD etc exhibition center and digital monitoring system.
Features
- Adopting a new high-definition digital transmission technology, lower delay and more stable performance.
- It split one HDMI input signal to four identical network output signals.
- Extend HDMI signal up to 100m over CAT5/5E/6 cable.
- Support full HD resolution 1080p@60Hz.
- Plug and play, use easily.
- Metal housing and mountable design.
Specification
| Item | Specification |
| HDMI signal | HDMI 1.3 compatible with HDCP 1.4 |
|
Support resolutions |
480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz |
| Transmit distance | Up to 100meters transmission distance for 1080p60Hz full HD over single CAT6 |
| IR signal | Support 20~60kHz IR device |
| Input | 1x HDMI |
| Output | 8x RJ45 |
| Connection indicator led | 8x LED |
| Working temperature | 0°C~60°C |
| Power supply | 12V3A |
| Power consumption | <24W |
|
Protection |
Lightning protection
Surge Protection ESD Protection |
| Dimension | 299×110.7×29.6mm |
| Weight | 826g |
| Color | Black |

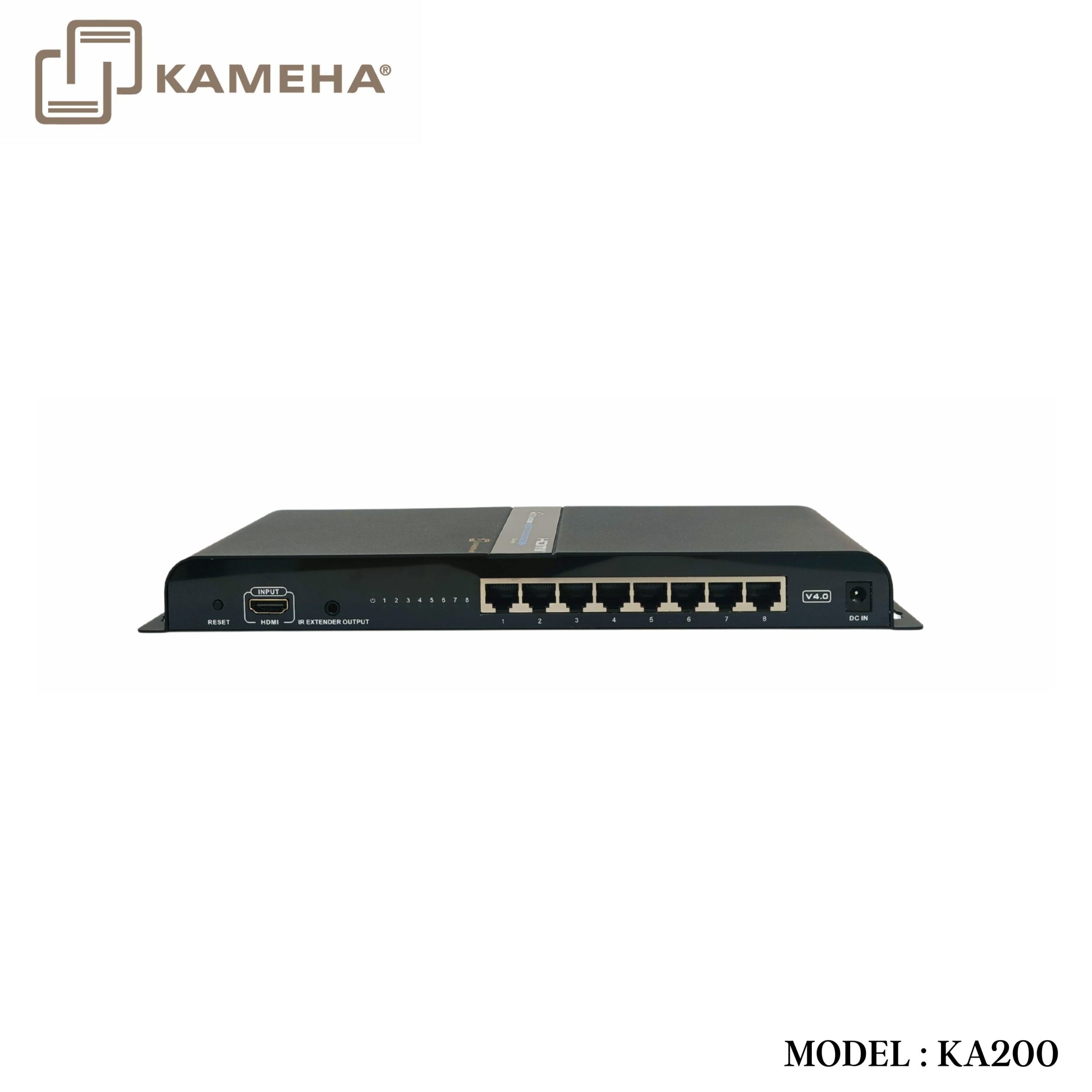

Panel description
Connection
Additional information
| Weight | 1.50 kg |
|---|---|
| Dimensions | 36.50 × 15.00 × 8.50 cm |
| WARRANTY | 1 YEAR WARRANTY |
| WHAT'S IN THE BOX | 1* HDMI Extender TX |
