Description
Introduction

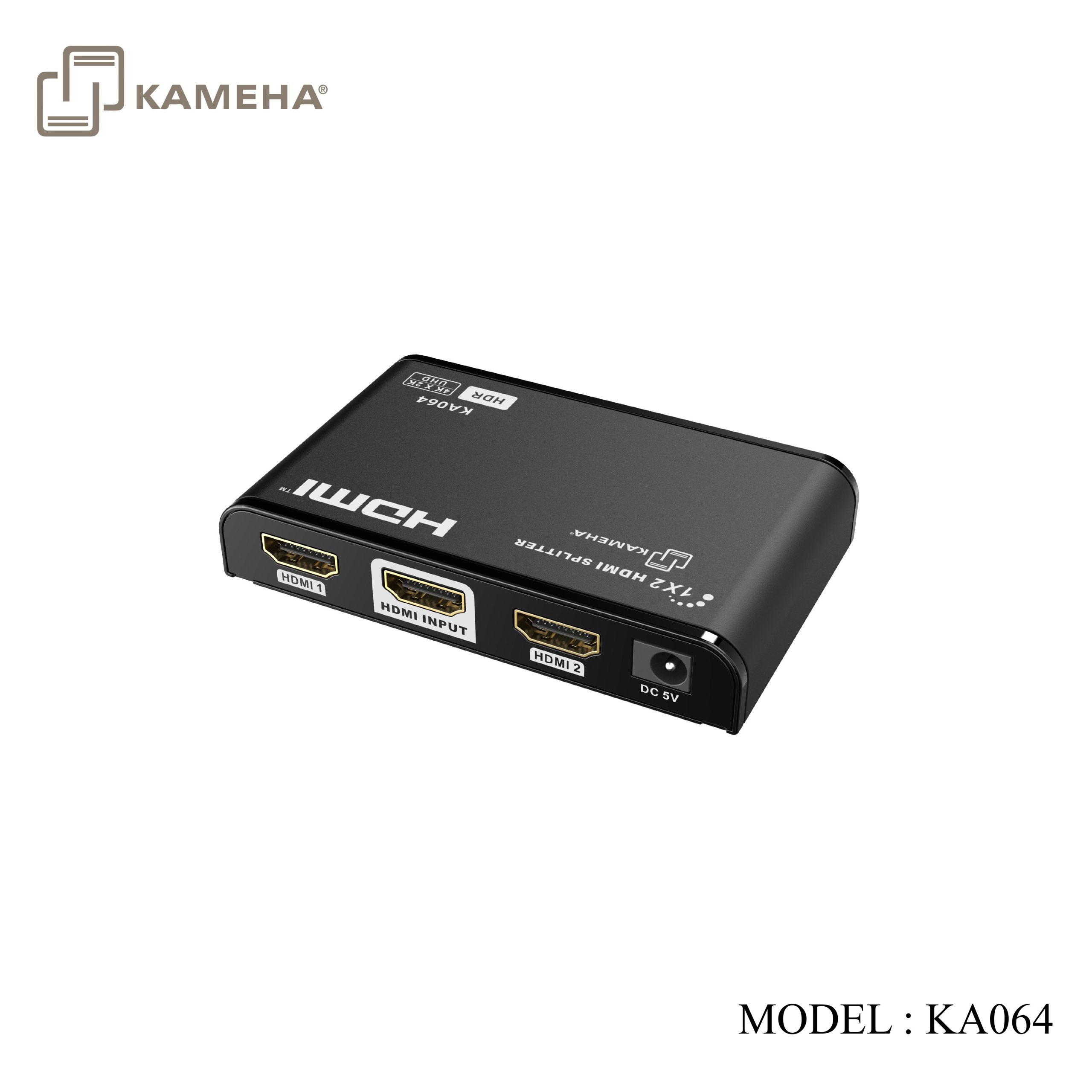

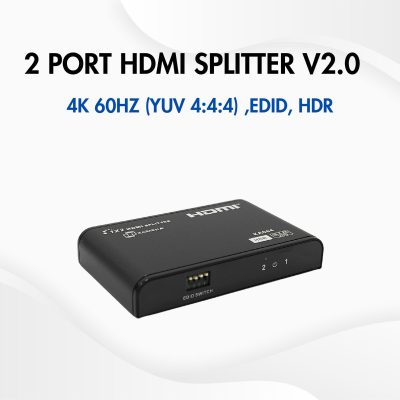

1×2 HDMI splitter distributes 1 HDMI source to 2 HDMI displays simultaneously. Apply for STB, DVD, Media Player, Laptop, D-VHS and other HD-Player devices. It’s compatible with HDMI 3D and 4Kx2K.
Features：

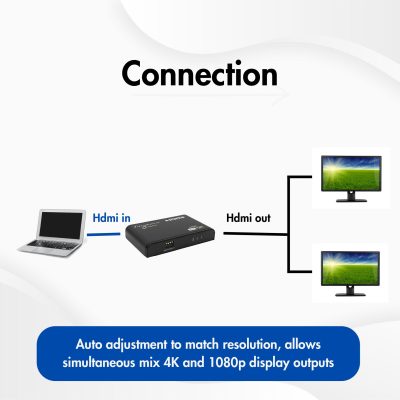

1.Distribute 1 HDMI source to 2 HDMI displays
2.Supports resolution up to ultra HD 4K×2K@60Hz
3.Support highest bandwidth up to 18Gpbs
4.Support HDMI 3D
5.Plug and play, easy to use
6.Good Compatibility
7.Metal heat sink design，works more stably
8.HDMI2.0 and HDCP2.2 compliant
9.Includes 5V DC external power supply
Specification
| Items | Specifications |
| Input ports | 1 x HDMI |
| Output ports | 2 x HDMI |
| Power indicator led | 1 xLED |
| Signal indicator led | 2 xLED |
| HDMI Version | Compatible with HDMI 2.0, HDMI 1.4 |
| HDCP Version | Compatible with HDCP1.4, HDCP2.2 |
| HDMI Resolution | 480i/480p/576i/576p/720p/1080i/1080p/
4K×2K@24/25/30/60Hz |
| Frequency Range | 25MHz~594MHz |
| Video form | Support 3D video and
4K×2K@30/60Hz ultra HD video |
| Input and output TMDS signal | 0.7~1.2Vp-p(TMDS) |
| Input and output DDC signal | 5Vp-p(TTL) |
| Audio | Support standard audio and DSD（Direct Stream Digital）and HD(HBR) audio |
| HDR | Support |
|

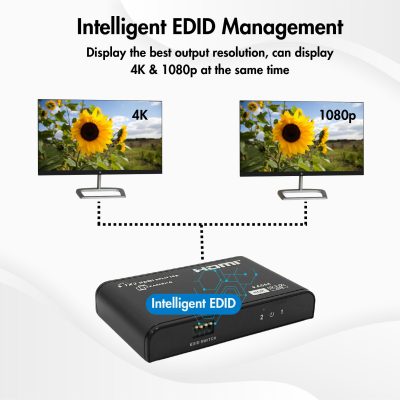

EDID management |
Support smart EDID management, available to display different resolution monitors at the same time |
| Working temperature | 0℃～60℃ |
| Power supply | DC5V/1A |
| Power consumption | <2.5W |
| Dimension | 96mm(L)x59mm(W)x 16.8mm(H) |
| Weight | 100g |
| Color | Black |

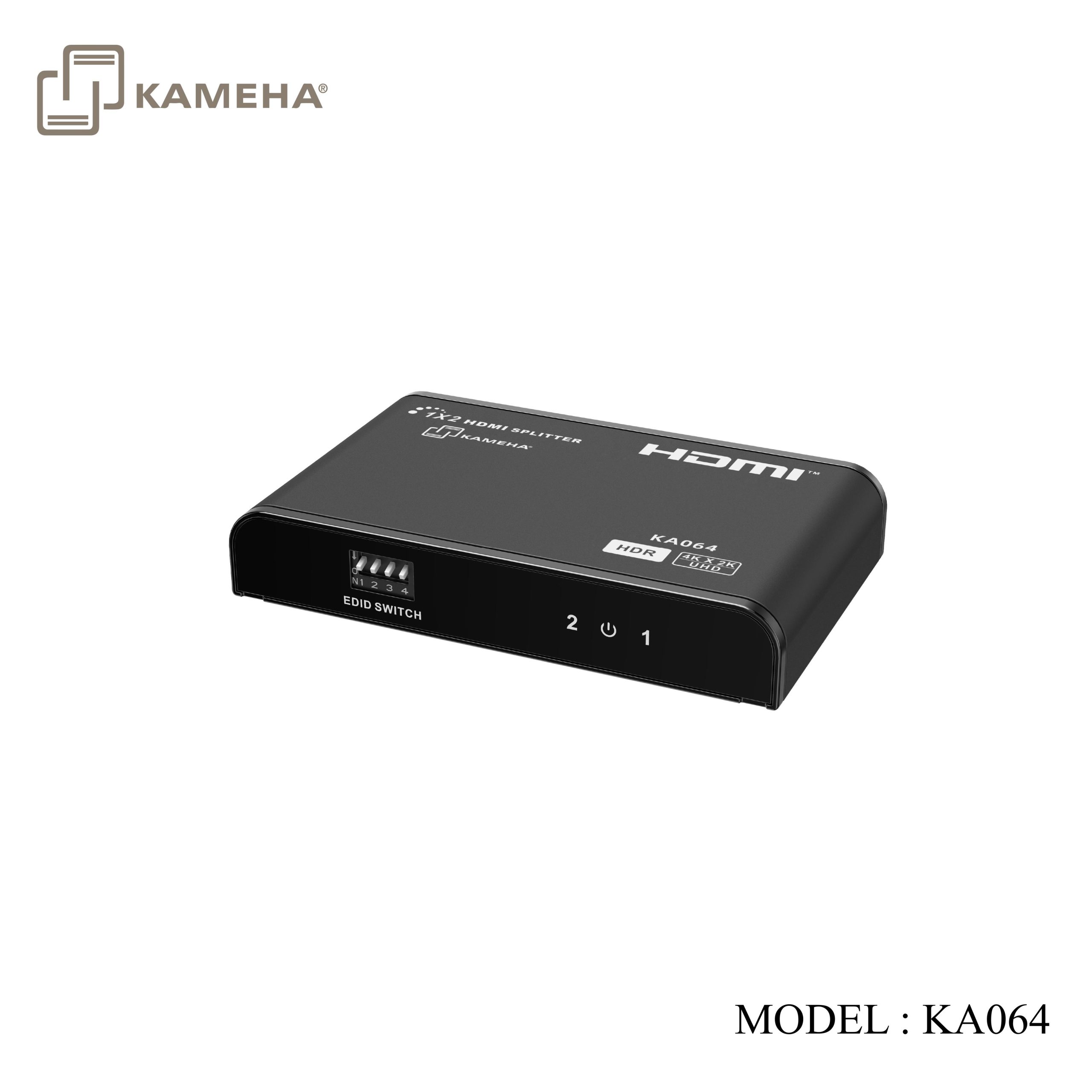

Panel Description
Click here for product PDF file
Click here for product manual
Additional information
| Weight | 0.25 kg |
|---|---|
| Dimensions | 12 × 9 × 8 cm |
| Warranty | 1 Year Warranty |
| What's in the box | 1* HDMI Splitter |
