The 18Gbps 1×16 HDMI Splitter can distribute 1 HDMI source signal to 16 HDMI display devices synchronously. Supported video resolution is up to 4K2K@50/60Hz 4:4:4. The product supports advanced EDID management. It also supports HDR, HDR10, HDR10+, HLG and Dolby vision function. This product is widely used in multimedia conference halls, TV teaching, large-screen display projects and other places.
- Model KA116 is suitable for point-to-point usage, do not suitable for HDMI mix and match solution.
- Refer to this page for 5 top HDMI issues our customers face : https://kameha.com.my/47030-2/
Features
-
- HDMI 2.0b, HDCP 2.2 / 1.x and DVI 1.0 compliant
-
- Support 18Gbps video bandwidth
-
- Support video resolution up to 4K2K@50/60Hz 4:4:4
-
- Support digital audio format: DTS-HD/Dolby-true-HD/LPCM 7.1/DTS/ Dolby-AC3/DSD
-
- Support HDR, HDR10, HDR10+, HLG and Dolby vision
-
- Advanced EDID management
-
- Support length up to 10meter using standard HDMI cable
Specifications
| Technical | |
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2/1.x |
| Video Bandwidth | 594MHz/18Gbps |
| Video Resolution | Up to 4k2k@50/60Hz 4:4:4 |
| Color Depth | 8-bit,10-bit,12-bit(1080p@60Hz)
8-bit (4K2K@60Hz YUV4:4:4) 8-bit,10-bit,12-bit(4K2K@60Hz YCbCr 4:2:2/4:2:0) |
| Color Space | RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2/4:2:0 |
| HDR | Support HDR, HDR10, HDR10+, HLG, Dolby vision |
| HDMI Audio Formats | PCM2.0/5.1/7.1CH, Dolby 5.1, DTS5.1, Dolby-
TrueHD, DTS-HD |
| ESD Protection | Human body model—±8kV (Air-gap discharge) &
±4kV (Contact discharge) |
| Connection | |
| Input | 1×HDMI Type A (19-pin female) |
| Output | 16×HDMI Type A (19-pin female) |
| Control | 1×SERVICE (Micro USB, Update port)
1x DIAL switch [5-pin] |
| Mechanical | |
| Housing | Metal Enclosure |
| Silkscreen Color | Black |
| Dimensions | 300mm (W) × 100mm (D) × 28mm (H) |
| Weight | 900g |
| Power Supply | Input: AC100 – 240V 50/60Hz, Output: DC 12V/2.5A
(US/EU standards, CE/FCC/UL certified) |
| Power Consumption | 12W |
| Operation
Temperature |
0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity | 20~90% RH (non-condensing) |

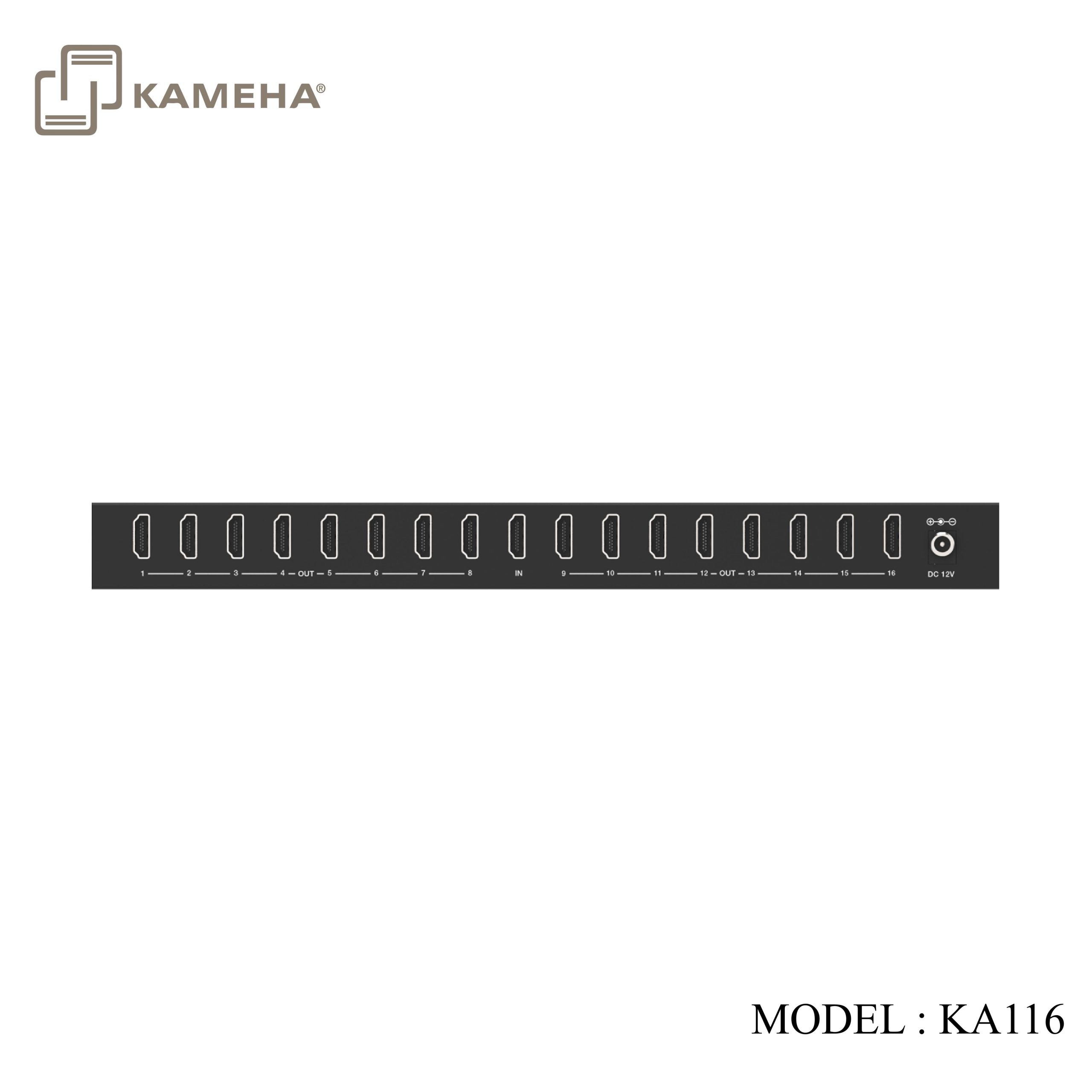

Operation Controls and Functions

| No. | Name | Function Description |
| 1 | POWER switch | Press this switch to power on/off the device. |
| 2 | POWER LED | When the device is powered on, the power LED will be on. |
| 3 | IN LED | When the HDMI IN port connects an active source device, the green LED will be on. |
| 4 | OUT LED
(1~16) |
When the HDMI OUT port connects an active
display device, the corresponding green OUT1/5 LED will be on.3 4 |
| 5 | HDMI IN port | HDMI input port, connect to HDMI source device such as DVD or set-top box with an HDMI cable. |
| 6 | HDMI OUT
port (1~16) |
HDMI output port, connect to the HDMI display device such as TV or Monitor with an HDMI cable. |
| 7 | DC 12V | Plug the DC 12V power supply into the unit and connect the adaptor to an AC outlet. |
| 8 | EDID DIAL switch | Used to set EDID mode. Please refer to Section “6. EDID Mode” for details. |
| 9 | SERVICE port | Firmware update port. |
EDID Mode
The defined EDID setting list of the product is shown as below:
| EDID Mode | EDID Description |
| 11111 | 1080P, Stereo Audio 2.0 |
| 11110 | 1080P, Dolby/DTS 5.1 |
| 11101 | 1080P, HD Audio 7.1 |
| 11100 | 1080I, Stereo Audio 2.0 |
| 11011 | 1080I, Dolby/DTS 5.1 |
| 11010 | 1080I, HD Audio 7.1 |
| 11001 | 1080P 3D, Stereo Audio 2.0 |
| 11000 | 1080P 3D, Dolby/DTS 5.1 |
| 10111 | 1080P 3D, HD Audio 7.1 |
| 10110 | 4K2K30Hz_444, Stereo Audio 2.0 |
| 10101 | 4K2K30Hz_444, Dolby/DTS 5.1 |
| 10100 | 4K2K30Hz_444, HD Audio 7.1 |
| 10011 | 4K2K60Hz_420, Stereo Audio 2.0 |
| 10010 | 4K2K60Hz_420, Dolby/DTS 5.1 |
| 10001 | 4K2K60Hz_420, HD Audio 7.1 |
| 10000 | 4K2K60Hz_444, Stereo Audio 2.0 |
| 01111 | 4K2K60Hz_444, Dolby/DTS 5.1 |
| 01110 | 4K2K60Hz_444, HD Audio 7.1 |
| 01101 | 4K2K60Hz_444, Stereo Audio 2.0 HDR |
| 01100 | 4K2K60Hz_444, Dolby/DTS 5.1 HDR |
| 01011 | 4K2K60Hz_444, HD Audio 7.1HDR |
| 01010 | 1080P, Stereo Audio 2.0 |
| 01001 | 1080P, Stereo Audio 2.0 |
| 01000 | 1080P, Stereo Audio 2.0 |
| 00111 | 1080P, Stereo Audio 2.0 |
| 00110 | 1080P, Stereo Audio 2.0 |
| 00101 | 1080P, Stereo Audio 2.0 |
| 00100 | 1080P, Stereo Audio 2.0 |
| 00011 | 1080P, Stereo Audio 2.0 |
| 00010 | 1080P, Stereo Audio 2.0 |
| 00001 | 1080P, Stereo Audio 2.0 |
| 00000 | PC control mode |
Application Example
