Description
This product distributes SDI signal to 2 simultaneous SDI outputs. It supports full SDI signal input and output with easy operation and high reliability.
This splitter can be widely applied in SDI broadcast room, no-linear editing field, CCTV security and training showroom etc.
Features
- SDI splitter function: After 3 installation is done, the splitter can start normal working. It can support SD-SDI (270Mbps), HD-SDI (1.485Gbps) and 3G-SDI (2.97 Gbps) and distribute to 2 simultaneous SDI outputs.
- SDI repeater function: This splitter provides equalized and re-clocked transmission and supports signal, 200meters for HD-SDI signal and 100meters for 3G-SDI signal.
- Wide voltage design: SDI splitter applies wide voltage inside design. It can support DC5V-30V voltage input (lowest power is 5 W) and is more suitable for projects.
- Intelligent design: It is plug and play and can detect SDI signal automatically. Indicator LED turns blue when correct SDI signal inputs, turns red when no signal or incorrect signal inputs and allows project customer to find the problem easily.
| Power supply | DC5V/1A, Supports 5V~30V voltage input |
| SDI input | BNC x1 (SD-SDI/HD-SDI/3G-SDI) |
| SDI output | BNC x2 (SD-SDI/HD-SDI/3G-SDI) |
| SDI standard | Compatible with 3G-SDI, SMPTE 424M, HD-SDI SMPTE292M and SD-SDI SMPTE259M-C |
| SDI signal format | SD-SDI, HD-SDI, 3G-SDI |
| SDI speed rate | 270-2970Mb/s |
| SDI impedance | 75Ω |
| SD1 input
resolution |
480i@60Hz/576 @50Hz/720P@50Hz/
720P@60Hz/1080i@50Hz/1080i@60Hz/ 1080P@24@25@30@50@60HZ |
| SD| output
resolution |
4801@60Hz/576i@50Hz/720P @50Hz/
1720P@60Fi2110801@5014z/1080i @60Hz/ 1080P@24@25@30@50@60Hz |
| SDI signal
output amplitude |
800mVp-p |
| Power consumption | < 250mA (DC 5V) |
| Net weight | 183g |
| Dimension | (LxWxH)130×77×24mm |
| Temperature
environment |
0 C-60 C |

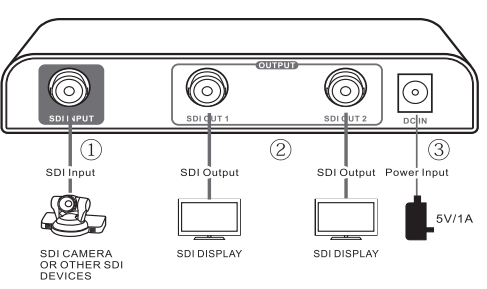

Installation Procedure
Additional information
| Weight | 0.4 kg |
|---|---|
| Dimensions | 17 × 12 × 8 cm |
| Warranty | 1 Year Warranty |
| What's in the box | 1* SDI Splitter |
