KA103 HDMI EXTENDER 100M V2.0 4K2K 60HZ

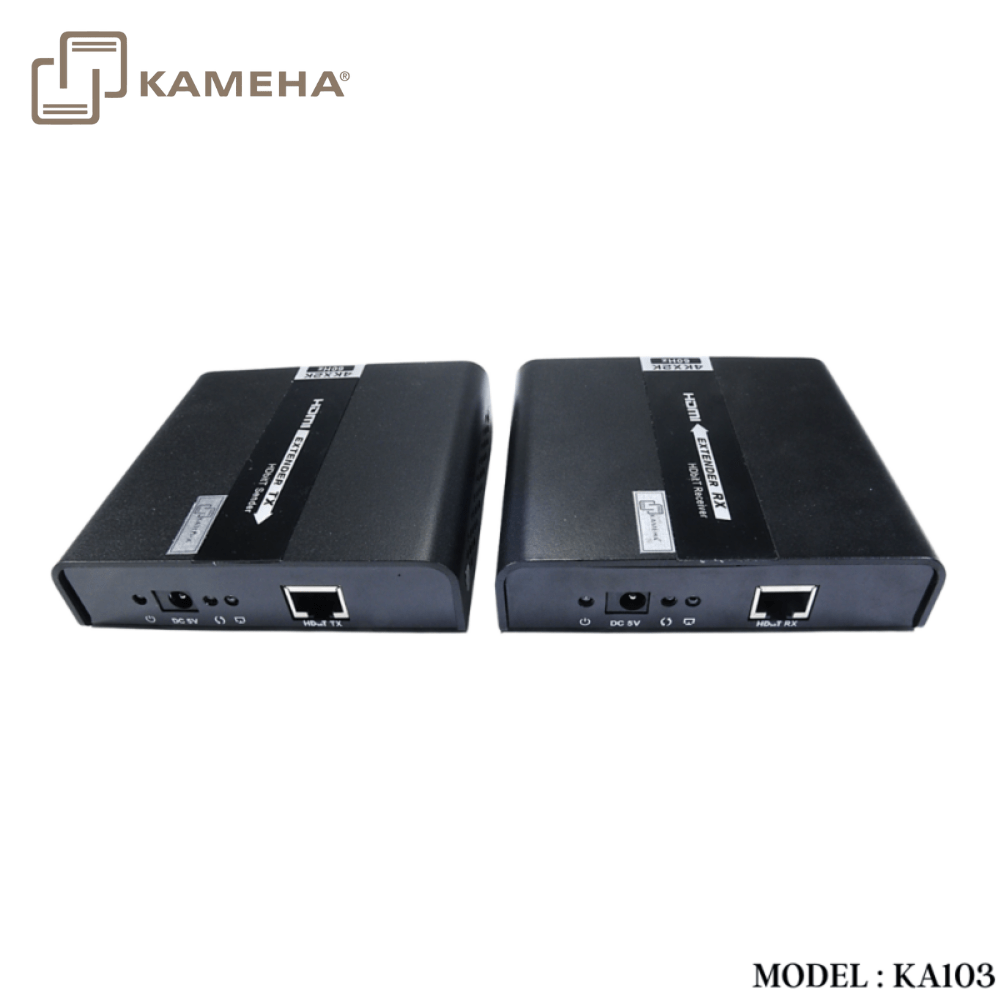

HDbitT HDMI  extender includes a transmitter unit(TX) and a receiver unit(RX). It applied advanced HDbitT technology, the resolution supported is up to 4Kx2K@60Hz ultra HD. It supports one to one and one to many connections, the transmission distance is up to 100 meters. With IR passback function, it is very easy to control media playback of the signal source device at the display location.

Features

1.  HDMI 2.0 and HDCP2.2 compliant

2.  Extend HDMI signal over a single CAT5/6

3.  Resolution supported is up to 4Kx2K@60Hz ultra HD

4.  Support one to one and one to many configuration

5.  Interconnect with other HDbitT VGA/SDI/DVI transmitter via CAT5/6

6.  Long transmission distance up to 100 meters

7.  IR passback with 20-60KHz wide frequency to control source device from receiver side easily

Click here for product PDF file

Click here for product manual
