Description
*PRICE WITHOUT HDBASET RECEIVER*
*HDBaseT Receiver model: KA194/KA038*

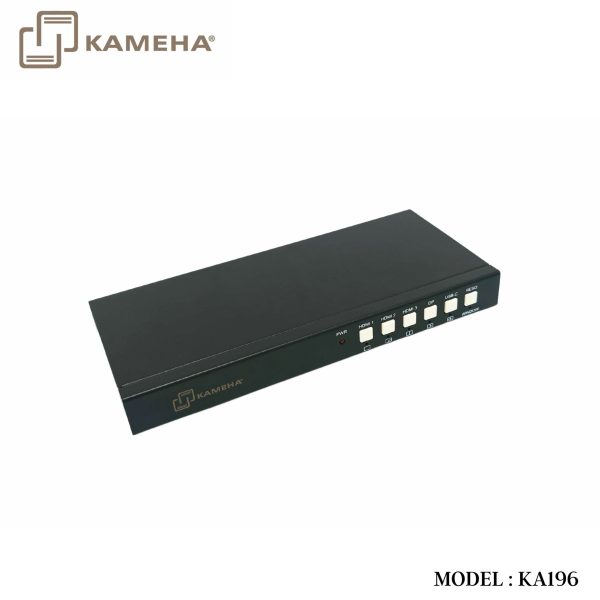

The 5×2 Seamless Presentation Switcher provides 3×HDMI, 1×DP and 1×USB-C (video only) inputs, 1×HDMI and 1×HDBaseT mirrored outputs with PIP/PAP/Tri/Quad-view Multiview functionality. It supports single screen seamless switching with no freezing, black or snow screen. One 3.5mm audio de-embedding jacket can output analogue stereo audio. User can use Front Buttons or RS232 commands to control the switcher.
Features
1. 5×2 presentation switcher with PIP/PAP/Tri/Quad-view
2. True seamless switching, no freezing, black or snow screen
3. HDMI 2.0b, HDCP 2. 2, DP1.4 up to 4K60@4:4:4
4. 3×HDMI, 1×DisplayPort and 1×USB-C inputs
5. 1×HDMI, 1×Mirrored HDBaseT 70M/POC outputs
6. Full screen/PIP/PAP/Tri/Quad-view 5 configurable display modes
7. Up to 14 output resolutions selectable
8. 3.5mm analog audio de-embedding (Audio output is always extracted from the source displayed on the window 1.)
9. EDID management
10. Buttons and RS-232 control
Specification
| TECHNICAL | |
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 |
| DP Compliance | DP 1.4 |
| Video Resolution | Up to 3840×2160@60Hz |
| ESD Protection | Human-body Model: ±8kV (Air-gap discharge),
±4kV (Contact discharge |
| Connection | |
|
Switcher |
INPUTS: 3×HDMI IN [Type A, 19-pin, Female]
1×DP IN 1×USB-C OUTPUTS: 1×HDBaseT OUT [RJ45] 1×HDMI OUT [Type A, 19-pin, Female] 1×L/R OUT [3.5mm，mini-Jack] |
| Receiver | INPUT: 1×HDBaseT In [RJ45]
OUTPUT: 1×HDMI OUT [Type A, 19-pin Female] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | Switcher: 225mm(W) × 100mm(D) × 25mm(H) Receiver: 157mm(W) × 90mm(D) × 20mm(H) |
| Weight | Switcher: 750g; Receiver: 333g |
| Power Supply | Input: AC100~240V 50/60Hz Output: DC 24V/1A |
| Power Consumption | 14W (Max) |
| Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
| Relative Humidity | 10~50% RH (non-condensing) |
Operation Controls and functions

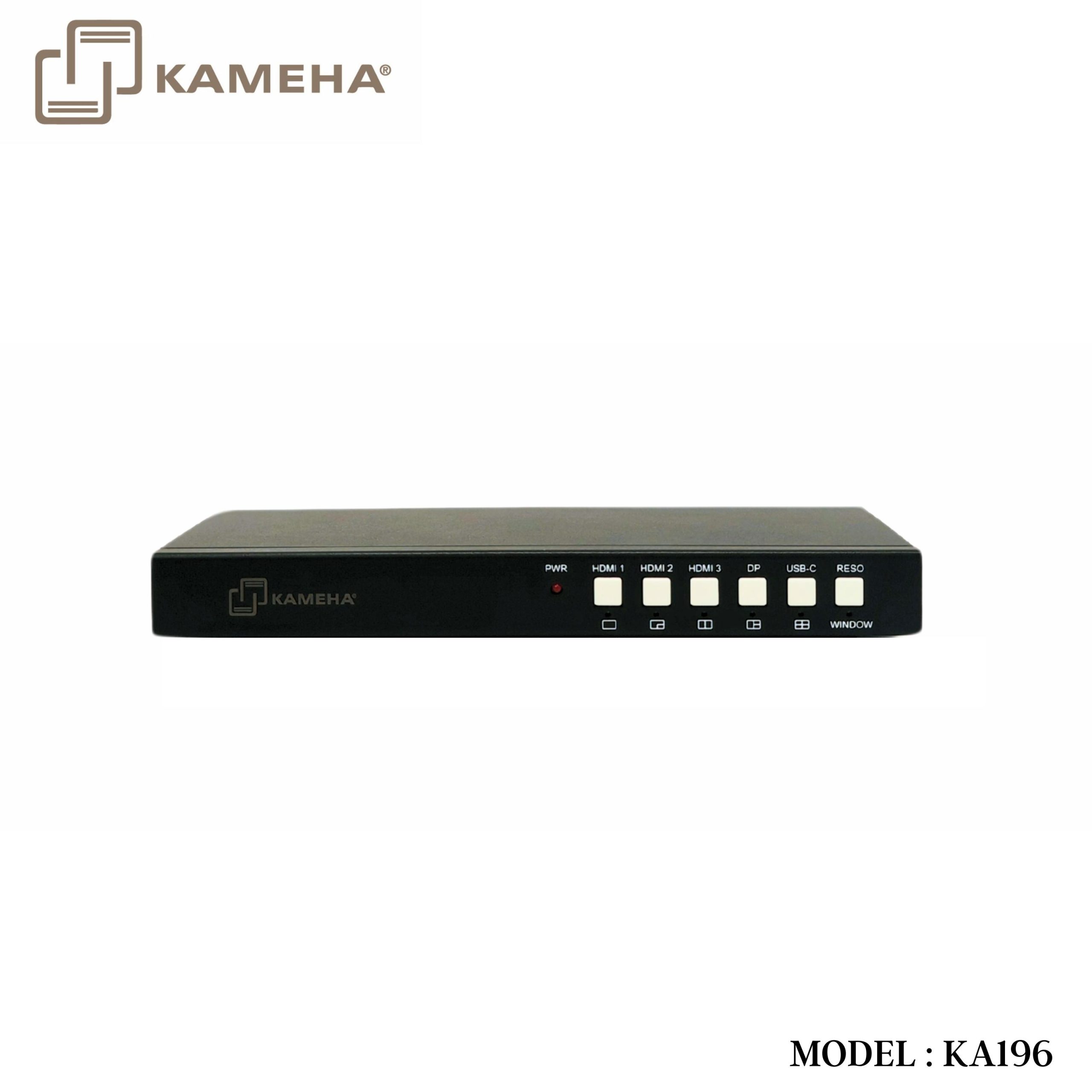

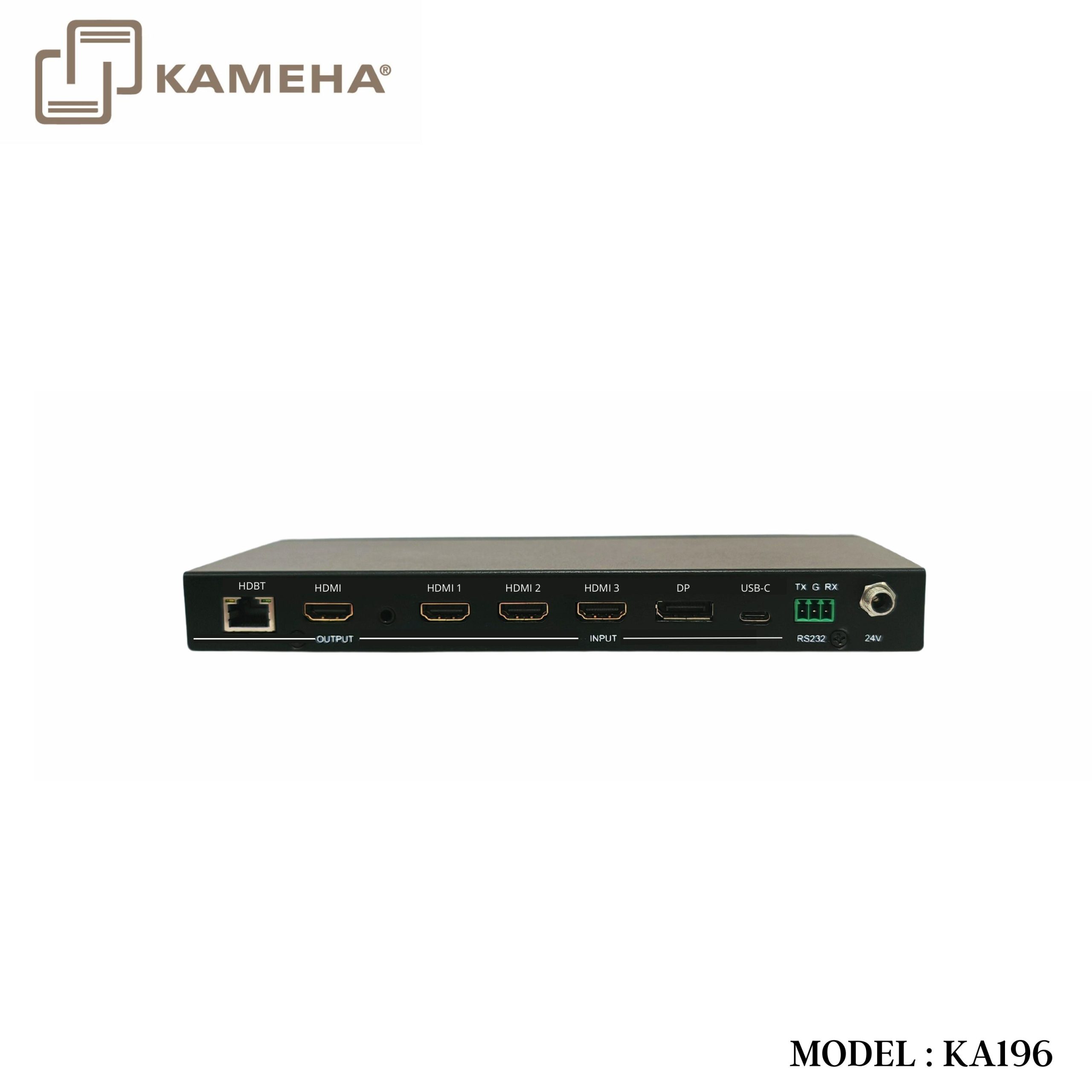

Switcher panels
| NO | NAME | FUNCTION DESCRIPTION |
| 1. | PWR | When the device is powered on, the red LED lights on. |
| 2. | HDMI 1 | Press HDMI 1 button to select HDMI 1 as the input source. Long press it for 3 seconds to enter SINGLE mode, . SIGLE mode means only one display window on the screen.
Note: When works on non-SINGLE mode, directly short press input buttons will be invalid. |
| 3. | HDMI 2 | Press HDMI 2 button to select HDMI 2 as the input source. Long press it for 3 seconds to enter PIP Multiview mode,
. |
| 4. | HDMI 3 | Press HDMI 3 button to select HDMI 3 as the input source. Long press it for 3 seconds to enter PBP Multiview mode, . |
| 5. | DP | Press DP button to select DP as the input source. Long press it for 3 seconds to enter 3xWIN mode, .
3xWIN mode is Three Windows Multiview mode. |
| 6. | USB-C | Press USB-C button to select USB-C (video only) as the input source. Long press it for 3 seconds to enter 4xWIN mode, . 4xWIN mode is Four Windows Multiview mode |
| 7. | RESO | Press RESO (short for Resolution) button to select different output resolution. The resolution info will be shown on screen. Long press this button for 3 seconds the screen will show up one yellow border on window 1. Continue press this button the border will be shown on window 2 or 3…then press one input button such as HDMI 1, and then HDMI 1 will displayed on the current selected window. |
| 8. | HDBT OUT | HDBaseT Scaling output up to 3840×2160@60-4:2:0. Act as 24V POC-PSE. |
| 9. | HDMI OUT | HDMI scaling output up to 3840×2160@60. |
| 10. | LR OUT | 3.5mm LR stereo audio output, 20Hz ~ 20kHz, 1.5Vrms max (Audio output is always extracted from the source displayed on the window 1) |
| 11. | INPUTS | HDMI 1, HDMI 2, HDMI 3, DP, USB-C |
| 12. | RS232 | External RS232 control
Baud Rate: 9600, Data Bits:8, Parity: None Stop Bits:1 3 way 3.5mm phoenix connector TX means Switcher PC RX means Switcher PC G means Ground |
| 13. | 24V | 24V power adapter to plug in |

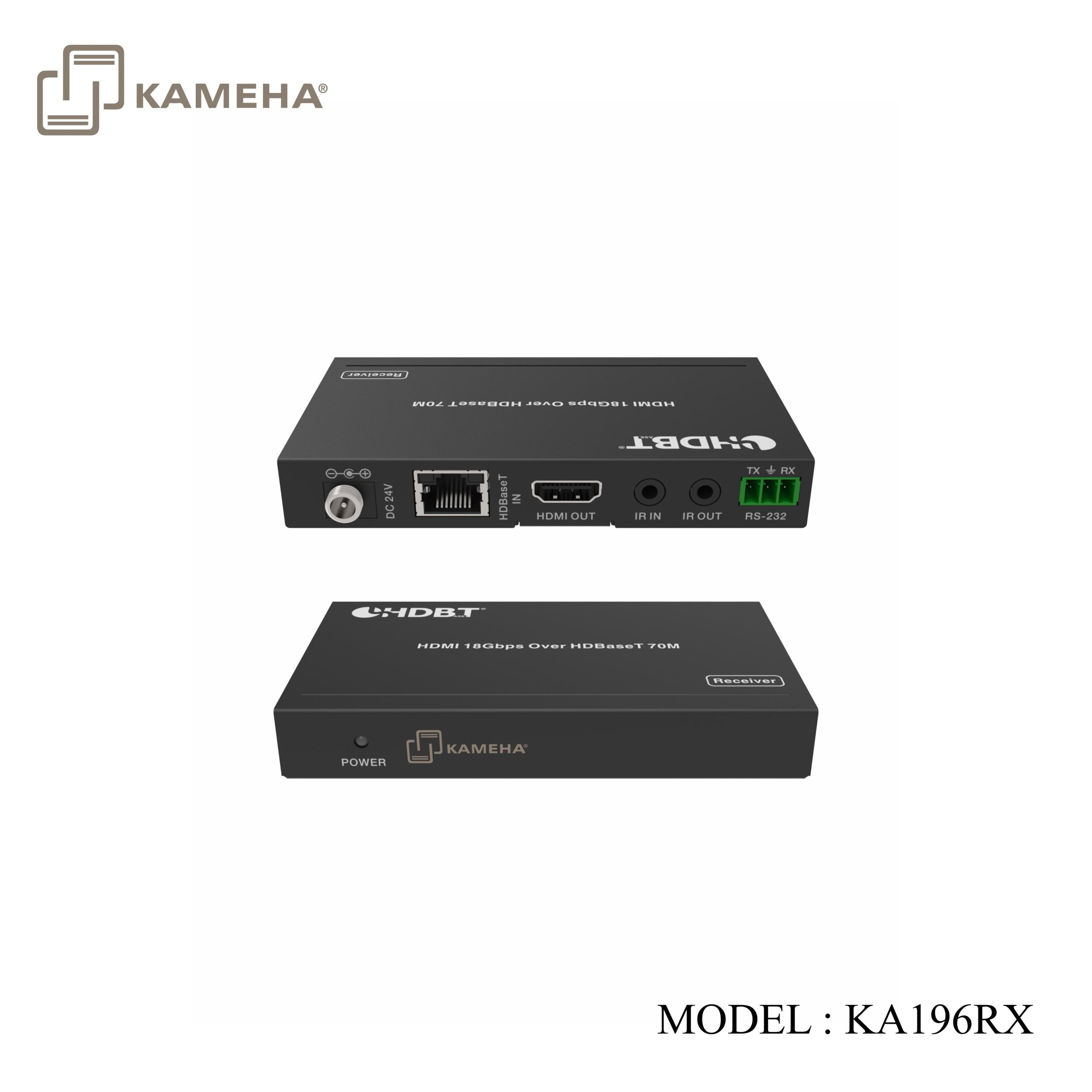

Receiver Panels
| No. | Name | Function Description |
| 1. | Power LED | System power indicator. |
| 2. | DC 24V | Connect 24V/1A adaptor to AC wall outlet for power supply. |
| 3. | HDBASET IN | Standard HDBaseT signal input port. Connect the HDBaseT port of the switcher with a UTP cable following the standard of direct interconnection method. |
| 4. | HDMI OUT | HDMI output port. This slot is where you connect the HDTV or monitor with HDMI cable. |
| 5. | IR IN | IR signal receiving port (function reserved). |
| 6. | IR OUT | IR signal emitting port (function reserved). |
| 7. | RS232 | Phoenix jack provides serial control signal from switcher to receiver. |
| 8. | SERVICE | Manufacturer use only. |
| 9. | Connection Signal
Indicator Lamp |
Illuminating: The switcher and receiver are in good connection.
Flashing: The switcher and receiver are in poor connection. Dark: The switcher and receiver are not connected. |
| 10. | Data Signal Indicator Lamp | Illuminating: The HDMI signal with HDCP.
Flashing: The HDMI signal without HDCP. Dark: No HDMI signal. |
Multi-view
The Switcher supports 5 Multi-view display modes:
SINGLE, PIP, PBP, 3xWIN, 4Xwin
Users can select different operations for different Multi-view modes as following:
SINGLE and 4xWIN: Inputs selection;
PBP and 3xWIN: Inputs selection, Display Ratio selection;
PIP: Inputs selection, Display Ratio selection, Sub window size and position selection.
Multi-view window distribution as following:
Mode1
Mode2
Mode3
Mode4
Mode5
Application Example
Additional information
| Weight | 1.00 kg |
|---|---|
| Dimensions | 36.50 × 26.70 × 4.50 cm |
| WARRANTY | 1 Year Warranty |
| WHAT'S IN THE BOX | 1 × 5×2 Seamless Presentation Switcher |
