Description

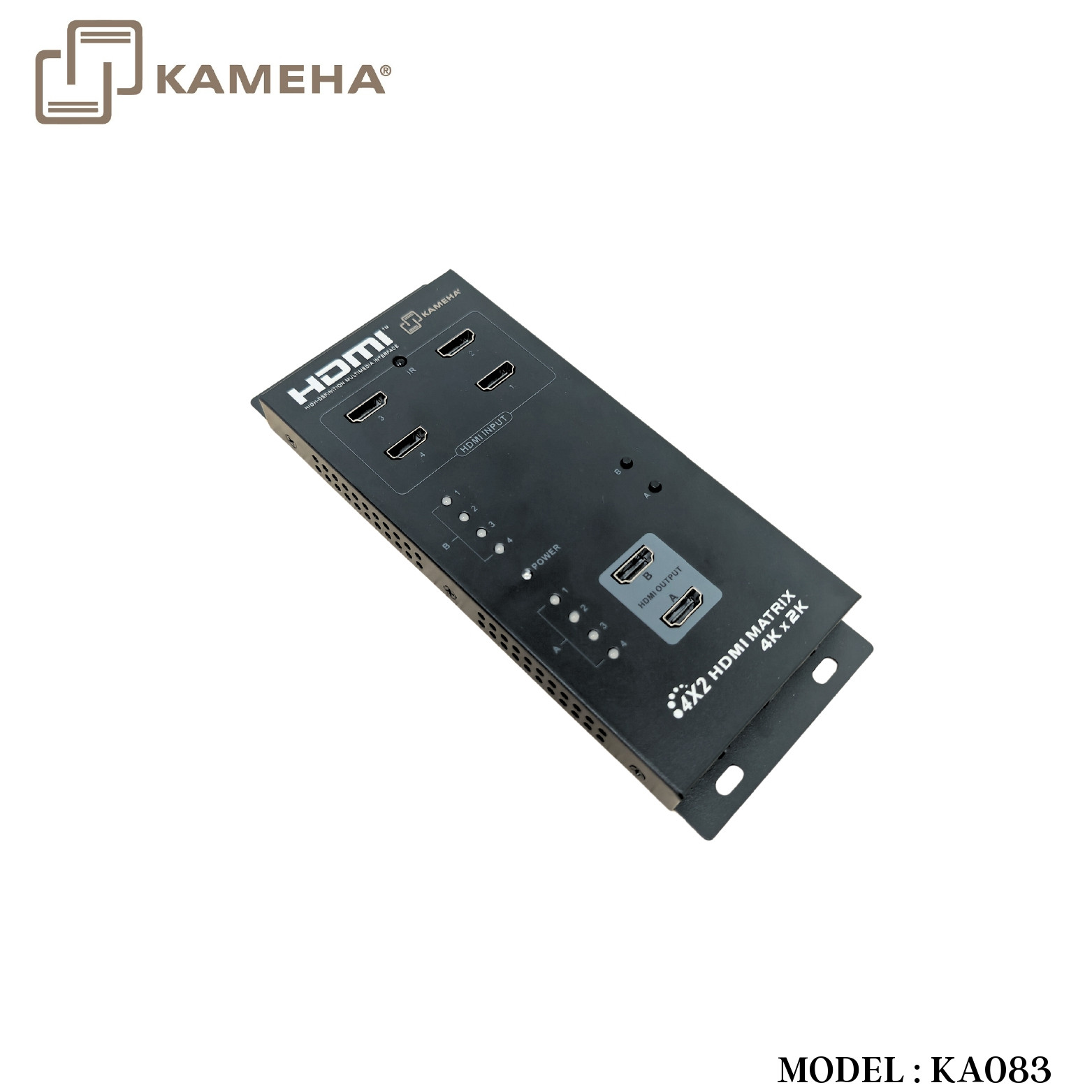

This 4×2 HDMI Matrix Switch is with 4 HDMI inputs and 2 HDMI outputs. It is a true matrix and can distribute any one of 4 sources to either of 2 displays, and can work as a splitter to show the same source on 2 displays simultaneously. Analog R/L audio and digital SPDIF audio can be extracted from HDMI signal. It supports 3D HDMI and HDMI1.4 (4kx2K).
Features
1. Routes four Ultra Hi-Def sources to two Ultra HD displays
2. Supports resolutions up to Ultra HD 4K x 2K (3840 x 2160 @ 30Hz) and 1080p Full HD
3. Supports 12-bit Deep Color
4. Supports PCM ,Dolby Digital™, and DTS Digital Surround™

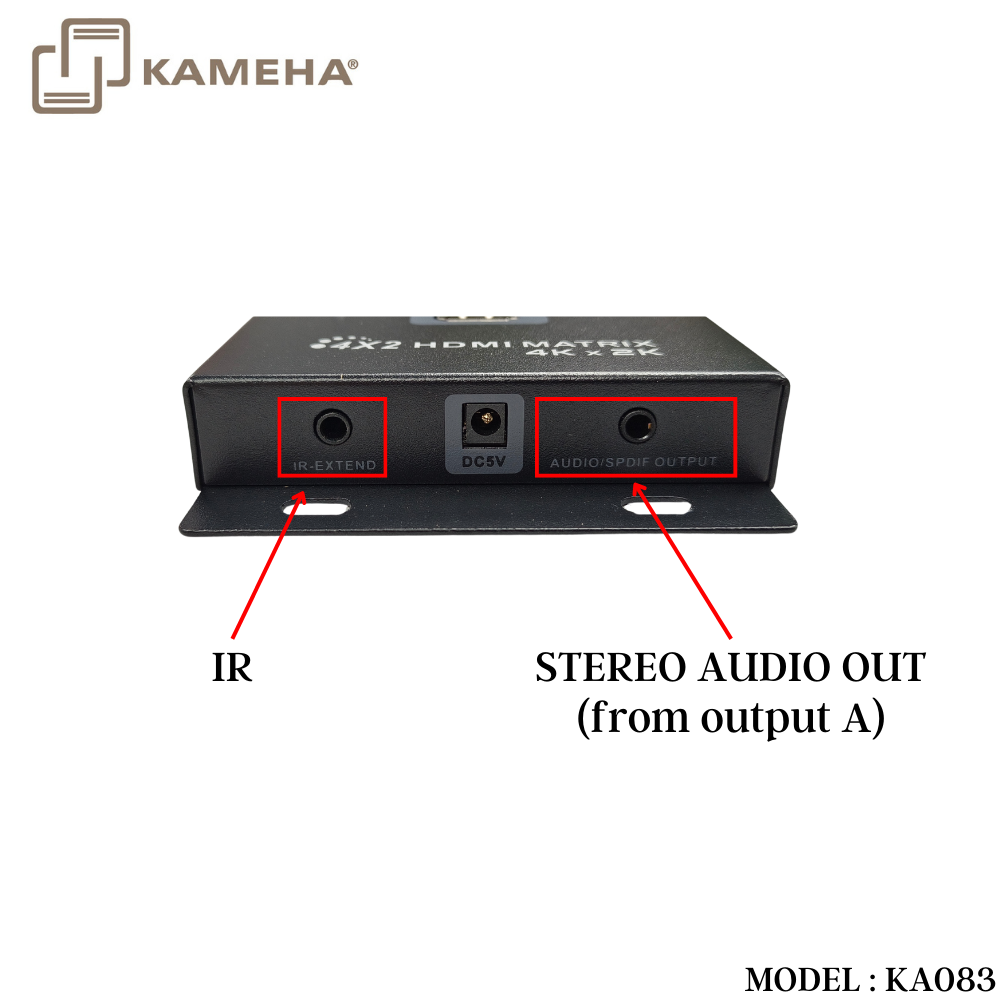

5. Support audio output simultaneously(from output A)
6. HDMI input/output cables may be up to 10/15 meters with 1080p/8-bit resolution
7. Supports HDMI/MHL dual mode input(input1)
8. Supports CEC
9. Supports HDCP

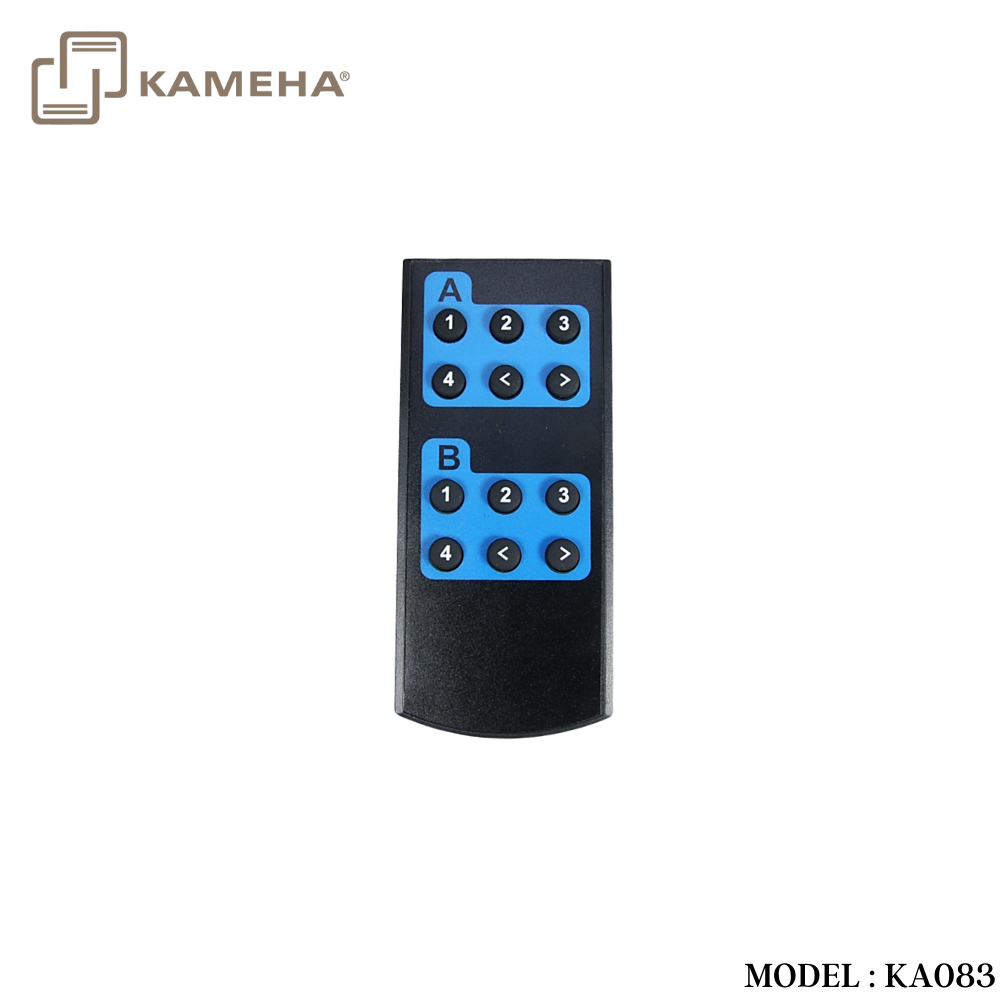

10. Supports IR remote control
11. Supports surface-mountable
| Power supply | DC5V / 2A |
| Input ports | HDMI X 4 |
| Outpurt ports | HDMI X 2 |
| Power indicator led | Yellow LED X1 |
| Signal indicator led | Blue LED X8 |
| Frequency Range | 25MHz – 340MHz |
| Max transmission rate | 3. 4G X 3= 1 0. 2Gbps |
| Color depth | Supports 1 2-bit DeepFull HD, Full 3D and 4K x 2K video |
| Audio | Supports standard audio and DSD（Direct Stream Digital ） Audio and HD (HBR) Audio |
| HDMI resolution supported | 480i@60Hz, 480P@60Hz, 576i@50Hz, 576P@50Hz, 720P@50@60Hz, 1080i@50@60Hz, 1080P@50@60Hz, 3DHDMI (720P@50@60Hz,1080P@24Hz), 3840X2160P@24@25@30 Hz |
| Dimension | 21 3 X 86 x 1 9 mm |
| Net weight | 390 g |
| Color | Black |
| Working temperature |
0-60℃ |
Additional information
| Weight | 0.9 kg |
|---|---|
| Dimensions | 25 × 18 × 9 cm |
| Warranty | 1 Year Warranty |
| What's in the box | 1* HDMI Matrix |
