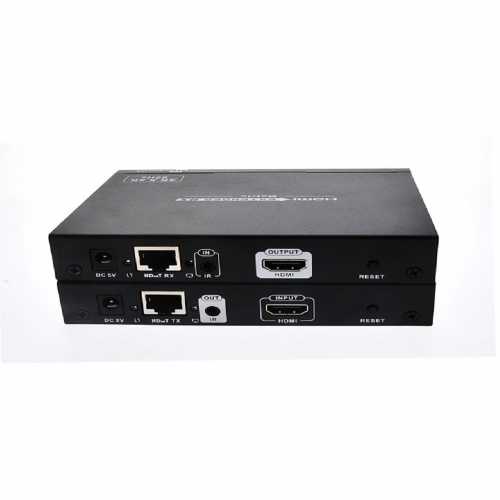

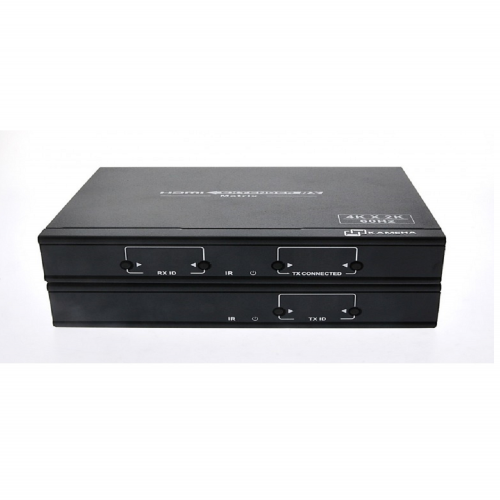

KA086 HDMI MATRIX EXTENDER V2.0 WITH IR 100M

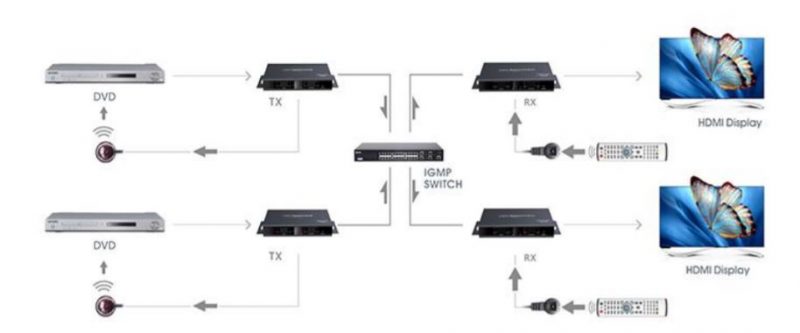

This HDbitT HDMI Extender Matrix  includes a transmitter unit(TX) and a receiver unit(RX). It allows for the distribution and switching of high definition video/audio signal by this product and off-the-shelf  IGMP switch. It applied advanced HDbitT technology, the resolution supported is up to 4Kx2K@60Hz ultra HD. It can also used in a point-to-point connection, the distance is up to 120 meters. It is widely applied in digital signage advertisement, control room, command centers, entertainment and exhibition center, safety monitoring system, etc.

Features

1.  Resolution supported is up to 4Kx2K@60Hz ultra HD.
2.  Transmission distance is up to 120 meters via CAT6.
3.  Support IR pass back function to control source device from RX location.
4.  Offer scalable and flexible input-output matrix configuration, allows
     100 input to infinite output.
5.  Support computer control software to select and switch source
     device input.
6.  Plug and play.
7.  Support to select and switch source device input from receiver via
     remote control and hard button.
8.  Support APP control, user can scan, preview, build up their
     configuration by using a phone/tablet easily.

*** THIS PRODUCT CAN BE MATCHED WITH KA084CON TO CREATE MATRIX CONTROLLED BY PHONE APP

Click here for product PDF file

Click here for product manual
