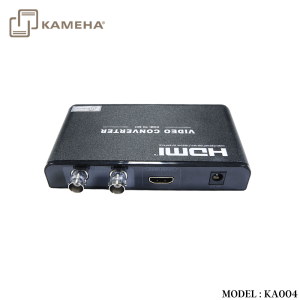

This HDMI to SDI converter allows you to seamlessly convert an HDMI or DVI signal to a broadcast quality SD-SDI/HD-SDI/ 3G-SDI signal, It’s not only widely applied to post-production and broadcast applications, such as: broadcast room and non-linear editing, but also to the field of optical transmission with HDMI ports on the equipments.
Technical Parameter
Power adapter | DC 5V1A, Applicable for voltage from
5V—36V: DC 12V/1A is recommended, |
HDMI Input resolutions | 480@60Hz/576i@50Hz/720p@50Hz/
720p@60Hz/1080i@50Hz/1080i@60Hz/ 1080p @24Hz@25Hz@30Hz@50Hz@60HZ |
SDI Out resolutions | 4801@60Hz/5761@50Hz/720p@50Hz/
720p@60Hz/1080i@50Hz/1080i@60Hz/ 1080p @24Hz@25Hz@30Hz@50Hz@60HZ |
SDI format | SD-SDI/HD-SDI/3G-SDI |
Impedance | 750 |
Power Consumption | <600mA (DC5V) |
Dimension | 130*80*23.5mm |
Operating Temperature | O°C~60°C |

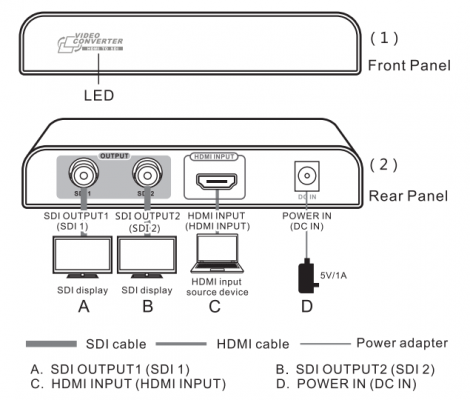

Operating Control and Function
After devices connected, please operate as following:
- Choose the HDMI input source devices output channel as HDMI.
- Power on the converter. When it detects the correct HDMI signal, the LED will be blue, otherwise, it will be red.
- If the input source HDMI resolution is compliant to the resolutions SDI display supported, SDI signal can be output via SD port, and it can be split into two SDI signal to connect to different SD display simultaneously.
