Description
Introduction
This 48Gbps eARC Audio Adapter is designed for de-embedding audio signals from an HDMI source or TV with ARC/eARC, and outputting HDMI audio, digital S/PDIF audio or analog audio to AV Receiver. It supports data rates up to 48Gbps complying with HDMI 2.1 and HDCP 2.3 requirements. It includes several features for ease of integration, such as EDID management and cable equalization. It provides an easy solution for HDMI installations to send audio signals to a soundbar, amplifier or any 5.1/2.0CH sound system. CEC control from TV to the source, amplifier or soundbar is also supported.
Features
- HDCP 2.3 compliant
- Support 48Gbps video bandwidth and video resolution up to 8K@60Hz 4:2:0 12bit and 4K@120Hz 4:4:4 12bit, as specified in HDMI 2.1
- VRR, ALLM, QMS, QFT, SBTM are supported
- Support HDR, HDR10, HDR10+, Dolby Vision, HLG pass-through
- Support LPCM 7.1CH, Dolby TrueHD, Atmos and DTS-HD Master, DTS:X Audio pass-through
- HDMI input source and TV eARC/ARC audio are de-embedded to S/PDIF, L/R and HDMI audio to output
- HDMI input source is de-embedded to any eARC/ARC soundbar to output
- Support full audio up to Dolby Atmos/DTS:x from eARC TV to SONOS ARC & Beam or any eARC soundbar
- Support CEC control from TV to the source
- Support CEC volume control from TV to any eARC sound system
- Advanced EDID management
Specifications
| Technical | ||||
| HDMI Compliance | HDMI 2.1 | |||
| HDCP Compliance | HDCP 2.3 | |||
| Video Bandwidth | 48Gbps FRL and 18Gbps TMDS | |||
| Video Resolution | Up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit | |||
| Color Depth | 8/10/12bit | |||
| Color Space | RGB, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0 | |||
| HDR | HDR, HDR10, HDR10+, Dolby Vision, HLG | |||
| Audio Formats | HDMI input/output:
LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DSD DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X eARC AUDIO OUT: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DSD DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X Amp AUDIO OUT: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DSD DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X Audio de-embedding output: Optical: PCM 2.0CH/Dolby/DTS 5.1CH L/R: PCM 2.0CH |
|||
| ESD Protection | IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge) | |||
| Connection | ||||
| Input | 1 × Source IN [HDMI Type A, 19-pin female] | |||
| Output | 1 × TV (eARC) OUT [HDMI Type A, 19-pin female]
1 × Soundbar eARC OUT [HDMI Type A, 19-pin female] 1 × Amp AUDIO OUT [HDMI Type A, 19-pin female] 1 × OPTICAL [S/PDIF] 1 × L/R [3.5mm Stereo Mini jack] |
|||
| Control | 1 × SERVICE [USB Type C, Update port] | |||
| Mechanical | ||||
| Housing | Metal Enclosure | |||
| Color | Black | |||
| Dimensions | 145mm [W] × 68mm [D] × 18mm [H] | |||
| Weight | 262g | |||
| Power Supply | Input: AC 100-240V 50/60Hz, Output: DC 5V/2A (US/EU standards, CE/FCC/UL certified) | |||
| Power Consumption | 5.2W (Max) | |||
| Operation Temperature | 0°C ~ 40°C / 32°F ~ 104°F | |||
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F | |||
| Relative Humidity | 20~90% RH (non-condensing) | |||
| Recommended HDMI Cable | ||||
| Video Resolution | 8K | 4K60 | 4K24 | 1080P |
| HDMI Cable Length (HDMI IN/ OUT) | 3m/10ft
(Ultra HDMI 2.1) |
8m/26ft | 12m/39ft | 15m/49ft |
| The use of “Premium High-Speed HDMI” cable is highly recommended. | ||||

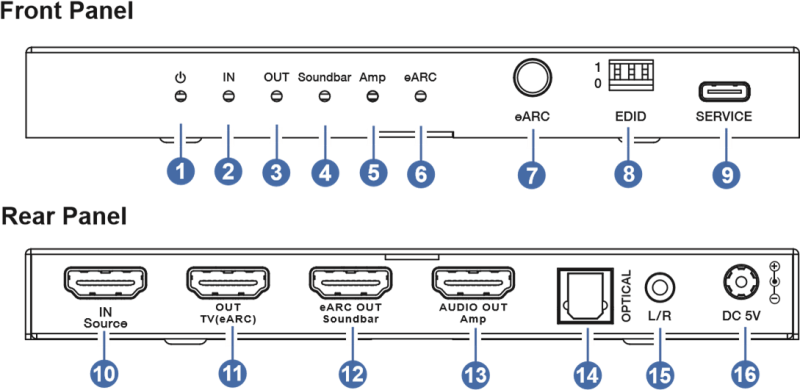

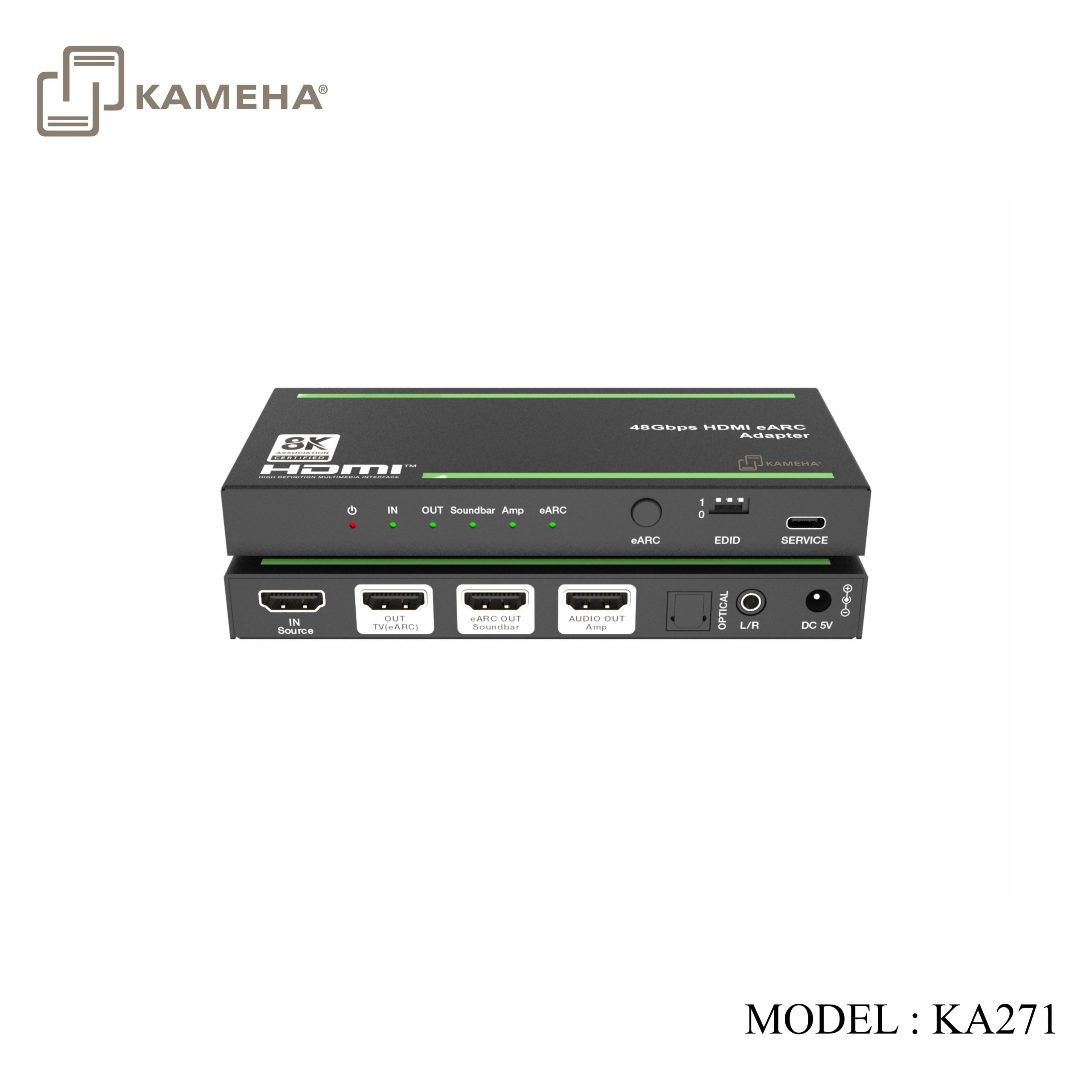

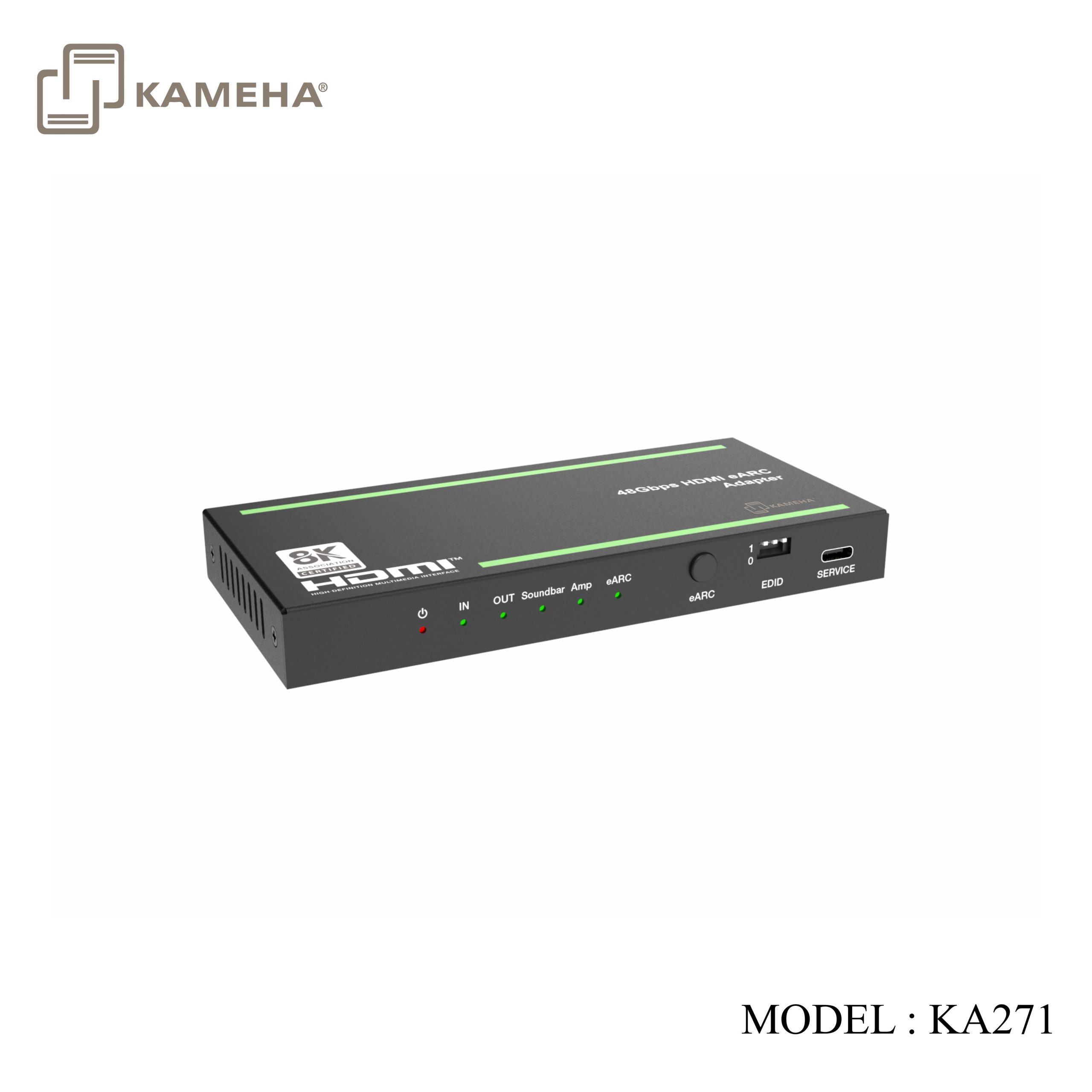

Operation Controls and Functions
| No. | Name | Function Description |
| 1 | Power LED | The red LED is on when the device is working. |
| 2 | IN LED | The green LED will be on when the input source signal is detected. |
| 3 | OUT LED | The green LED will be on, when the HDMI OUT port connects a display device and outputs signal. |
| 4 | Soundbar LED | The green LED will be on when a soundbar is connected properly. |
| 5 | Amp LED | The green LED will be on when an amplifier is connected properly. |
| 6 | eARC LED | ▪ On: The eARC/ARC mode is enabled. CEC communication and eARC is working properly.
▪ Flashing: The eARC/ARC mode is enabled. CEC communication and eARC is not working properly. ▪ Off: The eARC mode is disabled. |

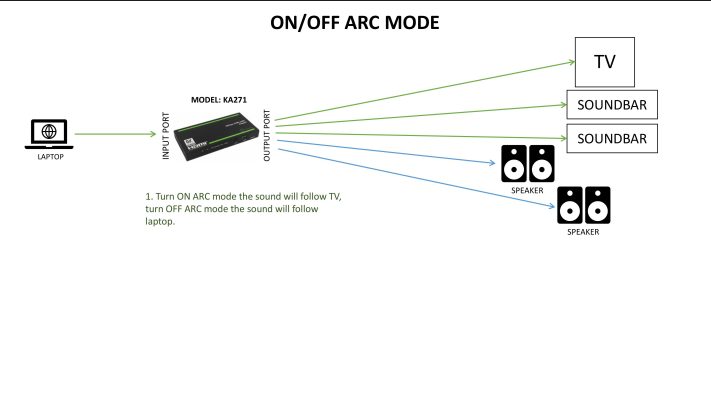

| 7 | eARC button | Press this button to enable or disable the eARC/ARC mode. |
| 8 | EDID DIP switch | Use the DIP switch to set EDID.
[DIP]=111: Copy OUT port sink EDID (as factory default) [DIP]=110: Copy video EDID of sink and audio EDID of Soundbar [DIP]=101: FRL12G_8K_HDR, 2.0CH [DIP]=100: FRL12G_8K_HDR, 5.1CH [DIP]=011: FRL12G_8K_HDR, 7.1CH [DIP]=010: FRL10G_8K_HDR, 2.0CH [DIP]=001: FRL10G_8K_HDR, 5.1CH [DIP]=000: FRL10G_8K_HDR, 7.1CH |

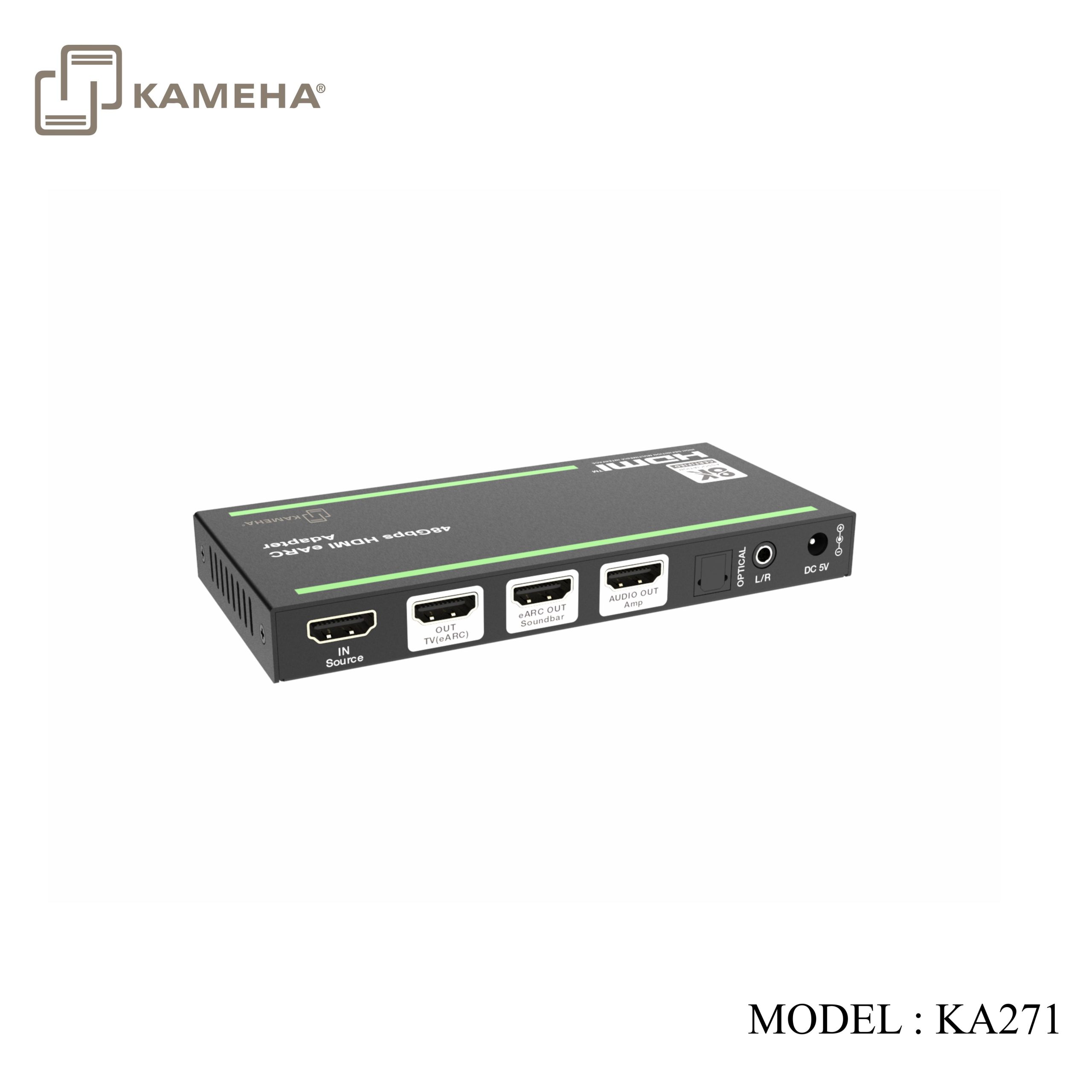

| 9 | SERVICE | Used for firmware update and serial commands control. |
| 10 | Source IN | HDMI signal input port, connected to HDMI source device such as 8K PC, DVD or PS5 with an HDMI cable. |
| 11 | TV (eARC) OUT | HDMI signal output port, connected to TV (eARC/ARC) with an HDMI cable. It can be used as an eARC/ARC audio channel when the eARC/ARC mode is enabled. |
| 12 | Soundbar eARC OUT | HDMI audio output port, connected to a soundbar (eARC/ARC). |
| 13 | Amp
AUDIO OUT |
HDMI audio output port, connected to an amplifier. |
| 14 | OPTICAL | Optical fiber audio output port. |
| 15 | L/R | Analog audio output port. |
| 16 | DC 5V | DC 5V/2A Power input port. |

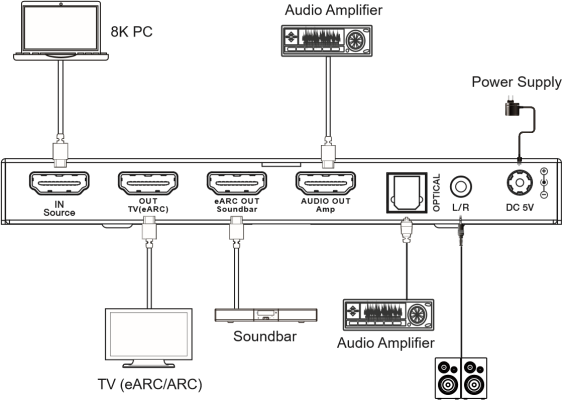

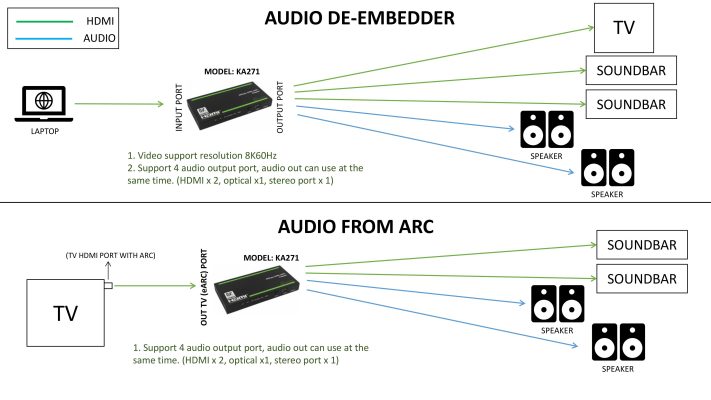

Application Example
Additional information
| Weight | 0.50 kg |
|---|---|
| Dimensions | 20.00 × 11.50 × 7.00 cm |
| WARRANTY | 1 YEAR WARRANTY |
| WHAT'S IN THE BOX | 1* HDMI E-ARC AUDIO DEEMBEDDER V2.1 |
