Description
Introduction
This Digital to Analog/ Analog to Digital combo audio converter is designed for either home or professional audio switching. It converts coaxial or optical digital audio input to analog stereo output over RCA or 3.5mm minijack, and also can convert analog audio signals to digital audio signals, it can convert in either direction.
Feature
- Supports coaxial or optical digital audio to analog stereo audio
- Supports analog stereo audio to coaxial or optical digital audio
- Supports 2 channels LPCM digital audio signal output
- Supports 32, 44.1, 48, 96, 128 and 192kHz sampling rate when digital to analog, 48kHz sampling rate when analog to digital.
- Plug and play
Specification
| Items | Specifications | |
| Power
supply |
Voltage/Current | DC5V/0.5A |
| Power consumption | <1W | |
| Power port | Micro USB | |
|
Technical parameters |
Input digital sampling rate | 32kHz, 44.1kHz, 48kHz, 96kHz, 128kHz, 192kHz |
| Output digital sampling rate | 48kHz | |
| Analog audio format | Stereo | |
| 1/0 interfaces | 3.5mm*1, R/L 1, coaxial*1 | |
| Input interfaces | S/PDIF 1 | |
| Output interfaces | S/PDIF 1 | |
| Protection level | Electrostatic protection of the whole machine | 1a Contact discharge level 3
1b Air discharge level 3 Standard: IEC61000-4-2 |
| Operating environment | Working temperature | 0-60°C (32°F to 140°F) |
| Storage temperature | -10-70°C (-4°F to 158°F) | |
| Humidity (non-condensing) | 0-90% relative humidity | |
|
Body properties |
Dimensions | 61.50(W)x55.00(D)x20.00(H)mm |
| Housing | ABS | |
| Color | Black | |
| Weight | 50g | |

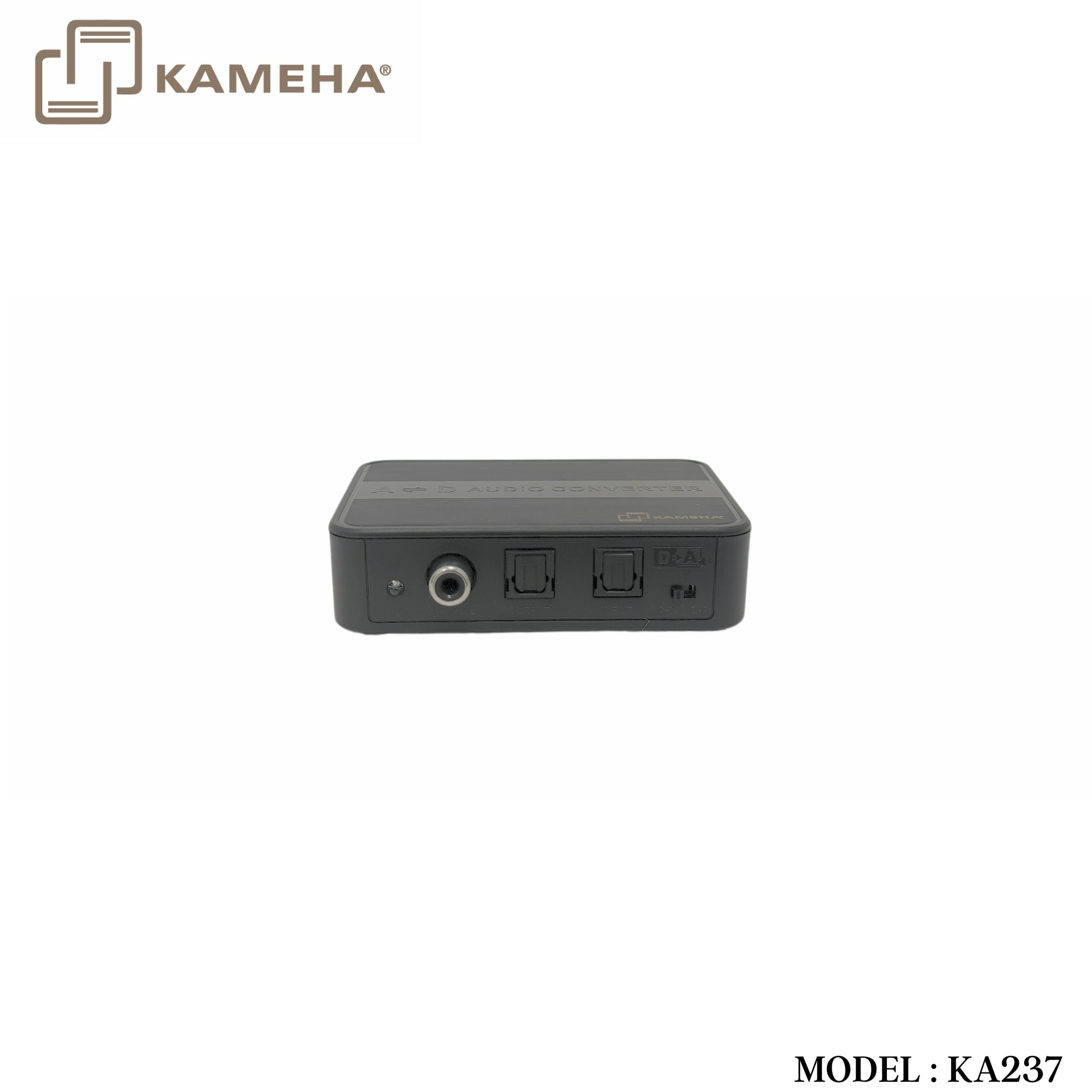

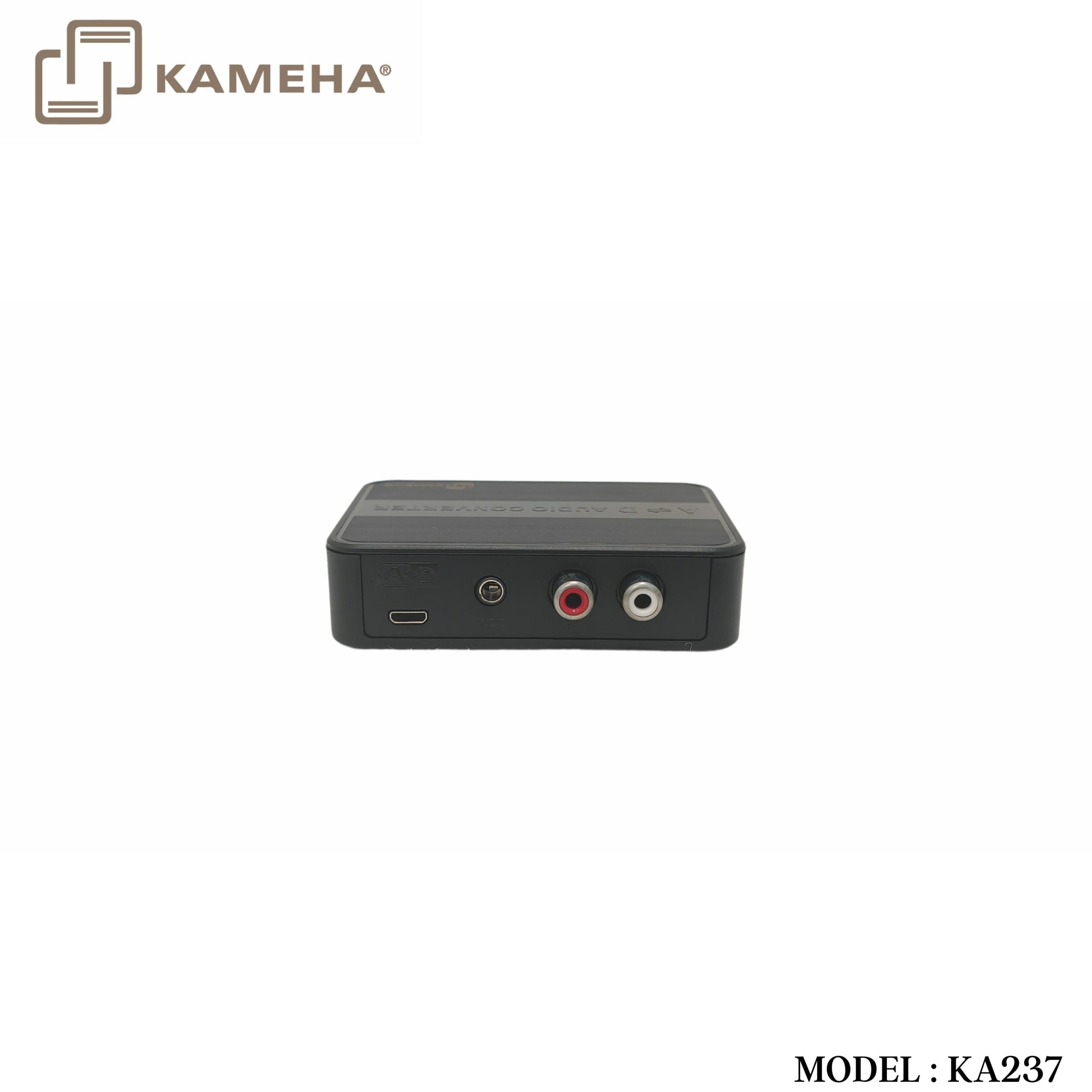

Panel Description
| ① | DC 5V | Input DC5V power |
| ② | AUDIO | Input/Output analog stereo audio signals |
| ③ | R/L | Input/Output R/L analog audio signals |
| ④ | To indicates the power status of the device | |
| ⑤ | COAXIAL | Input/Output coaxial digital audio signals |
| ⑥ | OUTPUT | Output optical digital audio signals |
| ⑦ | INPUT | Input optical digital audio signals |
| ⑧ | A-D/D-A | Dial to switch input and output |
Click here for product PDF file
Additional information
| Weight | 0.20 kg |
|---|---|
| Dimensions | 12.00 × 7.60 × 8.50 cm |
| WARRANTY | 1 YEAR WARRANTY |
| WHAT 'S IN THE BOX | 1* Combo Audio Converter |
