HDMI SPLITTER EXTENDER HDBASE-T 18GBPS 150M 4 PORT – KAMEHA

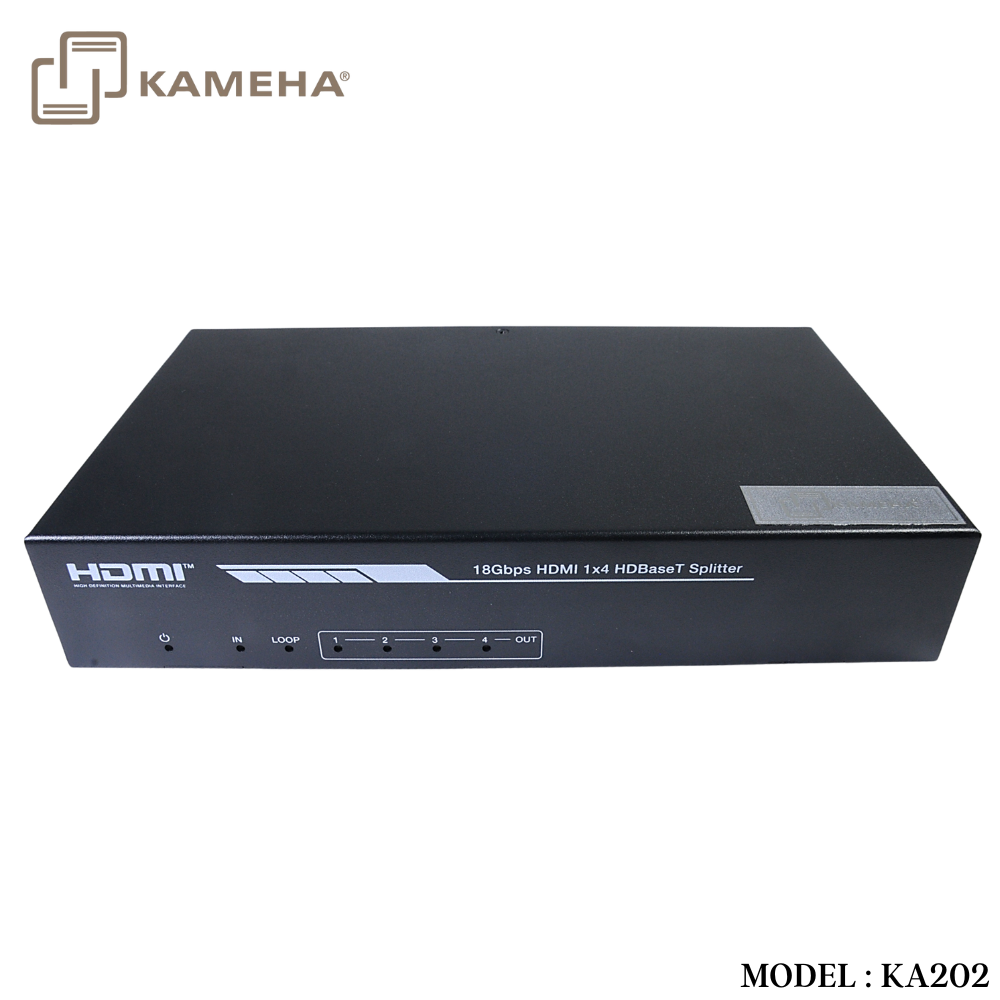

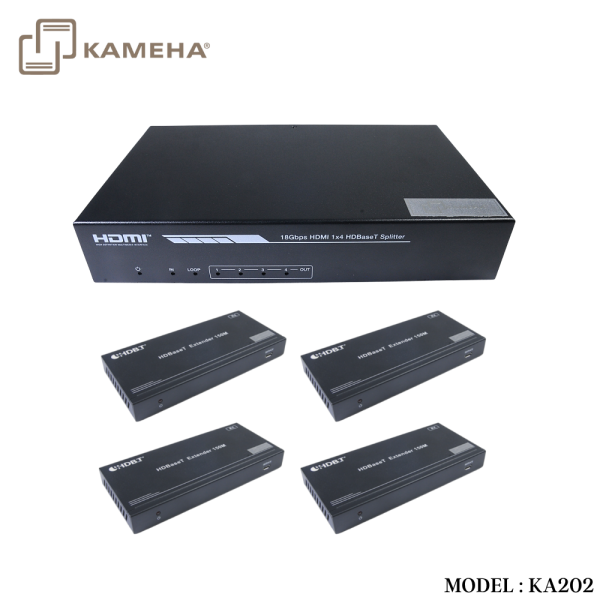

This 18Gbps HDMI 1×4 HDBaseT Splitter can distribute 1 source signal to any 4 display devices. Support video resolution up to 4K2K@60Hz 444. It is designed with 1 HDMI loop output and 4 HDBaseT outputs. The HDMI signal transmission distance can be extended up to 120 meters at the resolution of 4K2K@60Hz, or 150 meters at 1080P@60Hz via a single CAT6/6a/7 cable. The product supports IR and RS-232 signal pass-through, audio extract function and advanced EDID management.
Features
- HDMI 2.0b, HDCP 2.2 and HDCP 1.x compliant
- Support 18Gbps video bandwidth
- Support video resolution up to 4K2K@60Hz 4 4 4
- Support HDR, HDR10+, HLG and Dolby vision
- Support up to 7.1CH HD audio pass-through
- Support digital and analog audio de-embedded output
- Extend the signal transmission distance up to 120 meters at the resolution of 4K2K@60Hz, 150 meters at 1080P@60Hz via a single CAT6/6a/7 cable
- Support 1 HDMI input, 1 HDMI loop output and 4 HDBaseT
- IR, RS-232 routed to HDBaseT output
- Advanced EDID management
- Support one-way POC function (only from transmitter to receiver)
- Compact design for easy and flexible installation
Specifications
| Technical | ||
| HDMI Compliance | HDMI 2.0b | |
| HDCP Compliance | HDCP 2.2/1.x | |
| Video Bandwidth | 594MHz/18Gbps | |
| Video Resolution | Up to 4k2k@60Hz 4:4:4 | |
|
Color Depth |
8-bit,10-bit,12-bit(1080p@60Hz)
8-bit (4K2K@60Hz YUV4:4:4 8-bit,10-bit,12-bit(4K2K@60Hz YCbCr 4:2:2/4:2:0) |
|
| Color Space | RGB 4:4:4, YCbCr 4:4:4 / 4:2:2 4:2:0 | |
| HDR | Support HDR, HDR10+, HLG, Dolby vision | |
|
HDMI Audio Formats |
LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus(DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X | |
| Coaxial Audio Formats | PCM2.0, Dolby Digital / Plus, DTS 2.0/5.1 | |
| Analog Audio Formats | PCM 2.0CH | |
| ESD Protection | Human body model—±8kV (Air-gap discharge) &
±4kV (Contact discharge) |
|

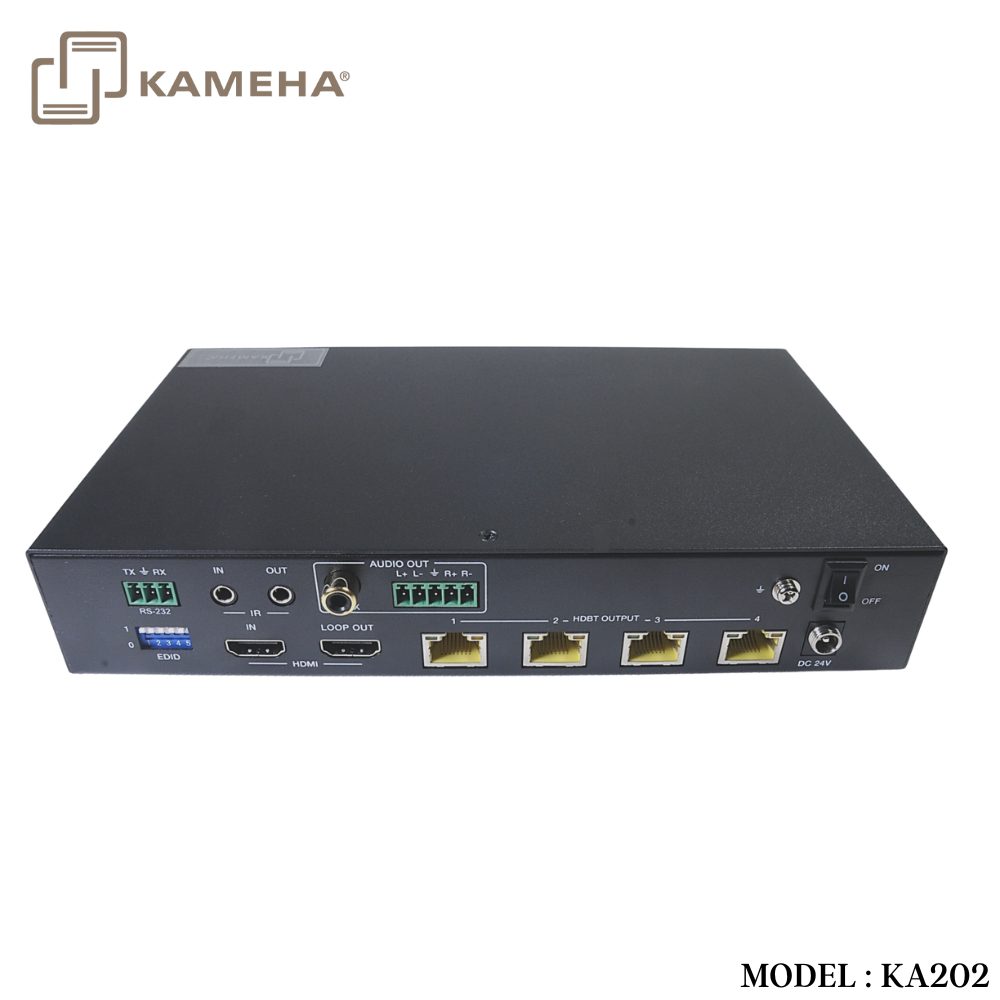

| Connection | ||
| Input | 1×HDMI Type A (19-pin female) | |
|
Output |
1×HDMI Type A (19-pin femaleĎ
4x HDBaseT OUT [RJ45] 1x Coaxial Audio OUT [RCA] 1x L/R Audio OUT [5-pin phoenix connector] |
|
|
Control |
1×RS-232 (3-pin phoenix connectorĎ
1x EDID DIP switch [5-pin] 1x IR IN [3.5mm Stereo Mini-jack] 1x IR OUT [3.5mm Stereo Mini-jack] |
|
| Mechanical | ||
| Housing | Metal Enclosure | |
| Silkscreen Color | Black | |
| Dimensions | Transmitter: 220mm (W) × 130mm (D) × 40mm (H)

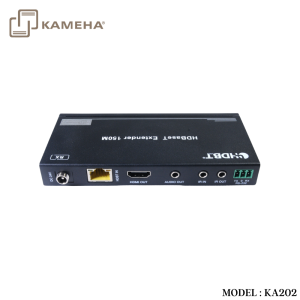

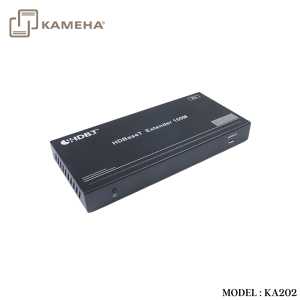

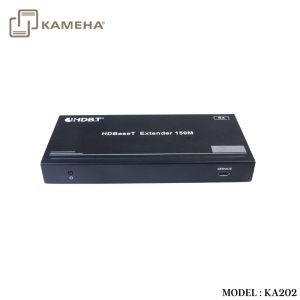

Receiver: 140mm (W) × 65mm (D) × 18mm (H) |
|
|
Weight |
Transmitter: 853g
Receiver: 246g |
|
| Power Supply | Input: AC100 – 240V 50/60Hz, Output: DC 24V/2.7A (US/EU standards, CE/FCC/UL certified) | |
| Power Consumption | 35W | |
|
Operation Temperature |
0°C ~ 40°C / 32°F ~ 104°F | |
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F | |
| Relative Humidity | 20~90% RH (non-condensing) | |
Application Example
