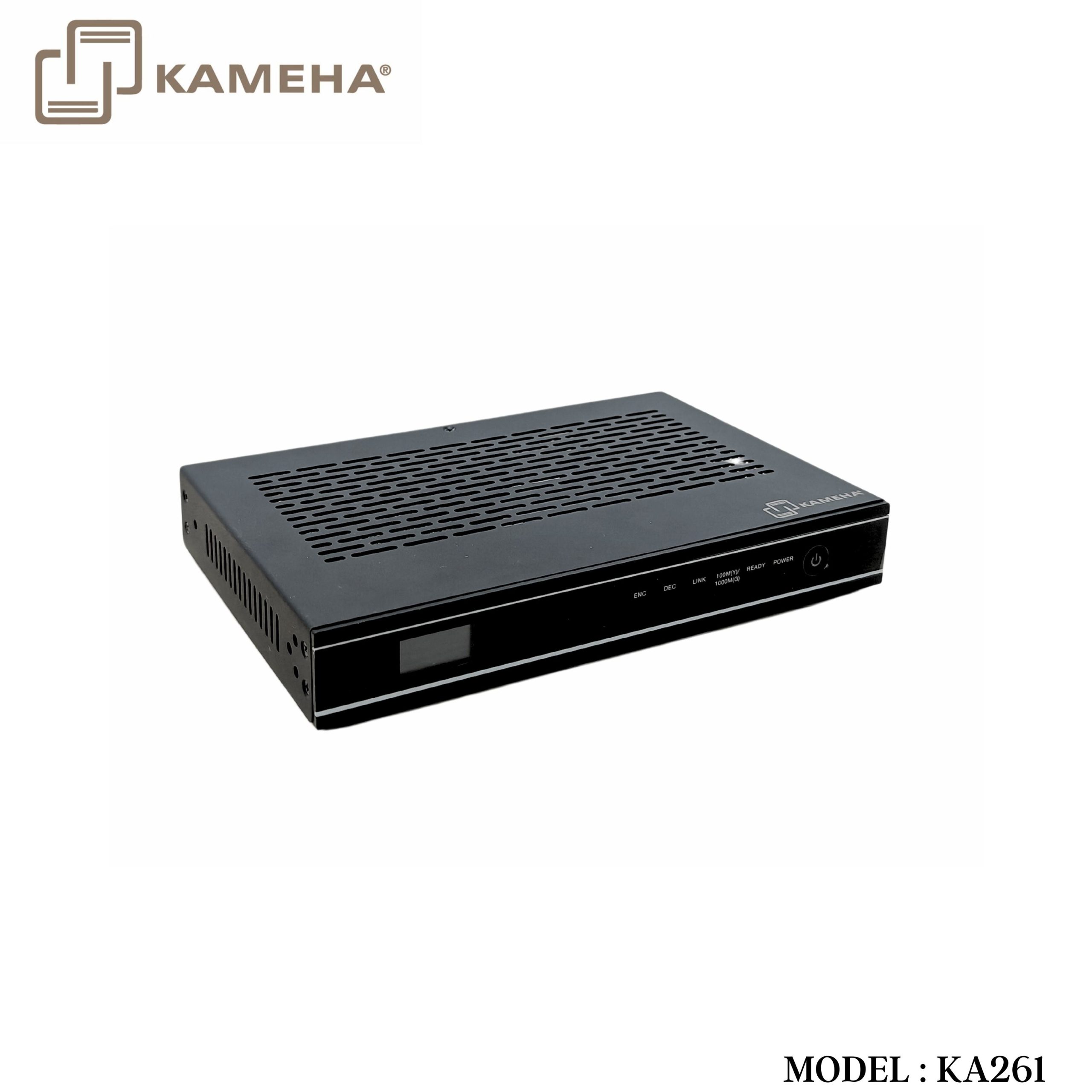

Description
Introduction
Features
Specifications
| Technical | |
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 |
| Video Compression Standard | H.264/H.265 |
| Video Bandwidth | 18Gbps |
| Network Port | 1000M Base-T (supporting POE) |
| Video Resolution | Up to 4K@60Hz 4:4:4
(Note: The decoder supports custom resolution output.) |
| Color Space | RGB 4:4:4, YCbCr 4:4:4/4:2:2/4:2:0 |
| Color Depth | 8/10/12bit |
| Encoding Sampling Rate | 48KHz |
| HDMI Audio Formats | LPCM 2.0CH, 16bit, 48k |
| Analog Audio Formats | Left and right stereo analog audio |
| ESD Protection | IEC 61000-4-2:
±8kV (Air-gap discharge) & ±4kV (Contact discharge) |
| Connection | |
| Input | 1x HDMI IN [Type A, 19-pin female]
1x AUDIO IN [3-pin phoenix connector, stereo balanced linear interface] |
| Output | 1x HDMI OUT [Type A,19-pin female]
2x AUDIO OUT [3-pin phoenix connector, stereo balanced linear interface] |
| Control | 1 x LAN (POE) [RJ45, supporting POE]
1 x RS-232 [3-pin phoenix connector] 1 x USB HOST [Type B, 4-pin female] 2 x USB DEVICE [Type A, 4-pin female] 1 x SFP [Fiber slot] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | 204mm [W] × 131.5mm [D] × 30mm [H] |
| Weight | 760g |
| Power Supply | Input: AC 100 – 240V 50/60Hz
Output: DC 12V/2.5A (US/EU standards, CE/FCC/UL certified) |
| Power Consumption | Encoder: 10.22W; Decoder: 7.04W |
| Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity | 20~90% RH (non-condensing) |
Operation Controls and Functions

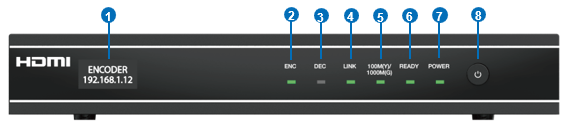

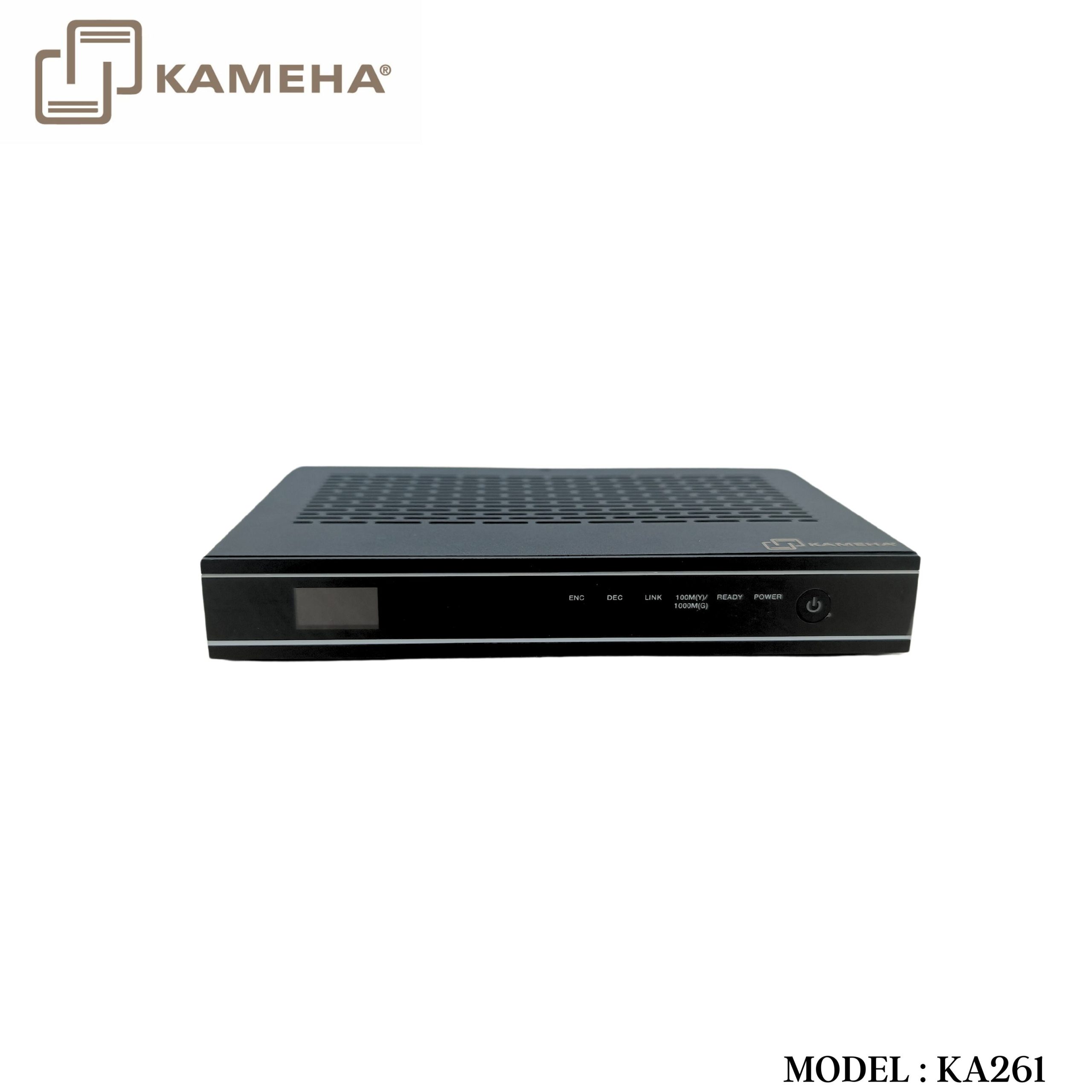

Front Panel
| No. | Name | 4 Function Description |
| 1 | OLED display screen | The name and IP address of the device will be displayed after the device is turned on. The screen will go off after 90 seconds. |
| 2 | ENC LED | When the device is in Encoder mode, the green ENC LED is on. |
| 3 | DEC LED | When the device is in Decoder mode, the green DEC LED is on. |
| 4 | LINK LED | When the network is connected normally, the green LINK LED flashes. |
| 5 | 100M(Y)/
1000M(G) LED |
Network connection rate indicator:
▪ When the device is connected to a 100M network, the yellow indicator is on. ▪ When the device is connected to a 1000M network, the green indicator is on. |
| 6 | READY
LED |
▪ When the system is running normally and no fault occurs, the green LED is on.
▪ When the device is in standby mode, the green LED is on. ▪ When a fault occurs while the system is running, the green LED flashes at a frequency of 1Hz. |
| 7 | POWER LED | ▪ When the device is working normally, the green POWER LED is on.
▪ When the device is in standby mode or powered off, the green POWER LED is off. |
| 8 | Power button | The power button supports power-off memory function.
1. When the device is working normally, power off and power on the device again, it will enter the system directly and work normally. 2. When the device is in standby mode, power off and power on the device again, it will enter the standby mode automatically. Then short press the power button to turn on the device. 3. When the device is working normally, short press the power button to view the current encoder/decoder mode and IP address on the OLED display screen; press and hold the power button for more than 2 seconds to turn off the device. |

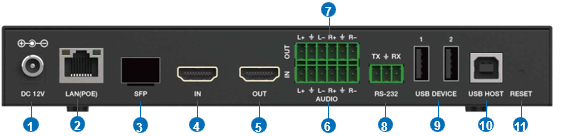

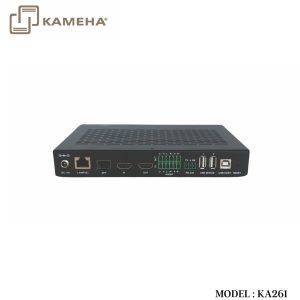

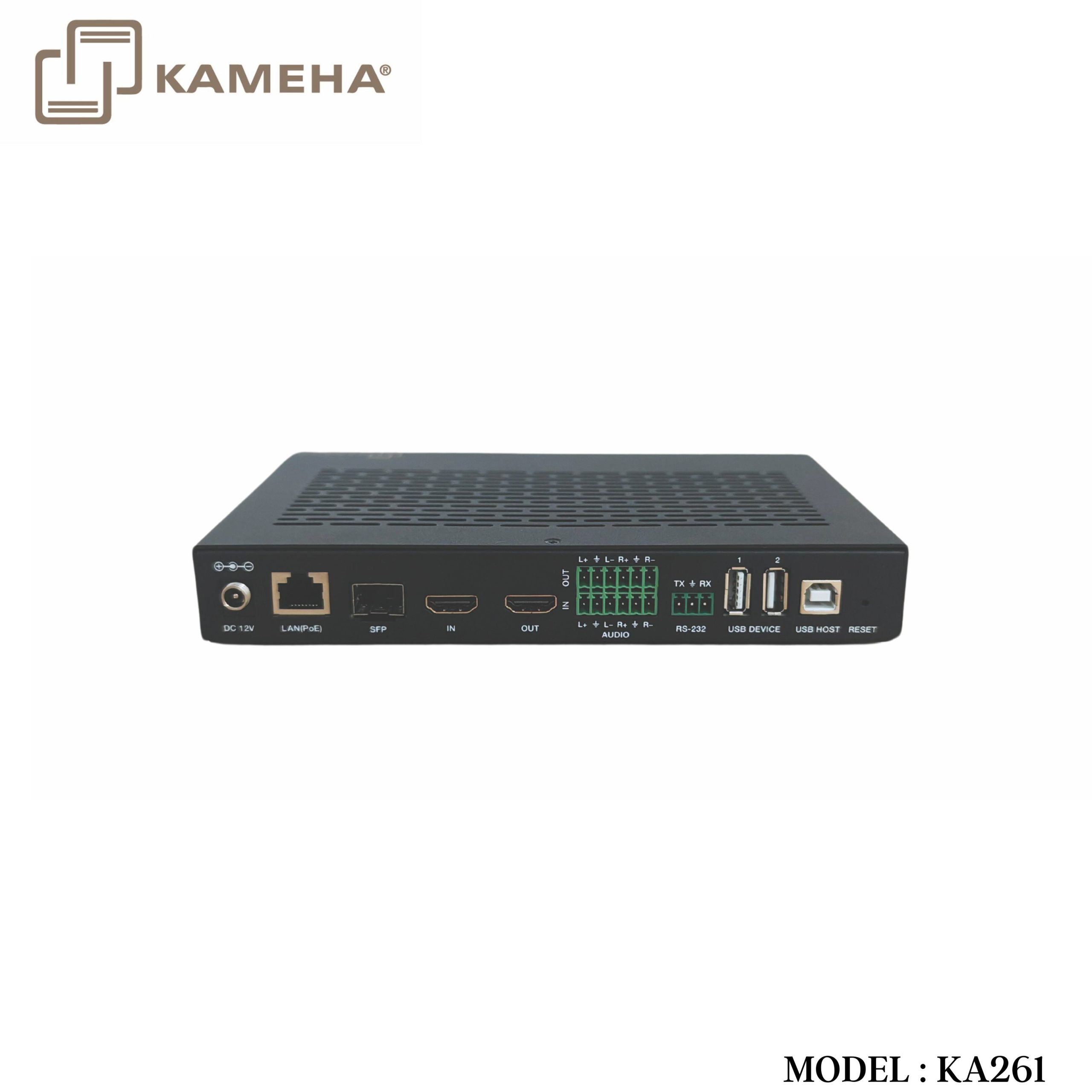

Rear Panel
| No. | Name | 4 Function Description |
| 1 | DC 12V | DC 12V/2.5A power input port.
Note: The device can be powered via two methods: ① Local DC 12V power supply ② POE from Network Switch. Device acts as PD mode. When the two power supply modes are used at the same time, the local DC 12V power supply is preferred. |
| 2 | LAN (POE)
port |
1G network port, connected to Switch for audio/video transmission. This port supports POE power supply. |
| 3 | SFP port | 1G fiber port, connected to Switch for audio/video transmission. |
| 4 | IN port | HDMI signal input port, connected to HDMI signal source device such as PC or PS4 with HDMI cable. |
| 5 | OUT port | HDMI signal output port, connected to HDMI display device such as TV or monitor with HDMI cable. |
| 6 | AUDIO IN port | Stereo balanced line input port, connected to audio source device through 6pin-3.81mm phoenix connector. |
| 7 | AUDIO OUT
port |
Stereo balanced line output port, connected to audio playback device through 6pin-3.81mm phoenix connector. |
| 8 | RS-232 port | RS-232 serial port, relay RS-232 command transmission from the Control Server. |
| 9 | USB DEVICE | USB device ports, connected to keyboard and mouse in DEC mode. |
| 10 | USB HOST | USB Host port, connected to computer in ENC mode. |
| 11 | RESET
button |
System reset button.
▪ Long press this button for 5 seconds and reboot the device manually, the system will be restored to the factory default setting. ▪ Long press this button for 15 seconds, the software will be restored to the factory default version. |
Notes:
- By incorporating the KAMEHA controller (Model KA218, KA228, KA229) , we can custom design the way of control.
- Max encoder allowed in one solution : 200 unit
Max decoder allowed in one solution : 200 unit - Max window ( multiview screen ) allowed : 16 screens
- Max video wall setting format in one solution : 50 files
- Max video wall size : 50 x 50 tvs
- Max marquee (subtitle) allowed : 16 types
- Max user created to login : unlimited

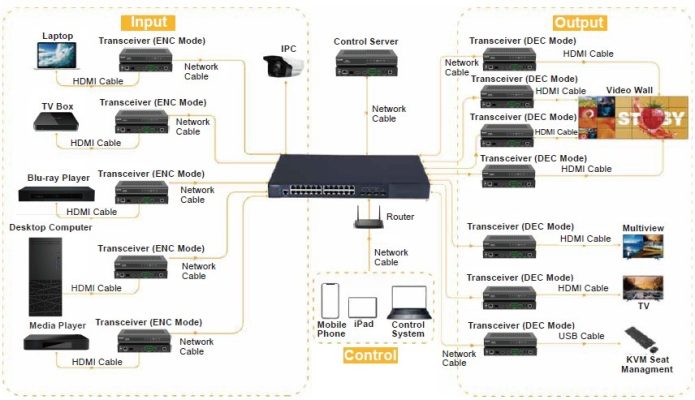

Application Example
Click here for product PDF file
Click here for product manual
Click here for product tutorial (software control)
Additional information
| Weight | 1.20 kg |
|---|---|
| Dimensions | 26.00 × 19.80 × 9.00 cm |
| Warranty | 1 YEAR WARRANTY |
| WHAT'S IN THE BOX? | 1* H.264/H.265 4K60 AV over IP Transceiver |
