Description
Introduction

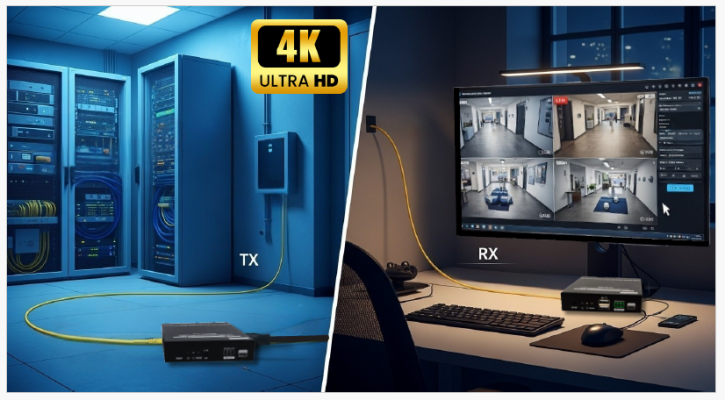

This product is a 4K@60Hz HDMI KVM optical extender kit consisting of a transmitter and a receiver, using ipcolor STREAM technology for high- definition, low-latency transmission. The 4K@60HZ HDMI signal can be extended up to 40km by LC single-mode fiber cable, supporting one-to-one connection, one-to-many connection via gigabit switch, or switch cascading. It also support HDMI loop out, KVM, and RS-232 pass-through, and can be widely used in meetings, home entertainment, educational presentations, and other fields.
Features
- Adopting ipcolor STREAM technology can realize high-definition and low-latency transmission.
- Support up to 3840×2160@60HZ resolution, backwards compatible.
- Support optical fiber transmission, the maximum transmission distance of 40km.
- Support one-to-one or one-to-many connections through the gigabit switch.
- Support RS-232 pass-through.
- The transmitter support HDMI loop out.
- Support KVM control signal pass back.
- The transmitter has a 3.5 mm audio input for sound embedding, the receiver has an independent 3.5 mm audio output.
- Firmware can be upgraded through Micro USB.
- Lightning protection, surge protection, ESD protection.
- Support steady 24-hour operation.
Technical Parameters
| Item | Transmitter | Receiver |
| Video | ||
| Input inter face | 1x HDMI | 1x SFP to LC |
| Output inter face | 1x HDMI , 1x SFP to LC | 1x HDMI |
| HDMI length | ≤ 5m | ≤ 5m |
| Maximum
transfer rate |
18Gbps | |
| Compatibility | HDMI 2.0 | |
| HDCP 1.4/HDCP 2.2 | ||
| Resolutions | 3840×2160@24/30/50/60Hz, 1080p@50/60Hz, 720p@50/60Hz, 1920×1200@60Hz, 2560×1440@60Hz, 2560×1600@60Hz | |
| Connection types | One-to-one connection, One-to-many connection, Switch cascading | |
| Transmission distance | Single-mode Optical Fiber≤40km | |
| Transmission latency | 80~140ms | |
| Audio Signal | ||
| Input inter face | 1x HDMI
1x 3.5mm L/R |
1x SFP to LC |
| Output inter face | 1x SFP to LC | 1x HDMI
1x 3.5mm L/R |
| HDMI output | LPCM 2.0 | |
| 3. 5mm L/R
output |
PCM | |
| Command Signal | ||
| RS-232(GND/RXD/TXD) | Default baud rate: 115200
Supported: 2400, 4800, 9600, 19200, 38400, 57600, 115200 |
|
| Power | ||
| Power Supply | DC 5V/2A | DC 5V/2A |
| Power
onsumption |
TX ≤ 7.5W | RX ≤ 7.5W |
| Operating Environment | ||
| Working
temperature |
– 10℃~50℃ | |
| Storage
temperature |
– 30℃~70℃ | |
| Humidity | 0~90%RH (no condensation） | |
| Physical Proper ties | ||
| Housing | lron | |
| Weight | TX: 307g | RX: 303g |
| Color | Black | |
| Dimensions | 106.0(L)*103.0(W)*20.6(H)mm | |
| Protection | ESD protection 1a Contact discharge level 2 (±4KV) 1b Air discharge level 3 (±8KV)
Implementation of the standard: IEC61000-4-2 |
|
| Lightning protection, Surge protection | ||

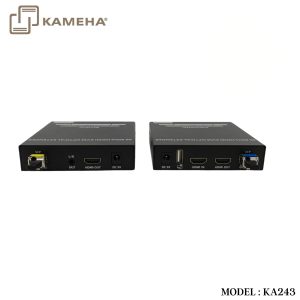

Panel Description
Transmitter
| 1. | Reset | Press to restart the device |
| 2. | Power indicator(blue) | The indicator will turn on when the power is turned on |
| 3. | Status indicator (orange) | 1. Light off: The transmitter and the receiver have not established a connection.
2. Slow flash: The transmitter and the receiver are connected but no video data transmission (gigabit Ethernet). 3. Quick flash: The transmitter and the receiver are connected but no video data transmission (100M Ethernet). 4. Steady on: The video data is transmitting. |
| 4. | KVM indicator | 1. Light flashing: The KVM data is transmitting.
2. Steady on: The computer and the USB port are connected. |
| 5. | L/R IN | Connect to the audio source device with 3.5mm stereo audio cable. |
| 6. | RS-232 (GND/RXD/TXD) | Used for RS-232 pass through |
| 7. | Micro USB port | Used for firmware upgrading |
| 8. | DC 5V | Connect with DC5V/2A power adapter |
| 9. | USB-A port | Connect to the computer with USB cable |
| 10. | 1. HDMI input
2. HDMI out 3. SFP signal out |
1. Connect with HDMI source device
2. SFP signal out 3. Insert the SFP optical module (T1310nm/R1550nm) |
Receiver
| 1. | Reset | Press to restart the device |
| 2. | Power indicator (blue) | The indicator will turn on when the power is turned on |
| 3. | Status indicator
(orange) |
1. Light off: The transmitter and the receiver have not established a connection.
2. Slow flash: The transmitter and the receiver are connected but no video data transmission (gigabit Ethernet). 3. Quick flash: The transmitter and the receiver are connected but no video data transmission (100M Ethernet). 4. Steady on: The video data is transmitting. |
| 4. | KVM indicator | 1. Light flashing: The KVM data is transmitting.
2. Steady on: The mouse and the keyboard are connected. |
| 5. | USB-A port | Connect the mouse and the keyboard |
| 6. | RS-232 (GND/RXD/TXD) | Used for RS-232 pass through |
| 7. | Micro USB port | Used for firmware upgrading |
| 8. | SFP signal input | Insert the SFP optical module (T1550nm/R1310nm) |
| 9. | L/R OUT | Connect to the audio device with 3.5mm stereo audio cable |
| 10. | HDMI output DC 5V |
Connect with HDMI display device Connect with DC5V/2A power adapter |
Installation Procedures
- Connection Diagrams
1.1 One-to-one connection
1.2 One-to-many connection (through gigabit switch):
1.3 One-to-many connection (cascade of gigabit switches):
Additional information
| Weight | 1.20 kg |
|---|---|
| Dimensions | 24.00 × 8.00 × 17.50 cm |
| WARRANTY | 1 YEAR WARRANTY |
| WHAT'S IN THE BOX | 1* KVM Optical Extender (TRANSMITTER) |
