Description
Introduction
This high performance HDMI Matrix Switcher can switch any of these four HDMI sources to two HDMI displays. It supports resolution up to 4K2K@60Hz YCbCr 4:4:4 and HDCP 2.2. It can extract HDMI source device audio to optical and analog L/R output. It supports 4K→1080P downscale function if source is 4K but TV only supports up to 1080P. It also supports ARC and EDID (AUTO/COPY/STD) function. With its 18Gbps bandwidth and the additional features with latest HDMI standards. Flexible control via front panel buttons and IR remote.
Features
- HDMI 2.0, HDCP 2.2 / HDCP 1.4 and DVI 1.0 compliant
- Supports 4 HDMI inputs and 2 HDMI outputs
- Video resolution up to 4K2K@60Hz YCbCr 4:4:4
- Supports 18Gbps uncompressed bandwidth on all HDMI
- Supports Dolby Vision, HDR 10+, HLG
- Supports extract HDMI input source device audio of OUT A or OUT B to optical and analog L/R output
- OUT A and OUT B support 4K to 1080P downscale function
- Supports ARC (Audio Return Channel) function
- Supports advanced EDID management including AUTO, COPY and STD

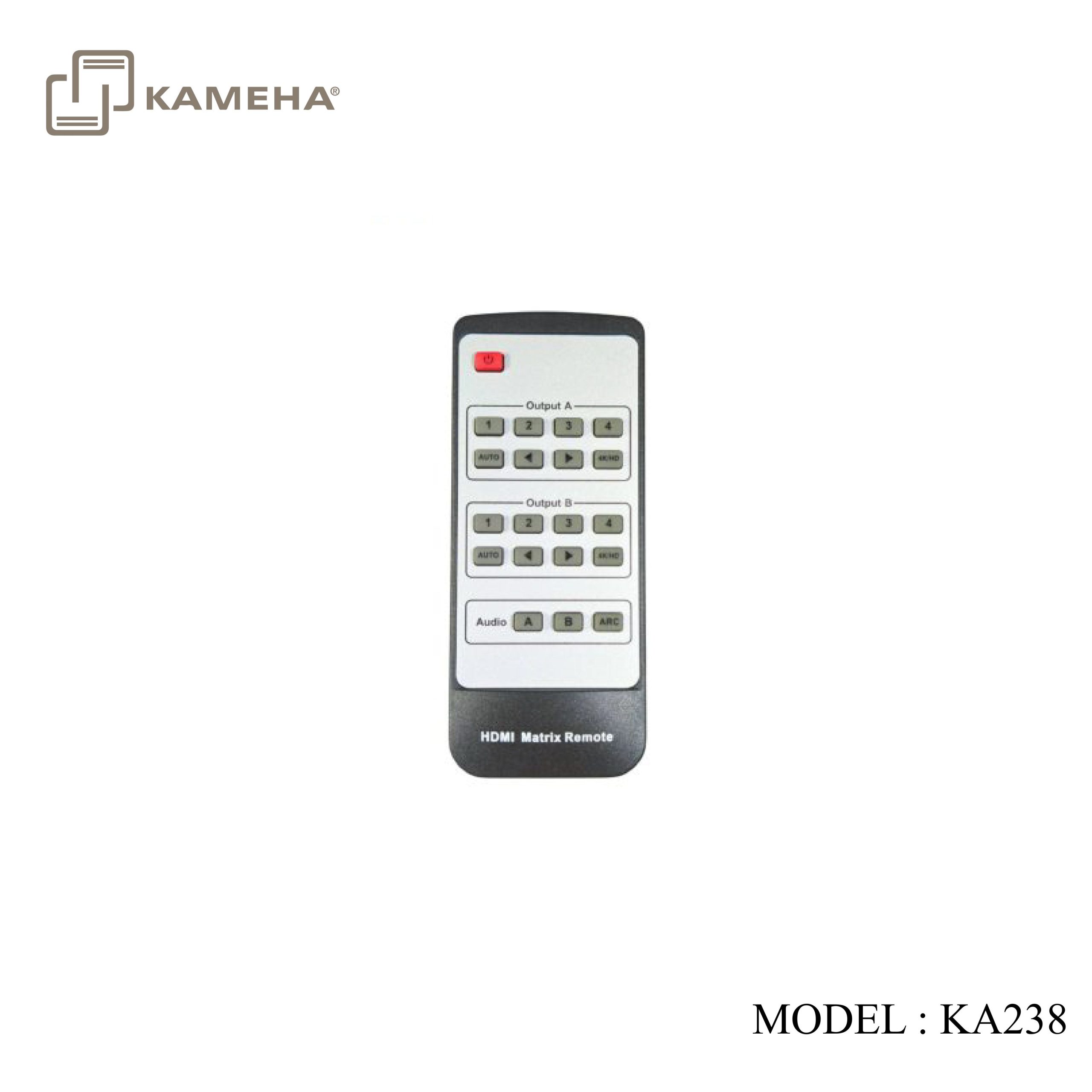

- Control is via front panel buttons and IR remote
Specifications
| Technical | |
| HDMI Compliance | HDMI 2.0 |
| HDCP Compliance | HDCP 2.2 and HDCP 1.4 |
| Video Bandwidth | 18 Gbps |
| Video Resolution | Up to 4K2K@50/60Hz (YCbCr 4:4:4),4K2K@30Hz. All HDMI 3D TV format, etc. |
| Color Space | RGB, YCbCr4:4:4,YCbCr4:2:2, YCbCr 4:2:0 |
| Color Depth | 8-bit, 10-bit, 12-bit [1080P, 4K30Hz, 4K60Hz (YCbCr 4:2:0)] 8-bit [4K60Hz (YCbCr4:4:4)] |
| HDMI Audio Formats | PCM2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX,DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD |
| Optical Audio Formats | PCM2.0, Dolby Digital / Plus, DTS |
| L/R Audio Formats | PCM2.0CH (Note: If ARC function is turned on, the audio port will mute.) |
| ESD Protection | Human-body Model: ±8kV (Air-gap discharge), ±4kV (Contact discharge) |
| Connections | |
| Input Ports | 4×HDMI Type A [19-pin female] |
| Output Ports | 2×HDMI Type A [19-pin female] 1×L/R audio out [3.5mm Stereo Mini-jack] 1×OPTICAL audio out [S/PDIF] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | 251mm(W)×105mm(D)×20mm(H) |
| Weight | 620g |
| Power Supply | Input: AC100~240V 50/60Hz Output: DC12V/1A |
| Power Consumption | 3.8W (max) |
| Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity | 20~90% RH (non-condensing) |
Operation Controls and Functions

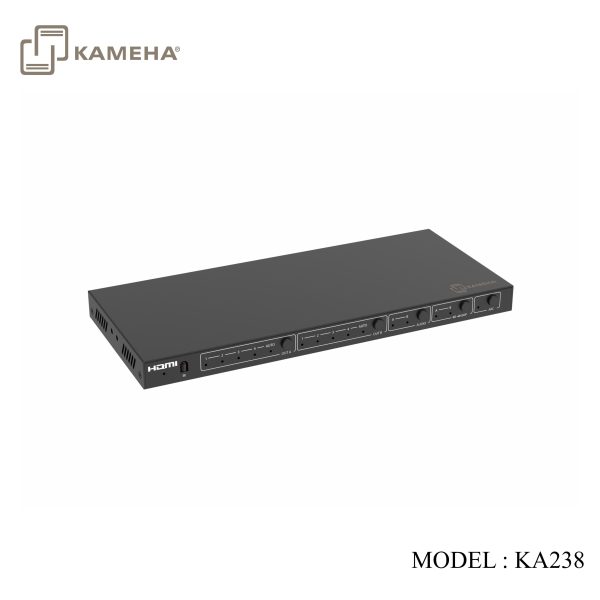

- Front Panel
| Number | Name | Function Description |
| 1 | Power LED | The blue LED will illuminate when the product is connected power supply. |
| 2 | IR | IR receiver window. It only receives IR remote signal from this product. |
| 3 | OUT A button and LED | Press the OUT A button to select an input source to OUT A output, the corresponding blue LED will illuminate. |
| AUTO LED | The blue AUTO LED will illuminate and the AUTO function will be turned on when you press the OUT A button up to 3 seconds, press the OUT A button up to 3 seconds again will turn off the AUTO function.
AUTO function: Detect input signal source. The AUTO function is turned on, if an or a few HDMI IN ports are connected source device, OUT A port will output the signal from the last connected input source. |
|
| 4 | OUT B button and LED | Press the OUT B button to select an input source to OUT B output, the corresponding blue LED will illuminate. |
| AUTO LED | The blue AUTO LED will illuminate and the AUTO function will be turned on when you press the OUT B button up to 3 seconds, press the OUT B button up to 3 seconds again will turn off the AUTO function.
AUTO function: Detect input signal source. The AUTO function is turned on, if an or a few HDMI IN ports are connected source device, OUT B port will output the signal from the last connected input source. |
|
| 5 | AUDIO button | ▪ Press AUDIO button to select extract the input source audio from OUT A port or OUT B port to optical and analog L/R output, the corresponding blue LED will illuminate.
▪ If ARC function is turned on, press AUDIO button to select return the audio signal from OUT A or OUT B display device to optical output, the corresponding blue LED will illuminate. At this time, the analog L/R port is mute. |
| 6 | 4k→1080P
button |
Press the button to select OUT A or OUT B 4k→1080P downscale function, the corresponding blue LED will illuminate. For example, if source is 4K but TV only supports 1080P, at this time the input resolution with 4K will downscale to 1080P to TV output. |
| 7 | ARC button | Turn on / off ARC function. The blue ARC LED will illuminate when you turn on the ARC function. |
- Rear Panel
| Number | Name | Function description |

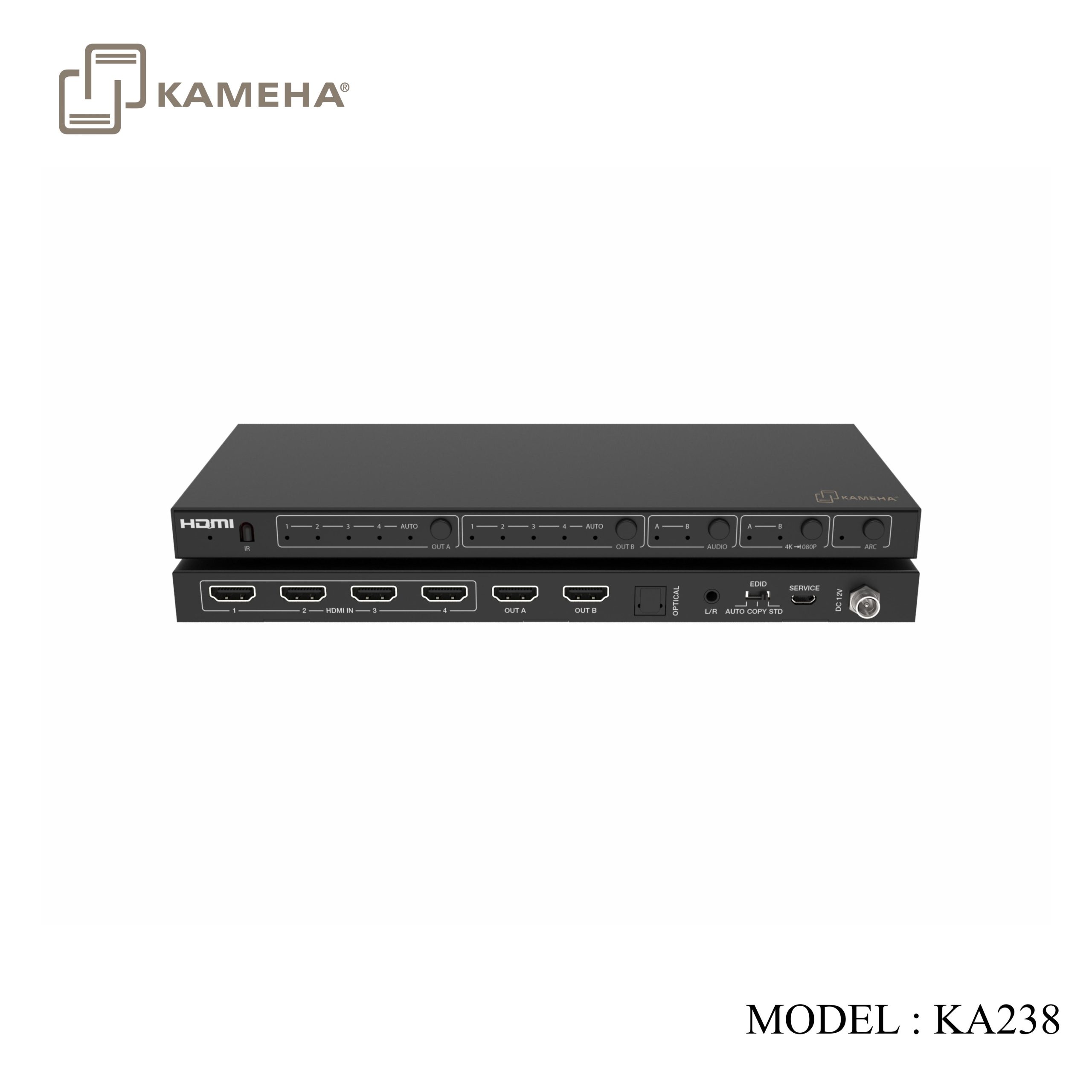

| 1 | HDMI IN port | HDMI input ports, connect to HDMI source device such as DVD or PS4 with an HDMI cable. |
| 2 | HDMI OUT A / OUT B port | HDMI output ports, connect to HDMI display device such as TV or Projector with an HDMI cable. |
| 3 | OPTICAL / L/R port | Connect to audio output device such as amplifier or speaker with optical and analog audio cable. |
| 4 | EDID AUTO / COPY / STD | AUTO: Compare with Out A and Out B display device’s EDID information, and then sending the best EDID information to source device of Out A and Out B. The source device of Out A and Out B will send the EDID information again to Out A and Out B display device output.
COPY: Copy Out A display device’s EDID information to source device of Out A and Out B. Then the source device of Out A and Out B will send the EDID information again to Out A and Out B display device output. STD: Out A and Out B display device output default 1080P. |
| 5 | SERVICE port | Firmware update port. |
| 6 | DC 12V | Plug in 12V/1A adapter to AC wall outlet for power supply. |
- Application Example
Additional information
| Weight | 0.96 kg |
|---|---|
| Dimensions | 27.50 × 6.50 × 18.00 cm |
| WARRANTY | 1 YEAR WARRANTY |
| WHAT'S IN THE BOX | 1* 4×2 HDMI2.0 Matrix Switcher |
