Description
Introduction:

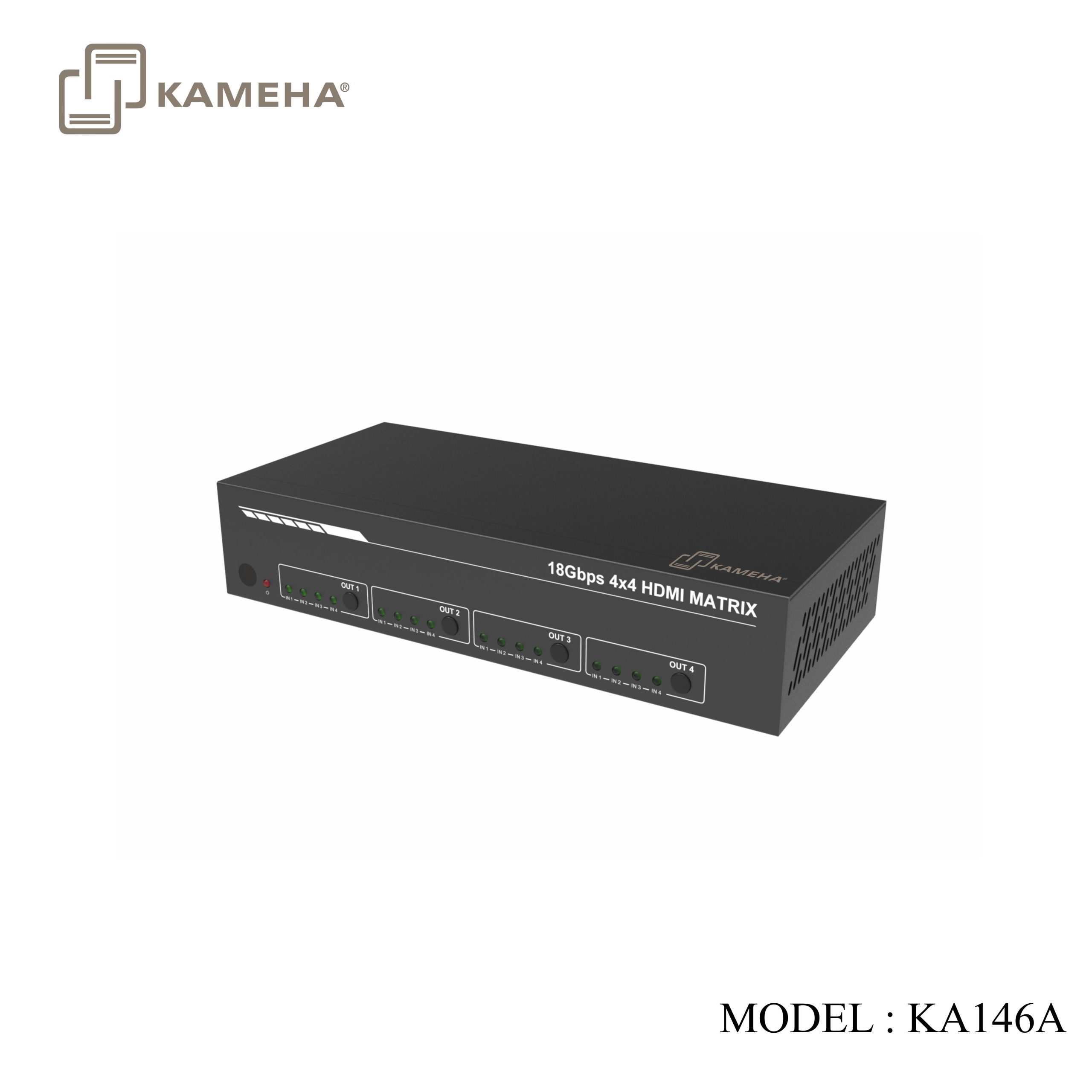

This high performance 4×4 HDMI 4K 18Gbps Matrix can switch any of four HDMI 2.0 sources to four HDMI 2.0 displays. Each input and output supports up to 4K60 444 resolution and HDCP 2.2. The outputs can be individually scaled (4K→1080p). De-embedded audio can be output through analog L/R and coaxial audio output ports. The ARC function can return display device audio to coaxial port output only. Advanced EDID management is supported. This Matrix supports 18Gbps bandwidth and the additional features with latest HDMI standards. It can be controlled from the front panel, RS-232, IR remote, or TCP/IP.
Features:
- HDMI 2.0, HDCP 2.2 / HDCP 1.4 and DVI 1.0 compliant
- Video resolution is up to 4K2K@60Hz (YUV 4:4:4)
- Support 18Gbps video bandwidth
- Four outputs can be individually scaled (4K→1080p)
- De-embedded audio to analog L/R and Coaxial ports output
- ARC audio return to the coaxial ports output only
- Built-in Web GUI for TCP/IP control
- Advanced EDID management supported

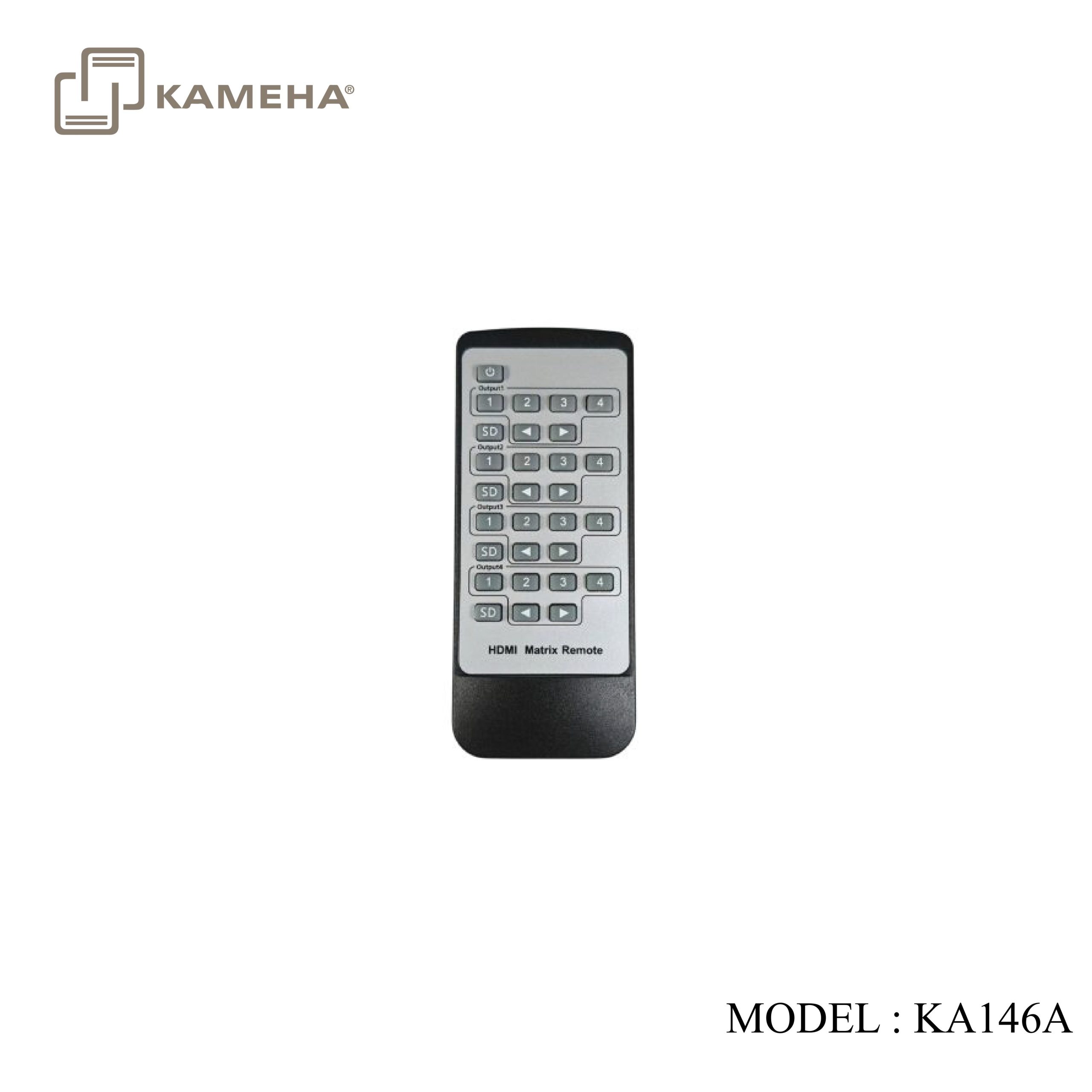

- Four methods of control: Front panel, RS-232, IR remote and TCP/IP
- Compact design for easy and flexible installation.
Specifications:
| Technical | |||
| HDMI Compliance | HDMI 2.0 | ||
| HDCP Compliance | HDCP 2.2 and HDCP 1.4 | ||
| Video Bandwidth | 18Gbps | ||
| Video Resolution | 4K2K 50/60Hz 4:4:4
4K2K 50/60Hz 4:2:0 4K2K 30Hz 4:4:4 1080p, 1080i, 720p, 720i, 480p, 480i All HDMI 3D TV formats All PC resolutions including 1920 x 1200 |
||
| Output Scaling | 4K→1080p | ||
| Video Resolution | Yes | ||
| 4K2K 50/60Hz 4:2:0 | RGB, YCbCr4:4:4, YCbCr4:2:2, YCbCr 4:2:0 | ||
| 4K2K 30Hz 4:4:4 | 8-bit, 10-bit, 12-bit [1080P, 4K30Hz, 4K60Hz (YCbCr 4:2:0)]
8-bit [4K60Hz (YCbCr 4:4:4)] |
||
| 1080p, 1080i, 720p, 720i, 480p, 480i | PCM2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX,DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD | ||
| All HDMI 3D TV formats | PCM2.0, Dolby Digital / Plus, DTS 2.0/5.1 | ||
| All PC resolutions including 1920 x 1200 | PCM2.0CH | ||
| Output Scaling | HDR10, HDR10+. Dolby Vision, HLG | ||
| 3D Support | Human-body Model: ±8kV (Air-gap discharge),
±4kV (Contact discharge) |
||
| Color Space | RGB, YCbCr4:4:4, YCbCr4:2:2, YCbCr 4:2:0 | ||
| Color Depth | 4 x HDMI Type A [19-pin female] | ||
| 8-bit [4K60Hz (YCbCr 4:4:4)] | 4 x HDMI Type A [19-pin female]
4 x L/R audio out [3.5mm Stereo Mini-jack] 4 x COAX audio out [RCA] |
||
| Control ports | 1 x TCP/IP [RJ45]
1 x RS-232 [3-pin phoenix connector] 1 x IR EXT [3.5mm Stereo Mini-jack] |
||
| Mechanical | |||
| Housing | Metal Enclosure | ||
| Color | Black | ||
| Dimensions | 220mm (W)×105mm (D)×44mm (H) | ||
| Weight | 792g | ||
| Power Supply | Input: AC100~240V 50/60Hz
Output: DC12V/2.5A (Locking connector) |
||
| Power Consumption | 10W (Max), 1.56W (Standby mode) | ||
| Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F | ||
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F | ||
| Relative Humidity | 20~90% RH (non-condensing) | ||
| Resolution / Cable Length | 4K60 –
Feet / Meters |
4K30 –
Feet / Meters |
1080P60 –
Feet / Meters |
| HDMI IN / OUT | 10ft / 3M | 30ft / 10M | 42ft / 15M |
| The use of “Premium High Speed HDMI” cable is highly recommended. | |||
Operation Controls and Functions

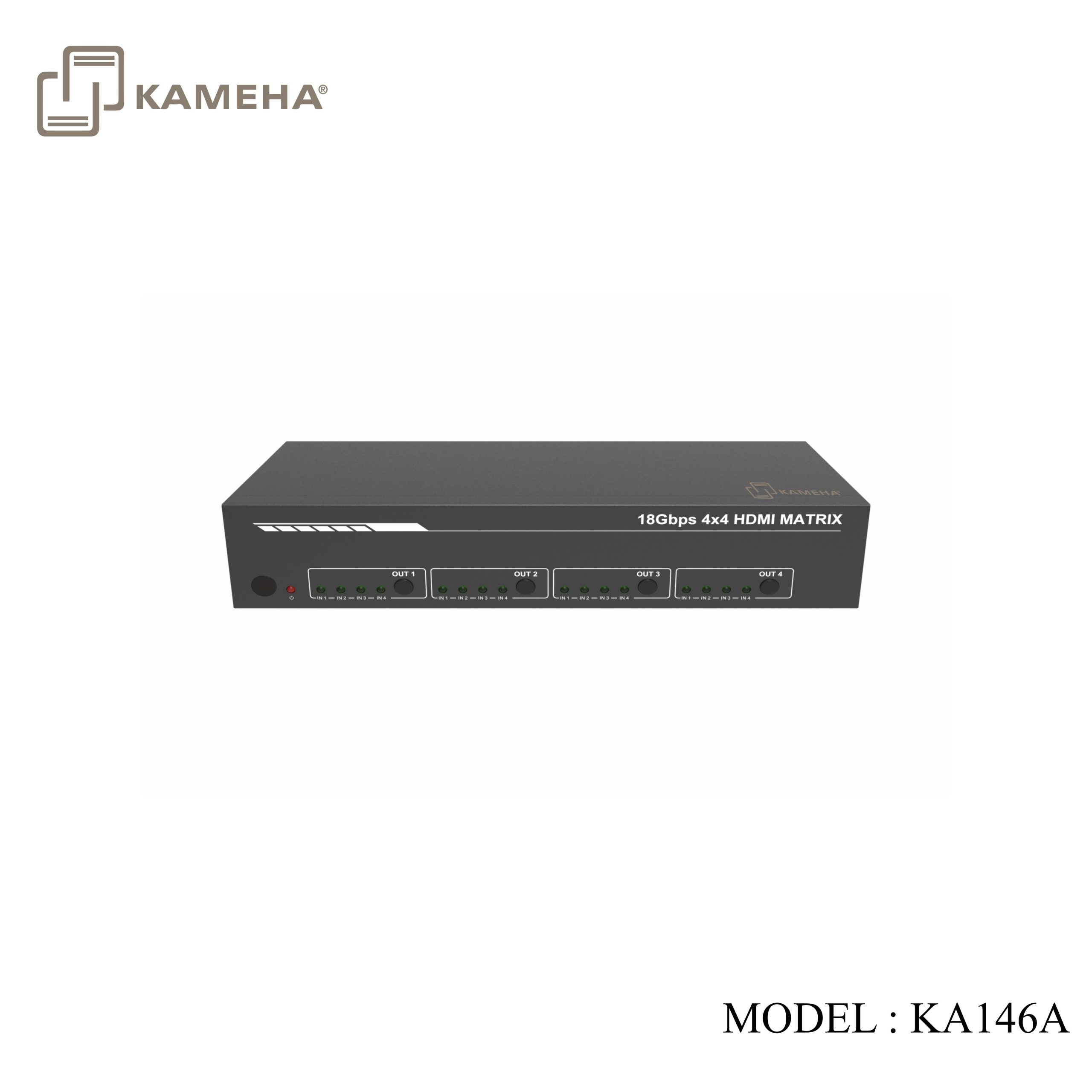

- Front Panel
| Name | Function Description |
| IR Receiver Window | IR input for remote control of the Matrix. |
| POWER LED | Red LED indicates that the unit is powered on. |
|
OUT 1/2/3/4 button |
-Short press to circularly select the desired input source IN 1/2/3/4 for OUT 1/2/3/4 port output.
-Press OUT 1/2/3/4 button for 3 seconds to switch Scaler mode for the OUT 1/2/3/4 port. |
| IN 1/2/3/4 LED | When IN 1/2/3/4 port is selected as the input channel for OUT 1/2/3/4 port, the corresponding green LED will be on. |

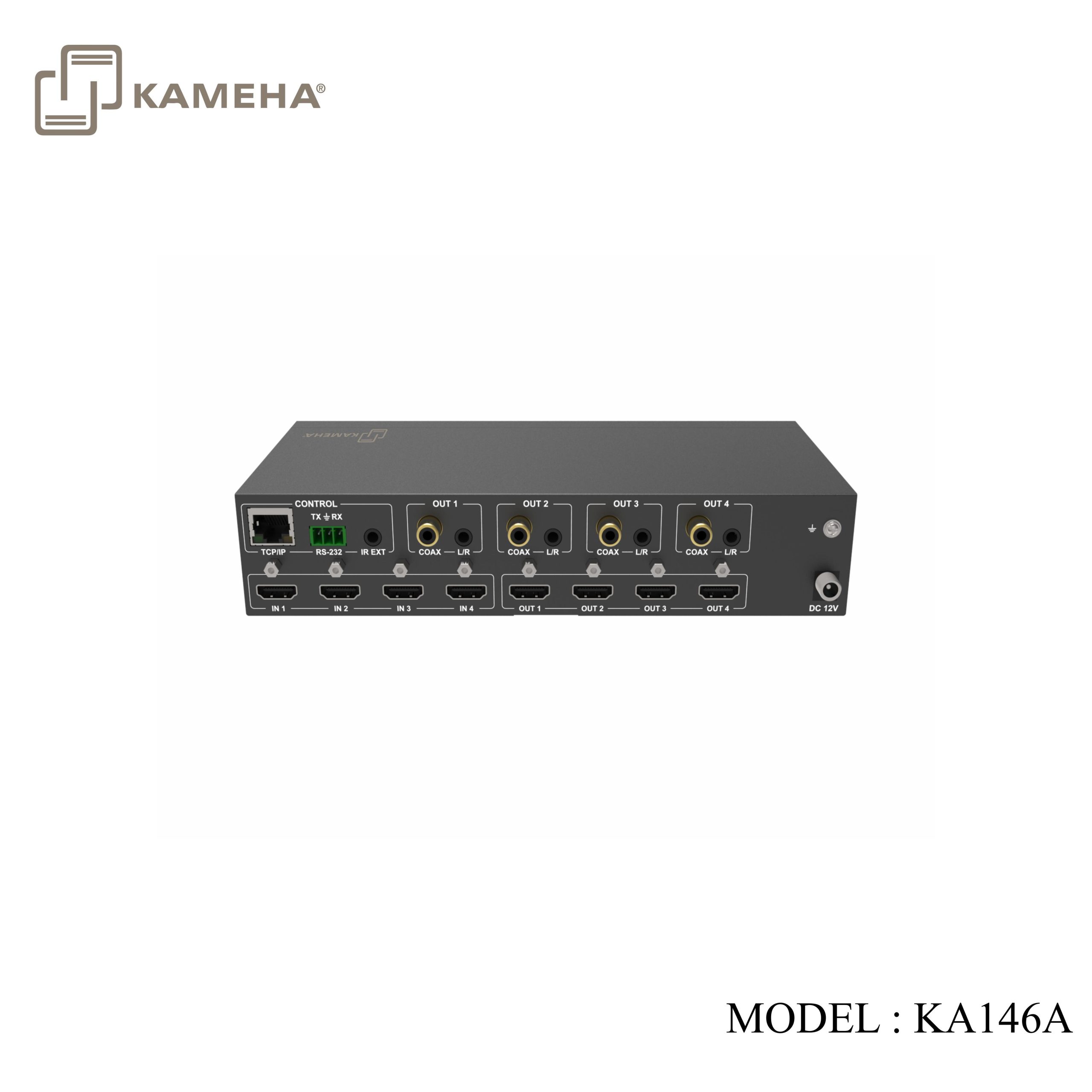

- Rear Panel
| Name | Function Description |
| TCP/IP | Control port for TCP/IP control or accessing the built-in Web GUI. |
| RS-232 | 3-pin pluggable connector for RS-232 control of the Matrix. |
|
IR EXT |
If the IR receiver window of the unit is blocked or the unit is installed in a closed area out of infrared line of sight, the IR receiver cable can be inserted to the “IR EXT” port to receive the IR remote signal. |
| Coaxial Audio OUT 1
/ OUT 2 / OUT 3 / OUT 4 |
RCA connector for coaxial audio output from HDMI OUT 1
/ OUT 2 / OUT 3 / OUT 4. |
| L/R Audio OUT 1 / OUT 2 / OUT 3 /
OUT 4 |
3.5mm Mini-jack connector for stereo audio output from HDMI OUT 1 / OUT 2 / OUT 3 / OUT 4. |
| GND | Screw terminal for earthing the Matrix. |
| IN 1/2/3/4 port | HDMI signal input port, connected to HDMI source device such as DVD or PS4 with an HDMI cable. |
| OUT 1/2/3/4 port | HDMI signal output port, connected to HDMI display device such as TV or monitor with HDMI cable. |
| DC 12V | DC 12V input for 12V 2.5A PSU. |
Application Example
Additional information
| Weight | 1.30 kg |
|---|---|
| Dimensions | 30 × 6 × 23.50 cm |
| WARRANTY | 1 YEAR WARRANTY |
| WHAT'S IN THE BOX | 1* 4×4 HDMI 4K 18Gbps Matrix |
