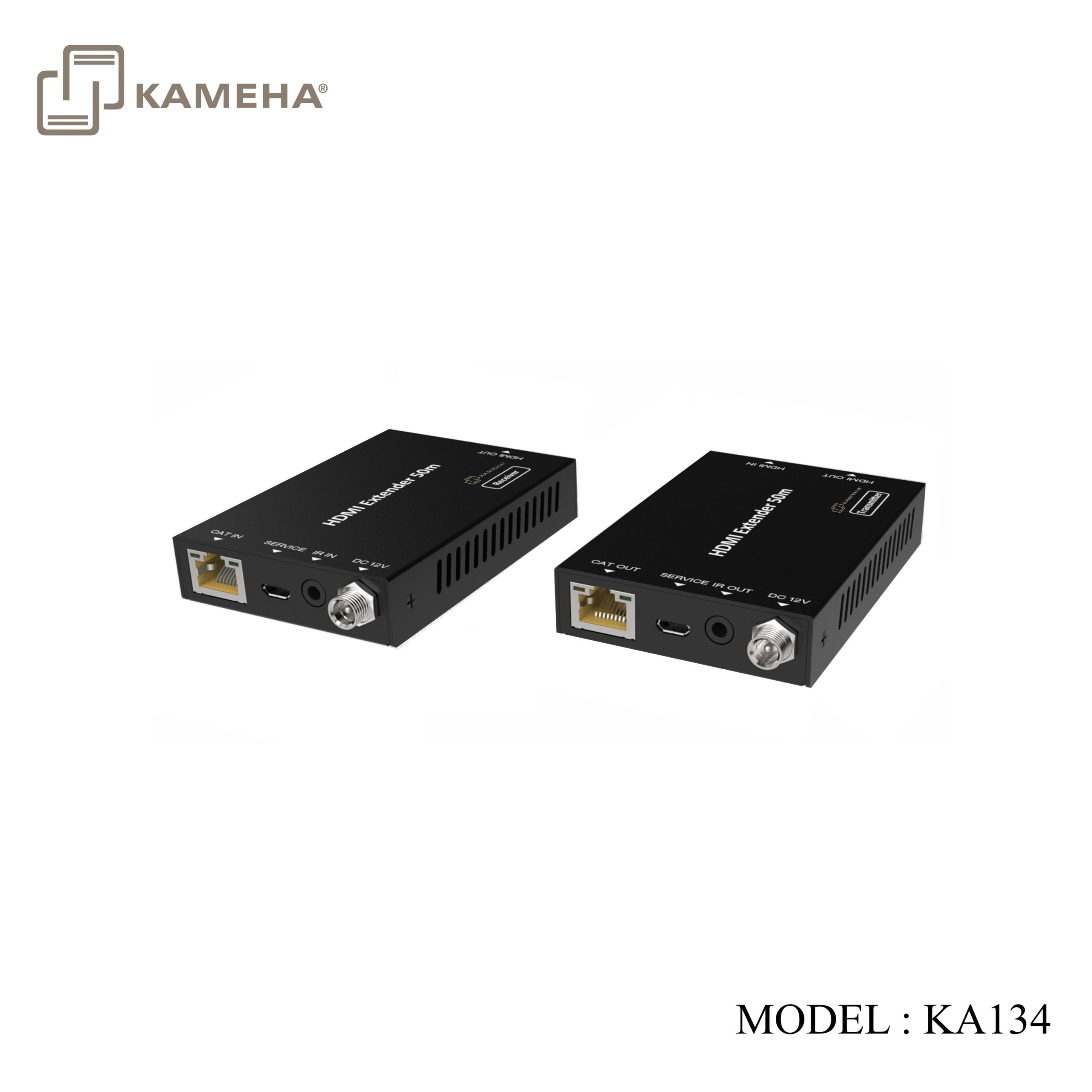

Description
The HDMI 18Gbps Extender can extend high definition video / audio signal and one-way IR, and the distance is up to 164ft / 50 meters between transmitter and receiver over a single Cat5e/6 cable. It supports resolution up to 4K2K@60Hz 4:4:4, 18Gbps and HDCP 2.2. In addition, the extender is equipped with one-way IR pass-through which allows for source control and one HDMI loop output.
The extender includes two units: transmitter unit and receiver unit. The transmitter unit is responsible for capturing HDMI input signal and carries the signal via one cost effective Cat6 cable, and emitting IR control signals. The receiver unit is responsible for receiving the HDMI signal and transmitting IR control signal.
The extender offers the most convenient solution for HDMI extension over a single Cat5e/6 with long distance capability, and is the perfect solution for any application.
Features
- HDMI 2.0, HDCP 2.2 / HDCP 1.4 and DVI 1.0 compliant
- Supports 18Gbps bandwidth
- Supports input and output video resolution up to 4k2k@60Hz 4:4:4, extends distance up to 164ft / 50 meters
- Supports one HDMI loop output
- Supports one-way IR pass-through
- Supports HDR function
- Supports POC (Power over Cable) function, it means that either transmitter or receiver is powered supply by 12V/1A power adapter, the other doesn’t need power supply.
- Supports automatic copy EDID function
- Compact design for easy and flexible installation.
Specifications
| Technical | ||
| HDMI Compliance | HDMI 2.0 | |
| HDCP Compliance | HDCP 2.2 / HDCP 1.4 | |
| Video Bandwidth | 18Gbps | |
| Video Resolution | Up to 4K60Hz 4:4:4 | |
| Color Space | RGB / YCbCr 4:4:4, YCbCr 4:2:2/4:2:0, YUV 4:4:4 | |
| Color Depth | 8/10/12-bit (1080P60Hz, 4K30Hz, 4K60Hz YCbCr
4:2:2/4:2:0) 8-bit (4K60Hz 4:4:4) |
|
| HDMI Audio Formats | LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby
True HD, Dolby Digital Plus (DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X |
|
| ESD Protection | Human body model — ±8kV (Air-gap discharge) &
±4kV (Contact discharge) |
|
| Connections | ||
| Transmitter | Inputs: 1x HDMI Type A [19-pin female]
1x SERVICE [Micro USB, Update port] Outputs: 1x HDMI Type A [19-pin female] 1x IR OUT [3.5mm Stereo Mini-jack] 1x CAT OUT [RJ45, 8-pin female] |
|
| Receiver | Inputs: 1x IR IN [3.5mm Stereo Mini-jack]
1x CAT IN [RJ45, 8-pin female] 1x SERVICE [Micro USB, Update port] Outputs: 1x HDMI Type A [19-pin female] |
|
| Mechanical | ||
| Housing | Metal Enclosure | |
| Color | Black | |
| Dimensions | Transmitter / Receiver:
61mm [W] x 88mm [D] x 18mm [H] |
|
| Weight | Transmitter: 160g, Receiver: 155g | |
| Power Supply | Input: AC 100 – 240V 50/60Hz
Output: DC 12V/1A |
|
| Power Consumption | 3.84 W | |
| Operating
Temperature |
32 – 104°F / 0 – 40°C | |
| Storage Temperature | -4 – 140°F / -20 – 60°C | |
| Relative Humidity | 20 – 90% RH (no condensation) | |
| Resolution / Distance | 4K60 – Feet / Meters | 4K30 / 1080P – Feet / Meters |
| CAT5e | 164ft / 50M | 164ft / 50M |
| CAT6/6a/7 | 197ft / 60M | 230ft / 70M |
| HDMI IN/OUT | 10ft / 3M | 30ft / 10M |
| The use of “Premium High Speed HDMI” cable is highly recommended. | ||
Operation Controls and Functions
Transmitter panel
| Number | Name | Function description |
| 1 | HDMI OUT | HDMI loop output port, connect to HDMI display device such as TV or Projector with an HDMI cable. |
| 2 | HDMI IN | HDMI input port, connect to HDMI source device such as DVD or PS4 player with an HDMI cable. |
| 3 | CAT OUT | Connect to CAT IN port on the receiving end with a CAT6 cable. |
| 4 | Power Indicator
Lamp (Green) |
The lamp will illuminate when the transmitter is powered on. |
| 5 | Data signal
Indicator Lamp (Orange) |
The lamp will illuminate when the transmitter and the receiver have signal transmission. |
| 6 | SERVICE port | For firmware updated use. |
| 7 | IR OUT | Connect to wideband IR Blaster cable. The IR signal is from the IR IN port of the receiver. |
| 8 | DC 12V | Plug DC 12V/1A power supply into the unit and connect the adapter to an AC outlet.
(Note: The extender supports POC function, it means that either transmitter or receiver is powered supply by 12V/1A power adapter, the other doesn’t need power supply.) |

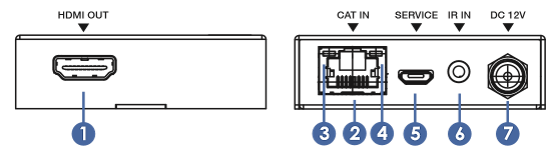

Receiver panel
| Number | Name | Function description |
| 1 | HDMI OUT | HDMI output port, connect to HDMI display device such as TV or Projector with an HDMI cable. |
| 2 | CAT IN | Connect to CAT OUT port on the transmitter end with a CAT6 cable. |
| 3 | Power Indicator
Lamp (Green) |
The lamp will illuminate when the receiver is powered on. |
| 4 | Data signal
Indicator Lamp (Orange) |
The lamp will illuminate when the transmitter and the receiver have signal transmission. |
| 5 | SERVICE port | For firmware updated use. |
| 6 | IR IN | Connect to wideband IR Receiver cable. The IR signal will send to the IR OUT port of the transmitter. |
| 7 | DC 12V | Plug DC 12V/1A power supply into the unit and connect the adapter to an AC outlet.
(Note: The extender supports POC function, it means that either transmitter or receiver is powered supply by 12V/1A power adapter, the other doesn’t need power supply.) |

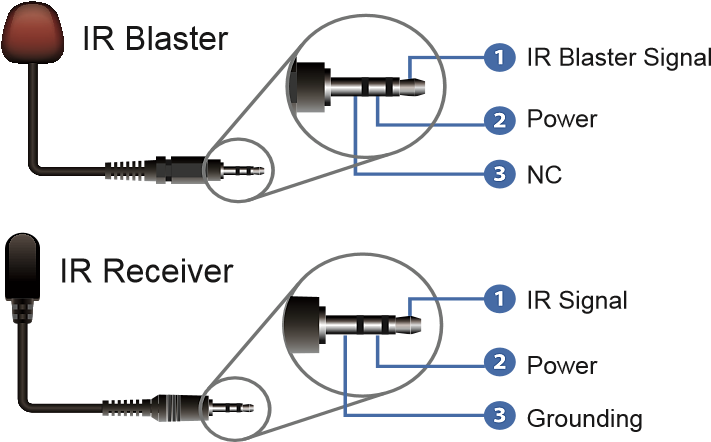

IR Pin Definition

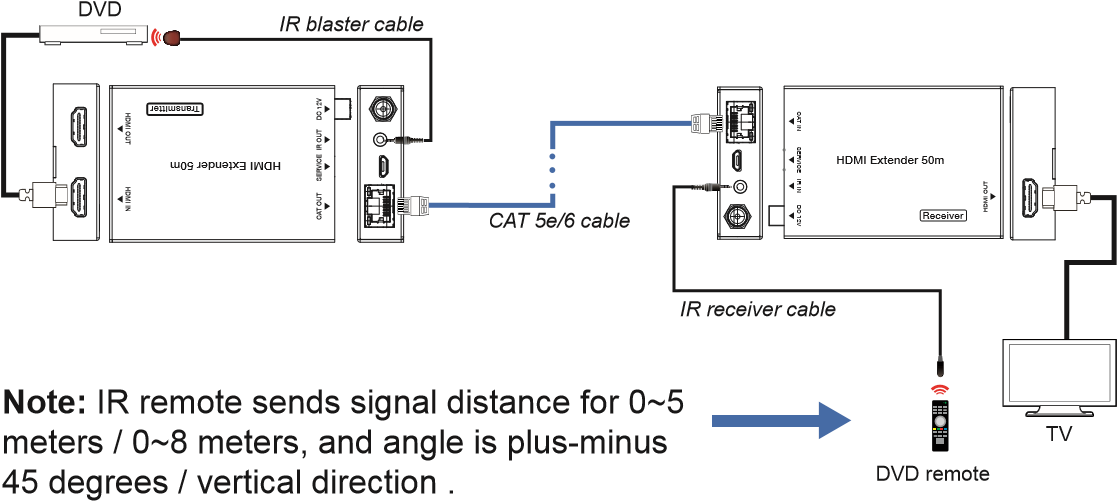

The following is IR system diagram about IR cable use method.

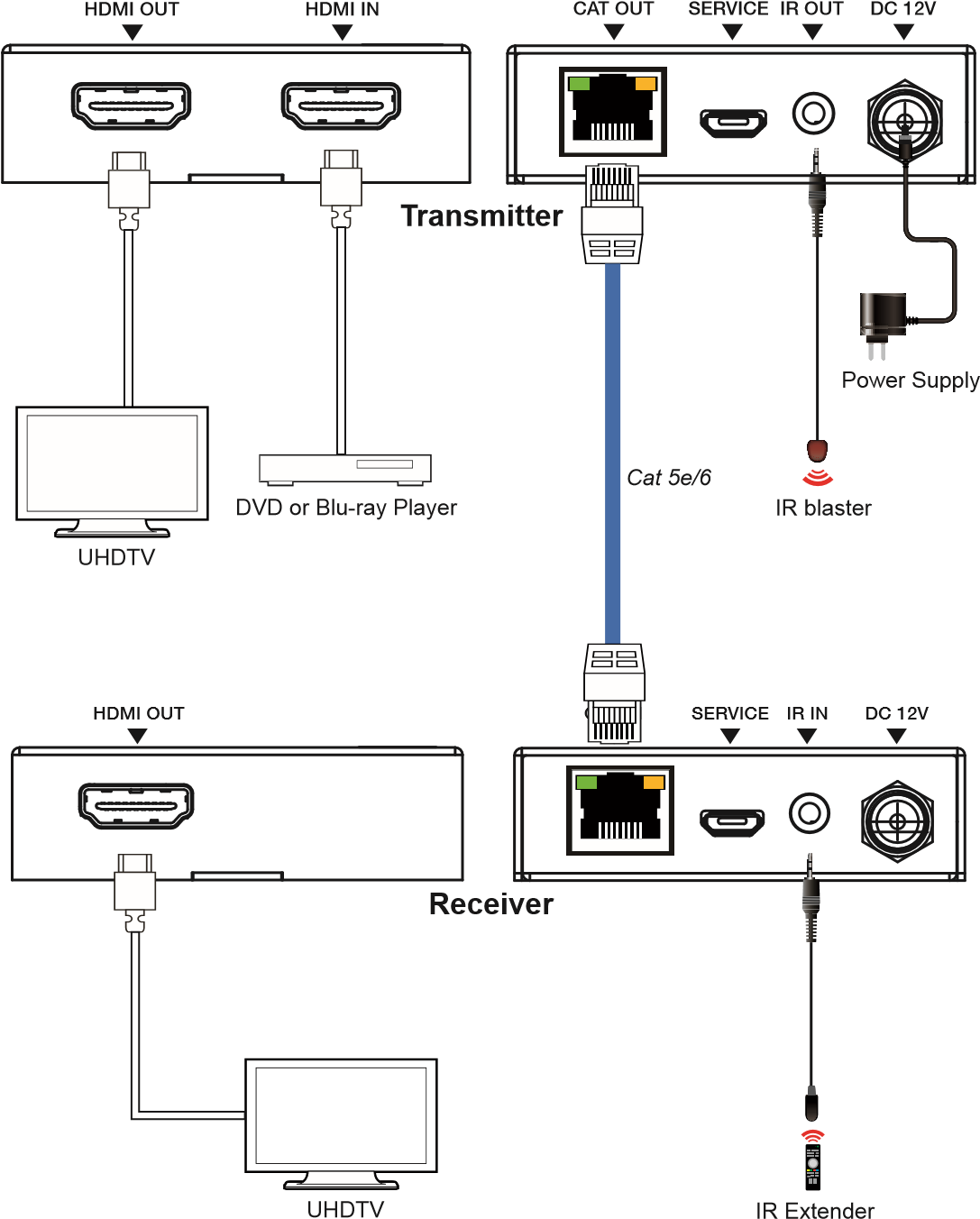

Application example
Click here for product PDF file
Click here for product manual
Additional information
| Weight | 0.60 kg |
|---|---|
| Dimensions | 22.00 × 13.00 × 7.00 cm |
| Warranty | 1 Year Warranty |
| What's in the box | 1* HDMI 2.0 Extender Transmitter |
