KA041PRO-4K RX HDMI EXTENDER 100M WITH IR 4K60HZ RECEIVER- KAMEHA (IMPROVED)

Introduction

This product is a 4K@60Hz HDMI extender kit consisting of a sender and a receiver. The 4K@60Hz HDMI signal can be extended up to 100m via Category 6 and above network cables, supporting one-to-one connection, one-to-many connections via gigabit switch, or switch cascades. It also supports IR passback functions, and can be widely used in meetings, home entertainment, educational presentations, and other fields.



Feature

• High-definition and low-latency transmission.
• Support up to 4096 x 2160@60Hz resolution, backward compatible.
• Compatible with Cat5e/6 or above network cables, transmission distance of Cat6 cable is 100 meters
• Support one-to-one or one-to-many connections through the gigabit switch.
• Support IR passback (20~60kHz).
• Firmware can be upgraded through Micro USB.
• Lightning protection, surge protection, ESD protection.
• Support stable 24/7 operation.

Specification:

Item	Sender		Receiver
Video
Input inter face	1x HDMI		1x R J45
Output inter face	1x RJ45		1x HDMI
HDMI Length	≤ 5m		≤ 5m
Maximum transfer rate	18Gbps
Compatibility	HDMI 2.0
	HDCP 1.4/HDCP 2.2
Resolutions	4096×2160@24/30/50/60Hz, 3840×2160@24/30/50/60Hz, 1080p@24/25/30/50/60Hz, 720p@50/60Hz, 576P@60Hz, 480P@60Hz, 1920×1200, 1680×1050, 1600×900, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600
Connection types	One-to-one connection One-to-many connection Switch cascading
Transmission	CAT5E 100m / CAT6 100m
Transmission distance	1080P: 80~130ms 4K@60Hz: 150~220ms
Audio Signal
Input interface	1xHDMI	1xRJ45
Output interface	1xRJ45	1xHDMI
HDMI output	LPCM 2.0
Command Signal
IR inter face	1x 3.5mm IR out		1x 3.5mm IR in
IR receiving range	≤ 5m
IR frequency	20kHz~60kHz
Power
Power Supply	DC 5V/1A		DC 5V/1A
Power Consumption	TX ≤ 3.5W		RX ≤ 2.5W
Operating Environment
Working temperature	– 20℃~60℃
Storage temperature	– 30℃~70℃
Humidity	0~90%RH (no condensation）
Physical Proper ties
Housing	Aluminium
Weight	156g			154g
Color	Black
Dimensions	96.8(L)*94(W)*23.7(H)mm
Protection	ESD protection 1a Contact discharge level 2 (±4KV) 1b Air discharge level 3 (±8KV) Implementation of the standard: IEC61000-4-2
	Lightning protection, Surge protection





Panel Description

HDMI EXTENDER RX (Receiver)

Troubleshoot problem





Connection Diagrams

Point to Point connection: Up to 100meters transmission distance over single CAT6.

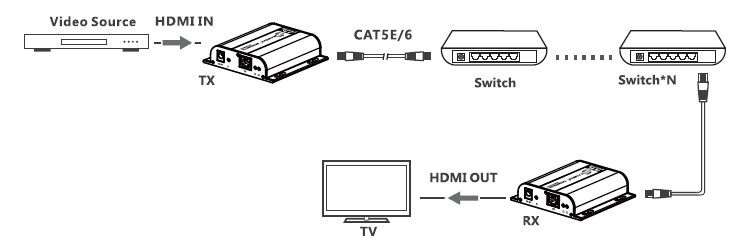

LAN switch Cascade Connection: By using the LAN switch/router to realize unlimited extension.

One-to-many connection: By using network router/switch, one sender to several receivers, realize extender & splitter function.





Click here for product PDF

Click here for product manual

Weight	0.30 kg
Dimensions	15.20 × 11.80 × 7.50 cm
WARRANTY	1 year warranty
What's in the box	1* PRO-4K RX HDMI Extender 1* User Manual 1* DC 5V/1A Power Adapter (3 months warranty) 1* IR Receiver Cable
