Description

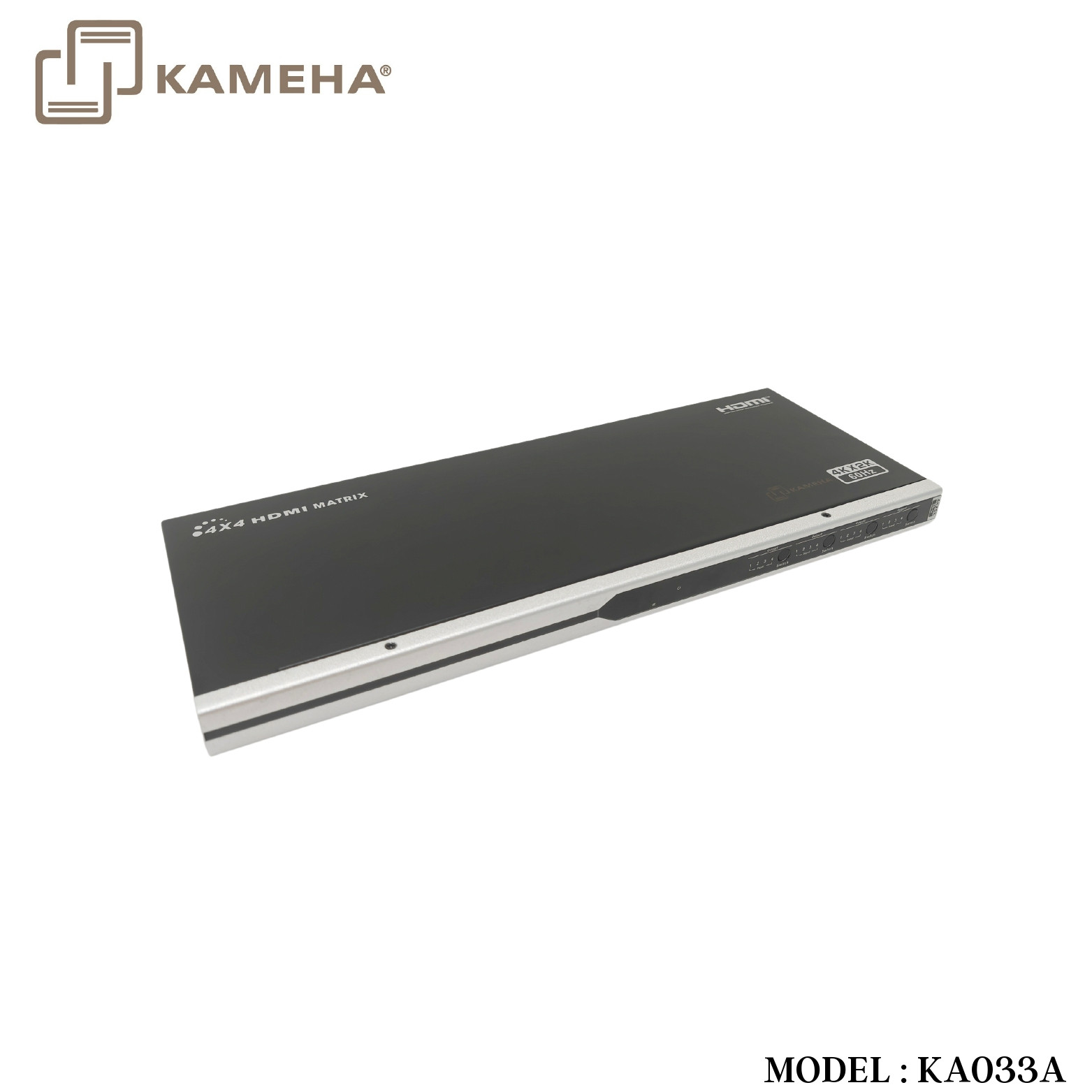

This product is a 4×4 HDMI2.0 Matrix Switch, supports resolution up to 4K×2K@60Hz, with 4 HDMI inputs and 4 HDMI outputs. 4 HDMI inputs accommodate the simultaneous connection up to 4 high definition video sources, such as satellite systems and Blu-ray players. 4 HDMI outputs send the high definition A/V signals to 4 ultra HD displays. This Matrix Switch supports IR remote control, button control and RS232 for switching inputs and outputs. This product is perfect for security system, digital monitoring system, school education system, exhibition center, multimedia conference, command system etc.
Features
- Support up to 4ways of HDMI signal input, switching or distributing to 4 display devices that support HDMI signal input.
- Supports up to ultra HD resolution 4K×2K@60Hz
- Transmission data rate up to 18Gbps.
- Pure hardware design, plug and play.

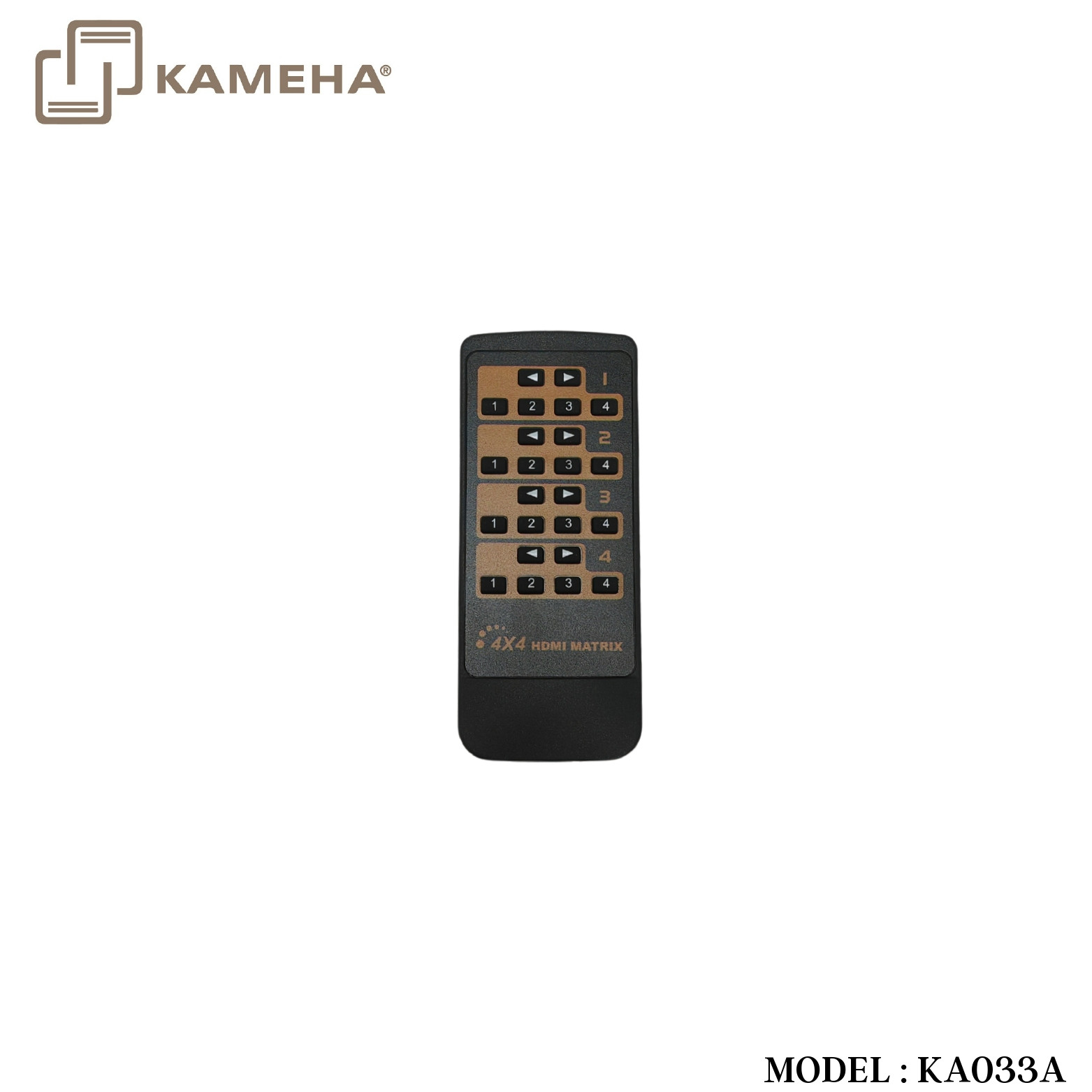

- Support IR remote and button control for switching inputs/outputs.
- Support RS232 control.
- Supports YUV 4:4:4.
- Support 3D.
Specification
| Items | Specification |
| HDMI signal | HDMI2.0, Full compatible with HDCP2. 2 |
| Inputs | 4 HDMI |
| outputs | 4 HDMI |
| Transmission rate | 18Gbps |
| Support resolution | 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz, 3840×2160@25/30/60Hz |
| Support audio format | DTS-HD/Dolby-true HD/LPCM7.1/DTS/Dolby-AC3/DSD |
| YUV | 4:4:4 |
| Video signal | 0.5~1.5vp-p(TMDS) |
| DDC signal | 5Vp-p (TMDS) |
| Video bandwidth | 600MHZ |
| HDMI Port | Type A 19 pin, female |
| RS232 | 9 pin serial port seat |
| Working temperature | 0°c ~60°c |
| Working Humidity | 0 ~ 90% (No condensation) |
| Power supply | DC12V/2A |
| Power consumption | <20W |
| Product dimension | 429.8(L) X 170.7(W) X |
| Weight | 1.65kg |
| Color | Black |
Panel Description

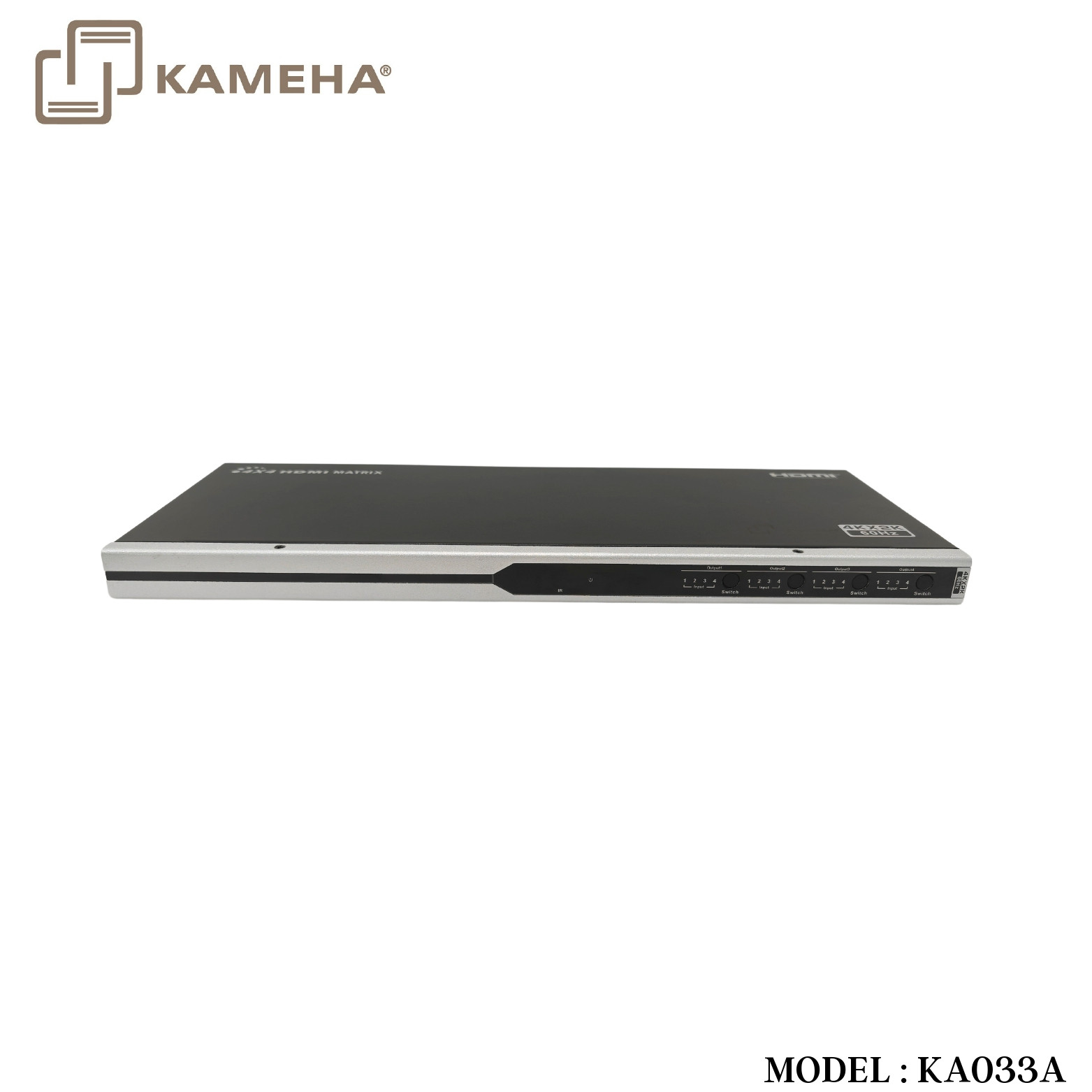

Front Panel
| 1 | IR receiver window | Receiver IR signal |
| 2 | Power indicator | LED indicator turn on when power on |
| 3 | Output select indicator | Display corresponding input channel |
| 4 | Output button | To choose input channel |

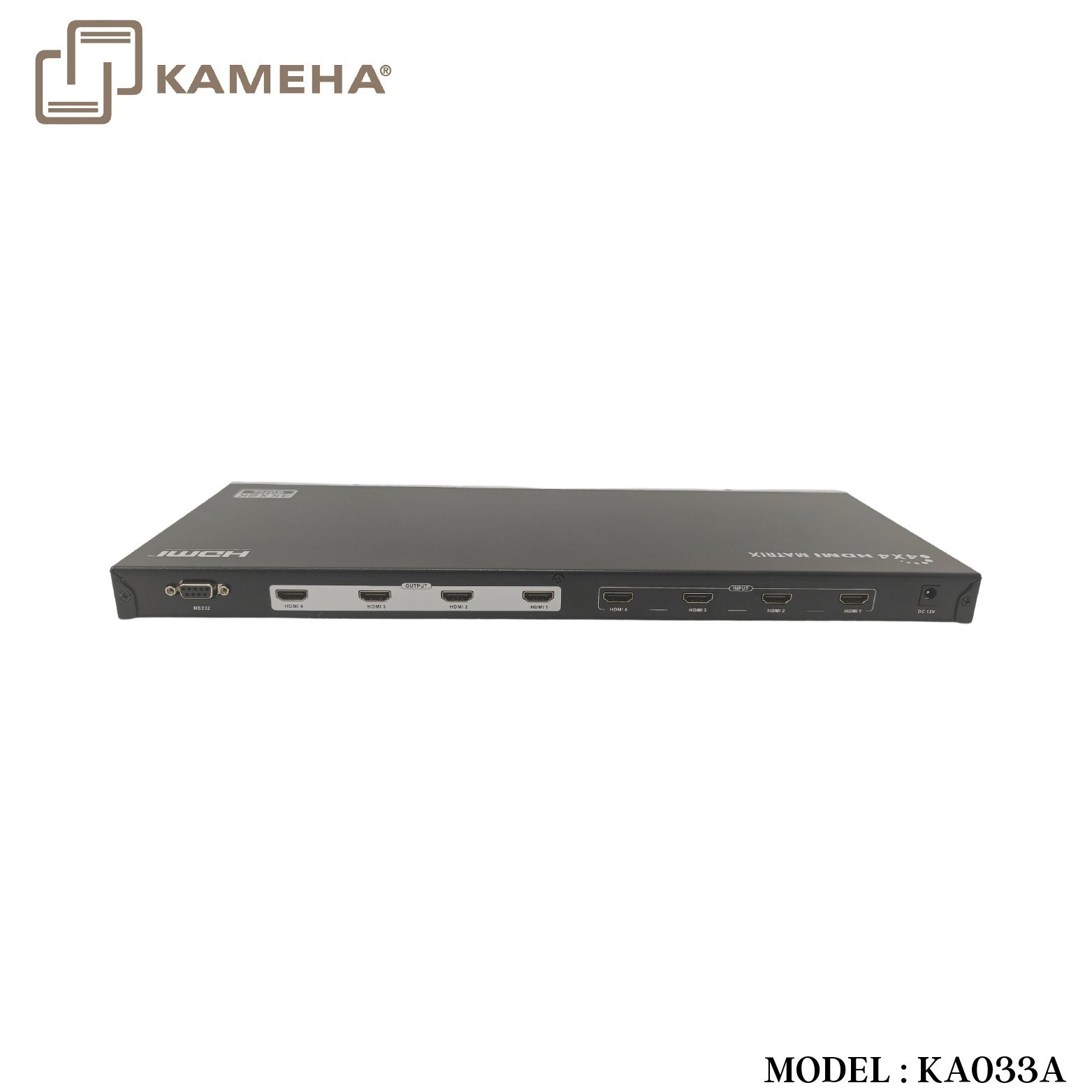

Back Panel
| 1 | RS232 | RS232 control |
| 2 | HDMI output | Connect with HDMI display device |
| 3 | HDMI input | Connect with HDMI source device |
| 4 | Power input | Connect with DC12V/2A power adapter |
Connections
Additional information
| Weight | 2.5 kg |
|---|---|
| Dimensions | 48.5 × 27 × 10 cm |
| Warranty | 1 Year Warranty |
| What's in the box | 1* HDMI Matrix Switch |
