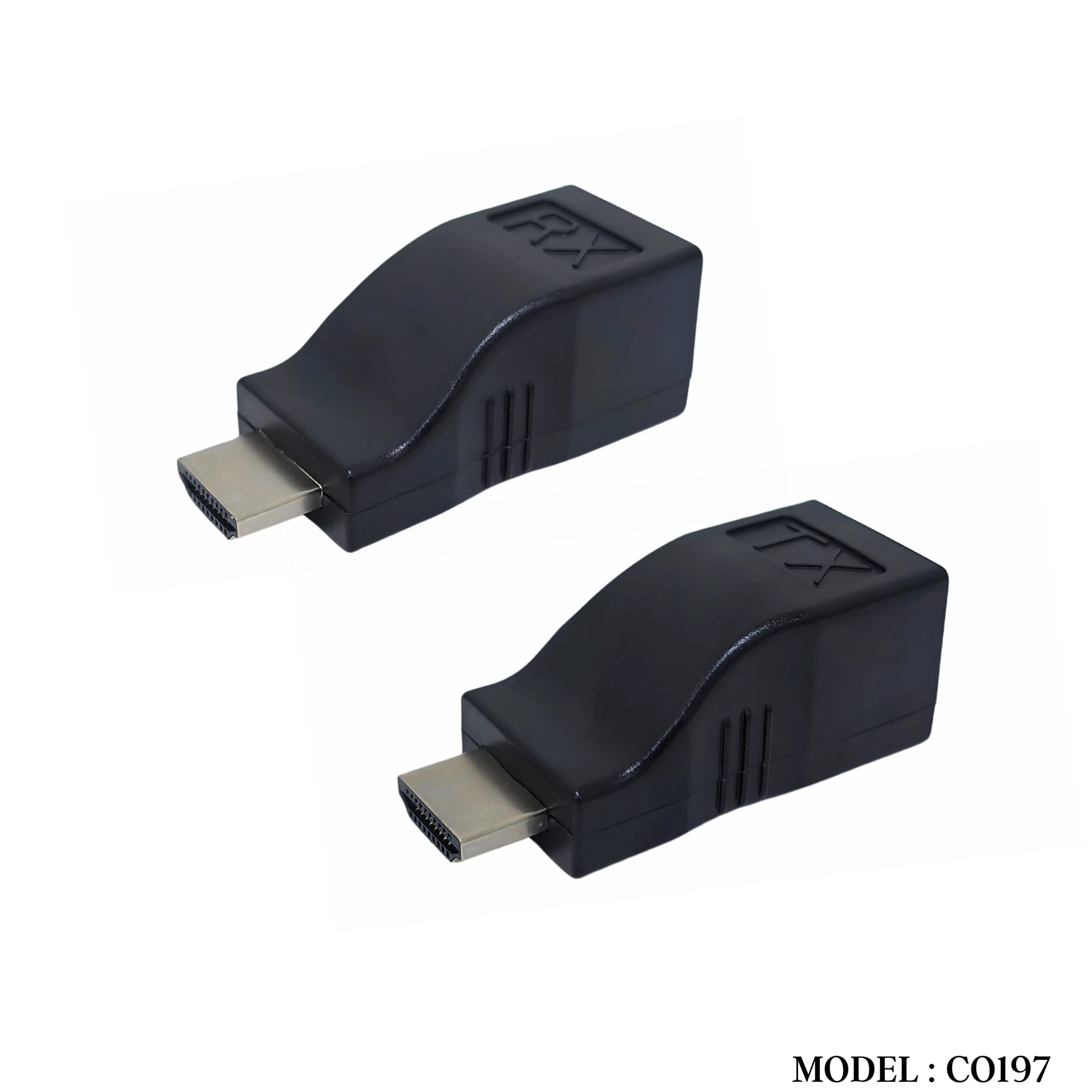

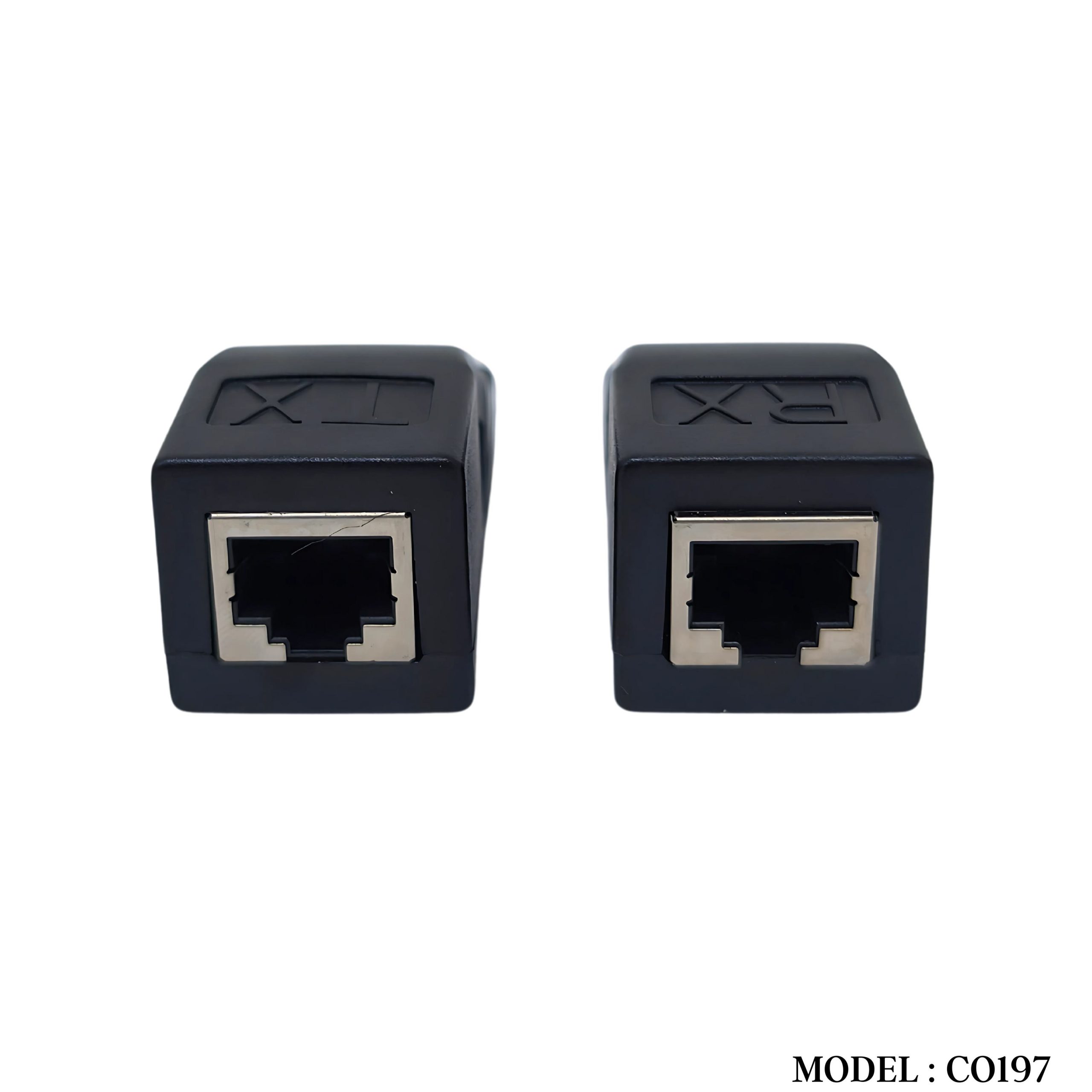

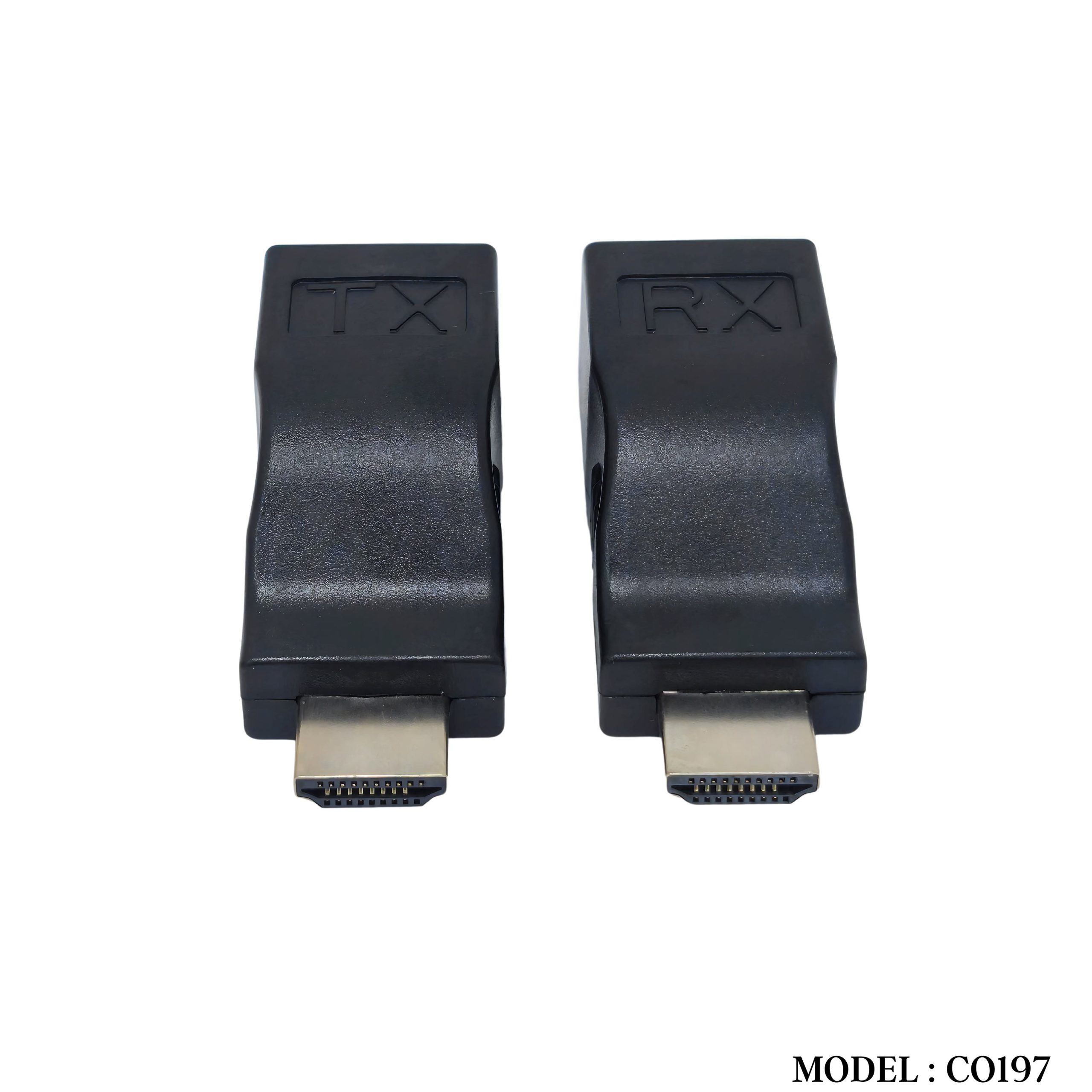

CO197 HDMI TO LAN EXTENDER 30METER

This kind of HDMI extender by CAT-5e/6 uses single piece CAT5e/6 cable to extend the HDTV display up to 30 meters for 1080p. It not only breaks the limitation of the HDMI cable transmission length, but also CAT-5e/6 has more flexibility and convenience in cable construction.

Connection and Operation

1. Plug the HDMI connector of the sender into the HDMI signal source without HDCP, such as: Computer, laptop, STB, TV box etc.
2. Connect single CAT-5e/6 cable to both the output of the transmitter and input of the receiver.
3. Plug the HDMI connector of the receiver into the HDMI display (such as: HD-LCD, HD-DLP)

Features

This HDMI extender has many features that enable it to perform in a superior manner. Among those features you will find.

1. One pair as a full functional module, no need of setting.
2. CAT5e/6 cable can substitute HDMI cable to achieve long distance transmission.
3. Follow the standard of IEEE-568B.
4. Transmission distance can be up to 30 meters for 1080p using CAT6 cable.
5. Compact size.
6. No need for extra power supply.
