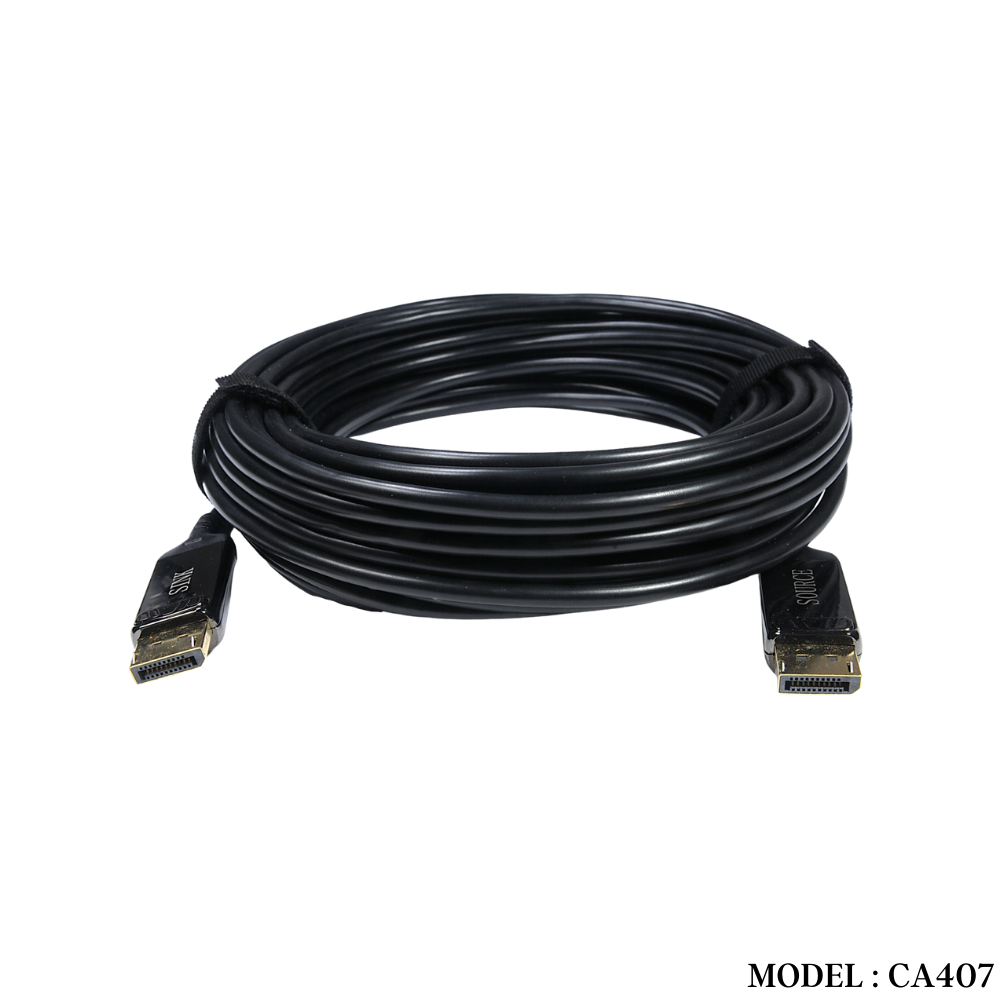

CA407 DISPLAY PORT TO DISPLAY PORT FIBER CABLE V1.4 15METER

Important note :

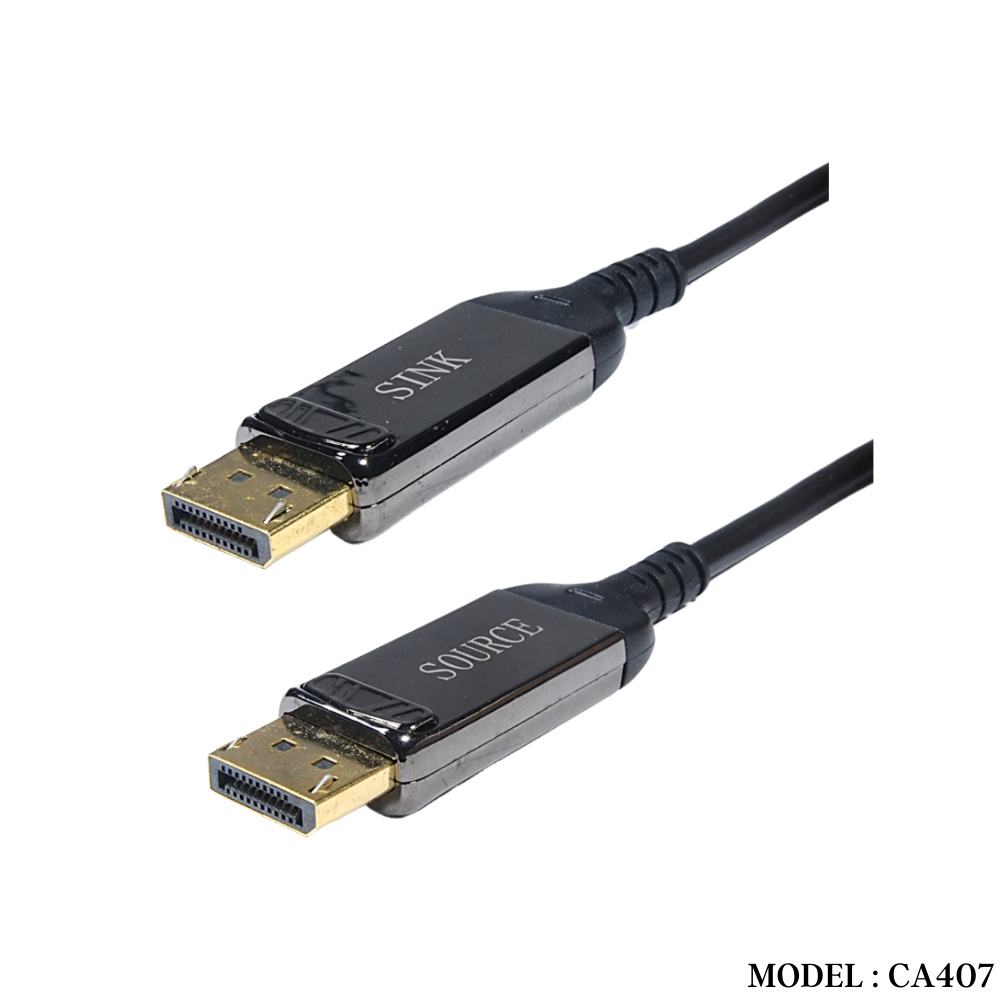

Please be aware of plugging the right connector to right devices, that means, the end with “SOURCE” symbol must be connected to source devices and the other end with “SINK” symbol must be connected to display devices, or it will not work.

Specification

Interface: Display port full size connector

Display port 1.4, 1.2etc.

32.4Gbps (8.1Gbps per channel)

Supports 8K@30Hz/4K@144Hz/3D/1080p/1080/720p

AUX/HPD/HDCP 2.2

Port-powered: No external power needed cable

Diameter: 0.19inches (4.8mm) operating

Voltage: 3.3V

Power consumption: (TX)~10Mw/(RX)~40Mw

Operating Temperature: -20-70°C

Troubleshooting

1. If no disparately, please check if the ‘SOURCE’ and ‘SINK’ connectors are plugged into the correct device.
2. If unstable display, please plug the connectors again to make sure the connectors are fully plugged and then check if the fiber cable is seriously bent.
3. If the splash screen or snowflakes when using 8K@30Hz, please check whether you have used something like adapter or converter, if yes, please remove the adapter or converter and then plug this fiber cable directly.
4. If there is no image or black screen happens when connecting some Samsung individual display device, please turn off the source device and TV power first and then reset them five minutes later.
