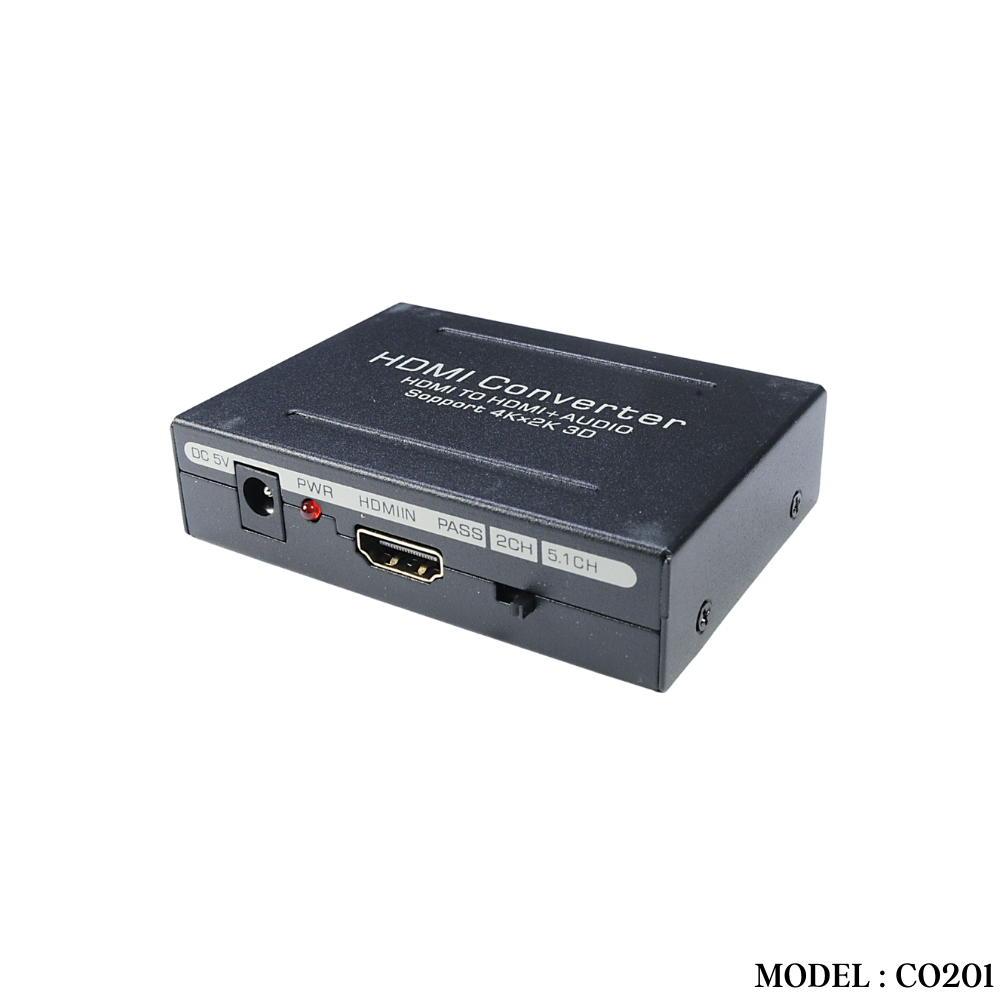

CO201 HDMI TO HDMI+AUDIO CONVERTER 4K

Introduction:

This is a high-performance, multi-functional HD audio extractor, this extractor can extract the audio signal among the HDMI signal to the power amplifier system to obtain high-quality audio effects which is hard for TV speaker to achieve.

Features:

• Convert one HDMI input to one HDMI+Audio (SPDIF+R/L) output.
• Audio output supports: SPDIF+R/L analog Audio Output.
• Input Resolution: Up to 3840×2160@30Hz; 4096×2160@30Hz.

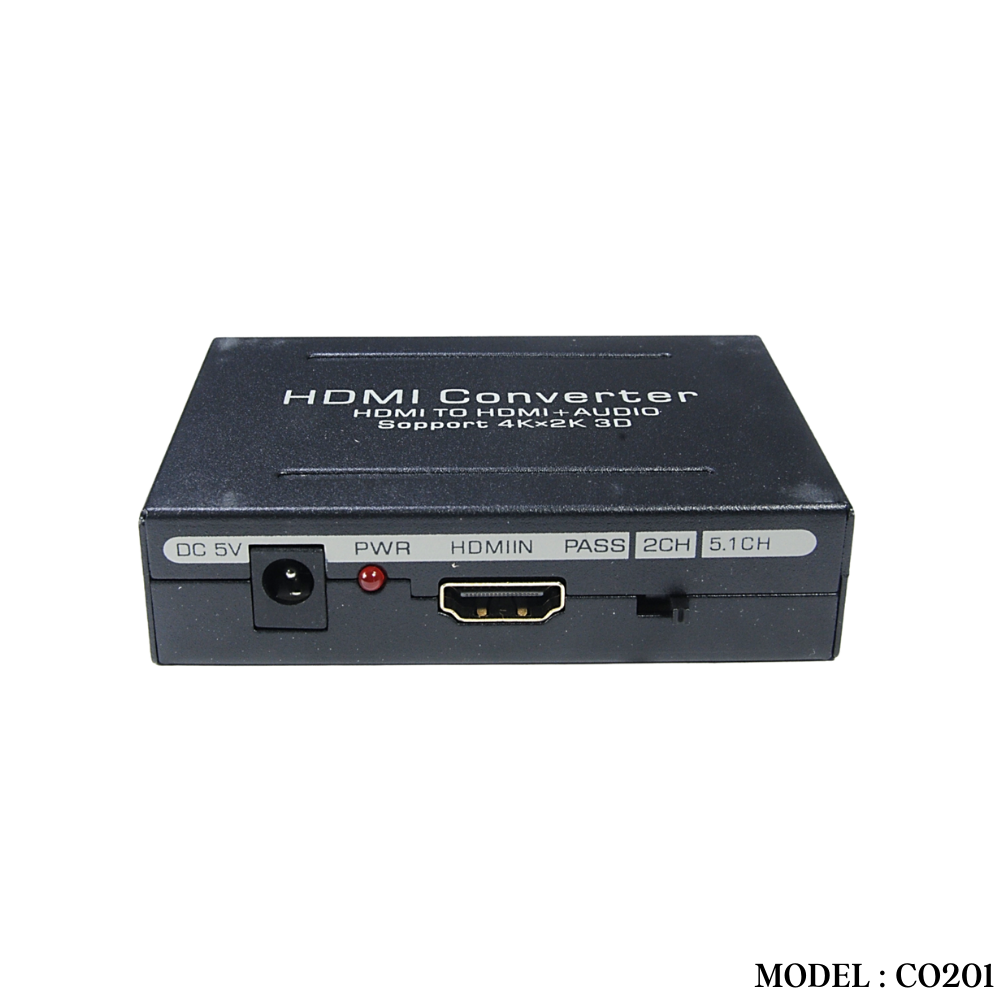

• HDMI to achieve the synchronization of audio signal separation. There are PASS/2.0CH/5.ICH three kinds of audio mode options.
• LED indication: When the converter is switched on, the red LED indicator will light. When it is connected to the HDTV successfully, the green LED indicator will light.

Specification:

• HDCP Version: HDCP1.4
• HDMI Version: HDMI1.4b
• HDMI resolution: 2160p@30Hz/1080p@50/60Hz/1080i/7
  20p/1576i/480p/480i
• Support video color format: 24bits/deep color 30bit,36bit

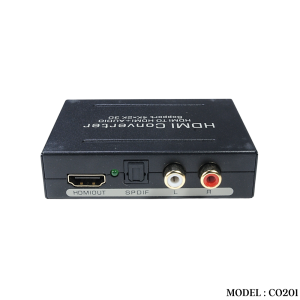

• Audio output: L/R+SPDIF
• Max bandwidth: 340MHz
• Max baud rate: 10.2Gbps
• Input/Output TMDS signal: 0.5-1. 5Volts p-p(TTL)
• Input/Output DDC signal: 5Volts p-p(TTL)
• Input cable distance: <=7m AWG26 standard cable HDMI
• Output cable distance: <=8m AWG26 standard cable HDMI
• Max working current: 500mA
• Power adapter format: input:AC(50/60Hz) 100V-240V; Output: DC5V/1A
• Operating temperature range: (-15°C to +55°C)
• Operating humidity range: 5 to 90% RH(No condensation)
• Dimension: (LxWxH): 84.5×61.8×21 (mm)
• Weight: 135g

Package Contents:

• Extractor
• 5V USB Power Cable(Optional)
• 5V 1A Power Adapter(Optional)
• User manual

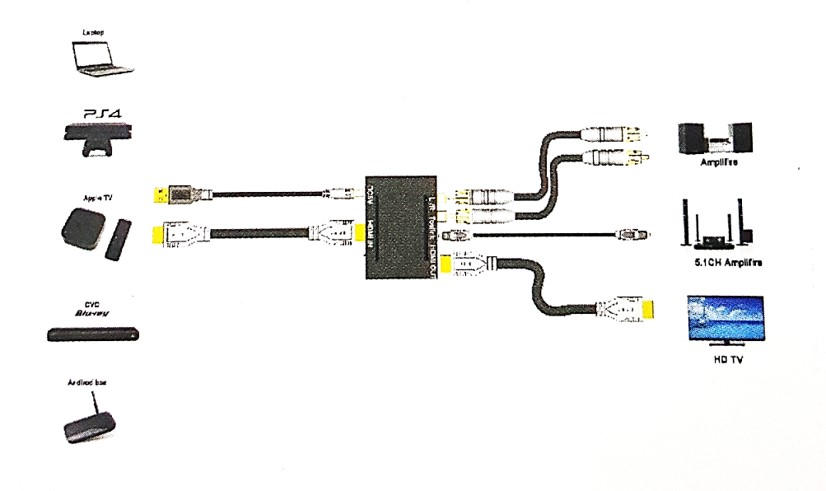

• Function Diagram of Interface and Switch

Click here for product PDF file
