KW001 HDMI WIRELESS EXTENDER 200METER – KAMEHA

Introduction

HDMI wireless extender uses the standard 802.11AC protocol, transmitting high-definition video and audio signals through 5G WiFi network, this could transmit the HD signal from different devices like DVD, CD player PC through WiFi network, to realize one-to-many devices transmitting. This device also has excellent graphic computing and transmitting performance that could make the signal smoother and more stable.



Features

• Long distance HDMI video and audio signal transmitting through WiFi, up to 200m
• Supporting one-to-many application, pair up to 4 receiver
• Supporting one-way IR extension
• Compatible with HDMI 4, 1.3 standard.
• Work with HDCP 4 standard – High-bandwidth Digital Content Protection.
• Automatically compatible with multiple specs and display
• Built-in equalizer to make the picture smooth, clear, and stable
• Easy to install, plug and play, no need to setting



 Specifications:

Specs Name		Detailed description
Video	Supported protocol	HDMI 1.4 （HDCP 1.4 ）
	Maximum resolution	1920X1080@60 Hz
	Ports	HDMI – A Ports
	Impedance	100 Ω
	Maximum HDMI output distance	5m (at 1920X1080 @60Hz)
IR	Ports	3.5mm
WIFI	Protocol	802.11 ac
	Transmission distance	Up to 200m in one space
Other	Power Supply	DC 12V /1A
	Maximum power consumption	MAX 7W
	Working temperature / humidity	0℃ ~+45℃/10%~80%  RH (unfrozen)
	Size	90*92*33mm



MCMC Certified:



Interfaces descriptions



End interfaces：

Interfaces Name	Function Description
DC 12V	Power port
RST	Reset button (press 5 seconds to reset to factory settings)
HDMI IN /HDMI  OUT	HDMI in / out
MODE	Mode button (short press to switch WiFi signal)
AUX IN/ AUX OUT	Audio in / out
IR IN /IR OUT	IR(Infrared Ray) in / out
Indicator Light	Function description
PWR （Red）	Show power status
LINK（Yellow）	data transmitting
STA（Green）	HDMI connection indicator（Light：TX HDMI IN / RX HDMI OUT ）

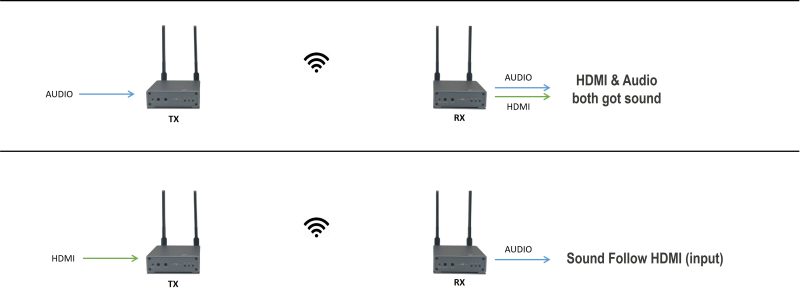

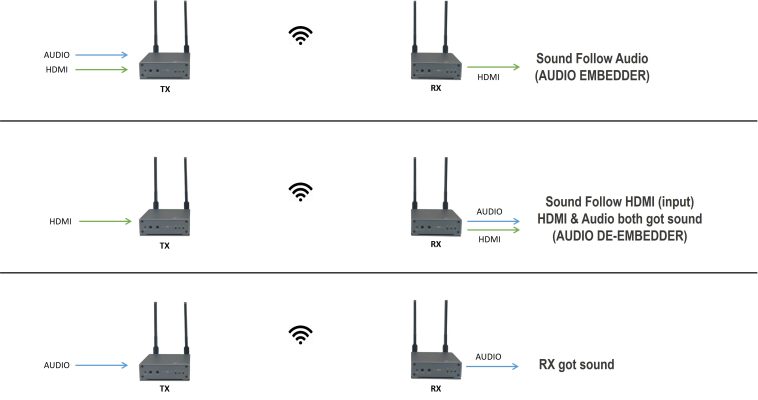

Applications:







Installation solution :





Click here for product PDF

Click here for product Manual

Click here for product pairing tutorial



Weight	0.90 kg
Dimensions	25.00 × 21.00 × 5.00 cm
WARRANTY	1 YEAR WRRANTY
WHAT'S IN THE BOX	1* HDMI Wireless Extender Receiver 1* HDMI Wireless Extender Transmitter 1* IR Transmitter Cable 1* IR Receiver Cable 2* DC 12V/1A Power Adapter (3 months warranty) 1* Stereo Cable 1* User Manual
