Description
Introduction

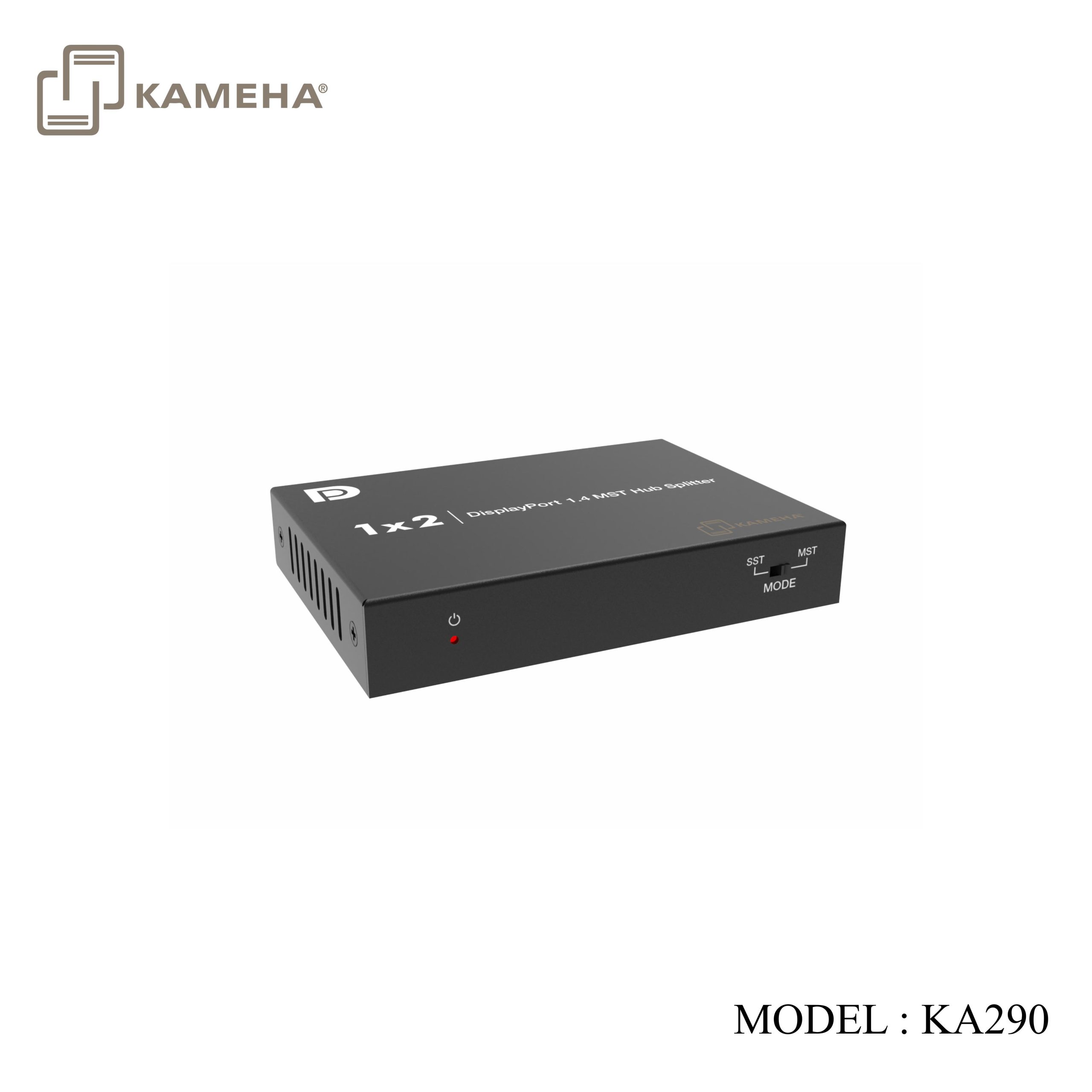

This 1×2 DisplayPort 1.4 Splitter is a high-performance device designed to duplicate or extend a single DP source signal to two identical displays simultaneously, with seamless signal distribution and perfect video quality. It is ideal for applications such as digital signage, presentation, game and multi-monitor setting.
Features
- DP 1.4 compliant
- Splits a single DP 1.4 source to two DP monitors
- True video bandwidth up to 32.4Gbps, 5.1CH surround sound, MST 1.2 with DSC are supported
- Supports 4K HDR and UHD video resolution, up to 5K60Hz, or dual 4K display
- Supports MST extending mode and SST mirror mode
*Mirror mode means the same content will be displayed on each monitor. Extending mode means the individual content will be displayed on each monitor.
Specifications
| Technical | |
| DP Compliance | DP 1.4 |
| HDCP Compliance | HDCP 2.2 |
| Video Bandwidth | 32.4Gbps (8.1Gbps/lane) |
| Video Resolution | Up to 5K@60Hz, 4K@144Hz
* All available resolutions are shown as follow. |
| Color Depth | 8/10/12bit |
| Color Space | RGB_4:4:4, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0 |
| Audio Formats | LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS,
DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X, DSD |
| HDR | HDR10, HDR10+, HLG |
| ESD Protection
Input |
IEC 61000-4-2:
±8kV (Air-gap discharge), ±4kV (Contact discharge) |
| Connection
Input |
1× DP INPUT [Type A, 20-pin female] |
| Output | 2× DP OUT [Type A, 20-pin female] |
| Mechanical | |
| Housing | Metal |
| Color | Black |
| Dimensions | 95mm [W] × 68mm [D] × 18mm [H] |
| Weight | 175g |
| Power Supply | DC 5V/1A |
| Power Consumption | 3.55W (Max) |
| Operation
Temperature |
0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Operating Humidity | 20%~80% relative humidity, non-condensing |
| Storage Humidity | 10%~90% relative humidity, non-condensing |
Operation Controls and Functions

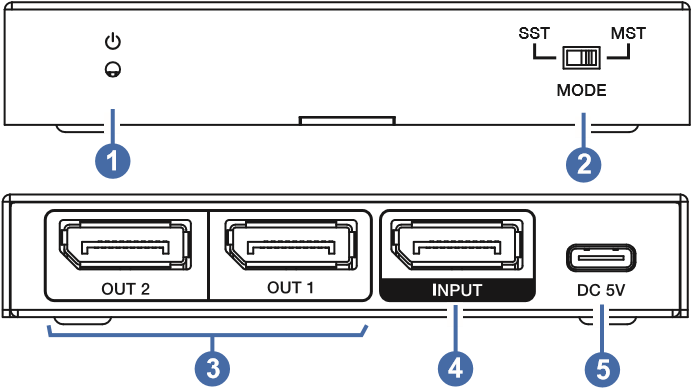

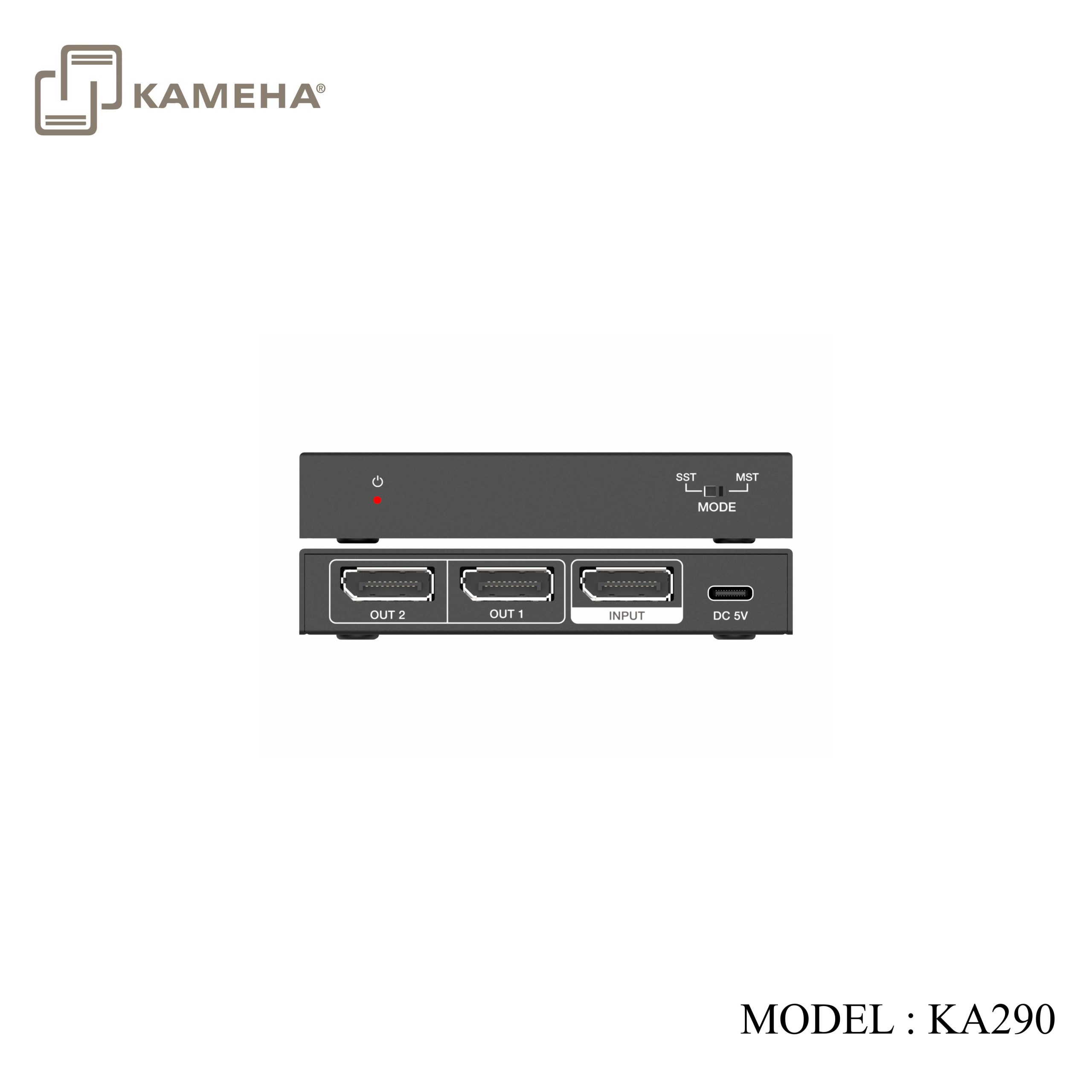

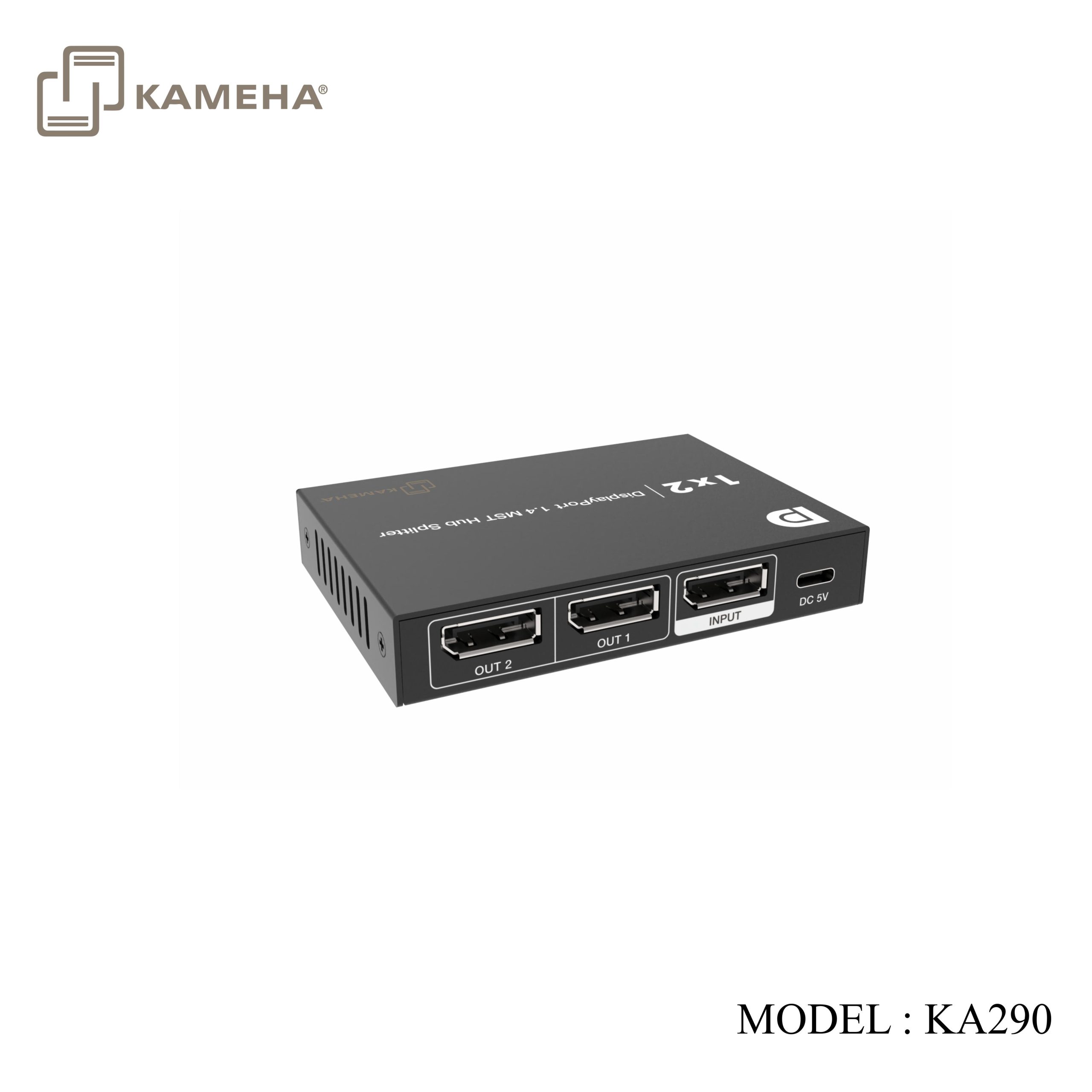

| No. | Name | Function Description |
| 1 | Power LED | The red LED will be on when the device is powered on. |
| 2 | MODE switch | Used to switch mode:
SST Mode (Single-Stream Transport): Duplicate the DP source to two monitors. MST Mode (Multi-Stream Transport): Extend the DP source to two monitors. |
| 3 | OUT1/OUT2 | DP signal output ports, connected to display devices such as TVs or Monitors with DP cable. |
| 4 | INPUT | DP signal input port, connected to DP source device with DP cable. |
| 5 | DC 5V | DC 5V/1A power input and firmware update port. |

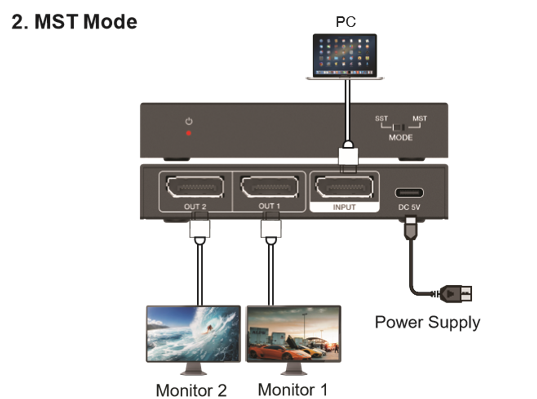

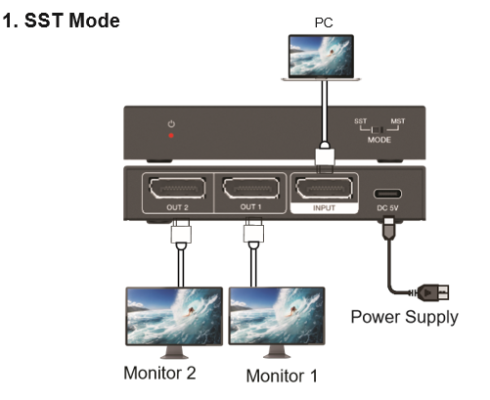

Application Example
Click here for product PDF file
Click here for product manual
Additional information
| Weight | 0.3 kg |
|---|---|
| Dimensions | 14.8 × 10.5 × 6.5 cm |
| WARRANTY | 1 YEAR WARRANTY |
| WHAT'S IN THE BOX | 1* 1×2 DisplayPort 1.4 Splitter |
