Description
Product introduction
- Input 4K@60Hz down HDMI video signal
- Loop out 4K@60Hz down HDMI video signal
- USB capture 4K@60 Hz down
- Support audio MIC microphone/Audio earphone/Line IN mixer
- Metal heat conduction, refuse to get hot
- Low-power design, all-aluminium material
- Supports common standard resolution video formats
- Support Windows 7/8/10/11. Vista. Linux. MacOS 10.3 or above

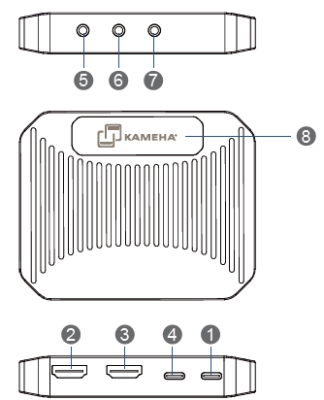

Interface introduction
- Video capture
- Video input
- Video loop out
- DC input
- Mic-in audio input
- Line-In audio input
- Audio output
- RGB Blue Light
Specifications
| Name | 4K @ 60Hz HD Capture Card |
| Model | KA287 |
| Material/Color | Aluminium alloy/iron grey |
| Size | 99.1×79.3×17.5MM |
| Capture card support | 4K/60Hz, 2K/144Hz, 1080P/240Hz backward
compatible resolution input, loop-out, acquisition |
| Capture card format | OBS player support: MJPEG (4K/60Hz, 2K/144Hz,
1080P/240Hz), I420 (4K/30Hz, 2K/60Hz,1080P/120Hz) NV12(4K/30Hz, 2K/60Hz, 1080P/120Hz), YUY2(2K/50Hz, 1080P/60Hz), XRGB (1080P/60Hz) and above are all backward compatible. VMIX Player Support: NV12 (4K/60Hz), YUY2 (1080p/60Hz), RGB 24 (1080p/60Hz), I420 (1080p/60Hz). MJPG: (4K/60Hz) and above are all backward compatible. POTPLAYER supports: YUY2 (2K/50Hz, 1080p/60Hz), NV12 (4K/30Hz), I420 (4K/30Hz 1080p/120Hz), MJPG (4K/60Hz, 2K/144Hz, 1080p/240Hz). All backward compatible above RGB 24 (1080p/60Hz). |
| System | Windows7/8/10/11, MAC OS10.3, Linux, Vista or above. |

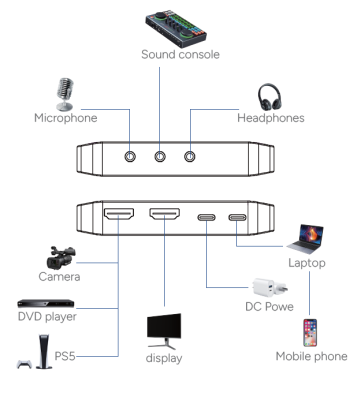

Connect the demo
Click here for product PDF file
Additional information
| Weight | 0.40 kg |
|---|---|
| Dimensions | 17.20 × 13.00 × 5.50 cm |
| WARRANTY | 1 YEAR WARRANTY |
| WHAT'S IN THE BOX | 1* HDMI CAPTURE CARD 4K60HZ |
