Description
Introduction
This 3×1 switch routes 3 different sources at resolution of up to 4K×2K@60Hz UHD to the display. The switch has 3 HDMI inputs, which makes this unit ideal for simultaneous connection of multiple HDMI device, such as TV, set top box, DVD, etc. In addition, this switch supports IR control, thus it is easy and flexible to control the input signal as you need. It is perfect for security system, medium entertainment, conference exhibition center and digital monitoring system, etc.
Features
1. Switch easily among any 3 HDMI sources
2. Support resolution up to ultra-HD 4K×2K@60Hz
3. Support highest bandwidth up to 18Gpbs
4. Support HDR
5. Support HDMI 3D
6. Support IR control
7. Plug and play, easy to use
8. Power-off memory

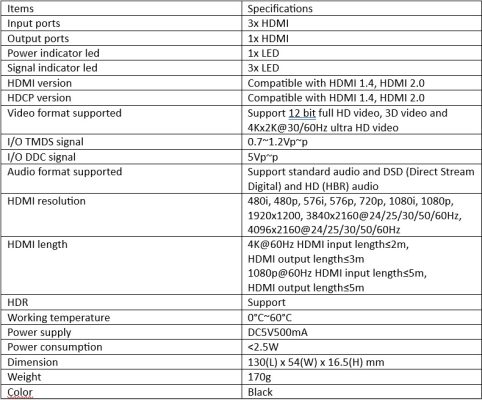

Specifications

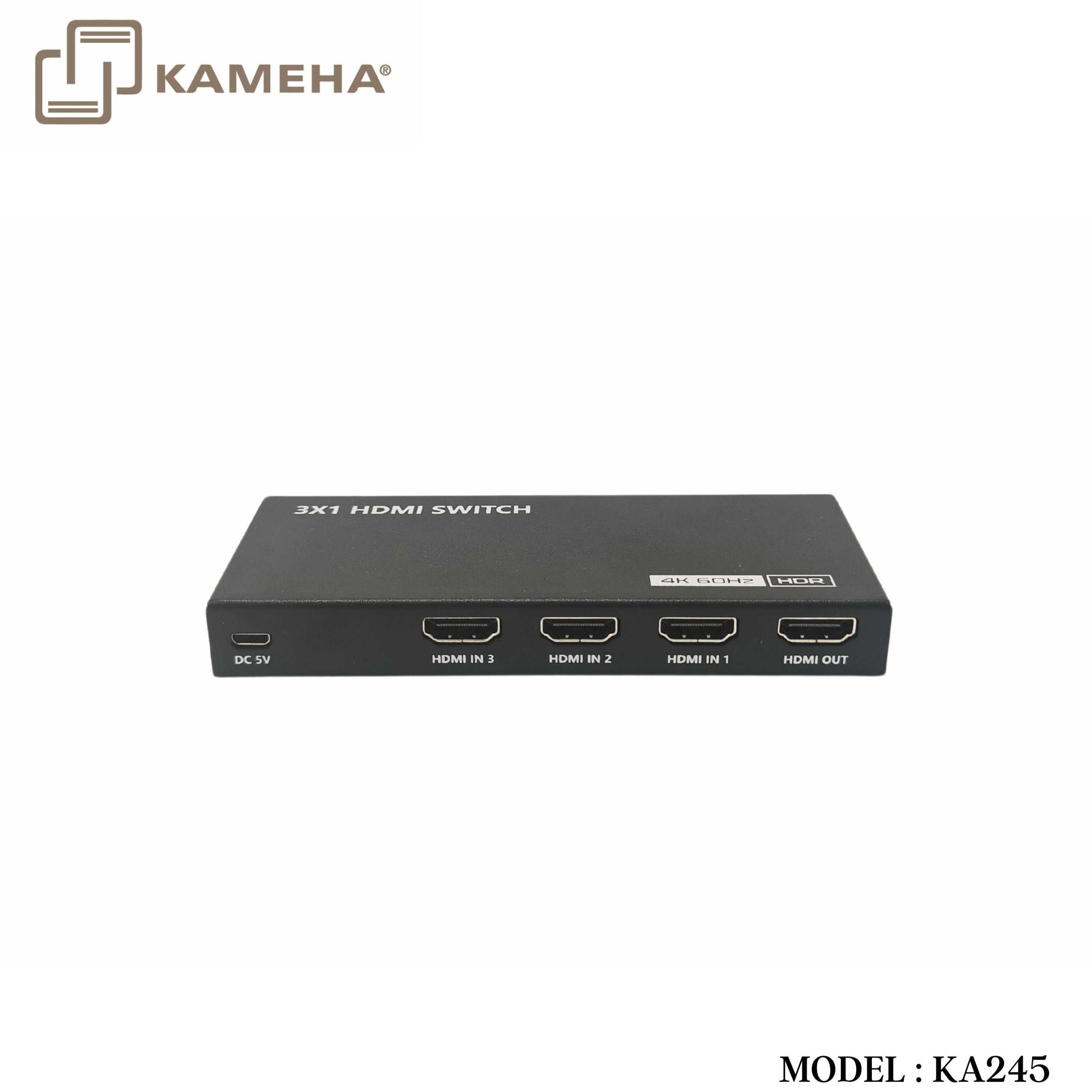

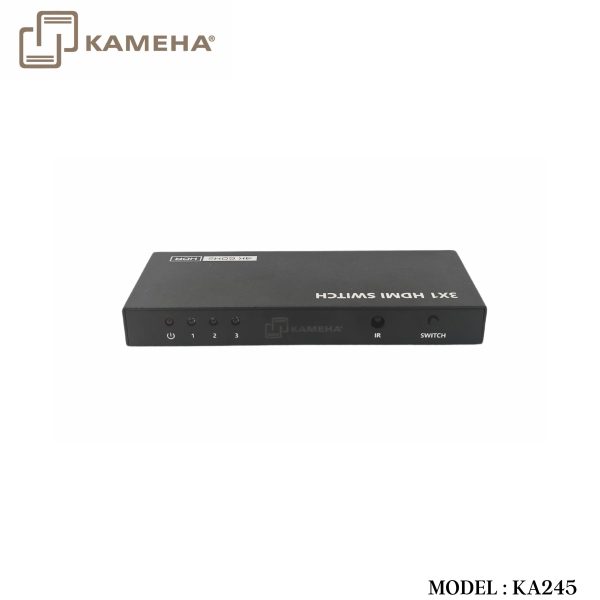

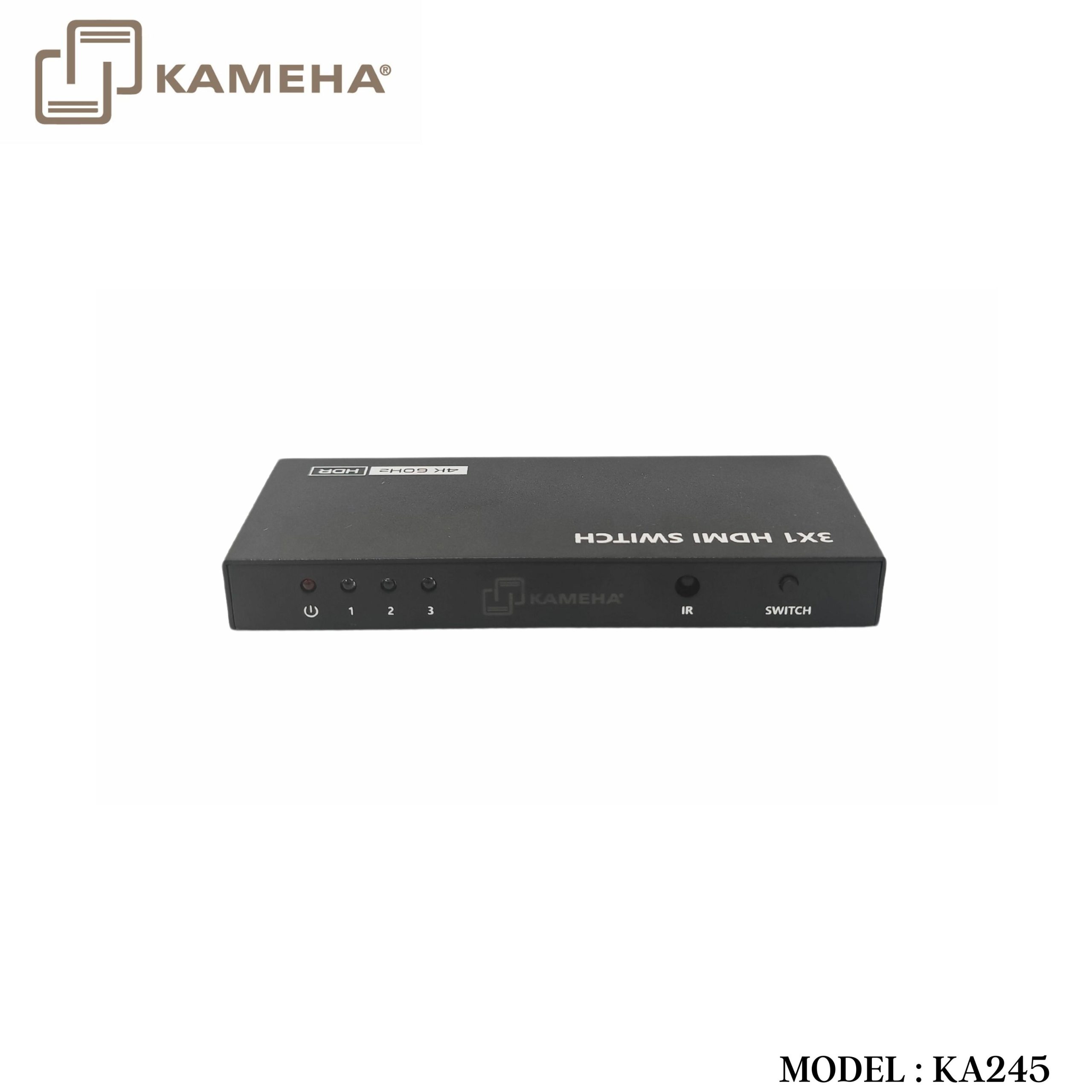

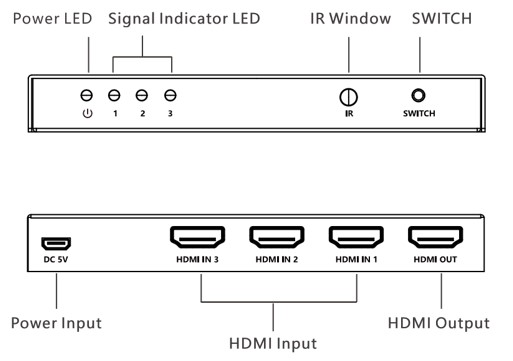

Panel Description

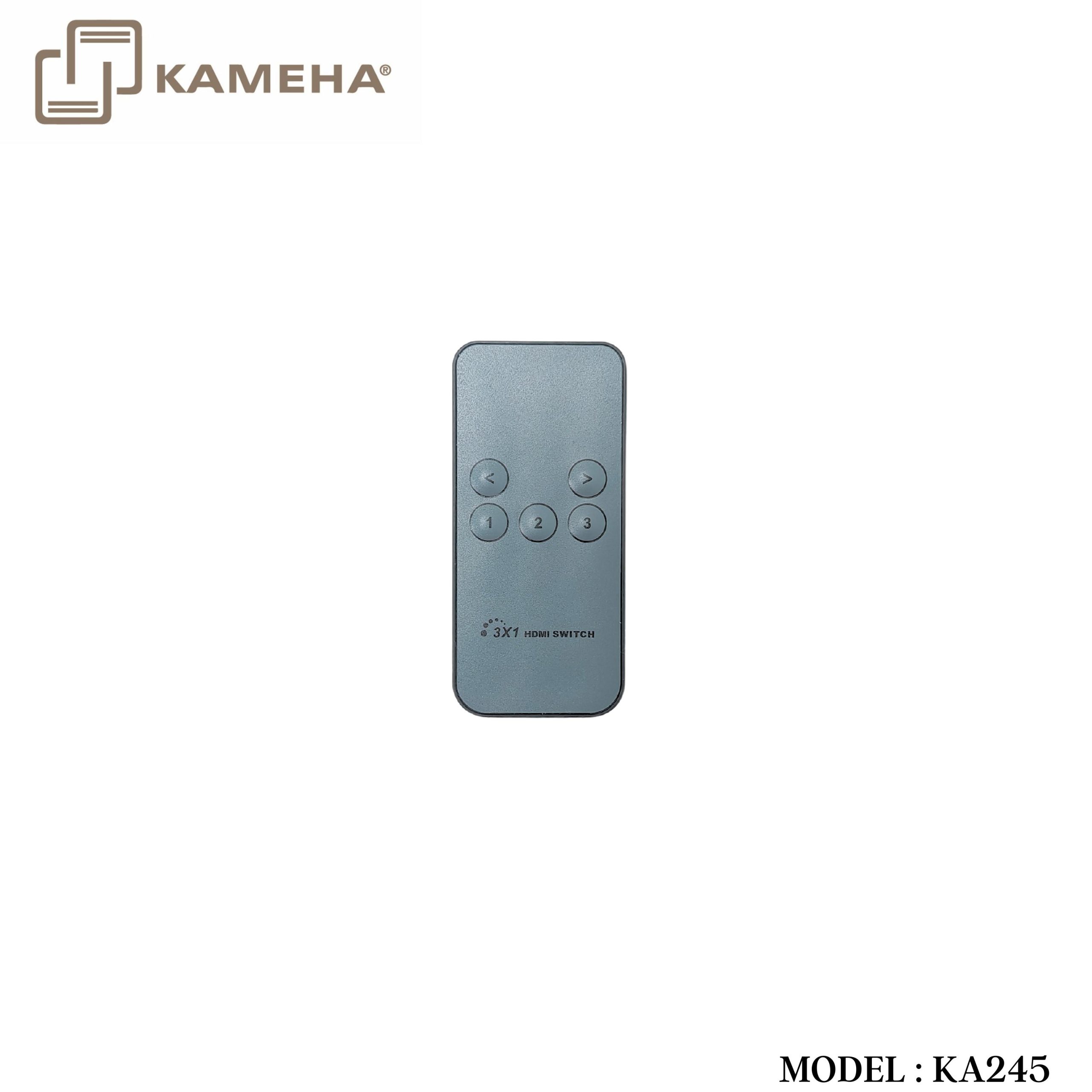

Remote Control
“<” and “>” button, to choose channel forward or backward.
“1-3” number buttons, to choose any source device as you need.
Installation and Connection

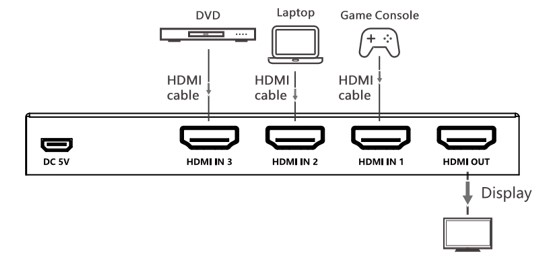

Connection
Connection instruction
1. Connect source devices and HDMI inputs of the device with HDMI 2.0 cable.
2. Connect display device and HDMI output of the device with HDMI 2.0 cable.
3. Plug the power supply into the device to get started.
Note: You can switch the signal source by pressing the SWITCH button or use the remote control.
Additional information
| Weight | 0.40 kg |
|---|---|
| Dimensions | 15.50 × 11.70 × 7.70 cm |
| Warranty | 1 YEAR WARRANTY |
| What's in the box | 1* 4K HDMI Switch 3 Port |
