Introduction
This HDMI Wall-plate supports one HDMI input and analog audio input within a standard 86mm×86mm wall box. The HDBaseT port over a single CAT6/6a cable can extend transmission distance up to 230ft / 70m for 1080P signal or 131ft / 40m for 4K signal. The video resolution is up to 4K@60Hz 4:4:4. Transmitter supports audio embedding, Receiver supports audio de-embedding. The product supports two-way IR and RS-232 signal control, EDID management and 24V POC function. It can be directly connected with an HDBT projector via a 70m CAT cable.
Features
- HDMI 2.0b and HDCP 2.2 compliant.
- Support 18Gbps video bandwidth.
- Support video resolution up to 4K@60Hz 4:4:4
- Transmission distance can be extended up to 230ft / 70m for 1080P signal or 131ft / 40m for 4K signal via a single CAT6/6a cable.
- Transmitter supports audio embedding; receiver supports audio de-embedding.
- Support two-way IR and RS-232 control.
- Standard 86mm×86mm wall box.
- POC 24V or local DC 24V power supply.
Specifications
Technical | |||
HDMI Compliance | HDMI 2.0b | ||
HDCP Compliance | HDCP 2.2 | ||
HDMI Video Bandwidth | 18Gbps | ||
HDMI Video Resolution | Up to 4K@60Hz 4:4:4 | ||
Video Compression Standard | HDBT | ||
Color Space | RGB, YCbCr 4:4:4 / 4:2:2, YCbCr 4:2:0 | ||
Color Depth | 8/10/12bit | ||
HDR | HDR, HDR10, HDR10+, Dolby Vision, HLG | ||
IR Level | 5Vp-p | ||
IR Frequency | Wideband 20K-60KHz | ||
Audio Formats | HDMI: LPCM, Dolby Digital/Plus/EX, Dolby
True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD Analog: PCM 2.0 |
||
Transmission | 1080P–70m, 4K –40m (CAT6/6a) | ||
ESD Protection | Human body model:±8kV (Air-gap discharge) & ±4kV (Contact discharge) | ||
Connections | |||
Transmitter | Input: 1×HDMI IN [Type A, 19-pin female]
1×AUDIO IN [3.5mm Stereo Mini-jack] Output:1×HDBaseT OUT [RJ45] Control:1×RS-232 [Phoenix jack] 1×IR IN [3.5mm Stereo Mini-jack] 1×IR OUT [3.5mm Stereo Mini-jack] 1×SERVICE [Micro-USB jack] |
||
Mechanical | |||
Housing | Aluminium Enclosure — Front Panel
Metal Enclosure — Rear Panel |
||
Color | White — Front Panel
Black — Rear Panel |
||
Dimensions | 86mm[W] x 86mm[D] x 38mm[H] | ||
Weight | 185g | ||
Power Supply | Input: AC100 – 240V 50/60Hz,
Output: DC 24V/1A (US/EU standards, CE/FCC/UL certified) |
||
Power Consumption | 9W (POC) | ||
Operating
Temperature |
32 – 104°F / 0 – 40°C | ||
Storage Temperature | -4 – 140°F / -20 – 60°C | ||
Relative Humidity | 20 – 90% RH (no condensation) | ||
Operation Controls and Functions

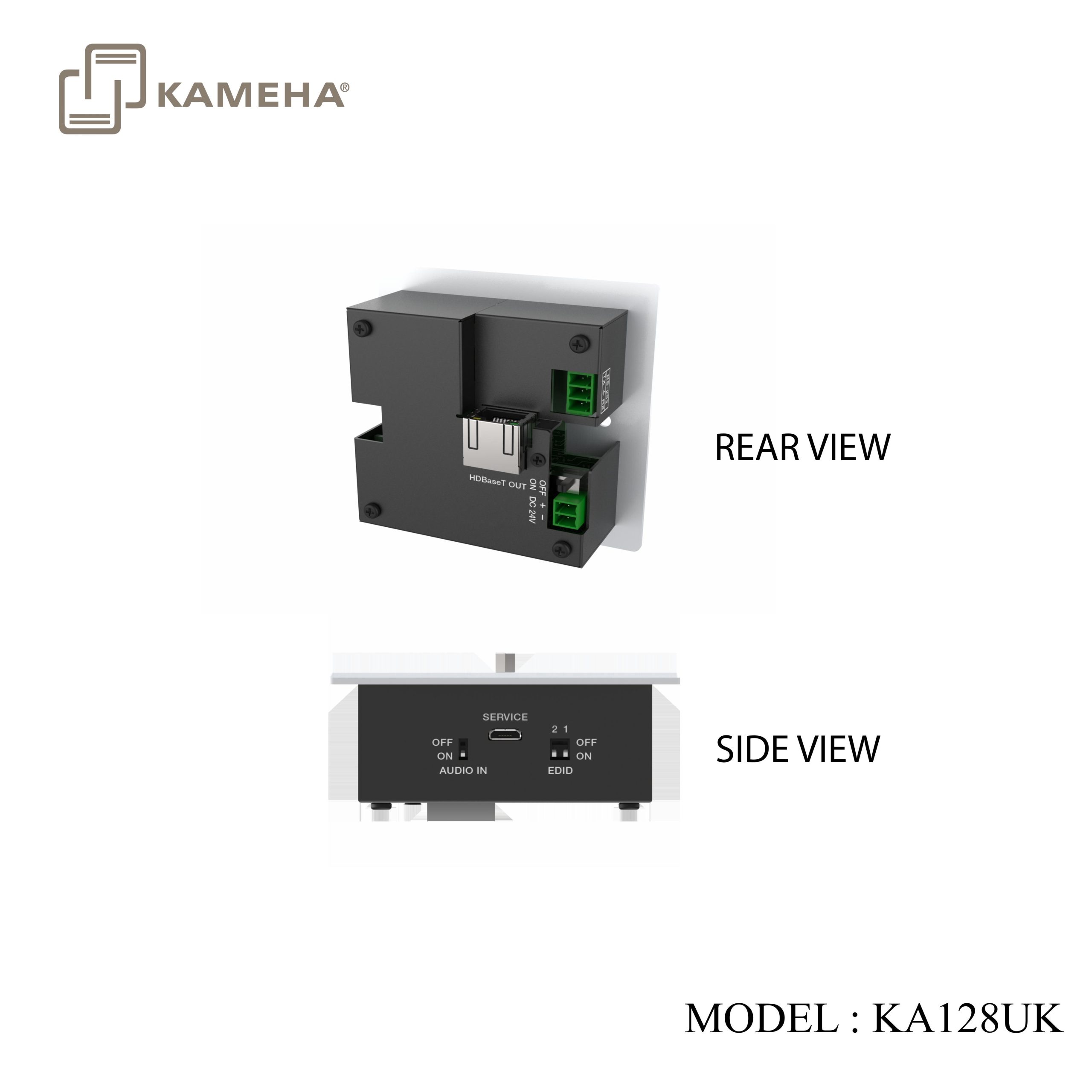

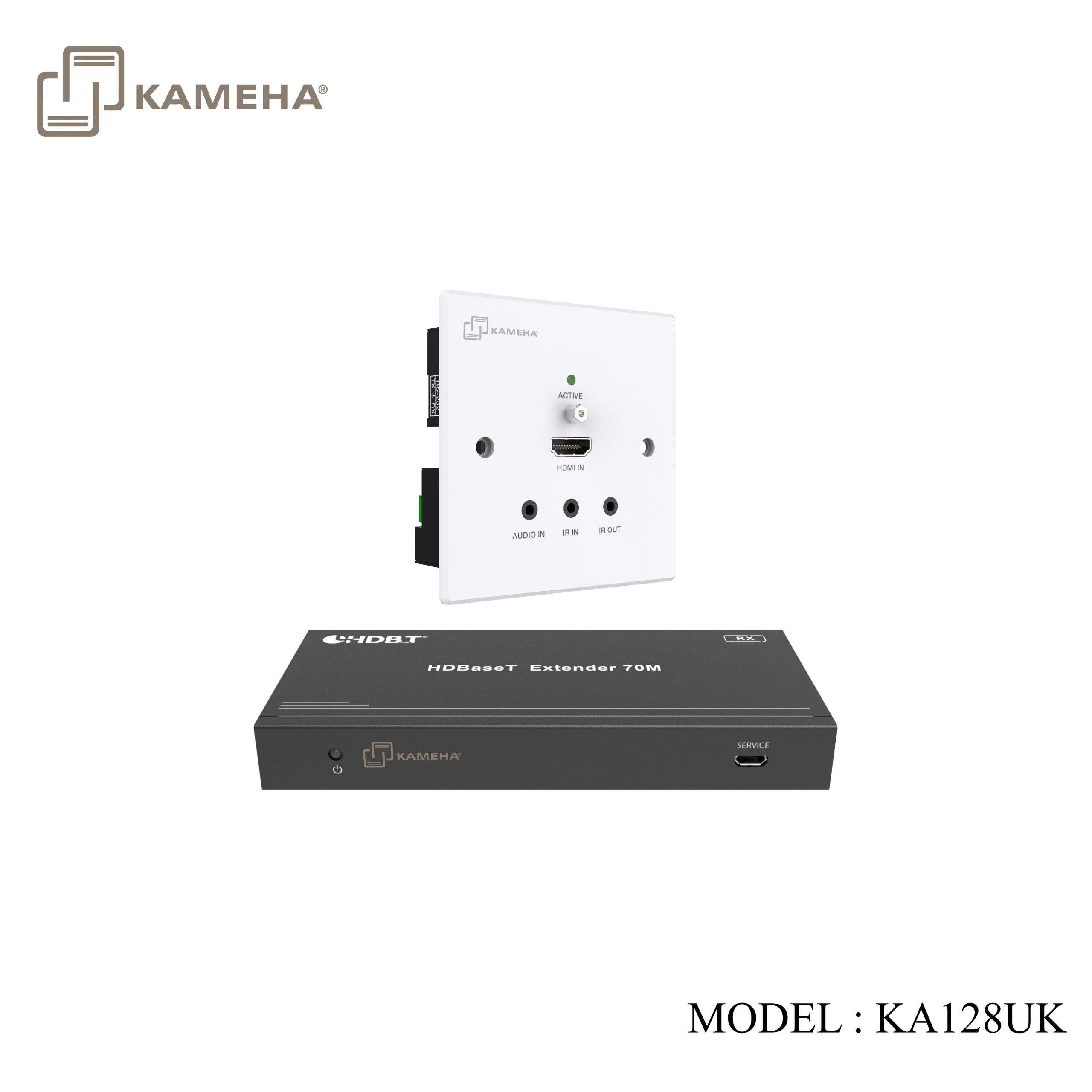

Transmitter Panel
No. | Name | Function Descriptions |
1 | ACTIVE LED (Green) | · Light on: Transmitting HDMI signal / HDBT connection is normal
· Light off: No HDMI signal /HDBT connection is abnormal. |
2 | HDMI IN port | HDMI signal input port, connecting to HDMI source device with HDMI cable. |
3 | AUDIO IN | 3.5mm analog audio signal input port. |
4 | IR IN | IR input port for receiving the signal of IR remote. |
5 | IR OUT | IR output port for control of source device. This IR output signal is from the IR IN port of receiver. |
6 | DC 24V | DV 24V power input port. |
7 | POC switch | Use the switch to turn on/off POC function. |
8 | HDBaseT OUT | HDBaseT signal output port. Connect to HDBaseT receiver with a UTP cable. |
9 | RS-232 | Use the phoenix jack for connecting with PC or control system to transmit RS-232 serial port commands. |
10 | AUDIO IN switch | Use the switch to select the audio.
▪ Switch to “ON”: Analog audio; ▪ Switch to “OFF”: HDMI embedding audio. |
11 | SERVICE | MCU update port. |
12 | EDID DIP switch | Use the DIP switch to set EDID.
00- Copy display’s EDID (as factory default) 01- 4K30 4:4:4 2CH 10- 1080p60 4:4:4 2CH 11- 1200p60 4:4:4 2CH |
Receiver Panel
No. | Name | Function Description |
1 | Power LED | Red LED indicates that the receiver is powered on. |
2 | SERVICE | MCU update port. |
3 | DC 24V | DC 24V/1A power supply input port.
Note: Both the transmitter and receiver support POC function, it means that either transmitter or receiver is powered on by 24V/1A power adapter, the other one doesn’t need power supply. |

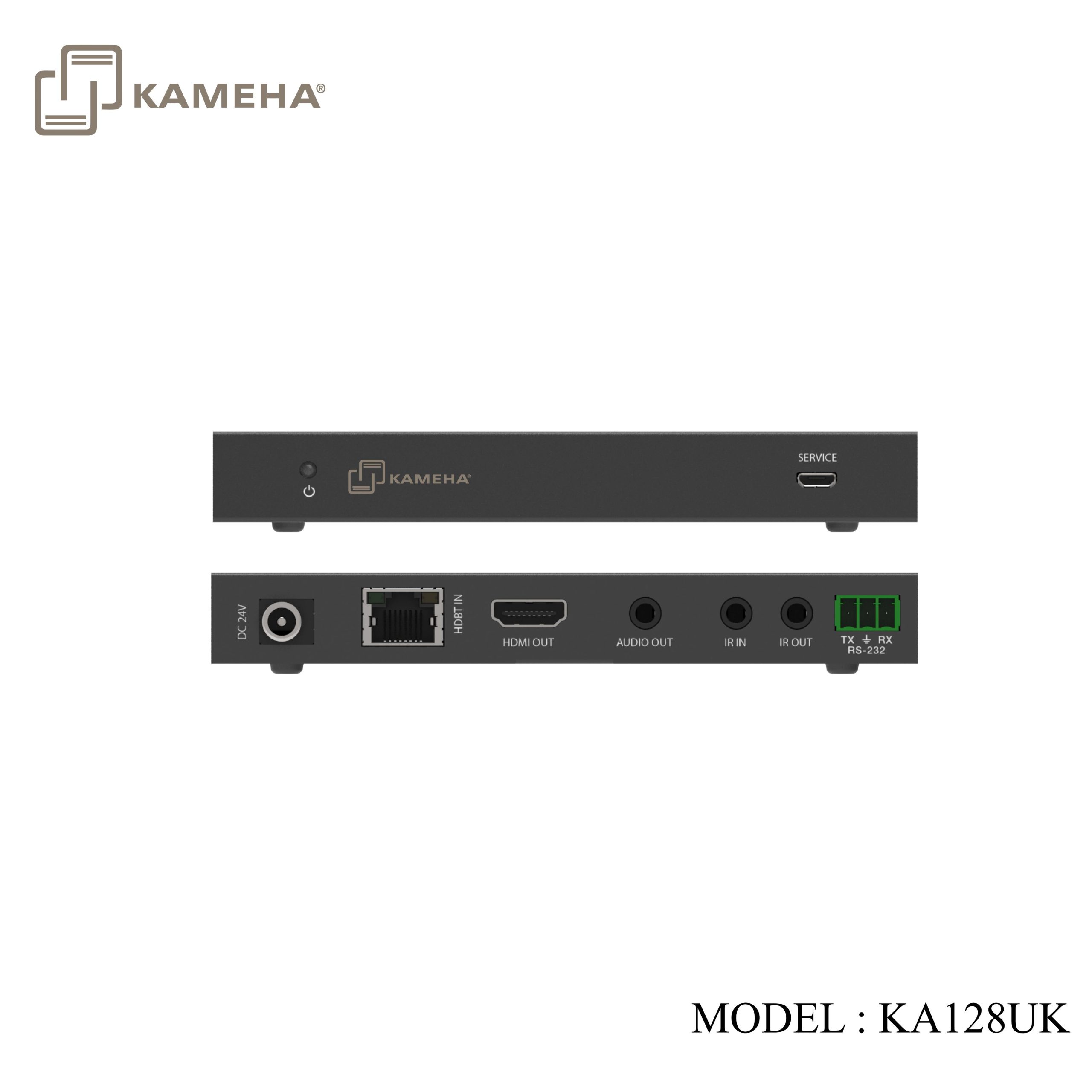

4 | HDBT IN | RJ45 connector for connecting the HDBT OUT port of transmitter with a CAT 5e/6 cable. |
5 | Link Signal
Indicator |
· Illuminating: Transmitter and Receiver are in good connection status.
· Flashing: Transmitter and Receiver are in poor connection status. · Dark: Transmitter and Receiver are not connected. |
6 | Data Signal
Indicator |
· Illuminating: HDMI signal with HDCP.
· Flashing: HDMI signal without HDCP. · Dark: No HDMI signal. |
7 | HDMI OUT | HDMI signal output port. |
8 | AUDIO OUT | 3.5mm stereo connector for analog audio output. |
9 | IR IN | IR input port for receiving the signal of IR remote. |
10 | IR OUT | IR output port for control of display device. This IR output signal is from the IR IN port of transmitter. |
11 | RS-232 | 3-pin Phoenix connector for RS-232 command transmission. The RS-232 command will passthrough between the transmitter and receiver. |
Application Example
Dimensions
Click here for product PDF file
