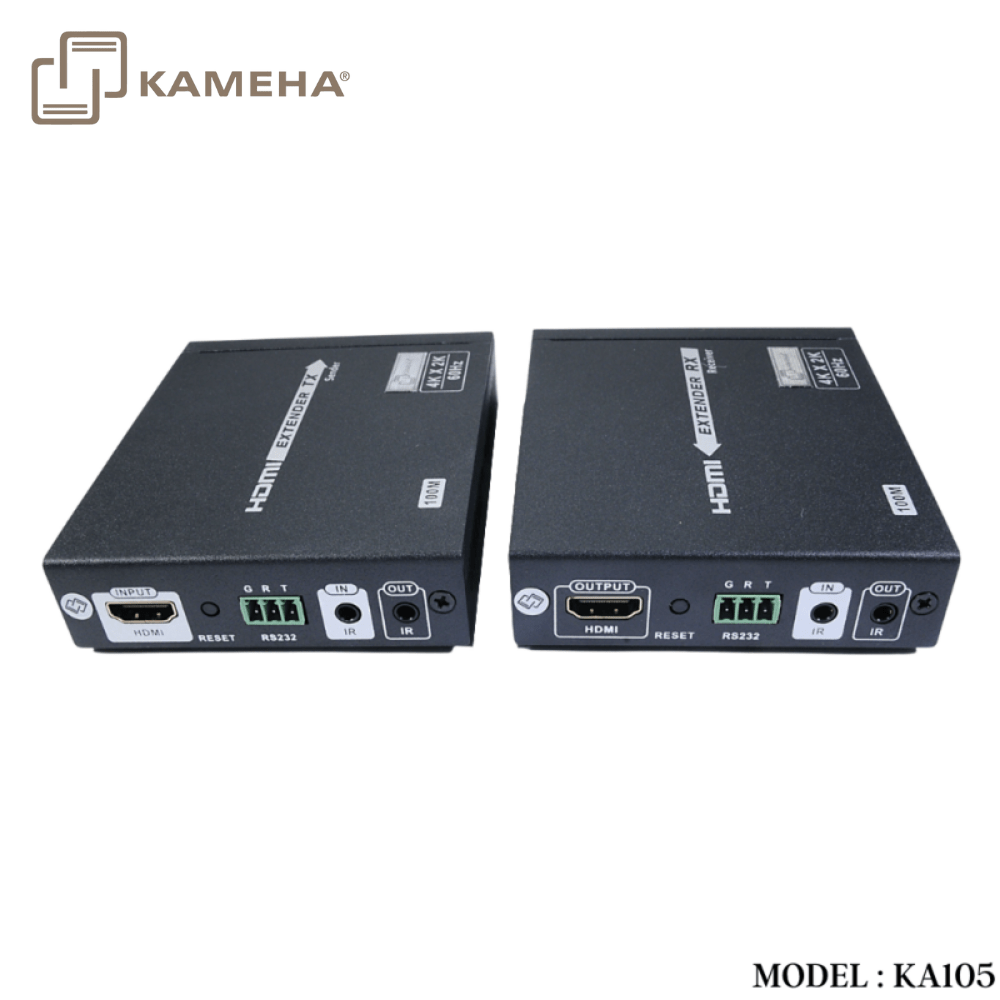

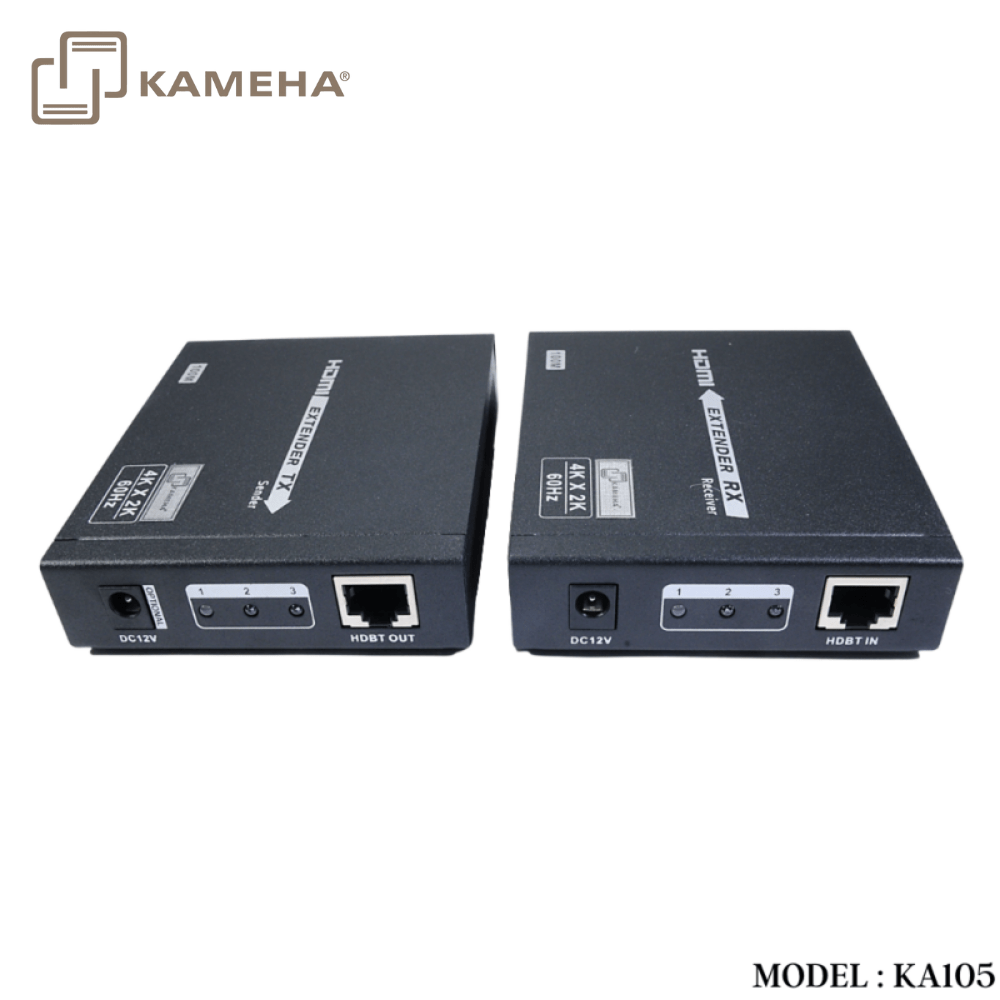

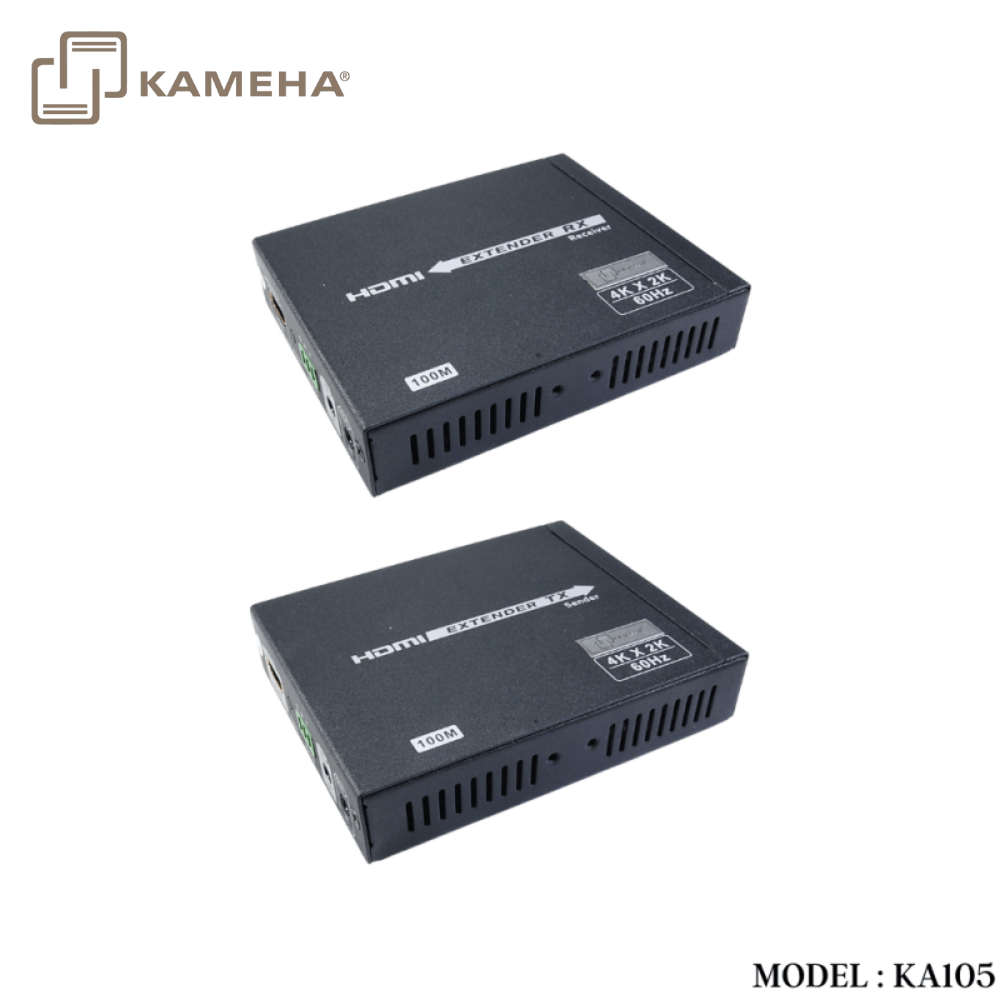

KA105 HDMI V2.0 HDBASE-T EXTENDER 100M

This HDBaseT single network cable extender transmits HDMI signal up to 100 meters over cat6 fluently and clearly. It is lossless in signal and supports 3D, 24bits deep color, 4Kx2K, CEC, HDCP and ultra HD 4KX2K@60Hz(4:4:4). This product supports to power over network cable, just connect the power adapter with the receiver unit, can keep this device working well. It’s a perfect solution for audio＆video transmission in applications of HD conference system, HD multimedia education system, HD digital advertising and signage etc.

Features

1. Uncompressed HDMI video signal.

2. Apply HDBaseT transmission technology.

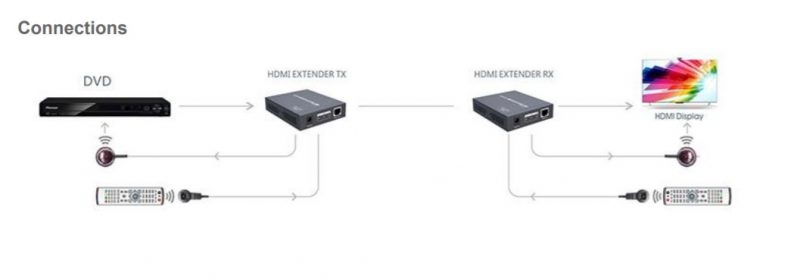

3. Support bi-directional IR pass back.

4. Support bi-directional RS232 passback.

5. Support HDCP2.2 ,CEC, 24 deep color.

6. Support LPCM, DTS-HD and Dolby True HD audio.

7. Supported resolution is up to ultra HD 4Kx2K@60Hz(4:4:4).

8. Transmit 4Kx2K@60Hz signal over cat6 up to 100 meters.

9. Can be powered by network cable. It only needs to connect the 12V power on the receiver unit, both transmitter and receiver start work.
