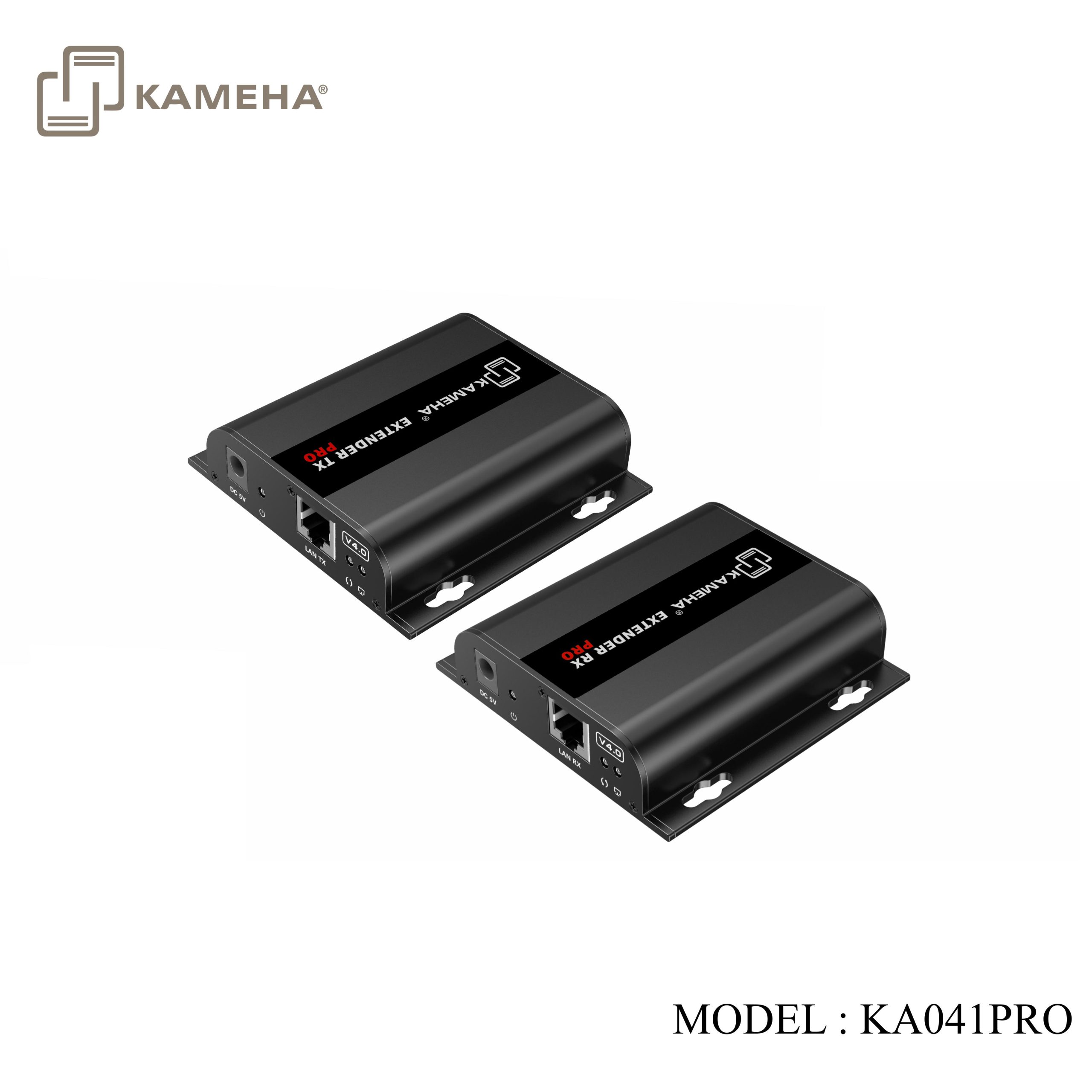

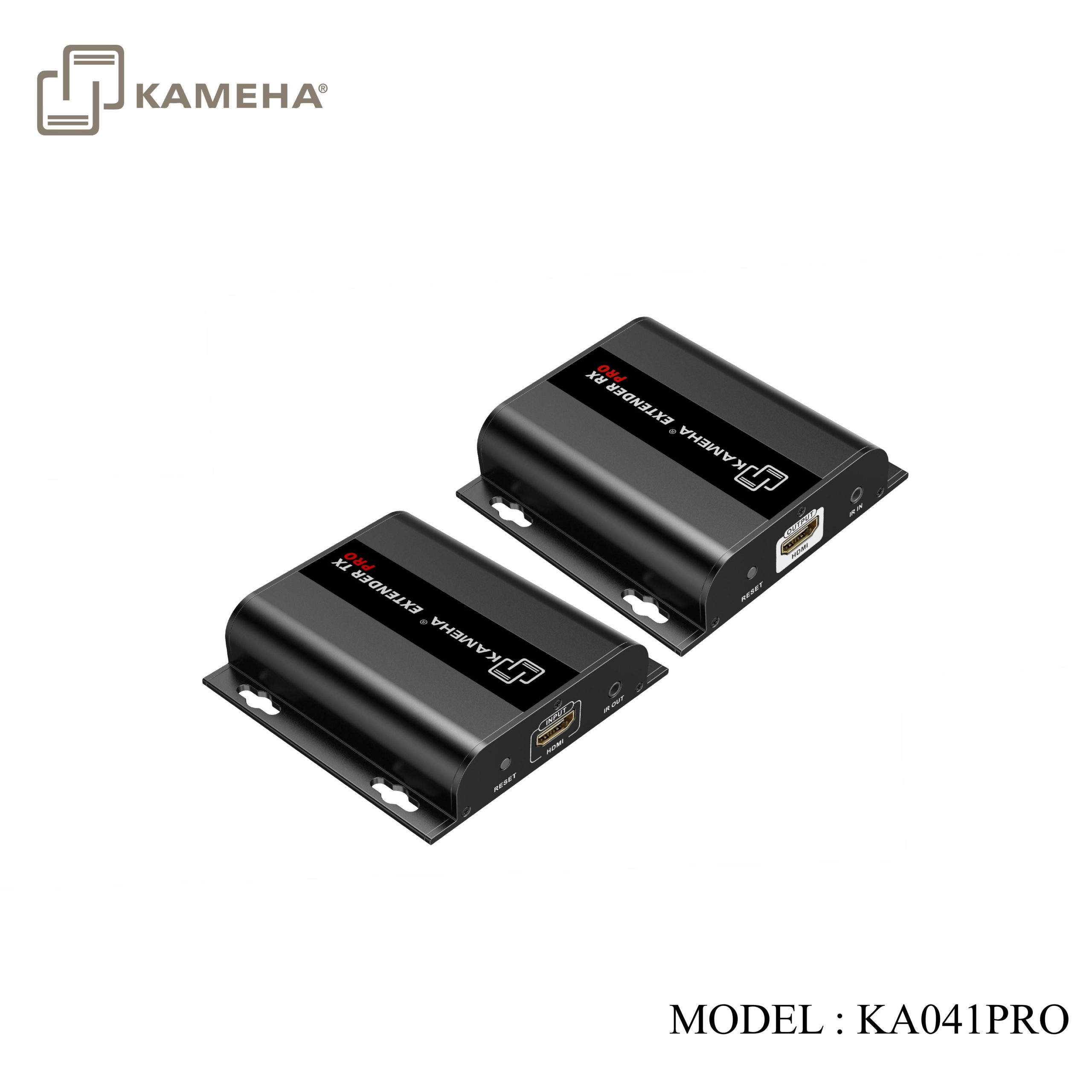

KA041PRO HDMI EXTENDER 100M WITH IR – KAMEHA (IMPROVED)

KA041PRO  is the upgraded version of KA041, screen latency only 0.2 seconds, compare to KA041 0.8 seconds
KA041PRO is not compatible with KA041

HDMI extender extends the transmit length of HDMI Visual/Audio up to 100m (328 feet) with single network cable. Supports IR signal transmission, to control media playback of the signal source device at the display location.



Features

1. 100m/328ft HDMI Extender over IP with IR pass through
2. Screen latency only 0.2 seconds
3. HDMI signal extender over single CAT5/5e/6 cable
4. Extend and split by LAN (delivery by Router/switch)
5. Compatible with existing network, not affect Internet
6. Plug and play without any manual setting
7. Supports 1 transmitter + 253 receivers connection

8. Commercial grade product, widely used for
   -Retail digital signage
   -Shopping mall video walls
   -Corporate meeting rooms
   -Security monitoring systems
   -Hotel TV distribution
   -Conference room
   -Auditorium
9. Sample project involved can view at : https://kameha.com.my/project-review/



Specification

Items	Specifications
HDMI Signal	Compatible with HDCP1.4
Supports resolutions	480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz
Network Cable	UTP/STP Cat5/5e/6
Transmission distance	Up to 100 meters transmission distance for 1080P Full HD over single CAT6
IR Signal	Supports 20~60KHz IR devices
Working Temperature	0℃～60℃
Power Supply	DC5V/1A
Power Consumption	TX：3.5W；RX：3W
Dimensions	130(W) x84(D) x23.2(H)mm *2pcs
Weight	TX:250g RX: 200g
Color	Black



HDMI EXTENDER TX (Sender)



HDMI EXTENDER RX (Receiver)



Troubleshoot problem



Connections

1. Point to Point connection: Up to 100 meters transmission distance over single CAT6

2. Router connection: By using network router/repeater, realize unlimited extension.

3. One-to-many connection: By using network router/switch one sender to several receivers, realize extender & splitter function.






Click here for product PDF

Click here for product manual

Weight	0.65 kg
Dimensions	20.30 × 14.50 × 8.00 cm
WARRANTY	1 Year Warranty
What's in the box	1* PRO HDMI Extender Receiver 1* PRO HDMI Extender Transmitter 1* IR Transmitter Cable 1* IR Receiver Cable 2* DC 5V/1A Power Adapter (3 months warranty) 1* User Manual
