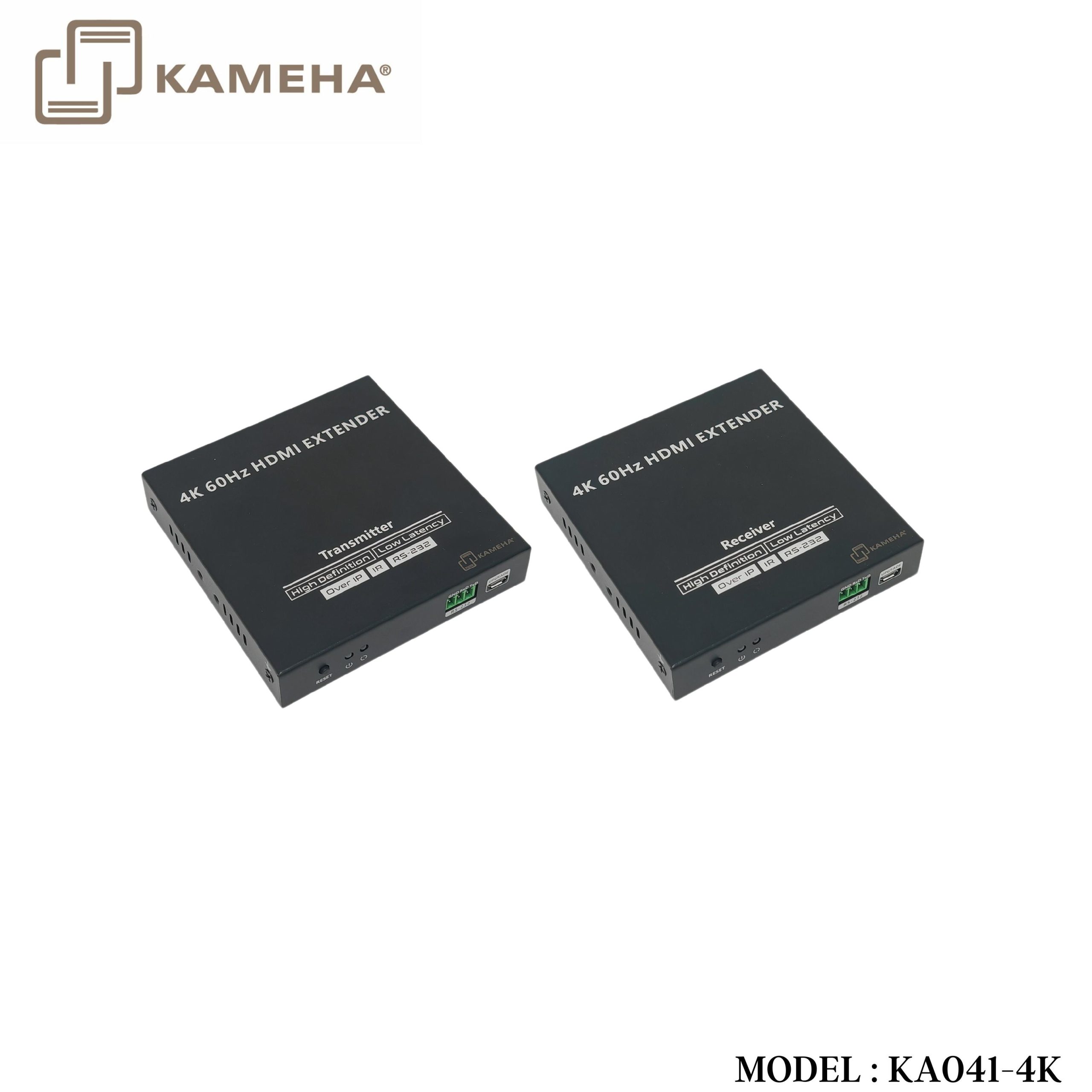

This product is a 4K@60Hz HDMI extender kit consisting of a transmitter and a receiver, using ipcolor STREAM technology for high-definition, low-latency transmission. The 4K@60Hz HDMI signal can be extended up to 120m via Category 6 and above network cables, supporting one-to-one connection, one-to-many connections via gigabit switch, or switch cascades. It also supports HDMI loop out, IR passback, and RS-232 passthrough functions, and can be widely used in meetings, home entertainment, educational presentations, and other fields.
Feature
- Adopting ipcolor STREAM technology can realize high-definition and low-latency transmission.
- Support up to 3840 x 2160@60Hz resolution, backward compatible.
- Compatible with Cat5/5e/6 or above network cables, transmission distance of Cat6 cable is 120 meters
- Support one-to-one or one-to-many connections through the gigabit switch up to 253 receivers
- Support RS-232 passthrough.
- The transmitter supports HDMI loop out.
- Support IR passback (20~60kHz).
- Firmware can be upgraded through Micro USB.
- Lightning protection, surge protection, ESD protection.
- Working 24/7.
Technical Parameters:
| Item | Transmitter | Receiver | |
| Video | |||
| Input inter face | 1x HDMI | 1x R J45 | |
| Output inter face | 1x HDMI 1x RJ45 |
1x HDMI | |
| HDMI Length | ≤ 5m | ≤ 5m | |
| Maximum transfer rate | 18Gbps | ||
|
Compatibility |
HDMI 2.0 | ||
| HDCP 1.4/HDCP 2.2
|
|||
|
Resolutions |
3840×2160@24/30/50/60Hz, 1080p@50/60Hz, 720p@50/60Hz, 1920×1200@60Hz, 2560×1440@60Hz, 2560×1600@60Hz
|
||
|
Connection types |
One-to-one connection One-to-many connection Switch cascading |
||
| Transmission | Cat6/6A/7≤120m | ||
| Transmission distance | 70~180ms | ||
| Command Signal | |||
| IR inter face | 1x 3.5mm IR out | 1x 3.5mm IR in | |
| IR receiving range | ≤ 5m | ||
| IR frequency | 20kHz~60kHz | ||
| RS-232 (GND/RXD/TXD) |
Default baud rate: 115200 Suppor ted: 2400, 4800, 9600, 19200, 38400, 57600, 115200 |
||
| Power | |||
| Power Supply | DC 5V/1A | DC 5V/1A | |
| Power Consumption
|
TX ≤ 4.5W | RX ≤ 2.5W | |
| Operating Environment | |||
| Working temperature
|
– 20℃~60℃ | ||
| Storage temperature
|
– 30℃~70℃ | ||
| Humidity | 0~90%RH (no condensation） | ||
| Physical Proper ties | |||
| Housing | lron | ||
| Weight | TX: 254g | RX: 242g | |
| Color | Black | ||
| Dimensions | 106.0(L)*103.0(W)*20.6(H)mm | ||
|
Protection |
ESD protection 1a Contact discharge level 2 (±4KV) 1b Air discharge level 3 (±8KV) Implementation of the standard: IEC61000-4-2 |
||
| Lightning protection, Surge protection | |||

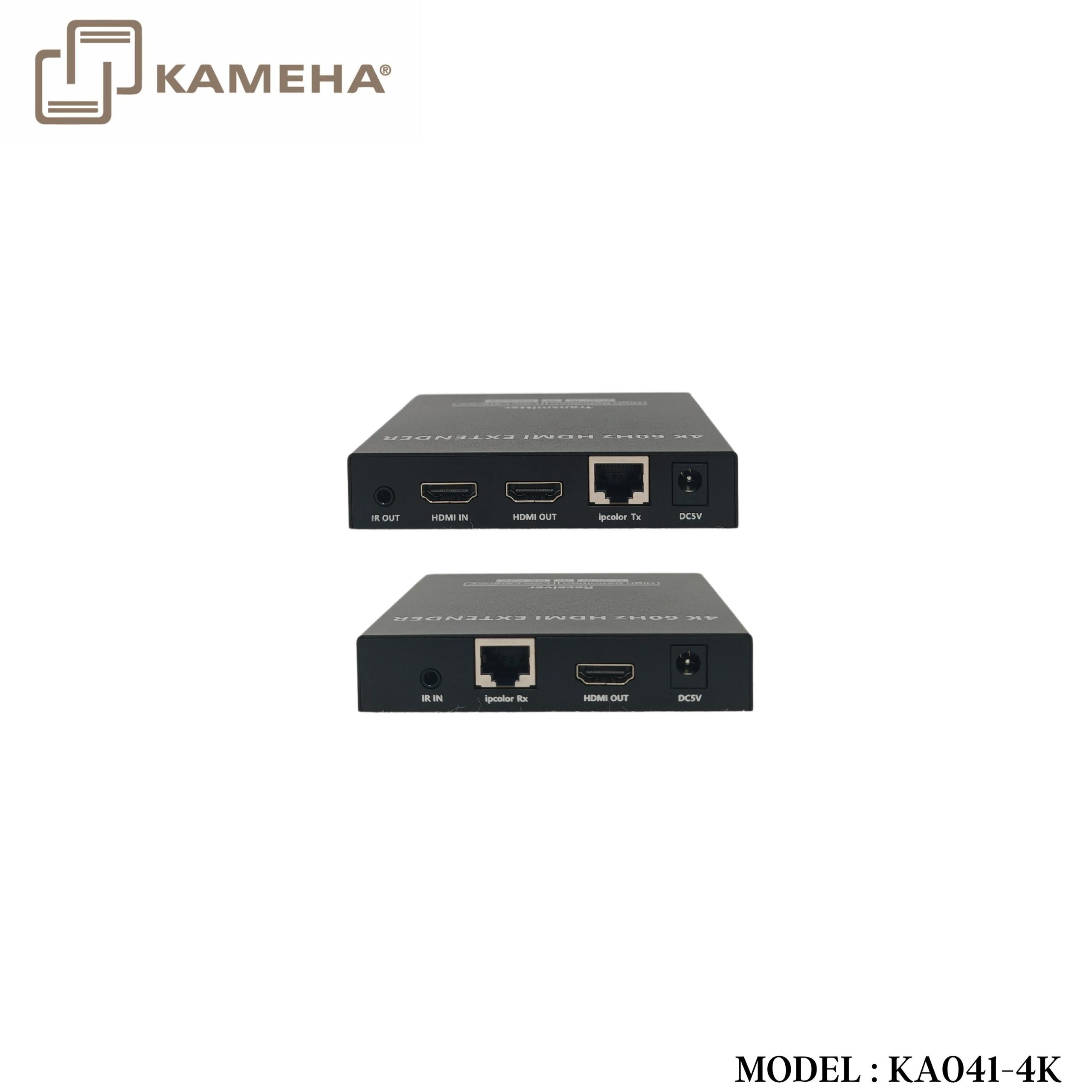

I/O Port
Connection Diagrams
2.1 One-to-one connection:
2.2 One-to-many connection (through gigabit switch):
2.3 One-to-many connection (cascade of gigabit switches):
Click here for product PDF file
Additional information
| Weight | 1.00 kg |
|---|---|
| Dimensions | 24.00 × 8.00 × 17.50 cm |
| WARRANTY | 1 YEAR WARRANTY |
| WHAT'S IN THE BOX | 1* 4K HDMI Extender Receiver |
