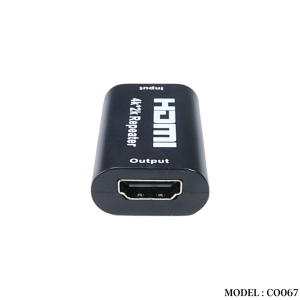

CO067 HDMI REPEATER

Features:

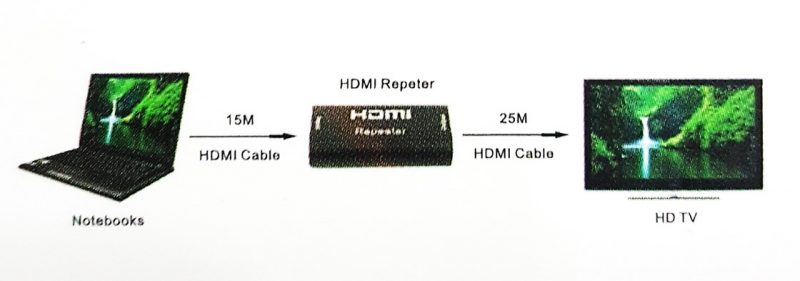

It regenerates the incoming HDMI Signal by decoding and re-encoding it to a new standard HDMI signal, so it can extend the transmission range without degradation. Extends 4096x2160P up to 40 meter transmission distance(lower resolution signal can be transmitted longer).

Specifications:

• Support HDMI 1.4b
• Support 3D, 4Kx2K@30Hz
• Compliant with HDCP 1.4
• Operation frequency: up to 340MHz
• HDMI data rate: 3.4 Gbps(Single link)
• Input/Output resolution HD: 480i@60Hz, 576i@50Hz, 480p@60Hz, 1080p@50Hz, 1080@60Hz, 1080i@50Hz, 1080p@30Hz, 1080p@25Hz, 1080p@24Hz, 2160p@30Hz,
• Dimensions(WxHxD): 28x13x51mm
