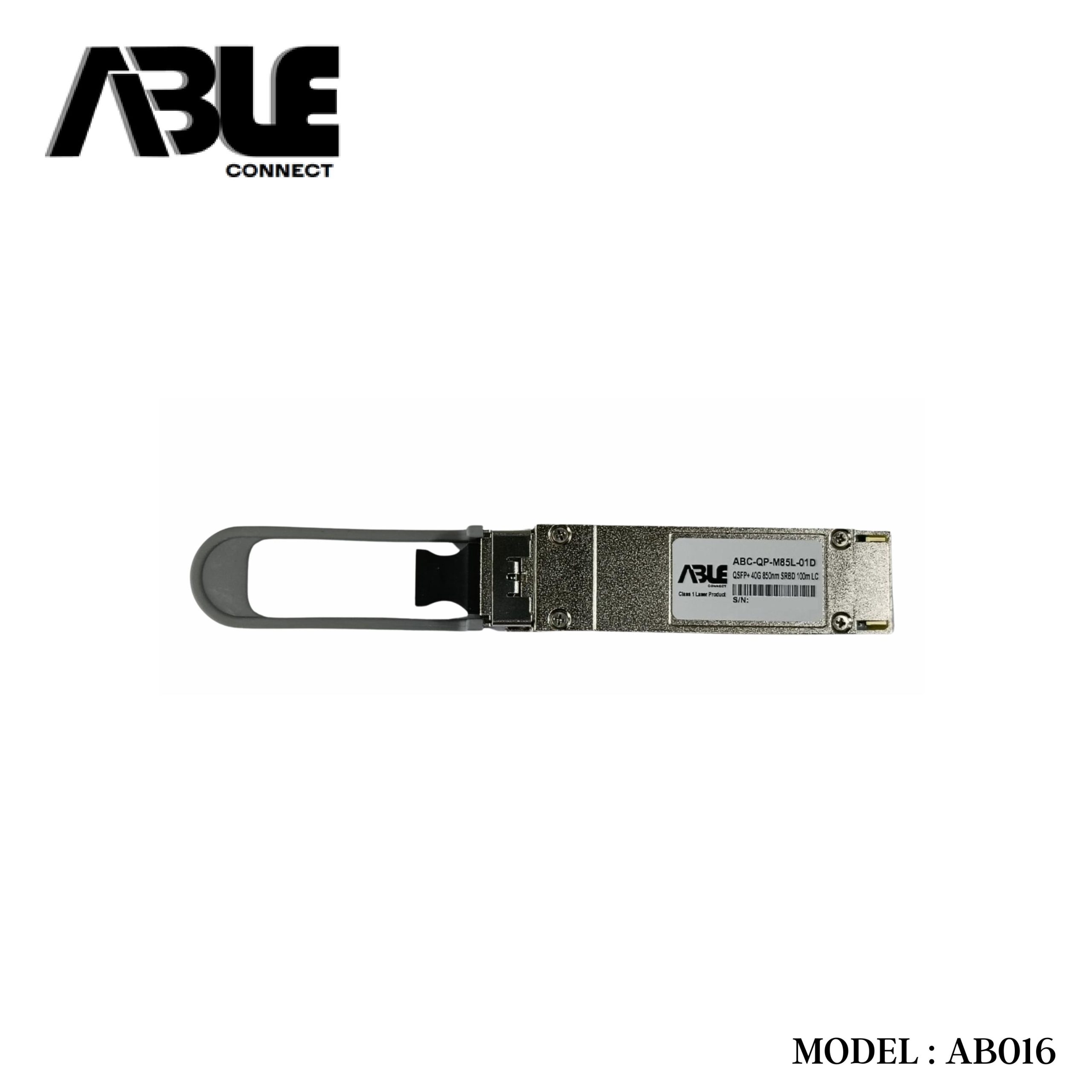

AB016 QSFP+ 40G 850NM SRBD 100M LC

Features

• Compliant to the 40GbE XLPPI electrical specification per IEEE 802.3ba-2010
• Compliant to QSFP+ SFF-8436 Specification
• Power Level 4: Max Power 3.5W
• Class 1M Eye Safety
• High port density: 21mm horizontal port pitch
• Operates at 10.3125 Gbps per electrical channel with 64b/66b encoded data
• Links up to 100m using OM3 and 150m using OM4 optical fiber
• +10 to +70ºC case temperature operating range
• Proven High Reliability technology: VCSEL transmitters and PIN receiver
• Hot pluggable transceiver for ease of installation and servicing
• Two Wire Serial (TWS) Management Interface with maskable interrupts for expanded functionality
• Utilizes a standard LC duplex fiber cable allowing reuse of existing cable infrastructure

Specifications

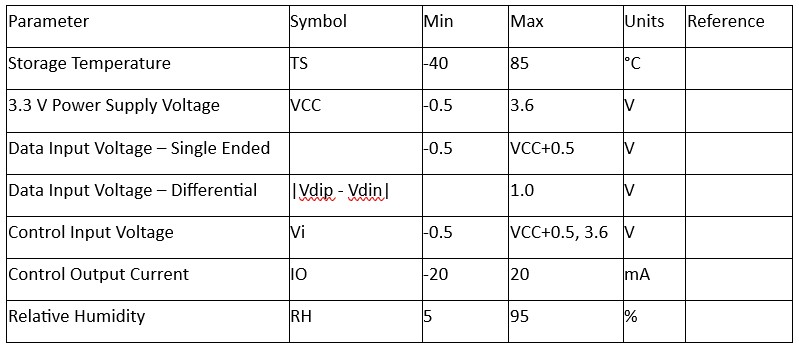

Absolute Maximum Ratings
Stress in excess of any of the individual Absolute Maximum Ratings can cause immediate catastrophic damage to the module even if all other parameters are within Recommended Operating Conditions. It should not be assumed that limiting values of more than one parameter can be applied to the module concurrently. Exposure to any of the Absolute Maximum Ratings for extended periods can adversely affect reliability.

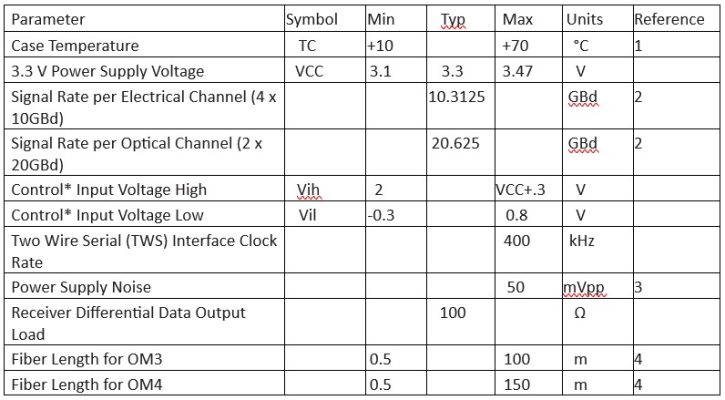

Recommended Operating Conditions

Recommended Operating Conditions specify parameters for which the optical and electrical characteristics hold un- less otherwise noted. Optical and electrical characteristics are not defined for operation outside the Recommended Operating Conditions where reliability is not implied and damage to the module may occur for such operation over an extended period of time.
