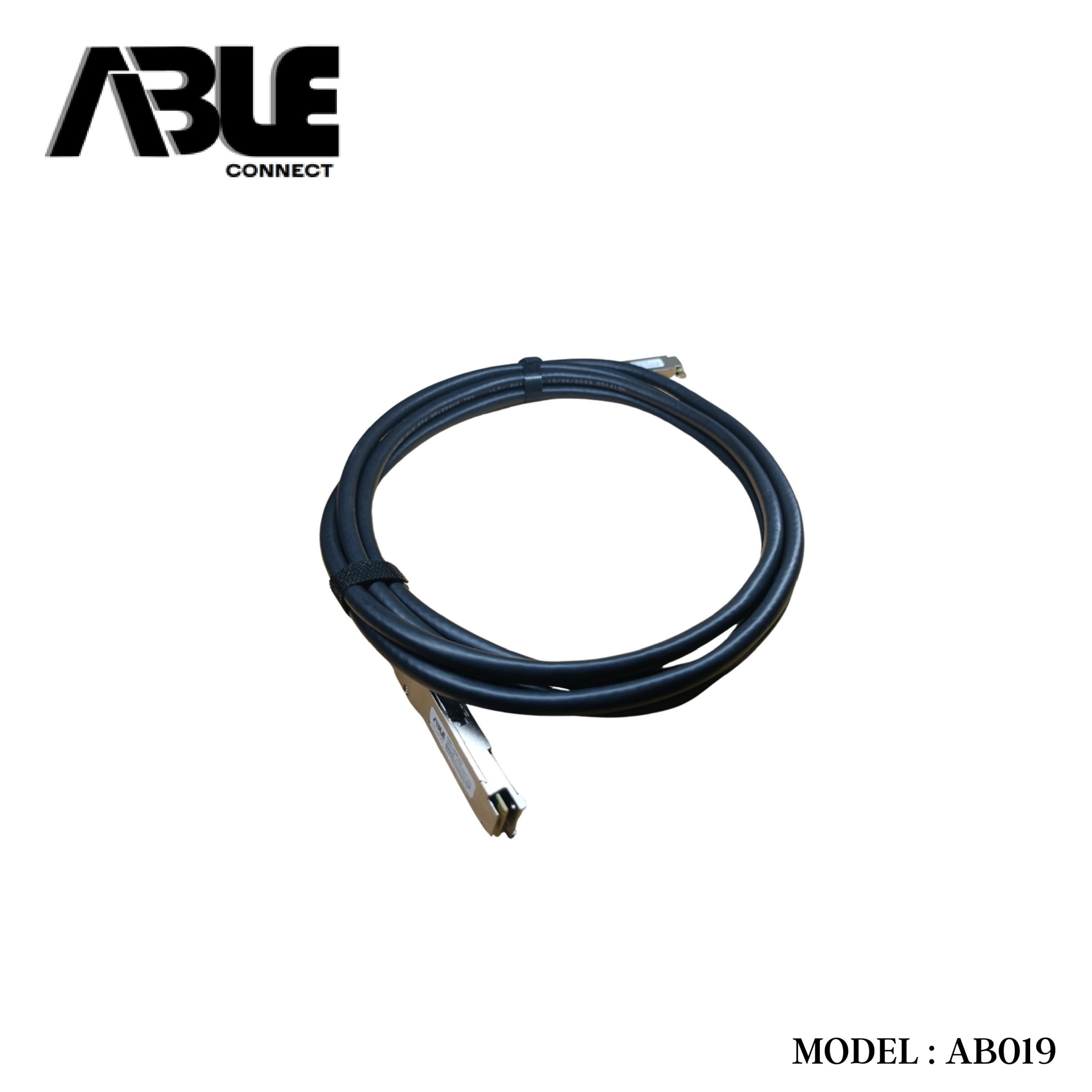

AB019 QSFP28 100G DAC 3M

Description

The 100G QSFP28 Direct Connect Cable (DAC) is a 4-channel parallel passive copper product for storage, data centres and high-performance computing connections. Each channel is capable of transmitting data at 25 Gbps, enabling a 100 Gbps total data rate of 5 meters.

Features

• Enhanced EMI / EMC performance
• 25Gbps data transfer rate per channel, up to 100Gbps
• Compliant with the IEEE 802.3bj standard and InfiniBand EDR specifications
• Meets QSFP + MSA and SFF-8661 / SFF-8665 standards
• Support serial ID function through EEPROM
• 30AWG to 26AWG cable available
• RoHS and halogen-free options

Applications

• Switch / router / HBA / SAN, NIC card
• 40G \ 100G Ethernet
• Storage, switch, data centre, network centre
• InfiniBand, QDR/EDR
