Description
Features
- 10/100/1000 Mbps Ethernet ports
- Innovative energy-efficient technology
- Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
- Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps and 1000Mbps hardware
- Auto-MDI/MDIX eliminates the need for crossover cables
- 15KByte Jumbo frame improves performance of large data transfers
- Desktop or wall-mounting design
- Plug and Play design simplifies installation
Specifications
| Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Interface | 10/100/1000Mbps RJ45 Ports, Auto-Negotiation, Auto MDI/MDIX |
| Switching Features | Half and Full Duplex MAC Address Learning |
| Transfer Method | Store and Forward |
| Forwarding Rates | 10BASE-T: 14880pps/port 100BASE-TX: 148800pps/port 1000BASE-T:1488000pps/port |
| Switching Capacity | 16Gbps |
| Mac Address Table | 8k |
| Jumbo Frame | 15KByte |
| Power Saving | 80% |
| LEDs | Per Unit: Power; Per Port: Link/Act |
| Power Supply | External Power Adapter (Output: 9V 0.6A) |
| Certifications | CE, FCC, RoHS |
| Environment | Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10% ~ 90%, non-condensing Storage Humidity: 5%~90% non-condensing |
Additional information
| Weight | 0.32 kg |
|---|---|
| Dimensions | 18.5 × 11 × 8.5 cm |
| WARRANTY | 3 MONTHS WARRANTY |

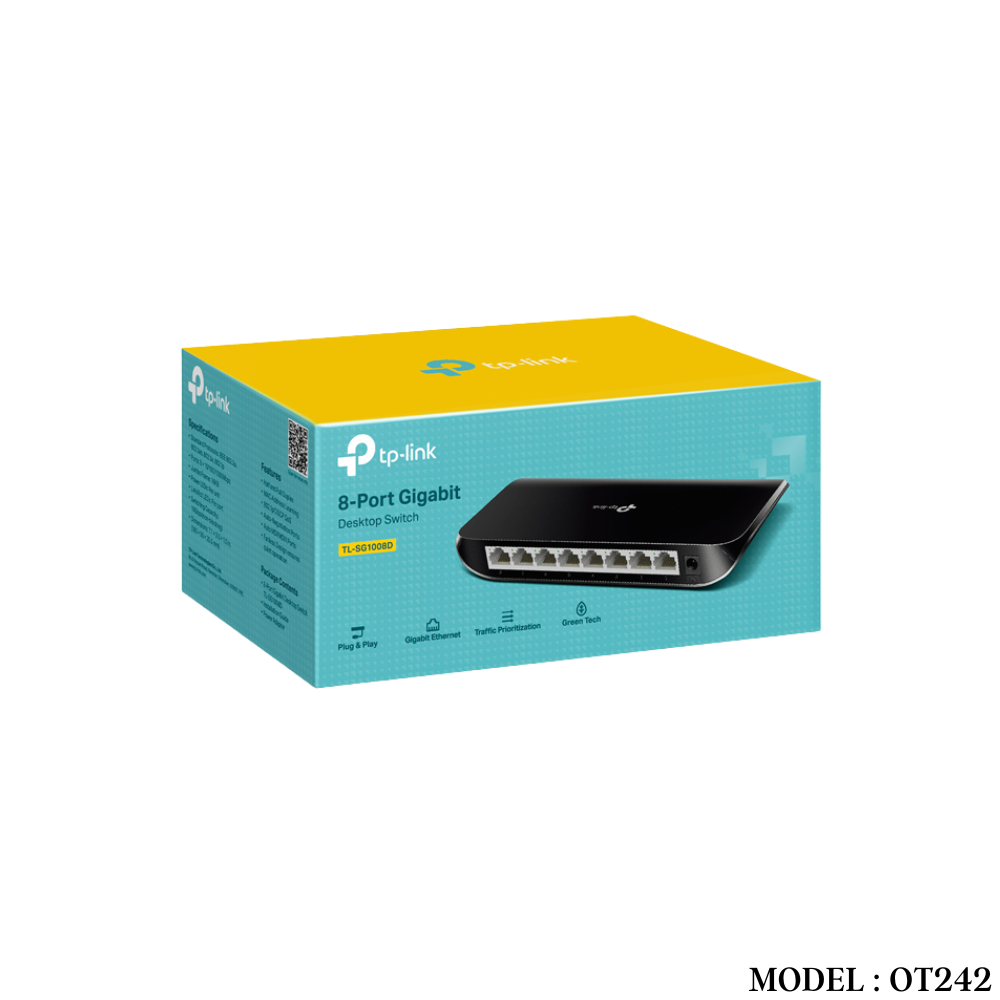

| WHAT 'S IN THE BOX | 1*8-Port Gigabit Desktop Switch |
