Description
Features
Fast Connectivity
• Sixteen or twenty-four (DGS-1016C/DGS-1024C) Gigabit LAN ports for high-speed wired connections.
• Cable Diagnostics function notifies users of cable conditions through port LEDs.
• Plug-and-play installation for convenience.
Energy Efficient and Eco-Friendly.
• Reduces power to a port when there is no traffic.
• Optimizes power usage for a port for the length of cable connected to it.
• Energy efficient design reduces heat generated and allows switch to run silently.
| Technical Specifications | |
| General | DGS-1016C |
| Device Interfaces | · 16/10/100/1000 Mbps LAN ports |
| Standards | · IEEE 802.3 10BASE-T
· IEEE 802.3u 100BASE-TX · IEEE 802.3ab 1000BASE-T · IEEE 802.3x Flow Control · IEEE 802.1p QoS · IEEE 802.3az Energy-Efficient Ethernet (EEE) |
| Functionality | DGS-1016C |
| Switching Capacity | · 32Gbps switching fabic |
| Advanced Features | · Auto MDI/MDIX crossover for all ports
· Secure store-and-forward switching scheme · Full/half-duplex for Ethernet/Fast Ethernet speeds · Supports 9,216 byte jumbo frames · Back pressure at half-duplex operation · Wire-speed reception and transmission · Store and-Forward switching method · Auto-negotiation for each port · QoS (8 queues, strict mode) |
| Data Transfer Rates | · Ethernet: -10 Mbps (half duplex) -20 Mbps (full duplex)· Fast Ethernet: · Gigabit Ethernet: |
| Transmission Method | · Store and forward |
| MAC Address Table Size | · 8000 |
| Packet Filtering/Forwarding Rates | · Ethernet: 14,880 pps per port
· Fast Ethernet: 148,800 pps per port · Gigabit Ethernet: 1,488,000 pps per port |
| RAM Buffer | · 256 KB per device |
| Physical | DGS-1016C |
| LED Indicators | · Per port: Link/Activity/Speed
· Per device: Power |
| Media Interface Exchange | · Auto MDI/MDIX adjustment for all ports |
| Dimensions | · 282.2 x 178.0 x 44.5 mm (11.11 x 7.01 x 1.75 inches) |
| Weight | · 1.06 kg (2.34 lbs) |

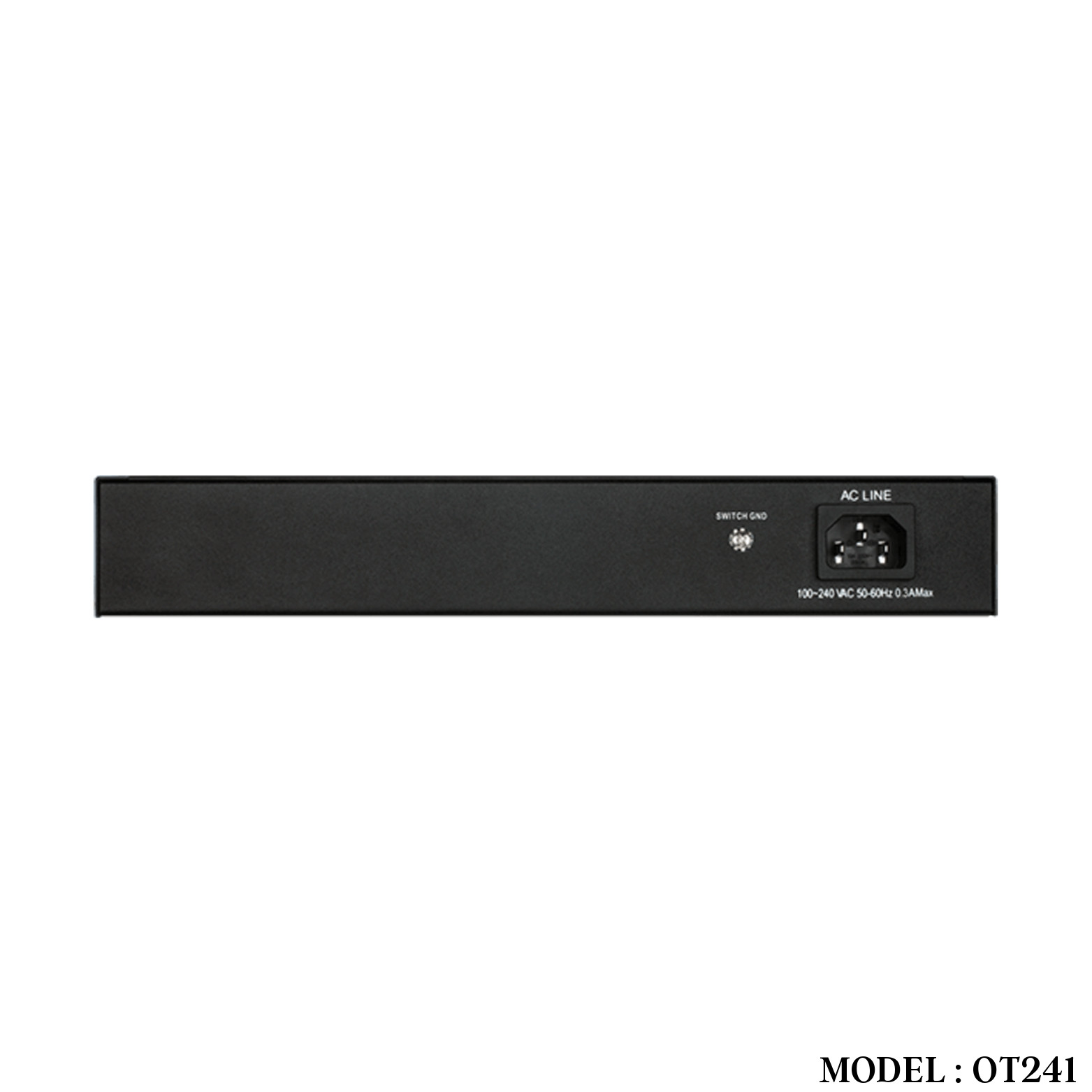

| Power | · 100 to 240 V AC |
| Power Consumption | · Power On (Standby): 4.48 watts
· Maximum: 9.3 watts |
| Temperature | · Operating: 0 to 40 °C (32 to 104 °F)
· Storage: -40 to 70 °C (-40 to 158 °F) |
| Humidity | · Operating: 10% to 90% non-condensing
· Storage: 5% to 95% non-condensing |
| MTBF | · 208, 124 hours |
| Maximum Heat Dissipation | · 33.35 BTU/h |
| Certifications | · CE Class B
· CE (LVD 2006/95/EC |
| Order Information | |
| Part Number | Description |

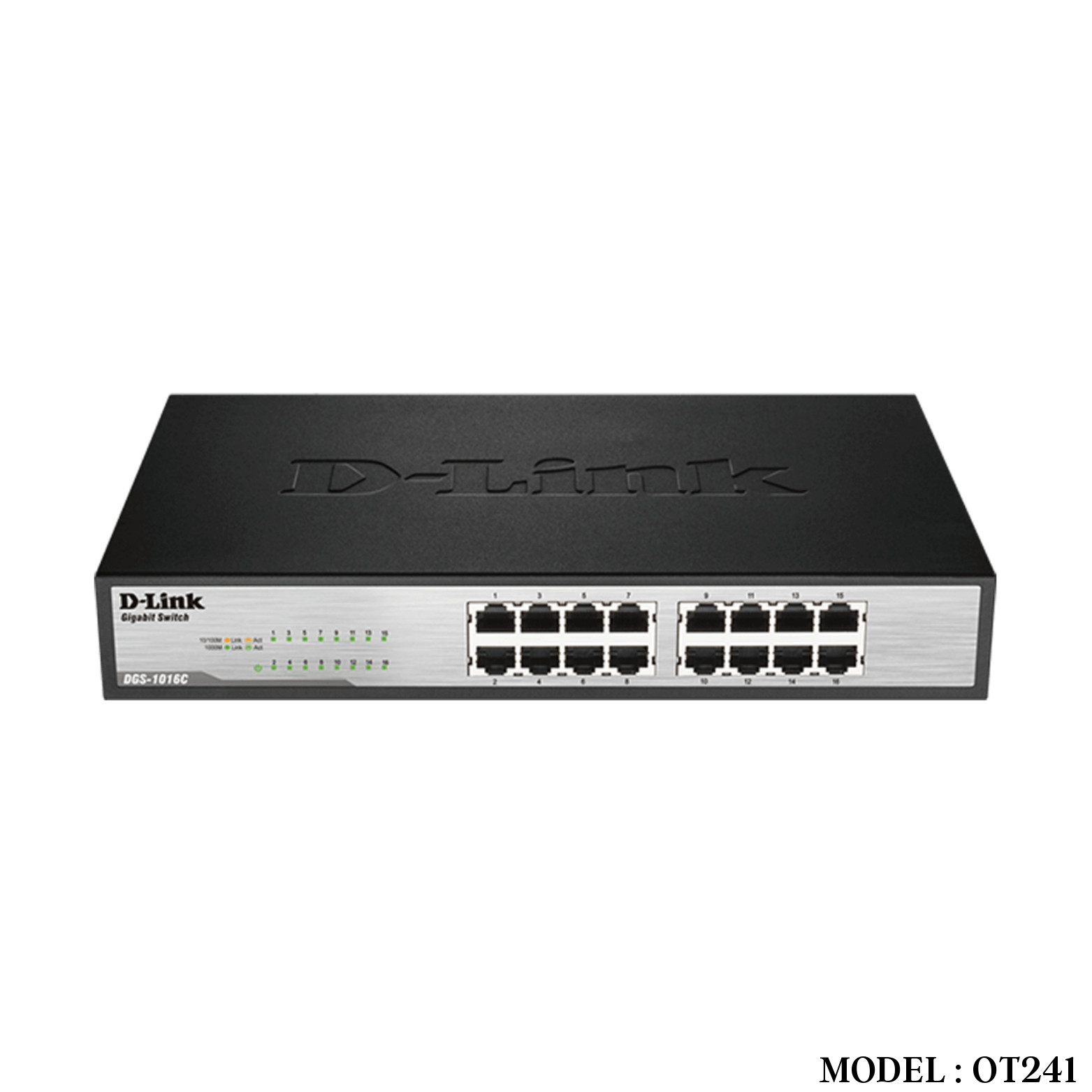

| DGS-1016C | 16 Port 10/100/1000 Mbps Unmanaged Switch |
Additional information
| Weight | 1.06 kg |
|---|---|
| Dimensions | 28.22 × 17.80 × 4.50 cm |
