Description

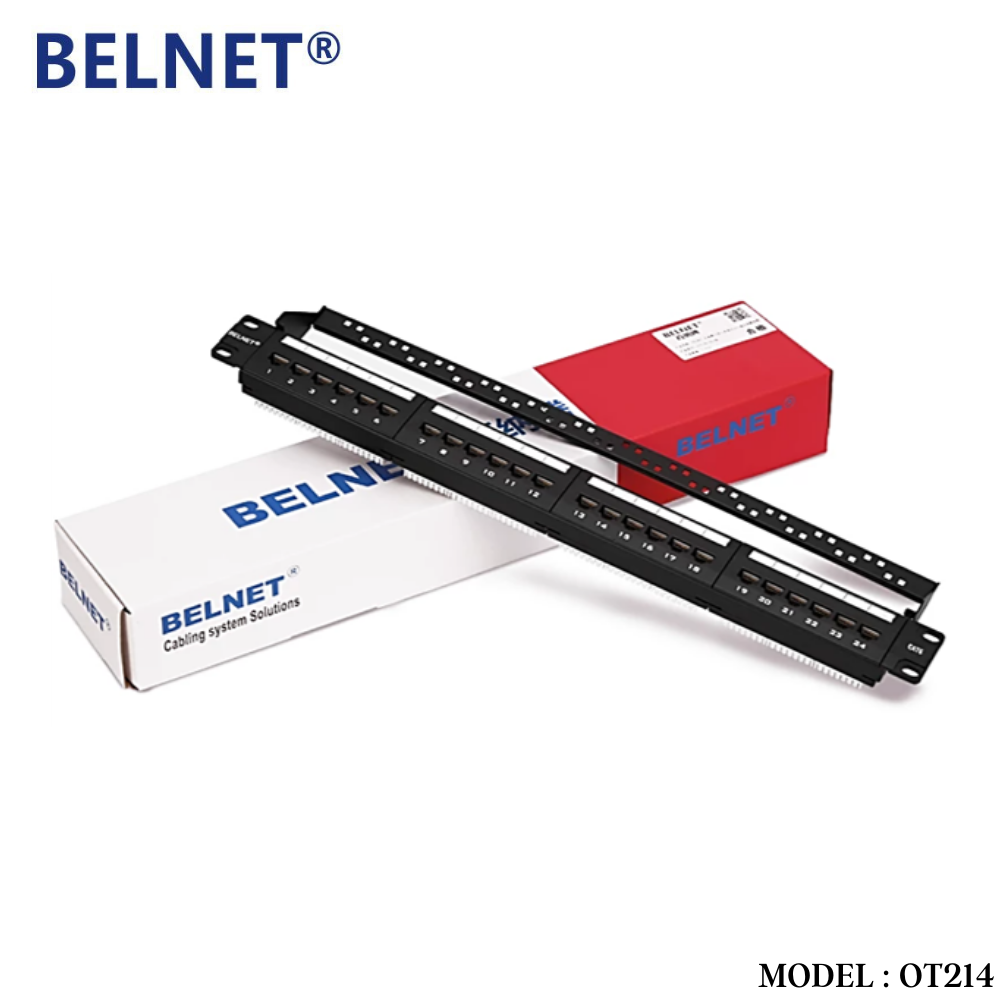

1.CAT.6 24port 1U patch panel for Gigabit Network, Transmission up to 250MHz 1G-10G Mbps
2.Tested performance according to ISO/IEC 11801 CLASS E PL2

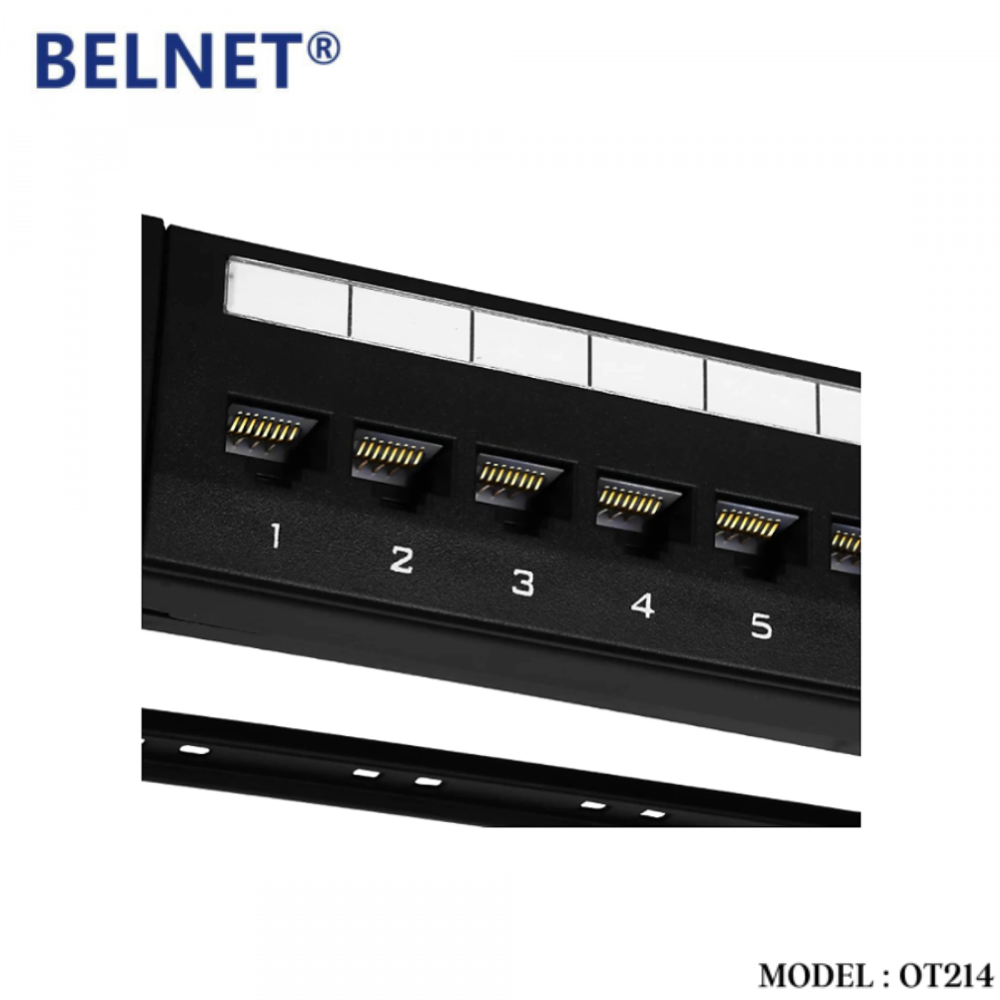

3.Front panel with label field design – easy for idenfications/marks for each port

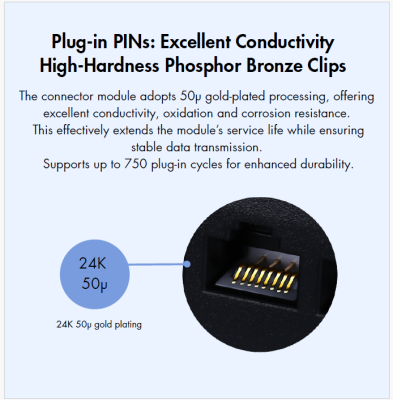

4.RJ45 front sockets designed with smart shutter – dust cover for protection

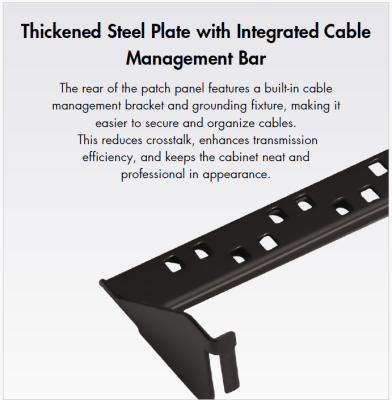

5.Rear side designed with cable management metal bar included the cables fixing position

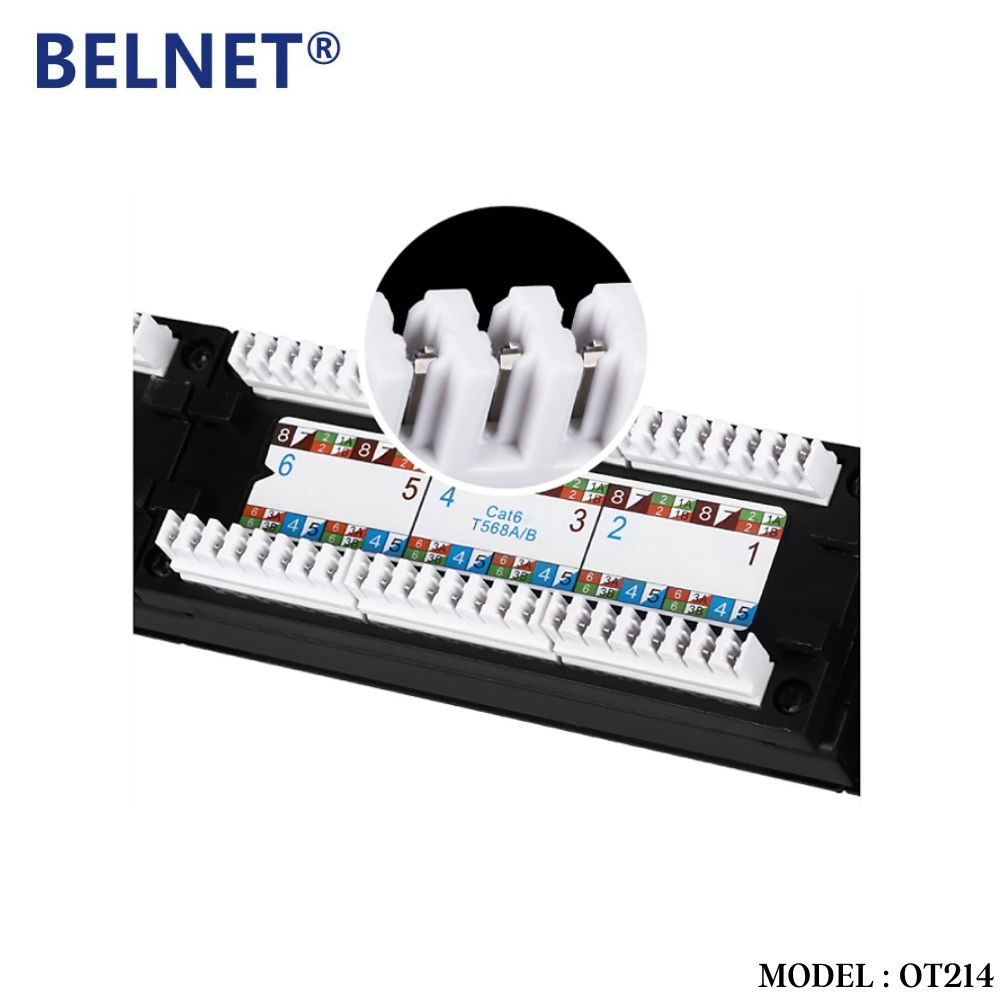

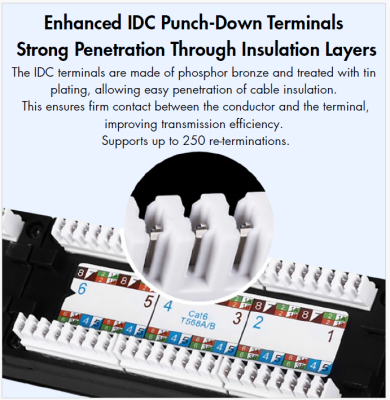

6.Come with the IDC termination Caps – for protect the wires and fixing the wires well placed in the IDC
7.With 568A & 568B color code labels – easy for wires installation
8.Accepts cable wires diameter from AWG23 to AWG26 solid or stranded cables
9.Suitable for using Krone or 110 punch down tools to install the wires on the IDC terminal

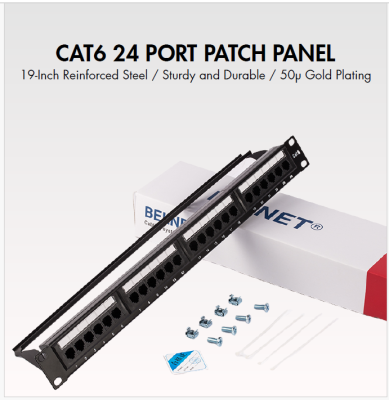

10.Each panel packed in white box includes: screws set x 4, cable ties x 24
11.Pass Fluke test

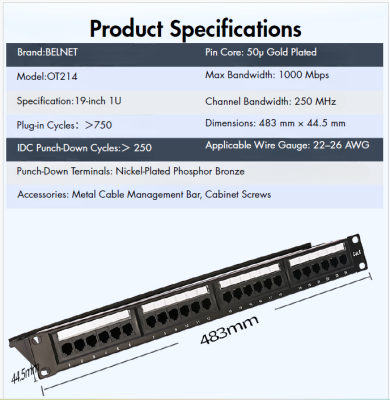

Additional information
| Weight | 0.9 kg |
|---|---|
| Dimensions | 52 × 9.5 × 6 cm |
| Warranty | 3 Months Warranty |
