Description

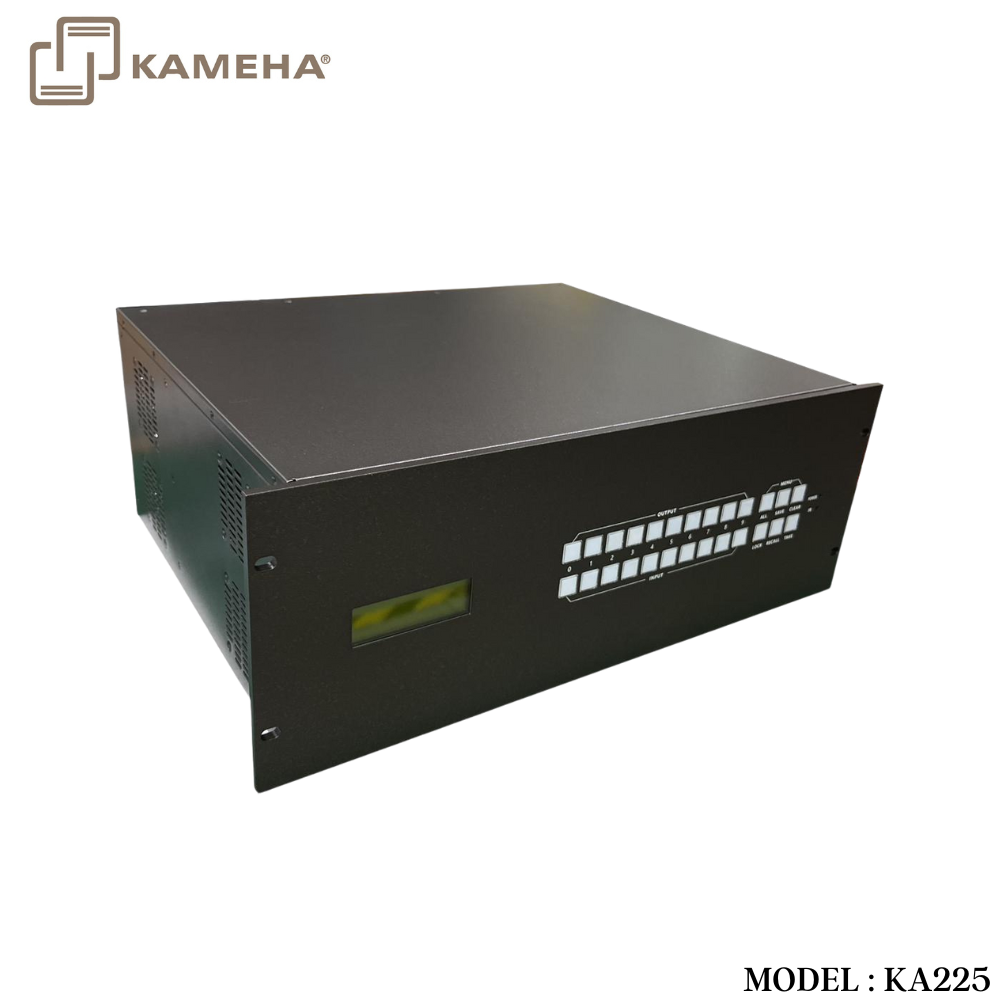

HDMI SEAMLESS MATRIX 16X16 SWITCH CUM VIDEO WALL 4K
Modular multi-format mixed seamless switching matrix is a high performance video signal switching equipment. It supports up to 8~80 inputs, 8~80 outputs with many kinds of daughter cards. This product supports multiple video formats input and output. Multi-format matrix using the daughter cards structure, flexible and convenient installation. The input/output port support: Fiber, HDbaseT, SDI, HDMI, VGA, DVI-U (HDMI/DVI/VGA/YPbPr/CVBS). With the Ethernet/LAN and RS232 communication interface, through the PC software to control the matrix signal switching, monitoring the working status of the matrix, set the signal resolution, etc.
Product performance
- Redundant power supply
- Support Seamless switching
- Support up to 8~80 inputs and 8~80 outputs

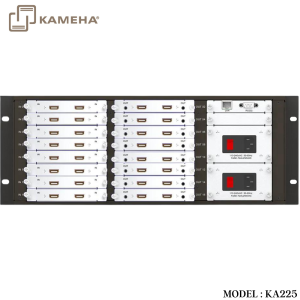

- Input/Output port: Fiber, HDbaseT, 3G-SDI, HDMI, DVI-U(HDMI/DVI/VGA/YPbPr/CVBS)
- maximum resolution of 1920 x 1080@60Hz (2K cards); 3840×2160@60Hz(4K cards)
- Control interface: RS232,Web-based Ethernet/LAN
- PC software to facilitate remote control, real-time display the input and output status
- Scalar inside, output resolution control available
- Video wall function
- Character overlay function: Font / color / size control available
- Video wall plan setting can be up to 10 options, Matrix plan setting can be up to 30 options.
Specification
| Control -RS232 | RS-232 Straight | D-sub 9 | Baud rate：9600 | ||
| Control -LAN | Static IP, Automatic IP | ||||
| Power supply | AC100 – 240V 50/60Hz | ||||
| Working temperature | 32 – 104°F / 0 – 40°C | ||||
| Storage temperature | -4 – 140°F / -20 – 60°C | ||||
| Humidity | 20 – 90% RH (no condensation) | ||||
| Dimension W*D*H | 483x365X178mm | ||||
| Gross weight | 13KG | ||||
| Power Supply | 350W * 2 (Redundant) | ||||
| Input | Interface type | Signal | Format | ||
| HDMI | HDMI | Up to HDMI 2.0 4K 444@60Hz | |||
| RJ45 | HDbaseT | 4K@60Hz, works with HDbaseT seamless transmitter box: KA128 TX KA128US TX KA194 TX KA195 TX KA230 TX KA231 TX |
|||
| LC | Fiber | 4K@60Hz, works with Fiber seamless transmitter box. | |||
| Output | Interface type | Signal | Format | ||
| HDMI | HDMI | Up to HDMI 2.0 4K 444@60Hz | |||
| RJ45 | HDbaseT | 4K@60Hz, works with HDbaseT seamless receiver box: KA128 RX KA128US RX KA194 RX KA195 RX KA230 RX KA231 RX |
|||
| LC | Fiber | 4K@60Hz, works with Fiber seamless receiver box. | |||
Additional information
| Weight | 13.00 kg |
|---|---|
| Dimensions | 48.30 × 36.50 × 17.80 cm |
| Warranty | 1 Year Warranty |
| WHAT'S IN THE BOX | 1* KA225 HDMI SEAMLESS MATRIX 16X16 SWITCH CUM VIDEO WALL 4K |
