Introduction
- HDMI 2.0, HDCP 2.2 / 1.x and DVI 1.0 compliant、
- Video resolution up to 4K2K@60Hz 4:4:4
- Support 18Gbps video bandwidth
- Support HDR, HDR10, HDR10+, Dolby Vision HLG pass-through
- Support HDMI audio pass-through up to 7.1CH HD audio (LPCM, DolbyTrueHD, and DTS-HD Master Audio)
- Support 4 *(HDMI +USB2.0) inputs and 1*HDMI+ 4*USB (2* USB2.0+ 2*USB1.1) outputs
- Support input auto switching
- Adaptive EDID, able to adapt to a variety of complex application environment

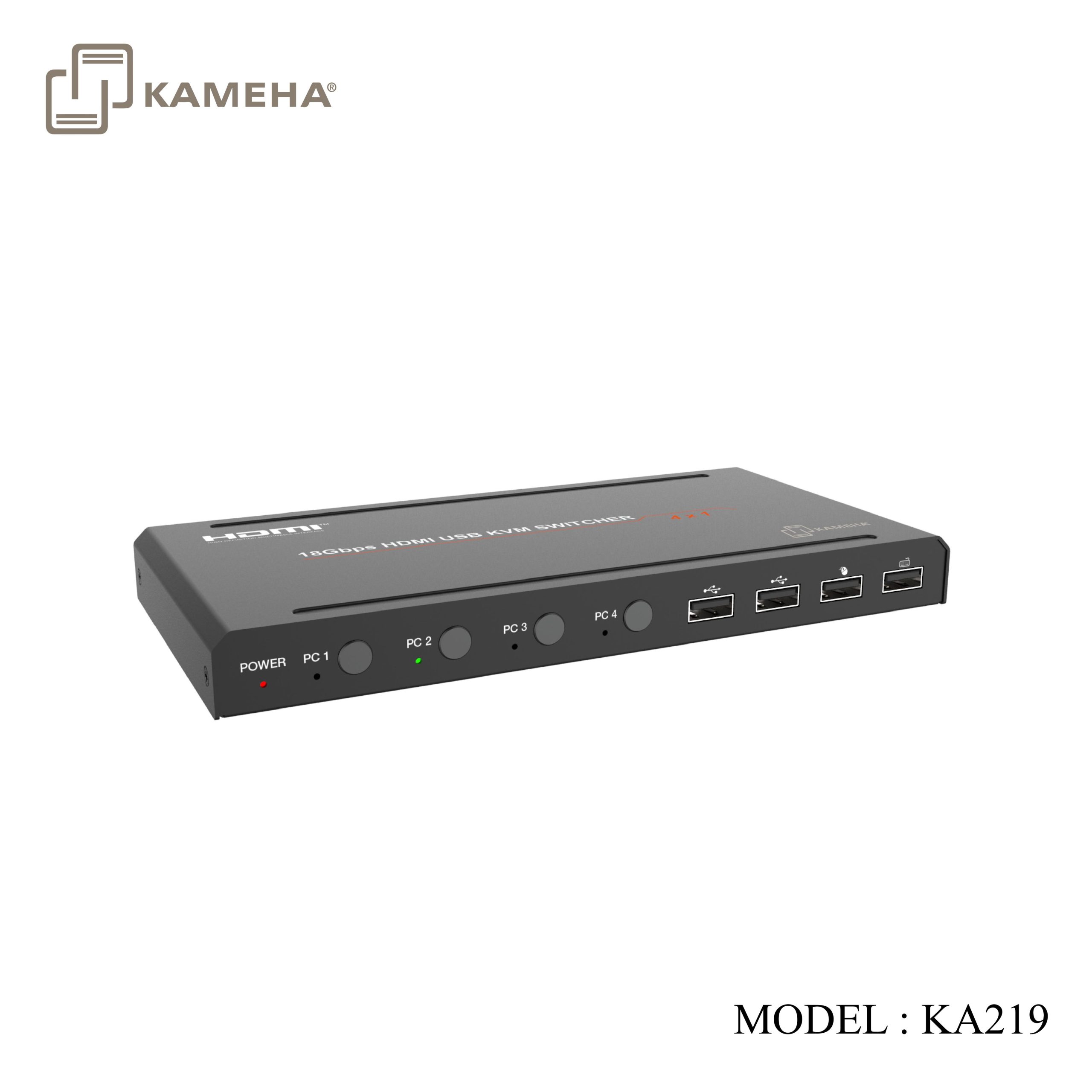

- Support one-to-one control of input source through the front panel button
- Both HDMI and USB input and output support hot swap
- Control via front panel button/hot-key/mouse
- Simple to install, plug and play
Specification
| Technical | |
| HDMI Compliance | HDMI 2.0 |
| HDCP Compliance | HDCP 2.2 / 1.x |
| Video Bandwidth | 18Gbps |
| Video Resolution | 4Kx2K@24/30Hz, 4K2K@60Hz |
| Color Space | RGB 4:4:4, YCbCr 4:4:4 / 4:2:2 / 4:2:0 |
| Color Depth | 8-bit, 10-bit, 12-bit (1080p@60Hz) 8-bit (4K2K@60Hz YUV4:4:4)
8-bit, 10-bit, 12-bit (4K2K@60Hz YCbCr 4:2:2 / 4:2:0) |
| HDMI Audio Formats | PCM 7.1CH, Dolby TrueHD and DTS-HD Master Audio |
| HDR | HDR, HDR 10, HDR 10+ and Dolby vision |
| USB Version | USB2.0 (Data transfer rate up to 480MB/S) |
| ESD Protection | Human-body Model: ±8kV (Air-gap discharge),
±4kV (Contact discharge) |

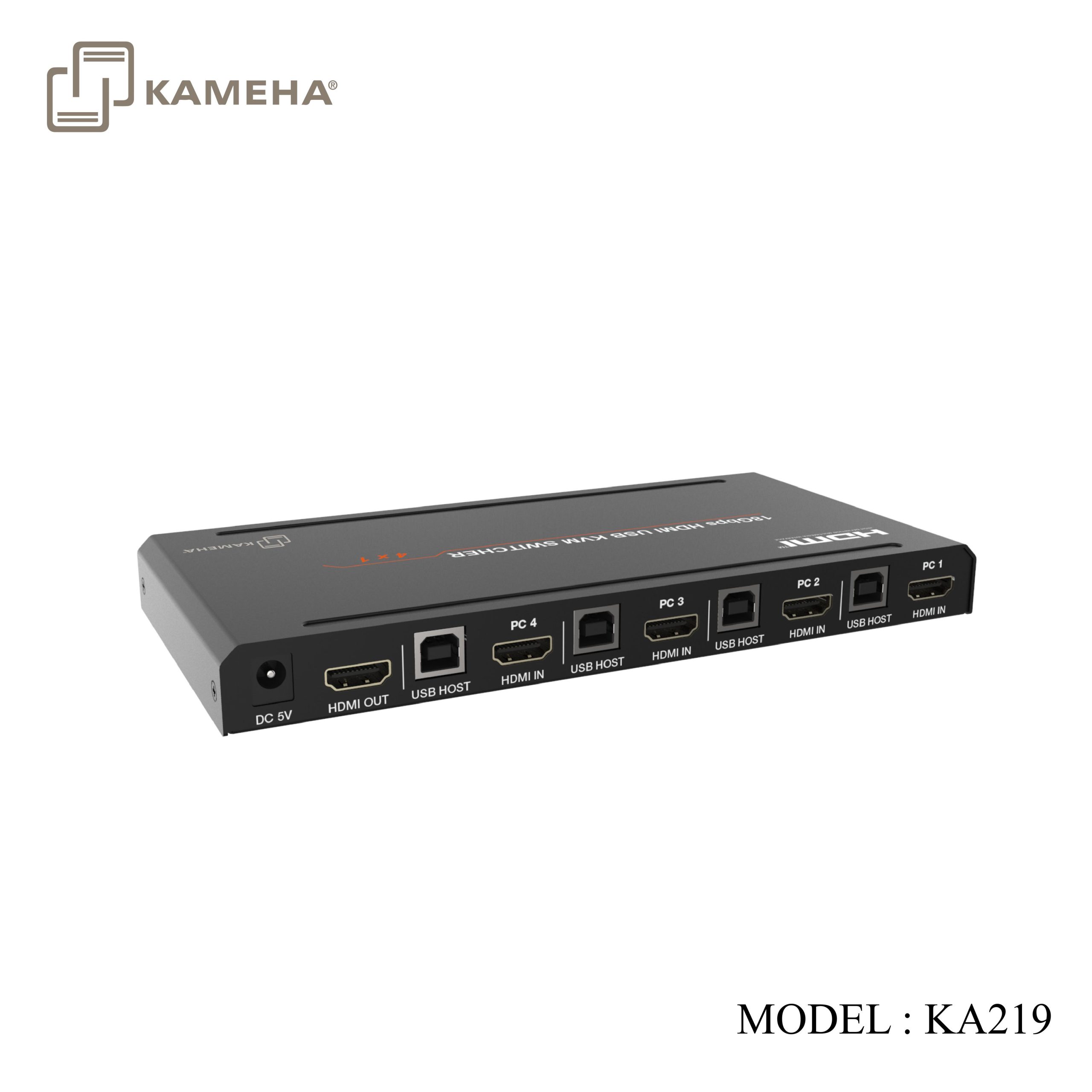

| Connection | |
| Input | 4 x HDMI [Type A, 19-pin female] 4 x USB [Type B] |
| Output | 1 x HDMI [Type A, 19-pin female] 4 x USB [Type A] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | 212mm(W) × 82mm(D) × 21mm(H) |
| Weight | 441g |
| Power Supply | Input: DC 5V/2A. Support DC5-12V wide voltage power supply; Output with overcurrent protection function |
| Power Consumption | 7.25W (Max) |
| Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity | 20~90% RH (non-condensing) |

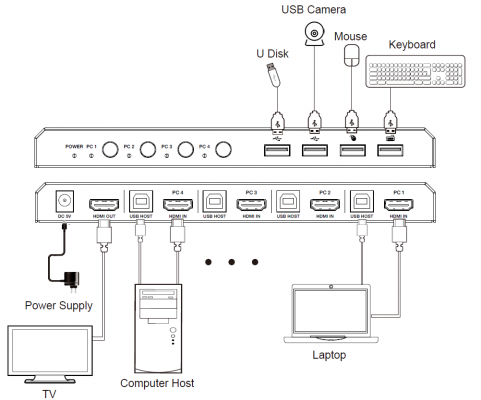

Application Example
