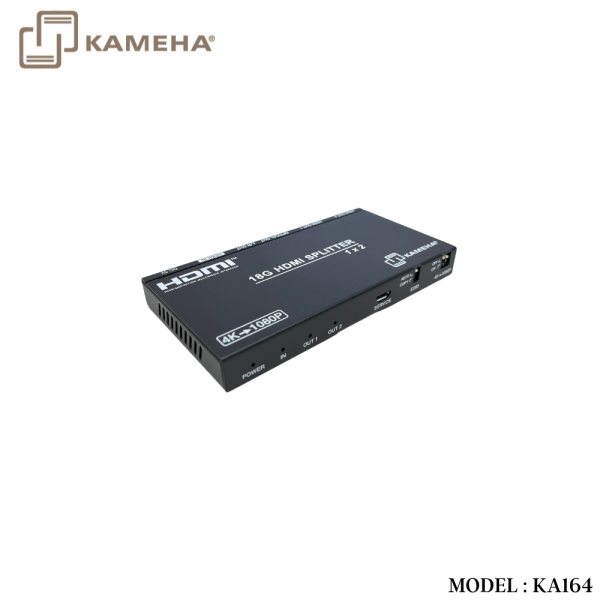

Description
Suitable for Astro UHD box and split to 4k and 1080p video at the same time.
The 18Gbps HDMI 1×2 Splitter can distribute 1 HDMI source signal to 2 HDMI display devices. It supports resolution up to 4K2K@50/60Hz (4:4:4). This product supports audio extract from HDMI source to optical and analog output. Two EDID modes (COPY/AUTO) can be selected. All output ports support signal bypass and video downscale (4K->1080P ) function.
Features
- HDMI 2.0b, HDCP2.2/HDCP1.4 compliant
- Support 18Gbps video bandwidth
- Support video resolution up to 4K2K@50/60Hz (4:4:4)
- Support digital and analog audio extract output from HDMI source ☆ Output ports support signal bypass and 4K->1080P downscale function via the dial switch on panel
- EDID can be selected COPY and AUTO modes via the dial switch on panel
- Support HDMI audio format: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD .
Specifications
| Technical | |
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 and HDCP 1.4 |
| Video Bandwidth | 18Gbps |
| Video Resolution | 720P50/60Hz, 1080P50/60Hz, 4K2K24Hz, 4K2K30Hz,
4K2K@50/60Hz (4:4:4) |
| Color Space | RGB, YCbCr 4:4:4, YCbCr 4:2:2 |
| Color Depth | 8-bit (4K60Hz), 12-bit (1080P) |
| HDMI Audio Formats | LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX,
DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD |
| L/R Audio Formats | PCM 2.0 |
| Optical Audio Formats | LPCM [2.0/2.1]CH, Dolby 5.1, Dolby True HD,Dolby DD+, DTS
5.1, DTS-ES 6, DTS-HDMA 5.1, DTS HD-HRA 5.1 |
| ESD Protection | Human-body Model:
±8kV (Air-gap discharge) , ±4kV (Contact discharge) |
| Connection | |
| Input ports | 1×HDMI Type A [19-pin female] |
| Output ports | 2×HDMI Type A [19-pin female]
1×L/R Audio out [3.5mm Stereo Mini-jack] 1×Optical out [S/PDIF] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | 120mm(W)×62.5mm(D)×14mm(H) |
| Weight | 166g |
| Power Supply | Input: AC100~240V 50/60Hz
Output: DC5V/1A (US/EU standards，CE/FCC/UL certified) |
| Power Consumption | 2.8W |
| Operating
Temperature |
0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity | 20~90% RH (non-condensing) |
Operation Controls and Functions

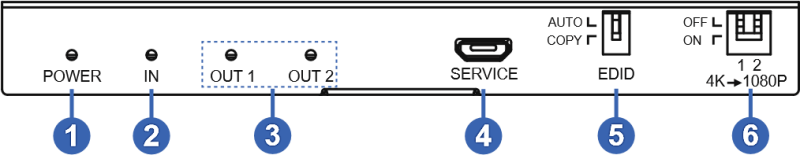

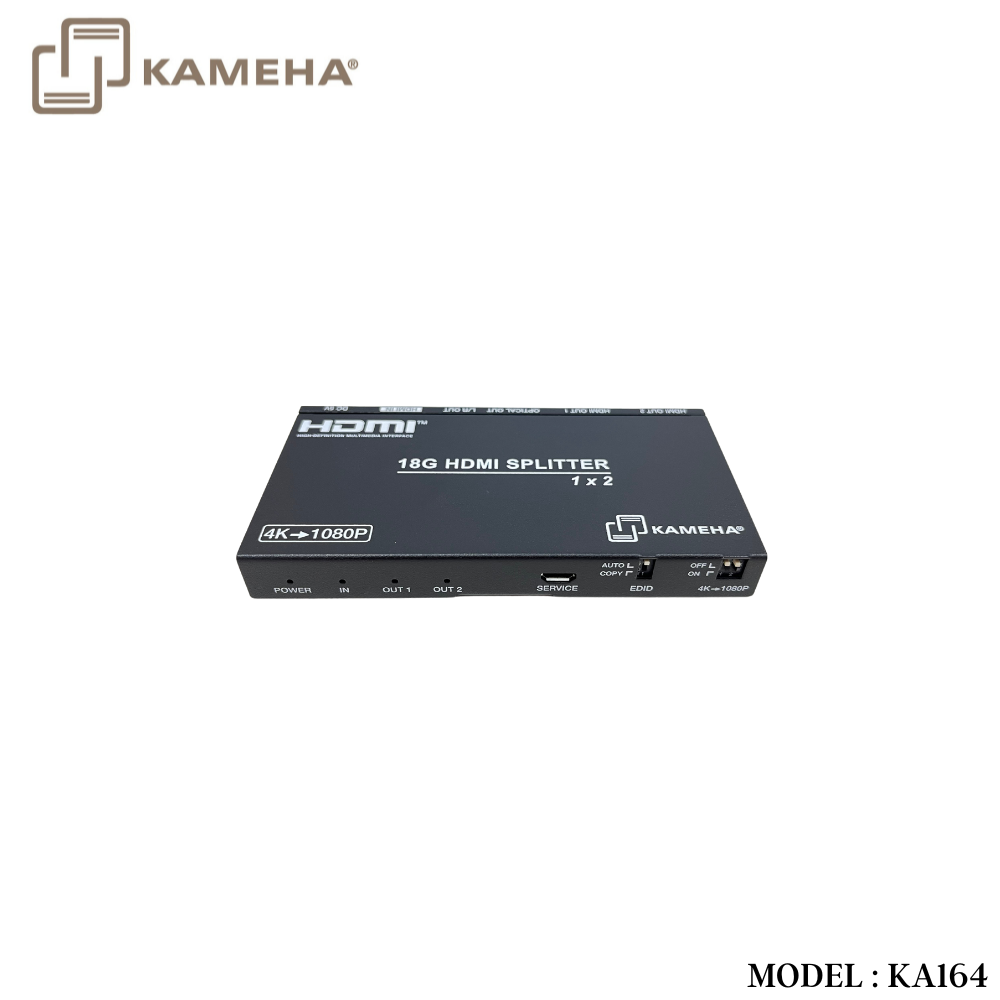

Front panel
| Number | Name | Function Description |
| 1 | POWER LED | The blue LED will be on when the device is powered on. |
| 2 | HDMI INPUT
LED |
The blue LED will be on when the HDMI IN port has connected an active HDMI source device with a HDMI cable. |
| 3 | HDMI
OUTPUT LED |
When the HDMI OUT 1/2 port has connected an avtice display device with a HDMI cable, the corresponding LED will be on. |
| 4 | SERVICE port | Used for firmware update. (Only for Manufacture use) |
| 5 | EDID (AUTO, COPY) Dial switch | Dial the switch to select EDID modes.
AUTO: Compare OUT 1 and OUT 2 displays EDID setting, then output the best resolution to source device, then the source will transmit the signal to all outputs. COPY: Copy the HDMI OUT 1 port EDID setting to source device, then the source device will transmit the signal to all outputs. |
| 6 | 4K→1080P
Dial switch |
OFF: When the switch is dialed to “OFF”, signal input and output is in bypass status.
ON: When the switch is dialed to “ON”, the input signal will be downscaled (4k->1080P) before output. |

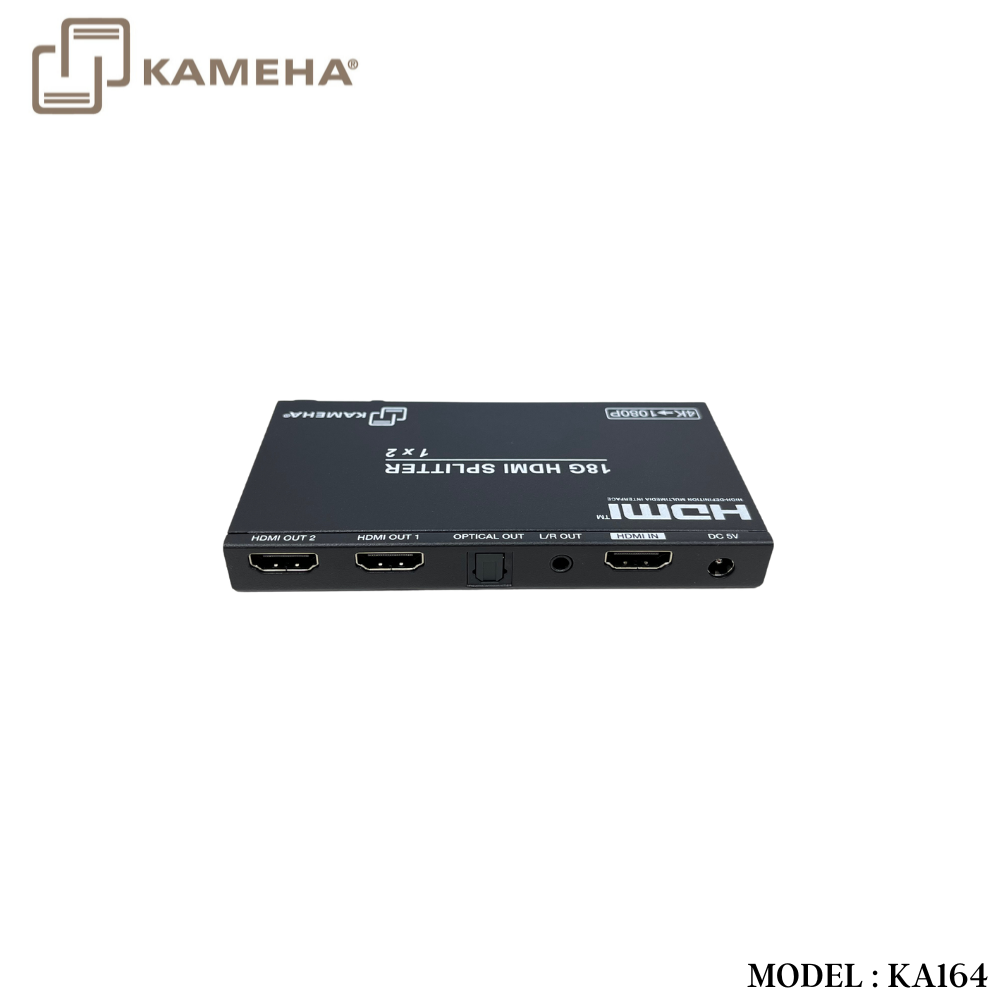

Rear panel

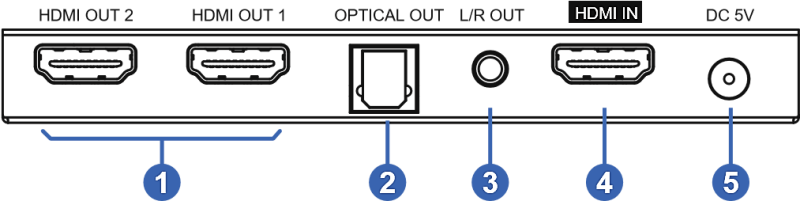

| Number | Name | Function Description |
| 1 | HDMI OUTPUT | HDMI output port. Connect to HDMI display device such as TV or monitor. |
| 2 | OPTICAL OUT | Optical audio output port. Connect the amplifier to output audio from HDMI IN port. |
| 3 | L/R OUT | Analog audio output port. Connect the speaker to output audio from HDMI IN port. |
| 4 | HDMI IN | HDMI input port. Connect to HDMI source device such as DVD player or PS4. |
| 5 | DC 5V | Plug the 5V/1A DC power cord into the unit and connect the adapter to an AC outlet. |

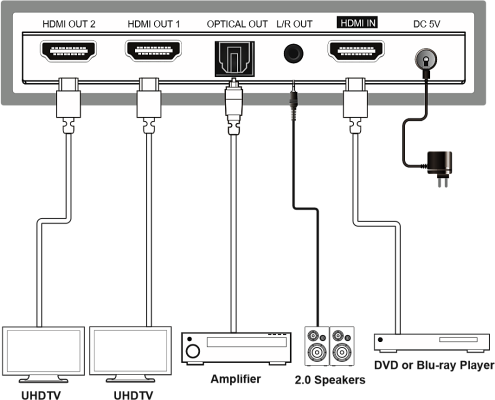

Application Example
Additional information
| Weight | 0.5 kg |
|---|---|
| Dimensions | 20.5 × 11.5 × 7 cm |
| Warranty | 1 Year Warranty |
| What's in the box | 1* HDMI Splitter |
