Description
Introduction
HDMI wall plate extender is as wall plug type extender. It is made up of a sender and a receiver separately fixed on wall and can transmit up to 100meters via cat6 cable. IR pass back is built in to allow controlling source device at the end of display.
Features
- It is made up of a sender panel and a receiver panel.
- Use Cat5/5E/6 for long distance transmission.
- Transmit 100 meters via Cat 6 cable 1080p@60Hz.
- Support IR remote control.
- One-to-many connection can be built via switcher.
- One more HDMI loop output in the sender.
- Attractive wall plate design.
Specification
| Items | Specifications |
| HDMI signal | Compatible with HDCP |
| Support resolutions | 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz |
| Support audio | PCM (48kHz, 44.1kHz) |
| Network Cable | Cat5, UTP/STP Cat5e/6 |
| Transmission distance | Up to 100meters transmission distance for 1080p@60Hz CAT5: ≤80M CAT5E: ≤100M CAT6: ≤100M |
| IR remote control | Support 20~60kHz wide frequency IR remote control |
| Working temperature | 0°C ~60°C |
| Power supply | AC 110-240V |
| Power consumption | TX: 3.5W RX: 3W |
| Panel material | PC+ABS fireproof material |
| Product dimension | 86(W) x 86(D) x 37(H) mm*2pcs |
| Weight | TX: 110g RX: 107g |
| Color | White |

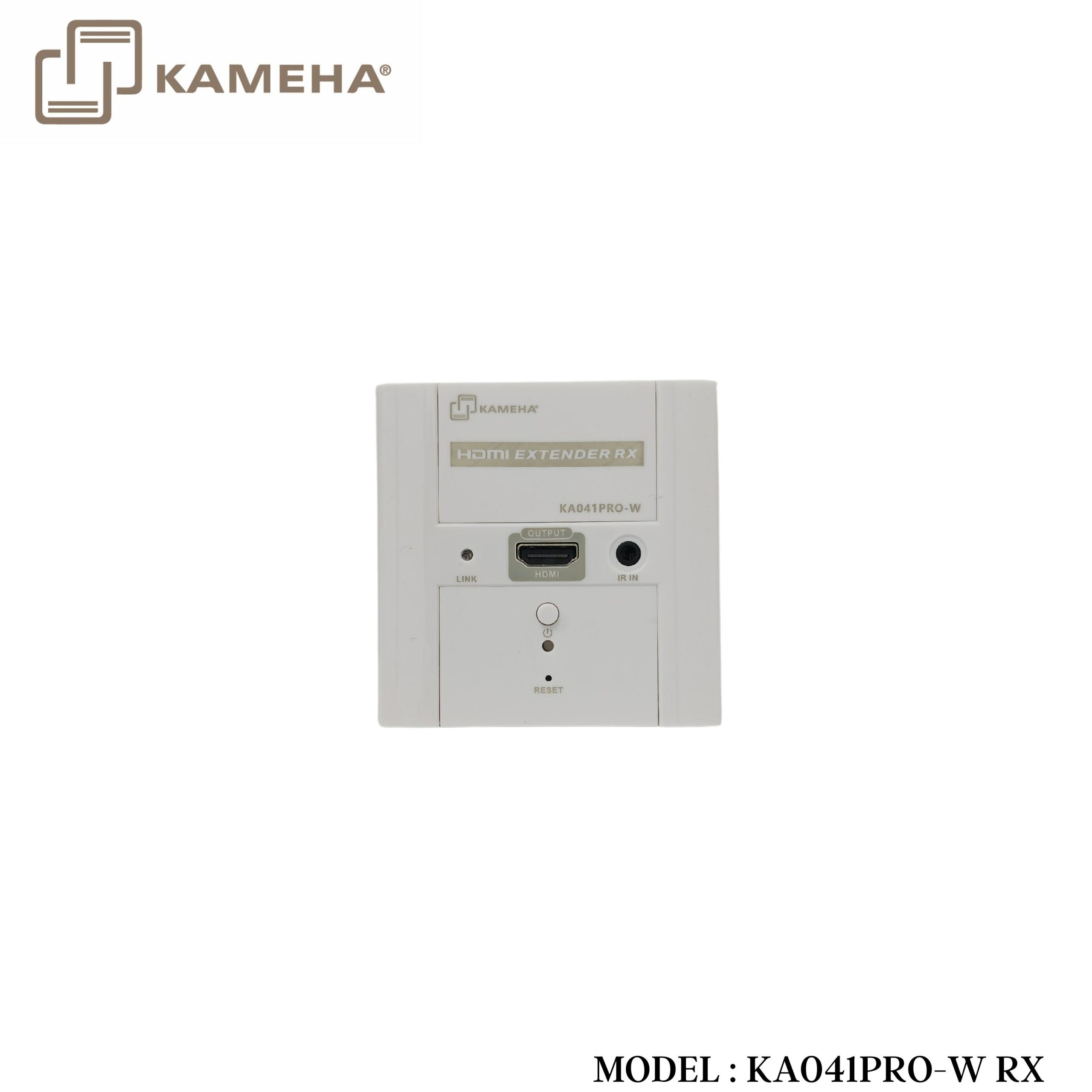

Panel Description
Connection
- One to One Connection
- One to Many Connection
KA041PRO , KA041PRO LOOP TX , KA041PRO-W, can be mixed and match as all sharing same transmission protocol.
Additional information
| Weight | 0.30 kg |
|---|---|
| Dimensions | 20.50 × 14.50 × 8.00 cm |
| Warranty | 1 Year warranty |
