CO248 DVB-T SINGLE MODULATOR

CO248 encoder & modulator is designed based on consumer electronics which allow audio/video signal input in TV distributions with applications in home entertainment, surveillance control, hotel Digital Signage, shops etc. It is an all-in-one device integrating MPEG-4 AVC/H.264 encoding and modulating to convert audio/video signals into DVB-T RF out. The signals source could be from STB, satellite receiver, closed-circuit television, cameras and antenna etc. Its output signal is to be received by a DVB-T standard TVs or STBs etc.

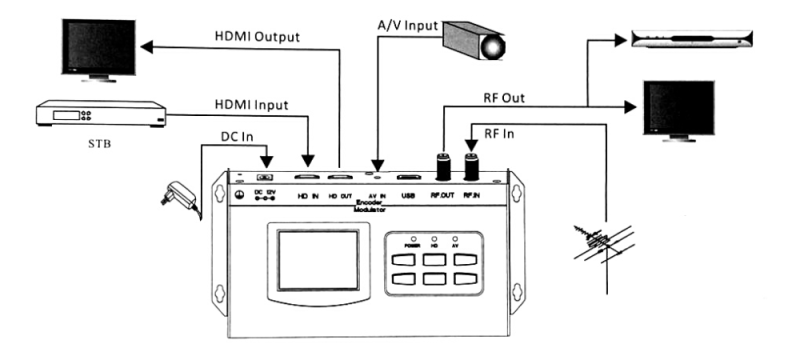

Connection Diagram
