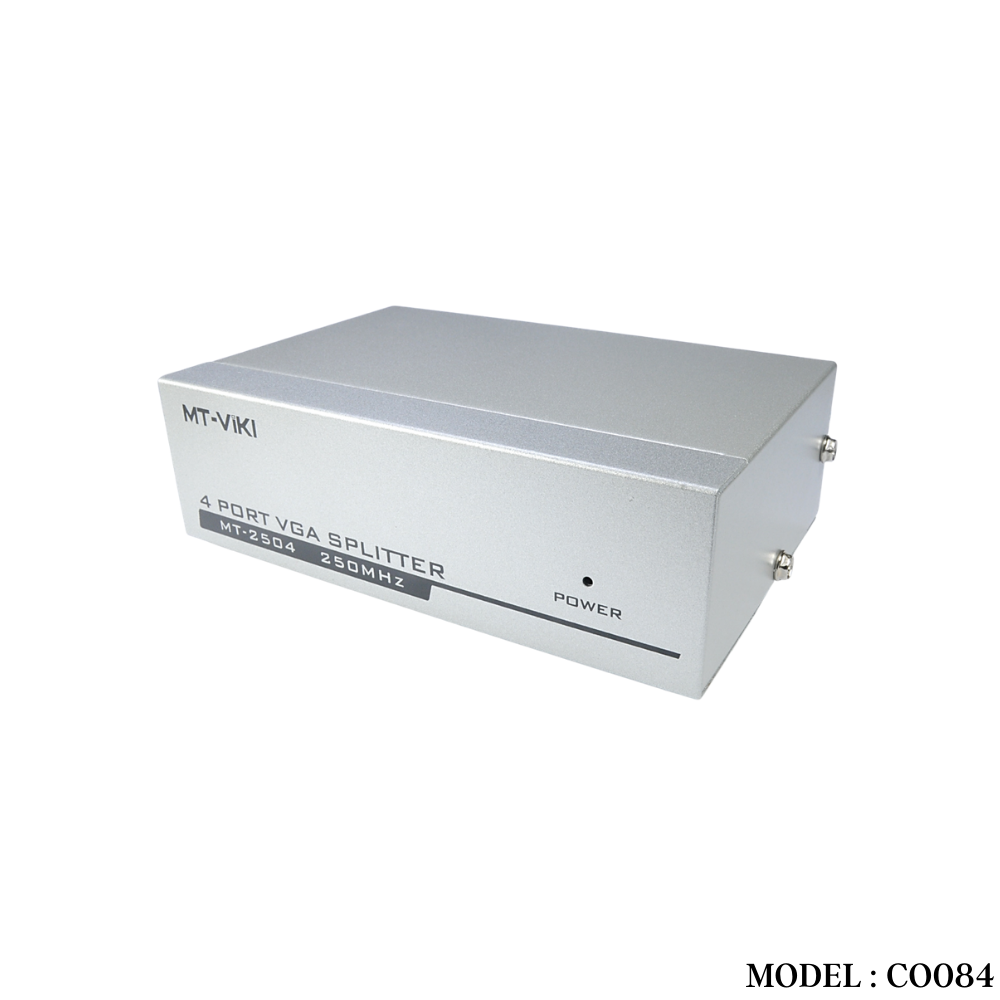

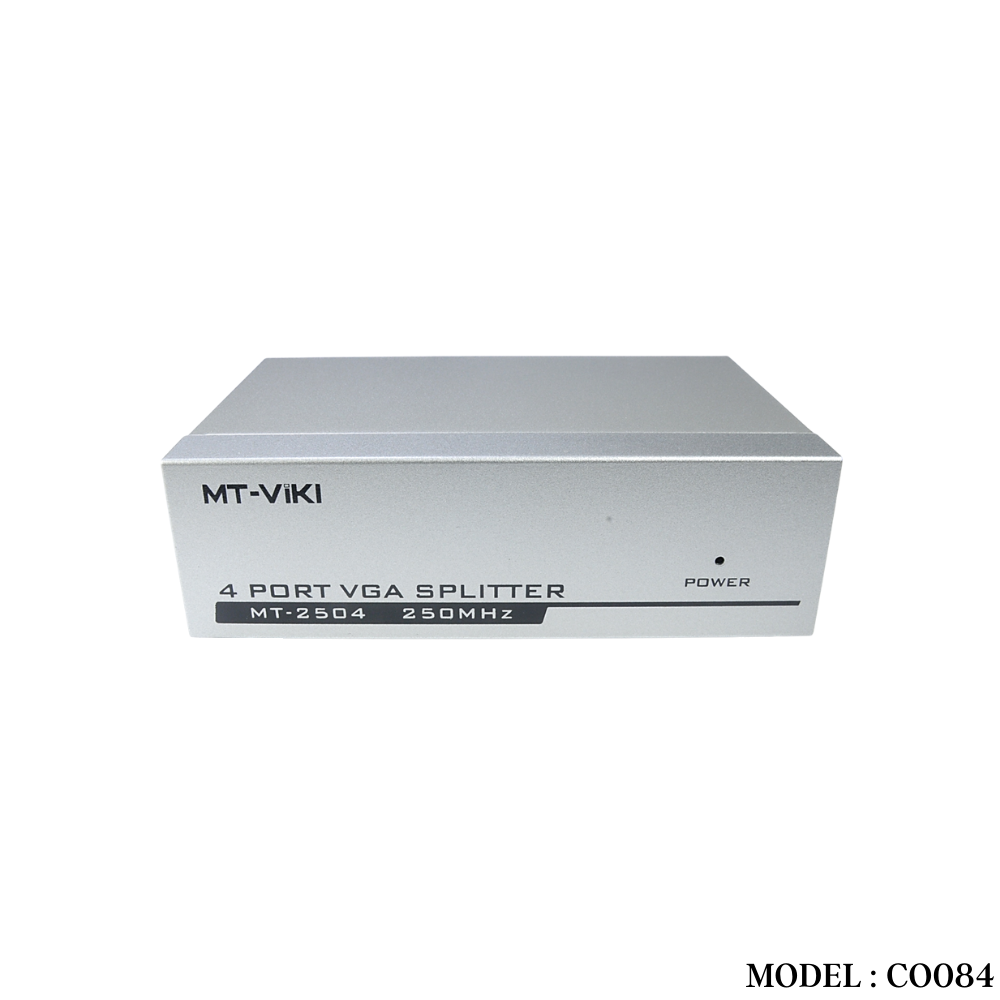

CO084 4 PORT VGA SPLITTER

Introduction:

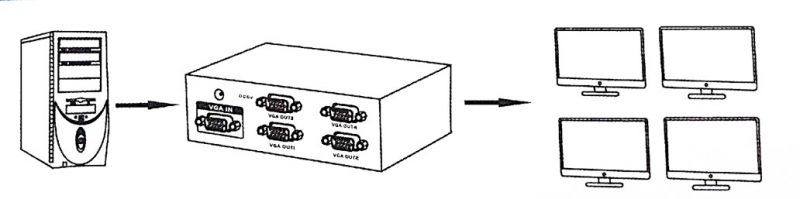

The video splitter enables up to 64 monitors to share the infromation of a host computer simultaneously. All that needed to operate the system is a personal computer(with VGA card), cables, a power adapter and the monitor splitter. These video splitters are boosting devices that duplicate video signal from any analog monitor source to two;four;or eight outputs. They povide fast solution for situations such as broadcasting video information to the public and monitoring harsh work environments from safe location. The monitor splitter also enhance the video signals over long distance broadcasting of up to 30m. Moreover, units can be daisy chained to handle as many monitors as the installation required.

Product Technology:

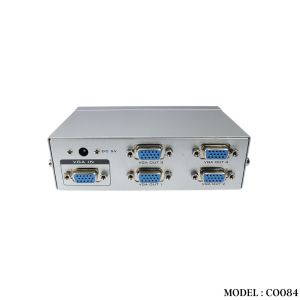

• Input Con: 1Rd VGA 15HDF Con
• Output Con: 2Rds, 4Rds, 8Rds VGA 15HDF Con
• RGB: Bandwidth 250MHz
• Input Level: 0.5-1Vp-p
• Input Resistance: 75Ω
• HV Channel: Input Level 0.7-5Vp-p
• Transmission Distance: 30m
• Resolution: 1920×1440
• Power: DC 5V

Features:

• Suitable for big screen LCD TV and projector
• RGB: bandwidth 250MHz
• Resolution: 1920×1440
• Transmission distance: 30m
