Description
Introduction:

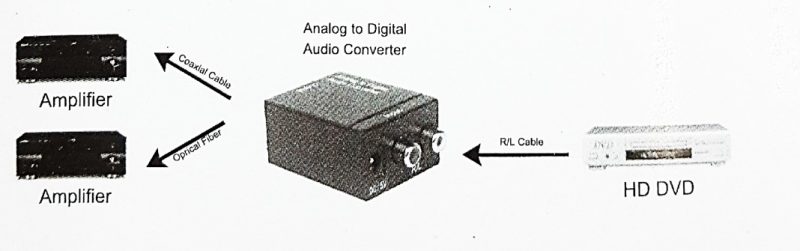

This Analog to Digital Audio Converter is designed for either home or professional audio switching. It converts analog stereo audio signal from R/L input to Coaxial and Toslink outputs simultaneously. The output digital audio signal is 2-channel uncompressed LPCM (Linear Pulse Code Modulation) with sampling rate at 48 KHz. This converter is small and quite easy to install.
Featurs:
- Supports uncompressed 2-channel LPCM digital audio signal output.
- Supports output sampling rate at 48 KHz.
- Provides electromagnetic-noise-free-transmission.
- Easy to install and simple to operate.
Specifications:
| Signal Inputs/Output | |
| Input Audio | Stereo R/L |
| Output Audio | LPCM |
| Connector | |
| Input audio connector | 2XRCA (R/L) |
| Output audio connector | Toslink, 1XRCA(Coaxial) |
| Audio connector | Toslink Audio and Digital Audio |
| Operating Frequency | |
| Sampling rate | 48KHz |
| Mechanical | |
| Size(L-W-H) | 50x40x35MM |
| Weight (Net) | 78g |
| Warranty | |
| Limited Warranty | 3 Months |
| Environmental | |
| Operating Temperature | 0*C to +70*C |
| Operating Humidity | 10% to 85% RH (no condensation) |
| Storage Temperature | -10*C to +80*C |
| Storage Humidity | 5% to 90% RH (no condensation) |
| Power Requirement | |
| External Power Supply | 5V DC@2A |
| Power Consumption | 0.5watts(max) |
| Regulatory Approvals | |
| Converter Units | FCC, CE, UL |
| Power Supply | UL, CE, FCC |
| Accessories Adapter | |
| AC Power Adapter | US standard |
| User Manual | English Version |
Additional information
| Weight | 0.3 kg |
|---|---|
| Dimensions | 13.5 × 12 × 5.8 cm |
| Warranty | 3 Months Warranty |
| What's in the box | 1* ANALOG To DIGITAL Audio Converter |
