CA403 DTECH USB V2.0 AM-AF 10METER WITH CHIPSET

Features

1. The transmission distance of 10 meters.
2. The transfer rate of 480 m/SEC.
3. USB standard, backward compatibility.
4. Support the high speed, full speed and low speed device, plug and play, no software driver.
5. Supports Windows 98 /ME/2000/XP/Vista/7/8, MAC system, etc.
6. Support all USB2.0 standard equipment: camera, mouse, keyboard, card reader, U disk, USB barcode scanners, and other digital devices.
7. Ordinary USB device without power supply can be used directly.
8. High power devices should be used to connect power.

Products Details

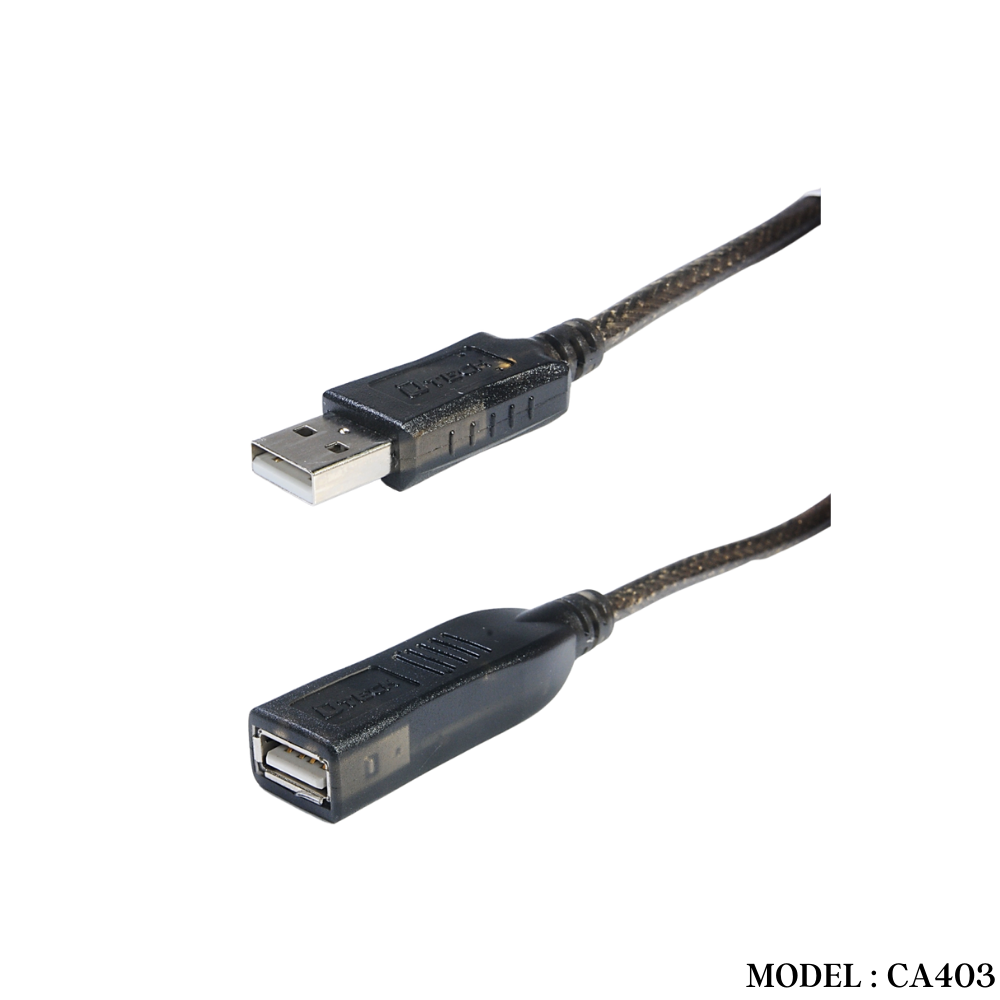

1.Standard USB Type A male to type A female(Type A Male to Type B Male) connectors.
2.Connect any USB 2.0/1.1 device with no performance compromises.
3.USB2.0 Certified for High Speed Data Transfer rate of up to 480 Mbps.
4.Provides up to 250mA of power to the connected device.
5.Built-in signal amplification chipset to maintain Hi-Speed USB signal quality, electrical / timing specifications and signal / data integrity over long distance.
6.The Cable features premium shielding and a built in amplification chipset that provides protection against interference from electromagnetic and radio-frequency signals thus enabling higher performance.
7.Premium double shielding minimizes signal interference.
8.Shares available USB power between cable itself and attached device.

9.Connect remote USB devices such as printers, speakers, scanners, displays, keyboards, USB displays, game console controllers etc to your computer.

USB Compliant: USB 1.1 and 2.0 Compatible
Connector Type: USB Type A Male, USB Type A Female,USB Type B Male,Can be optional
Connectors: The repeater cable features gold-plated connectors that resist corrosion for signal purity(nickel plated is optional)
Cable Spec: 28/24 AWG
Conductor: Oxygen free copper conductor, better signal transmission and long-time using
Triple shield: twisted pair conductor, Al foil and braid; better signal transmission

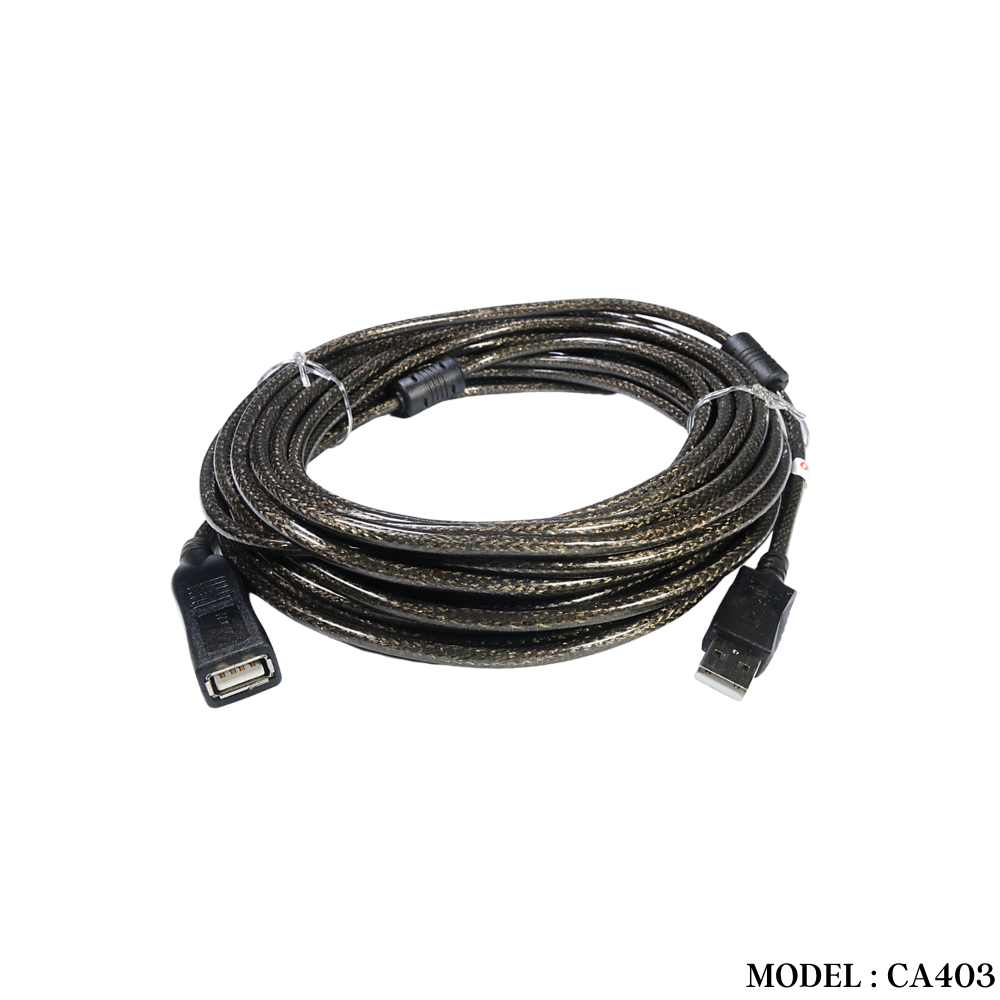

Cable Length:10 meter
Transfer Rate: 100/200/480 Mbps
USB Distance Limitation: ideal For Connecting Enclosures & Other Peripherals
Built-in repeater: helps maintain Hi-Speed USB signal quality, electrical and timing specifications
Compatibility: Windows 7，Windows 8, Vista, XP, 2000, ME, 98SE,Mac OS,Linux,No drivers required on any OS
