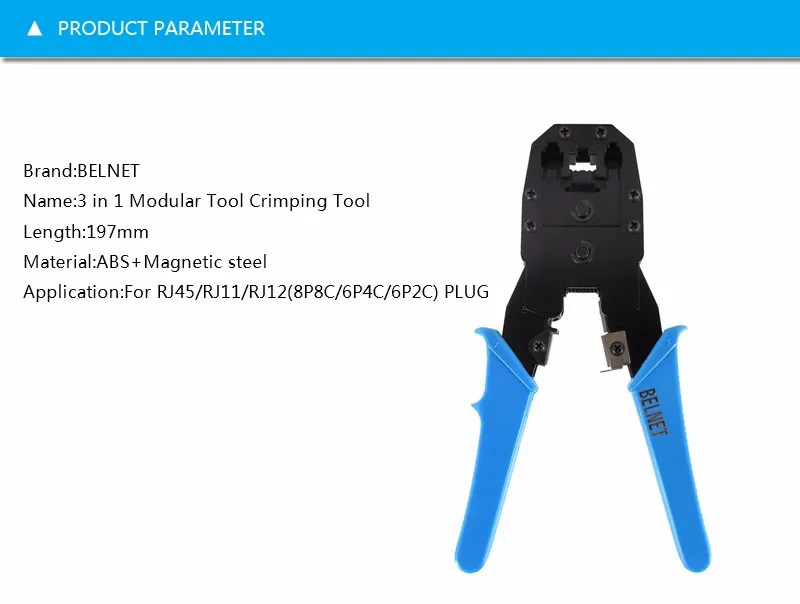

OT219 BELNET NETWORK CRIMPING TOOLS 2IN1
enlarge

OT219 BELNET NETWORK CRIMPING TOOLS 2IN1

Add to Compare
RM59.00
Item details
SKU: OT219
Weight: 500 grams
Stock: Stock available

Brand: BELNET
  Share This   Add To Facebook   Add To MySpace
Non-Ratchet Type: Remove the closed lock to open the handles.
Ratchet Type: Squeeze the handles until it stops to open the handles.

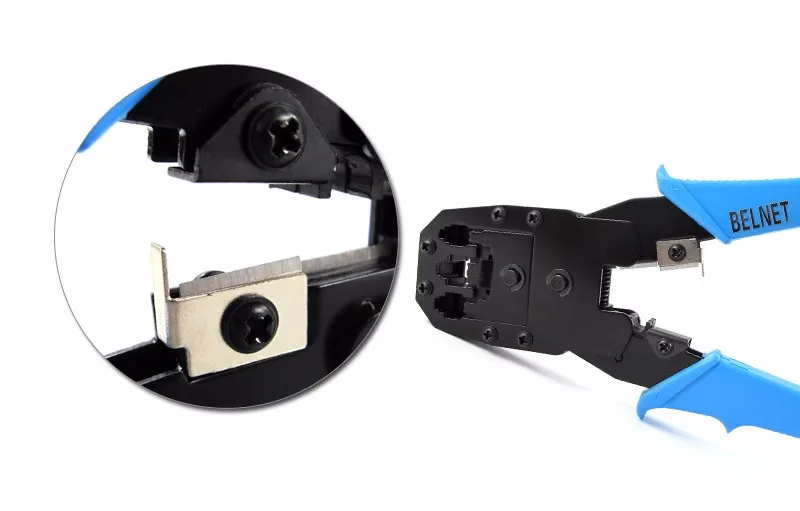

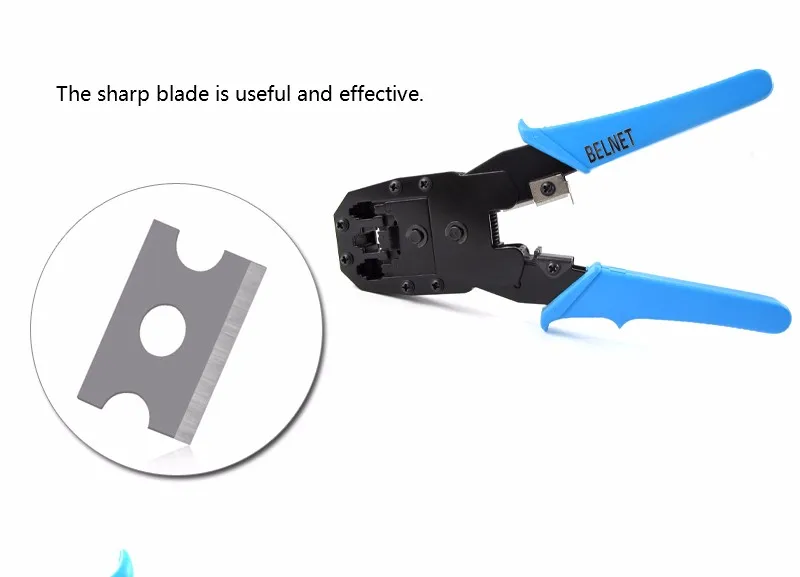

1.Cutting modular cable:
Place the single-bladed side of the tool's cutter facing you and cut the modular calbe to the desired length. Make sure to cut the ends of the cord straight across, not diagonally.
2.Stripping modular calbe (Flat Cable):
2a.Insert 4P/6P cable into the two-bladed side of the tool's stripper until it touches the stop guide.
2b.Insert 8P cable into the two-bladed side of the tool's stripper and let it extend a little past the lower cut blade.
3.Squeeze handles until it stops, cable must be kept perpendicular and then pull from the tool.
4.Stripping Round Cable
Insert the cable into the round stripping hole, turn the crimper in counter clockwise direction and cable in clockwise at the same time.
5.Remove the outer jacket, insert the stripped cable into the plug and be sure the left wire at one end matches the right wire at the other end.

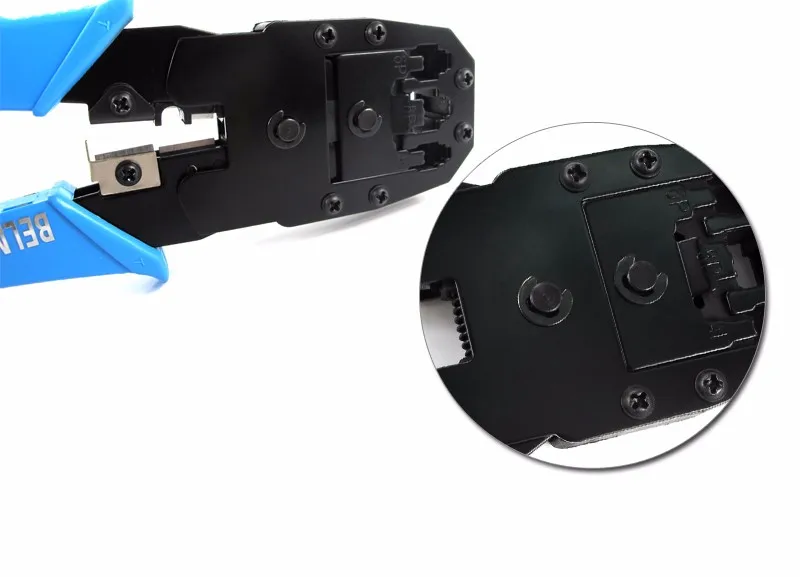

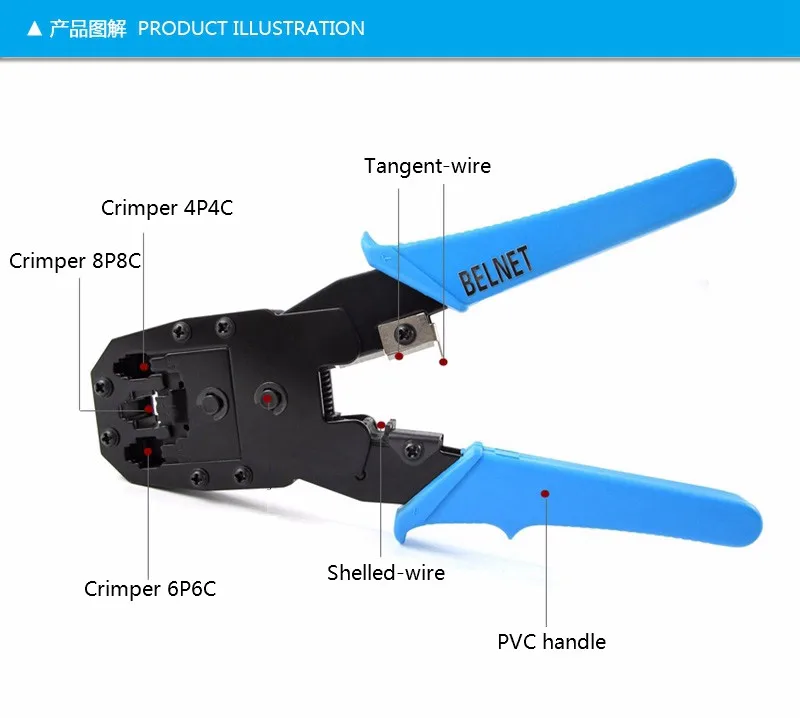

6.Place modular plug with cable into the tool's holder. Be sure the stripped wire is between the tab and gold contacts. Squeeze handles until it stops.

7. 4P holder is located on the back side of the tool.

23456789
